Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 681:

  A network engineer executes the command show ip eigrp vrf purple topology. Which type of information is displayed as a result?

  A. routes for a global routing table
  B. updates that were sent for a specific routing table
  C. active neighbors for a global routing table
  D. route successors for a specific routing table
  D. route successors for a specific routing table

• Question 682:

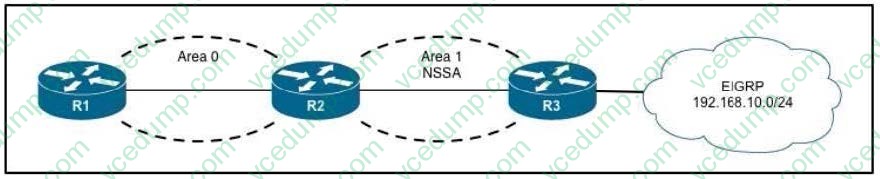

  Refer to the exhibit. Which LSA type does R3 propagate into Area 1 for the 192.168.10.0/24 network?

  A. type 3 LSA
  B. type 5 LSA
  C. type 7 LSA
  D. type 10 LSA
  C. type 7 LSA

• Question 683:

  When an EIGRP router discovers a new neighbor, which packet type does the router send to help the neighbor build its topology table?

  A. Replies
  B. Requests
  C. Updates
  D. Queries
  C. Updates

• Question 684:

  Which two GRE features can you configure to prevent fragmentation?

  A. TCP MSS
  B. PMTUD
  C. IP MTU/
  D. MTU ignore
  E. UDP windows sizes
  F. DF bit clear
  A. TCP MSS
  B. PMTUD

• Question 685:

  Other than a working EIGRP configuration, which option must be the same on all routers for EIGRP authentication key rolleover to work correctly?

  A. SMTP
  B. SNMP
  C. Passwords
  D. Time
  D. Time

• Question 686:

  Which two statements are true about 6to4 tunnels? (Choose two.)

  A. In a 6to4 tunnel, the first two bytes of the IPv6 address will be 0x2002 and the next four bytes will be the hexadecimal equivalent of the IPv4 address
  B. In a 6to4 tunnel, the first two bytes of the IPv6 address will be locally derived and the next two bytes will be the hexadecimal equivalent of the IPv4 address.
  C. In a 6to4 tunnel, the IPv4 address 192.168.99.1 would be converted to the 2002:c0a8:6301::/48 IPv6 address.
  D. In a 6to4 tunnel, the IPv4 address 192.168.99.1 would be converted to the 2002:c0a8:6301::/16 IPv6 address.
  E. In a 6to4 tunnel, the IPv4 address 192.168.99.1 would be converted to the 2002:1315:4463:1::/64 IPv6 address.
  A. In a 6to4 tunnel, the first two bytes of the IPv6 address will be 0x2002 and the next four bytes will be the hexadecimal equivalent of the IPv4 address
  C. In a 6to4 tunnel, the IPv4 address 192.168.99.1 would be converted to the 2002:c0a8:6301::/48 IPv6 address.

• Question 687:

  Which two routers can do OSPF route summarization? (Choose Two)

  A. ABR
  B. ASBR
  C. Summary router
  D. internal router
  E. Backbone router
  A. ABR
  B. ASBR

• Question 688:

  (Choose three.)

  Which three protocols are supported with EVN?

  A. IS-IS
  B. EIGRP
  C. RIP
  D. OSPF
  E. BFD
  F. BGP
  B. EIGRP
  D. OSPF
  F. BGP

• Question 689:

  By default, what is the maximum number of equal-metric paths that BGP uses for load balancing?

  A. 1
  B. 2
  C. 4
  D. 6
  D. 6

• Question 690:

  Which NAT Command do you enter to disable dynamic ARP learning on an interface?

  A. R(config-if) # ip nat enable
  B. R(config-if) # ip nat inside
  C. R(config-if)# ip nat outside
  D. R(config)# ip nat allow-static-host
  E. R(config)# ip nat service
  D. R(config)# ip nat allow-static-host
