Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 701:

  An engineer is asked to monitor the availability of the next-hop IP address of 172.16.201.25 every 3 seconds using an ICMP echo packet via an ICMP echo probe. Which two commands accomplish this task? (Choose two.)

  A. router(config-ip-sla)#icmp-echo 172.16.201.25 source-interface FastEthernet 0/0
  B. router(config-ip-sla-echo)#timeout 3
  C. router(config-ip-sla)#icmp-jitter 172.16.201.25 interval 100
  D. router(config-ip-sla-echo)#frequency 3
  E. router(config-ip-sla)#udp-echo 172.16.201.25 source-port 23
  F. router(config-ip-sla-echo)#threshold 3
  A. router(config-ip-sla)#icmp-echo 172.16.201.25 source-interface FastEthernet 0/0
  D. router(config-ip-sla-echo)#frequency 3

• Question 702:

  In which scenario can asymmetric routing occur?

  A. active/active firewall setup
  B. redundant routers running VRRP
  C. active/standby firewall setup
  D. single path in and out of the network
  A. active/active firewall setup

• Question 703:

  A router with an interface that is configured with ipv6 address autoconfig also has a linklocal address assigned. Which message is required to obtain a global unicast address when a router is present?

  A. DHCPv6 request
  B. router-advertisement
  C. neighbor-solicitation
  D. redirect
  B. router-advertisement

• Question 704:

  % Interface GigabitEthernet1 IPv4 disabled and address(es) removed due to enabling VRF CUST_A

  Refer to the exhibit An engineer is enabling VPN service for a customer and notices this output when placing the customer-facing interface into a VRF Which action corrects the issue?

  A. Reconfigure the IP address on Gigabit Ethernet 1
  B. Disabling the VRF CUST_A
  C. Reset interface Gigabit Ethernet 1
  D. bling IPv6 on the interface
  A. Reconfigure the IP address on Gigabit Ethernet 1

• Question 705:

  A network engineer wants to monitor hop-by-hop response time on the network. Which IP SLA operation accomplishes this task?

  A. UDP echo
  B. TCP echo
  C. ICMP path echo
  D. ICMP path jitter
  C. ICMP path echo

• Question 706:

  What type of IPv6 packet will indicate traffic from single host and single node?

  A. multicast
  B. unicast
  C. broadcast
  D. anycast
  B. unicast

• Question 707:

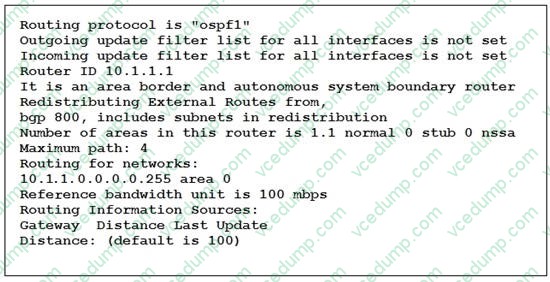

  Refer to the exhibit. Based on the output from the show ip protocols vrf RED command, what is happening with the routing processes?



  A. BGP 800 is redistributing into OSPF 1
  B. Static routers are redistributed into BGP 800
  C. OSPF 1 is redistributing into BGP 800
  D. Static routes are redistributed into OSPF 1
  A. BGP 800 is redistributing into OSPF 1

• Question 708:

  Which type of traffic does DHCP snooping drop?

  A. discover messages
  B. DHCP messages where the source MAC and client MAC do not match
  C. traffic from a trusted DHCP server to client
  D. DHCP messages where the destination MAC and client MAC do not match
  B. DHCP messages where the source MAC and client MAC do not match

• Question 709:

  You need the IP address of the devices with which the router has established an adjacency. Also, the retransmit interval and the queue counts for the adjacent routers need to be checked. What command will display the required information?

  A. show ip eigrp adjacency
  B. show ip eigrp topology
  C. show ip eigrp interfaces
  D. show ip eigrp neighbor
  D. show ip eigrp neighbor

• Question 710:

  What to configure on routes if TACACS+ authentication fails? (Choose two.)

  A. Configure local username and password
  B. Include `local' keyword in AAA config
  C. aaa accounting exec default start-stop tacacs+
  D. ip ssl certificate-data-file tftp 192.168.9.210 certfile
  A. Configure local username and password
  B. Include `local' keyword in AAA config
