• Question 191:

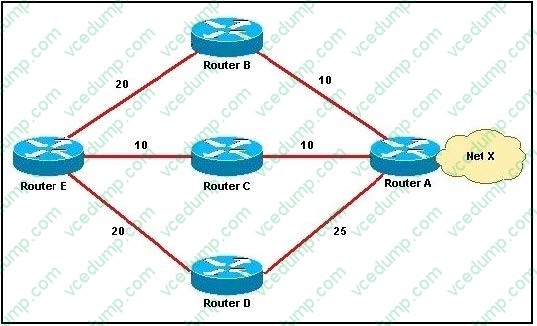

  Router E is configured with the EIGRP variance 2 command.



  What path will Router E take to reach Router A?

  A. only E-D-A
  B. only E-B-A
  C. only E-C-A
  D. both E-B-A and E-C-A
  E. both E-B-A and E-D-A
  F. all available paths.
  D. both E-B-A and E-C-A

• Question 192:

  In which two ways can NetFlow data be viewed? (Choose two.)

  A. CLI
  B. NetFlow
  C. built-in GUI
  D. syslog server interface
  E. web interface
  A. CLI
  B. NetFlow

• Question 193:

  Which routing protocol suppresses both the incoming and outgoing route advertisements when you configure the passive-interface command on the interface?

  A. OSPF
  B. EIGRP
  C. RIP
  D. ISIS
  E. BGP
  B. EIGRP

• Question 194:

  Company is deploying a multicast application that must be accessible between sites, but must not be accessible outside of the organization. Based on the scoping requirements, the multicast group address for the application will be allocated out of which range?

  A. FF00:/16
  B. FF0E:/16
  C. FF02:/16
  D. FF08:/16
  D. FF08:/16

• Question 195:

  Which statements best describes the following two OSPF commands, which are used to summarize routes? area 0 range 192.168.110.0 255.255.0.0 summary-address 192.168.110.0 255.255.0.0

  A. The area range command defines the area where the network resides. The summary-address command enables autosummanzation
  B. The area range command defines the area where the network resides. The summary-address command summanzes a subnet for all areas
  C. The area range command specifies the area where the subnet resides and summarizes it to other areas. The summary-address command summarizes external routes
  D. The area range command summarizes subnets for a specific area. The summary-address command summaries a subnet for all areas
  C. The area range command specifies the area where the subnet resides and summarizes it to other areas. The summary-address command summarizes external routes

• Question 196:

  When a packet is denied by an IPv6 traffice filter, which additional action does te device perform?

  A. A creates a null route for te destination and adds it to the route table
  B. It scans the rest of the ACL for a permit entry matching the destination.
  C. It generates a TCP Fin bit and sends it to the source.
  D. It generates an ICMP unreachable message for the frame.
  D. It generates an ICMP unreachable message for the frame.

• Question 197:

  A network administrator uses IP SLA to measure UDP performance and notices that packets on one router have a higher one-way delay compared to the opposite direction. Which UDP characteristic does this scenario describe?

  A. latency
  B. starvation
  C. connectionless communication
  D. nonsequencing unordered packets
  E. jitter
  A. latency

• Question 198:

  Single Multi-Homed what is True?

  A. connected to two ISPs using single links
  B. connected to two ISPs using redudant links
  C. connected to one ISP using redudant links
  D. connected to one ISP using single links
  A. connected to two ISPs using single links

• Question 199:

  Which task must you perform to enable a point-to-point Frame Relay connection?

  A. Configure the encapsulation type
  B. Disable inverse ARP
  C. Enable inverse ARP
  D. Configure static address mapping
  A. Configure the encapsulation type

• Question 200:



  Refer to the exhibit.How can you configure a second export destination for IP address 192.168.10.1?

  A. specify a different TCP port
  B. specify a different UDP port
  C. specify a VRF
  D. configure a version 5 flow-export to the same destination
  E. specify a different flow ID
  B. specify a different UDP port
