Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 201:

  A network engineer is trying to modify an existing active NAT configuration on an IOS router by using the following command:

  (config)# no ip nat pool dynamic-nat-pool 192.1.1.20 192.1.1.254 netmask 255.255.255.0 Upon entering the command on the IOS router, the following message is seen on the console: %Dynamic Mapping in Use, Cannot remove message or the %Pool outpool in use, cannot destroy

  What is the least impactful method that the engineer can use to modify the existing IP NAT configuration?

  A. Clear the IP NAT translations using the clear ip nat traffic * " command, then replace the NAT configuration quickly, before any new NAT entries are populated into the translation table due to active NAT traffic
  B. Clear the IP NAT translations using the clear ip nat translation * " command, then replace the NAT configuration quickly, before any new NAT entries are populated into the translation table due to active NAT traffic.
  C. Clear the IP NAT translations using the reload command on the router, then replace the NAT configuration quickly, before any new NAT entries are populated into the translation table due to active NAT traffic.
  D. Clear the IP NAT translations using the clear ip nat table * " command, then replace the NAT configuration quickly, before any new NAT entries are populated into the translation table due to active NAT traffic.
  B. Clear the IP NAT translations using the clear ip nat translation * " command, then replace the NAT configuration quickly, before any new NAT entries are populated into the translation table due to active NAT traffic.

• Question 202:

  Which statement is true about EBGP?

  A. An internal routing protocol can be used to reach an EBGP neighbor.
  B. The next hop does not change when BGP updates are exchanged between EBGP neighbors.
  C. A static route can be used to form an adjacency between neighbors.
  D. EBGP requires a full mesh.
  C. A static route can be used to form an adjacency between neighbors.

• Question 203:

  Technologies used in preparing Service Provider IPv6? (Choose Two)

  A. 6ND
  B. 6RD
  C. 6VPE
  D. VRF-Lite
  E. DS-Lite
  F. Dual-stackA
  B. 6RD
  E. DS-Lite

• Question 204:

  Which address is an IPv6 multicast addreess?

  A. 2002 0 :0: 0 :0 :0 :0: 2
  B. 00020 0 :0:0: 0:0:2
  C. FF02:0:0 :0 :0:0 :0 :2
  D. FE02 0:0 :0 :0 :0:0:2
  C. FF02:0:0 :0 :0:0 :0 :2

• Question 205:

  Which Cisco Express Forwarding component maintains Layer 2 addressing information?

  A. FIB, adjacency table
  B. adjacency table
  C. FIB, RIB, Adjanceny table
  D. FIB
  E. RIB
  B. adjacency table

• Question 206:

  Which two statements about AAA with the local database are true?(Choose two)

  A. The local database can serve only as a backup authentication method
  B. It support a limited number of username and passwords
  C. Accounting is not supported locally
  D. By default, it is queried before a TACACS+ or RADIUS server
  E. Authorization is available only for one-time-use logins
  B. It support a limited number of username and passwords
  C. Accounting is not supported locally

• Question 207:

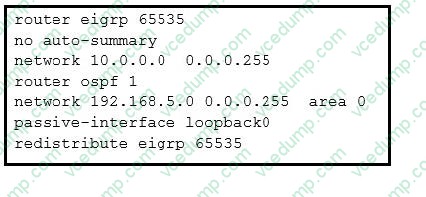

  Refer to the exhibit.



  If this configuration is applied to a device that redistributes EIGRP routes into OSPF, which two statements about the behavior of the device are true? (Choose two.)

  A. EIGRP routes appears in the routing table as N2 OSPF routes.
  B. The device redistributes all EIGRP networks into OSPF.
  C. The device redistributes only classful EIGRP networks into OSPF.
  D. EIGRP routes appears in the routing table as E2 OSPF routes.
  E. The device router ID is set to Loopback0 automatically.
  F. EIGRP routes appears as type 3 LSAs in the OSPF database.
  C. The device redistributes only classful EIGRP networks into OSPF.
  D. EIGRP routes appears in the routing table as E2 OSPF routes.

• Question 208:

  What does the command show ip vrf purple TOPOLOGY shows:

  A. shows the feasible successors for a specific route table
  B. shows routing table for vrf purple
  C. show topology table
  D. show protocols to be used
  A. shows the feasible successors for a specific route table

• Question 209:

  Which two conditions can cause BGP neighbor establishment to fail? (Choose Two)

  A. There is an access list blocking all TCP traffic between the two BGP neighbors
  B. The IBGP neighbor is not directly connected.
  C. BGP synchronization is enabled in a transit autonomous system with fully-meshed IBGP neighbors.
  D. The BGP update interval is different between the two BGP neighbors
  E. The BGP neighbor is referencing an incorrect autonomous system number in its neighbor statement.
  A. There is an access list blocking all TCP traffic between the two BGP neighbors
  E. The BGP neighbor is referencing an incorrect autonomous system number in its neighbor statement.

• Question 210:

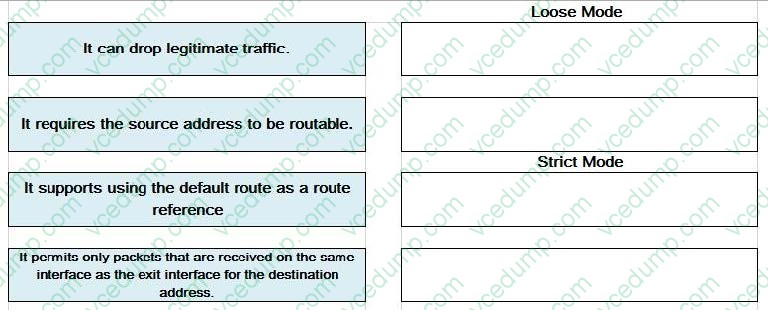

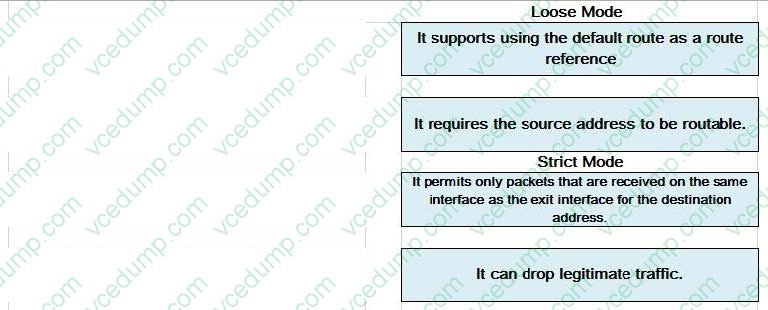

  Drag and Drop

  Select and Place:
