Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 181:

  Which configuration parameter is invalid when configuration unicast reverse path forwarding?

  A. allow self ping to router
  B. allow default route
  C. allow based on ACL match
  D. source reachable via both
  D. source reachable via both

• Question 182:

  Device R1 has 1 Gigabit and 10 Gigabit Ethernet interfaces,Which command do you enter so that takes full advantage of OSPF costs?

  A. R1(config router)#auto-cost reference-bandwidth 10000
  B. R1(config route-map)#set metric 10000000000
  C. R1(config if)#ip ospf cost 10000
  D. R1(config router)#auto*cost reference-bandwidth 10000000000
  E. R1(config if)# ip ospf cost 100000000
  F. R1(config route-map)#set metric 10000
  A. R1(config router)#auto-cost reference-bandwidth 10000

• Question 183:

  You have been asked to evaluate how EIGRP is functioning in a customer network.

  A. 10
  B. 20
  C. 30
  D. 40
  B. 20

• Question 184:

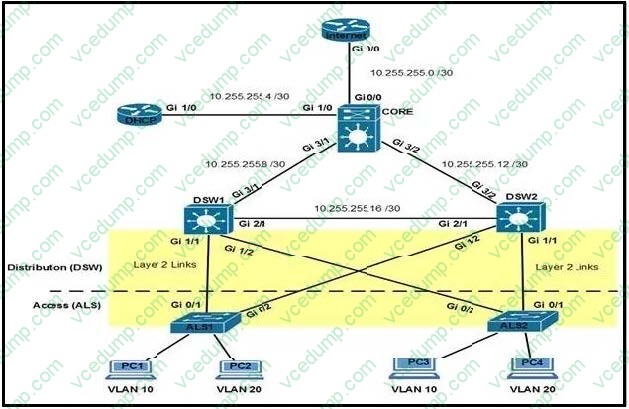

  Refer to the exhibit.



  Which option prevents routing updates from being sent to the DHCP router, while still allowing routing update messages to flow to the Internet router and the distribution switches?

  A. DHCP(config-router)# passive-interface default DHCP(config-router)# no passiveinterface Gi1/0 Internet(config-router)# passive-interface Gi0/1 Internet (config-router)#passive-interface Gi0/2
  B. Core(config-router)# passive-interface Gi0/0 Core(config-router)# passive-interface Gi3/1 Core(config-router)# passive-interface Gi3/2 DHCP(config-router)# no passiveinterface Gi1/0
  C. Core(config-router)# passive-interface default Core(config-router)# no passive-interface Gi0/0 Core(config-router)# no passive-interface Gi3/1 Core(config-router)# no passiveinterface Gi3/2
  D. Internet(config-router)# passive-interface default Core(config-router)# passive-interface default DSW1(config-router)# passive-interface default DSW2(config-router)# passiveinterface default
  C. Core(config-router)# passive-interface default Core(config-router)# no passive-interface Gi0/0 Core(config-router)# no passive-interface Gi3/1 Core(config-router)# no passiveinterface Gi3/2

• Question 185:

  You have been asked to evaluate how EIGRP is functioning in a customer network.



  Which key chain is being used for authentication of EIGRP adjacency between R4 and R2?

  A. CISCO
  B. EIGRP
  C. key
  D. MD5
  A. CISCO

• Question 186:

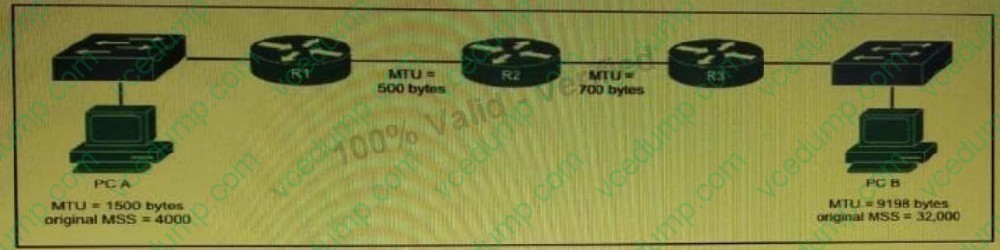

  Refer to the exhibit.



  PC A is unable to send data to PC B because the DF bit is set on PC A.Which action corrects the problem?

  A. Configure a GRE tunnel between R1 and R3
  B. Configure QoS on the network
  C. Lower the MSS on PC A
  D. Configure PMTUD on the network
  D. Configure PMTUD on the network

• Question 187:

  Which action is the most efficient way to handle route feedback when converting a RIPv2 network to OSPF?

  A. Implement route tags.
  B. Implement IP prefix lists.
  C. Implement route maps with access lists.
  D. Implement distribute lists.
  A. Implement route tags.

• Question 188:

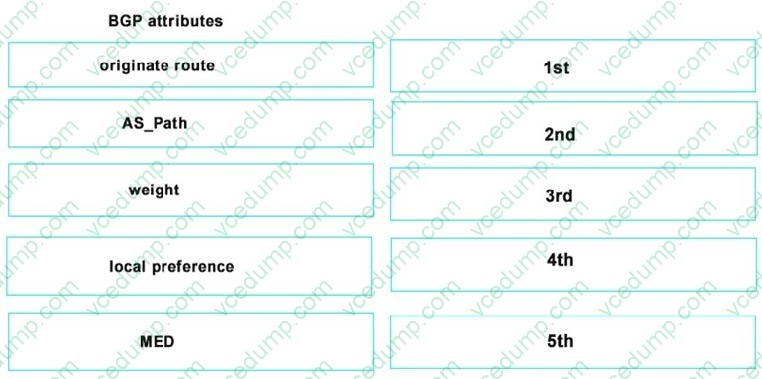

  DRAG DROP

  Place the BGP attributes in the correct order used for determining a route.

  Select and Place:





• Question 189:

  Which allowing website access between certain times

  A. Filters using Time-Based ACLs
  B. PlaceHolder
  C. PlaceHolder
  D. PlaceHolder
  A. Filters using Time-Based ACLs

• Question 190:

  Which three functionalities are specific to stateful NAT64? (Choose Three)

  A. It requires IPv4-transalable IPv6 address
  B. It requires either manual or DHCPv6 based address assignment for IPv6 host.
  C. It helps ensure end-to-end address transparency and scalability
  D. A state or bindings are created on every unique translation
  E. it conserves IPV4 addresses
  B. It requires either manual or DHCPv6 based address assignment for IPv6 host.
  D. A state or bindings are created on every unique translation
  E. it conserves IPV4 addresses
