Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 211:

  Drag and Drop

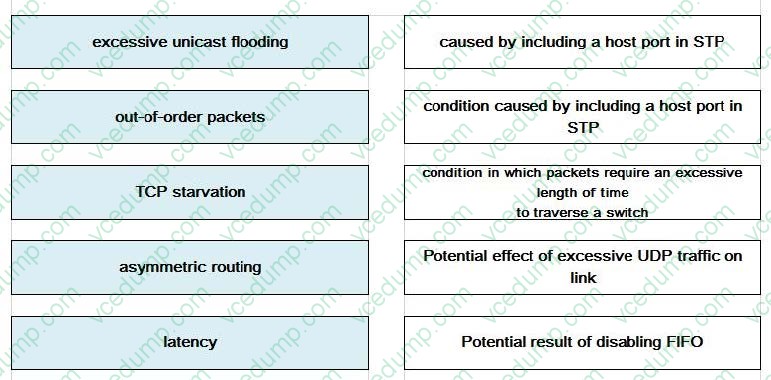

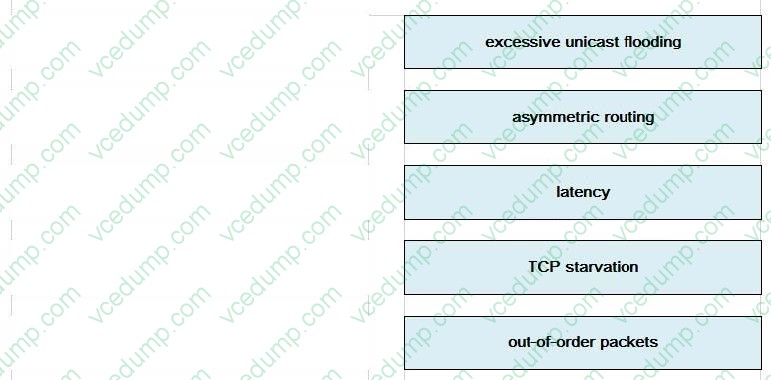

  Drag and drop the adverse network conditions from the left on the correct descriptions on the righ.

  Select and Place:





• Question 212:

  Which statement is true about 6to4 tunneling?(Choose Two)

  A. IPv4 traffic is encapsulated with an IPv6 header
  B. the edge router can use locally configured IPv6 address
  C. host and routers inside a 6to4 site will need a special code
  D. an edge router must use IPv6 address of 2002::/16 in its prefix
  B. the edge router can use locally configured IPv6 address
  D. an edge router must use IPv6 address of 2002::/16 in its prefix

• Question 213:

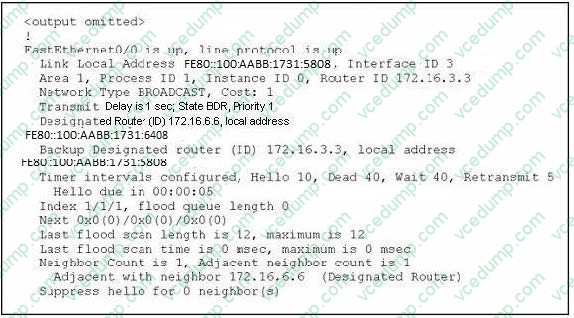

  Refer to the exhibit. What two statements are true? (Choose two)



  A. Interface FastEthernet 0/0 was configured with the ipv6 ospf 1 area 1 command.
  B. OSPF version 2 has been enabled to support IPv6.
  C. The IP address of the backup designated router (BDR) is FE80::100:AABB:1731:5808.
  D. The output was generated by the show ip interface command.
  E. The router was configured with the commands: router ospf 1 network 172.16.6.0 0.0.0.255 area 1
  F. This is the designated router (DR) on the FastEtheroet 0/0 link.
  A. Interface FastEthernet 0/0 was configured with the ipv6 ospf 1 area 1 command.
  C. The IP address of the backup designated router (BDR) is FE80::100:AABB:1731:5808.

• Question 214:

  Company plans on migrating their network from IPv4 to IPv6 in the near future. Which three techniques can be used to transition from IPv4 to IPv6? (Select three.)

  A. Dual stack
  B. NAT
  C. Flow label
  D. Mobile IP
  E. 6to4 tunneling
  F. Anycast
  G. MBGP
  A. Dual stack
  B. NAT
  E. 6to4 tunneling

• Question 215:

  Which routing protocol searches for a better route through other autonomous systems to achieve convergence?

  A. Link-state
  B. Hybrid
  C. Path vector
  D. Distance vector
  C. Path vector

• Question 216:

  Which two options are components of a dual stack? (Choose two.)

  A. Layer 2 switch
  B. IPv6 traffic
  C. OSPF
  D. Layer 3 switch
  E. IPv4 traffic
  F. EIGRP
  B. IPv6 traffic
  E. IPv4 traffic

• Question 217:

  what does radius server combine ?(choose two)

  A. Telnet
  B. Authentication
  C. Accounting
  D. Authorization
  E. SSH
  B. Authentication
  D. Authorization

• Question 218:

  which statement is true about an IPsec/GRE tunnel?

  A. the GRE tunnel source and destination address are specified within the IPsec transform set
  B. An IPsec/GRE tunnel must use IPsec tunnel mode
  C. GRE encapsulation occurs befaore the IPsec encryption process
  D. Crypto map ACL is not needed to match which traffic will be protected
  C. GRE encapsulation occurs befaore the IPsec encryption process

• Question 219:

  Which two tasks must you perform to configure a BGP peer group ?choose two

  A. Configure the soft-update value
  B. Set the advertisement interval
  C. Assign neighbors to the peer group
  D. Activate each neighbor
  E. Activate the default route
  C. Assign neighbors to the peer group
  D. Activate each neighbor

• Question 220:

  Refer to Exhibit

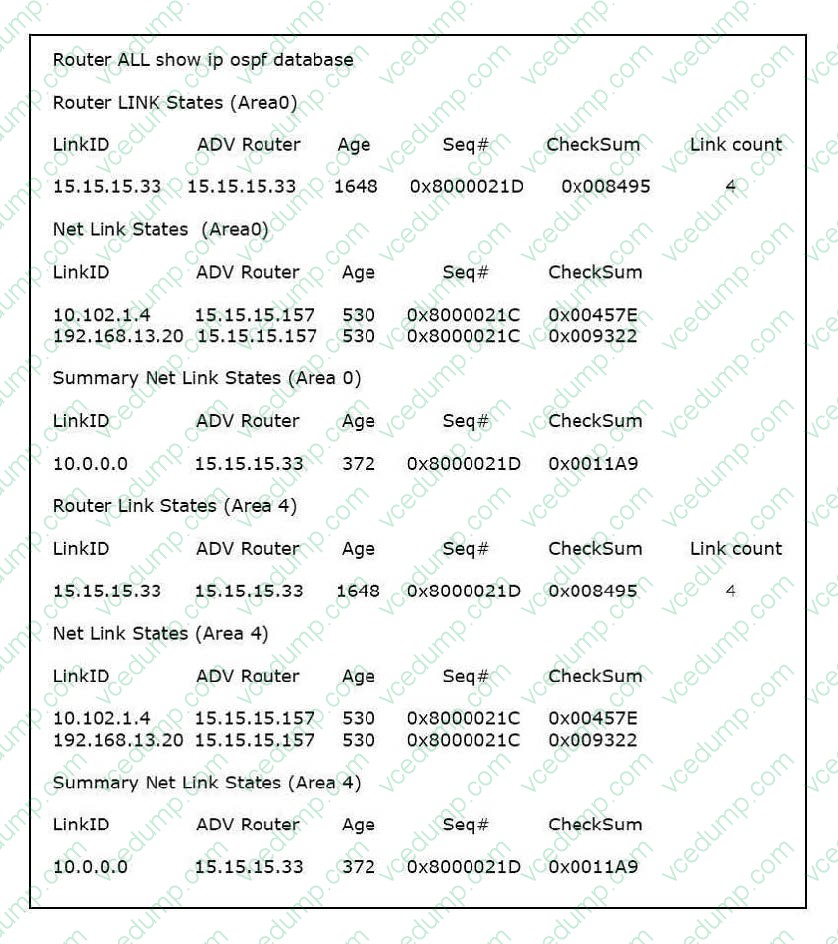

  Refer to the exhibit showing complete command output. What type of OSPF router is Router A?

  A. internal router
  B. ASBR
  C. ABR
  D. edge router
  C. ABR
