Cisco 300-101 Online Practice Questions and Exam Preparation

Cisco 300-101 Online Questions & Answers

• Question 141:

  A network engineer is considering enabling load balancing with EIGRP. Which consideration should be analyzed?

  A. EIGRP allows a maximum of four paths across for load balancing traffic.
  B. By default, EIGRP uses a default variance of 2 for load balancing
  C. EIGRP unequal path load balancing can result in routing loops
  D. By default, EIGRP performs equal cost load balancing at least across four equal cost paths.
  D. By default, EIGRP performs equal cost load balancing at least across four equal cost paths.

• Question 142:

  how to configure ipv6 dhcp relay

  A. DHCPv6 server Facing Interface: ipv6 address autoconfig ipv6 enable exit In Clients Facing Interface ipv6 address ipv6 dhcp relay destination
  B. PlaceHolder
  C. PlaceHolder
  D. PlaceHolder
  A. DHCPv6 server Facing Interface: ipv6 address autoconfig ipv6 enable exit In Clients Facing Interface ipv6 address ipv6 dhcp relay destination

• Question 143:

  Which DSL encapsulation method requires client software running on the end-user PC that is directly connected to a DSL modem?

  A. PPPoA
  B. PPPoE
  C. PPP
  D. L2TP
  E. ATM
  B. PPPoE

• Question 144:

  Which three options are valid DHCPv6 functions? (Choose three.)

  A. Server
  B. client
  C. approver
  D. requester
  E. requester
  F. ACK
  G. relay
  A. Server
  B. client
  G. relay

• Question 145:

  Which command configure a default authentication list that uses a local database and a case-insensitive username ?

  A. aaa authentication exec CONSOLE group local-case if authenticated
  B. aaa authentication login CONSOLE group local
  C. aaa authentication login default group local
  D. aaa authentication exec default group local-case
  C. aaa authentication login default group local

• Question 146:

  A network engineer executes the commands logging host 172.16.200.225 and logging trap

  5. Which action results when these two commands are executed together?

  A. Logging messages that have a debugging severity level are sent to the remote server 172.16.200.225
  B. Logged information is stored locally, showing the sources as 172.16.200.225
  C. Logging messages that have any severity level are sent to the remote server 172.16.200.225
  D. Logging messages that have a severity level of "notifications" and above (numerically lower) are sent to the remote server 172.16.200.225
  D. Logging messages that have a severity level of "notifications" and above (numerically lower) are sent to the remote server 172.16.200.225

• Question 147:

  Which algorithm is used by EIGRP to determine the best path through a network?

  A. DUAL
  B. Dijkstra
  C. SPF
  D. A* Search
  A. DUAL

• Question 148:

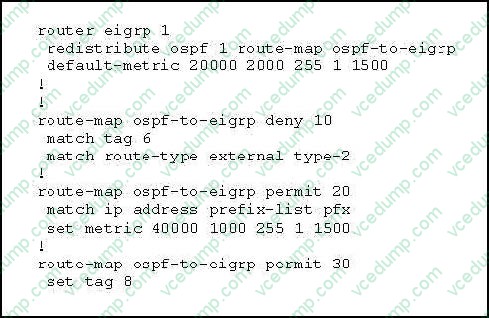

  Refer to the exhibit. Which three statements accurately describe the result of applying the exhibited route map? (Choose three.)



  A. The map prohibits the redistribution of all type 2 external OSPF routes with tag 6 set.
  B. The map prohibits the redistribution of all type 2 external OSPF routes.
  C. The map redistributes into EIGRP all routes that match the pfx prefix list and the five metric values 40000, 1000, 255, 1, and 1500.
  D. The map prohibits the redistribution of all external OSPF routes with tag 6 set.
  E. All routes that do no match clauses 10 and 20 of the route map are redistributed with their tags set to 8.
  F. The map permits the redistribution of all type 1 external OSPF routes.
  A. The map prohibits the redistribution of all type 2 external OSPF routes with tag 6 set.
  E. All routes that do no match clauses 10 and 20 of the route map are redistributed with their tags set to 8.
  F. The map permits the redistribution of all type 1 external OSPF routes.

• Question 149:

  A network engineer receives reports about poor voice quality issues at a remote site. The network engineer does a packet capture and sees out-of-order packets being delivered. Which option can cause the VOIP quality to suffer?

  A. traffic over backup redundant links
  B. misconfigured voice vlan
  C. speed duplex link issues
  D. load balancing over redundant links
  D. load balancing over redundant links

• Question 150:

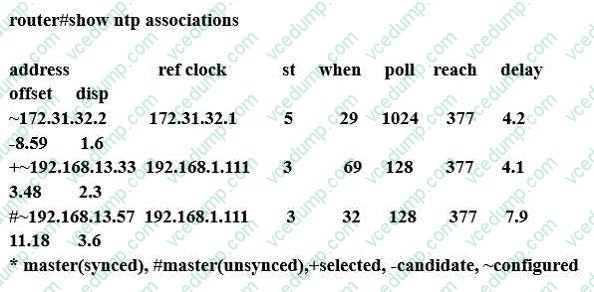

  Refer to the Exhibit.



  A network engineer has configured NTP on a Cisco router, but the time on the router is still incorrect. What is the reason for this problem?

  A. The router is not syncing with the peer, even though the NTP request and response packets are being exchanged.
  B. The router is not syncing with peer, and the NTP request and response packets are not being exchanged.
  C. The router is syncing with the peer, and the NTP request and response packets are being exchanged.
  D. The router is dropping all NTP packets.
  A. The router is not syncing with the peer, even though the NTP request and response packets are being exchanged.
