• Question 81:

  Your supervisor calls you and tells you that one of the Stratix 5700 switches is not assigning all CIP explicit messages to the proper QoS queue. The switch was deployed with the ab-global macro and CIP explicit messages were previously being assigned to the proper QoS queue. You suspect the access-lists associated with the ab-global macro have been changed. Look at the following access list from the switch configuration:

  access-list 101 permit udp any eq 2222 any dscp 55 access-list 102 permit udp any eq 2222 any dscp 47 access-list 103 permit udp any eq 2222 any dscp 43 access-list 104 permit udp any eq 2222 any access-list 105 permit udp any eq 44818 any access-list 105 permit tcp any eq 44816 any

  What needs to be done to fix the above access list?

  A. Access list 105 should reference udp port 44816
  B. Access lists 101-104 should reference udp port 2212
  C. Access list 105 should reference tcp port 44818
  D. Access list 104 should be a deny access list rather than a permit access list
  C. Access list 105 should reference tcp port 44818

• Question 82:

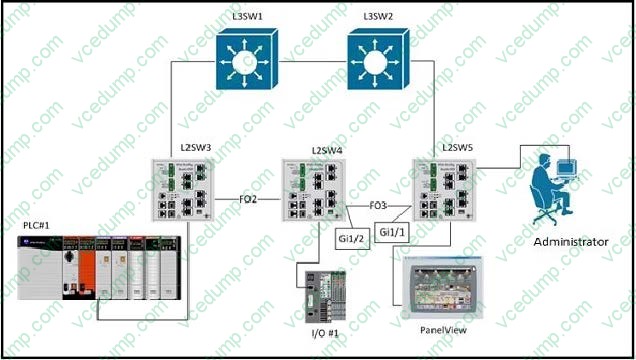

  Refer to the exhibit.



  L3SW1 has a spanning-tree priority of 8192 set on VLANs 1, 300, and 301, and these VLANs are configured on and trunked between all switches. Executing the command show spanning-tree blockedports on L2SW5 results in: L2SW5# show spanning-tree blockedports Name Blocked Interfaces List VLAN0001 Gi1/1

  VLAN0300 Gi1/1

  VLAN0301 Gi1/1

  An additional VLAN, VLAN302, is defined on all switches and trunked between them. VLAN302 access ports are set up on each of the switches and PLC#1, I/O#1, and the PanelView are attached. You expect the new VLAN to be listed as

  blocked on interface GigabitEthernet1/1 of L2SW5 but it is not. The three new devices are able to communicate with each other.

  After executing the same command on all switches you see this output on L2SW4:

  L2SW4# show spanning-tree blockedports Name Blocked Interfaces List VLAN0001 Gi1/2

  VLAN0300 Gi1/2 VLAN0301 Gi1/2 Why is VLAN302 forwarding on L2SW5 interface GigabitEthernet 1/1 and L2SW4 interface GigabitEthernet 1/1 and 1/2?

  A. VLAN302 is not configured in the VLAN database on L2SW5
  B. VLAN302 is not in the allowed list on the L2SW5 interface GigabitEthernet1/1 trunk
  C. L2SW4 is the spanning tree root for VLAN 302
  D. The FO3 fiber-optic cable between L2SW4 and L2SW5 is damaged
  C. L2SW4 is the spanning tree root for VLAN 302

• Question 83:

  When troubleshooting a high packet loss condition in the network, the inspection area has an assessed M.I.C.E. value of M=1, I=1, C=3 and E=1. Which condition could be suspect?

  A. Use of shielded Patch Cables, Bonded on one end only.
  B. Use of unshielded Patch Cables.
  C. Broken seal on bulkhead connector.
  D. Oxidation on Shielded RJ45 Patch Plug
  D. Oxidation on Shielded RJ45 Patch Plug

• Question 84:

  EtherNet/IP is an Ethernet implementation of which protocol?

  A. CIP
  B. Industrial Protocol
  C. DeviceNet
  D. ControlNet
  A. CIP

• Question 85:

  What percentage of an I/O connection would you set the RPI in order to ensure the application has the most current data?

  A. RPI at 50% of IO rate
  B. RPI at 25% of IO rate
  C. PI to 25% of PAC scan rate
  D. Set RPI to 50% of PAC scan rate
  A. RPI at 50% of IO rate

• Question 86:

  If the Link Fault alarm is connected to the minor relay and the FCS Bit Error Rate alarm is connected to the major relay, which commands will create an alarm profile called GigE with the alarms correctly mapped to the minor and major relays?

  A. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 4 Switch(config-alarm-prof)#relay major 4 Switch(config-alarm-prof)#relay minor 1
  B. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 3 Switch(config-alarm-prof)#relay major 3 Switch(config-alarm-prof)#relay minor 1
  C. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 3 Switch(config-alarm-prof)#relay major 1 Switch(config-alarm-prof)#relay minor 3
  D. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 4 Switch(config-alarm-prof)#relay major 1 Switch(config-alarm-prof)#relay minor 4
  A. Switch(config)#alarm profile GigE Switch(config-alarm-prof)#alarm 1 4 Switch(config-alarm-prof)#relay major 4 Switch(config-alarm-prof)#relay minor 1

• Question 87:

  Which two ports does EtherNet/IP use to communicate? (Choose two.)

  A. TCP 44818
  B. UDP 44818
  C. TCP 502
  D. UDP 502
  E. TCP 2222
  F. UDP 2222
  A. TCP 44818
  F. UDP 2222
