Cisco 200-601 Online Practice Questions and Exam Preparation

Cisco 200-601 Online Questions & Answers

• Question 51:

  Refer to the exhibit.



  CIP Implicit messages from I/O#1 are being marked IP DSCP 47 by the endpoint and this marking is trusted by L2SW4. L2SW4 is configured to map DSCP 47 to output queue 1 threshold 1. You have received feedback that some of these messages are not being received. Executing the show mls interface GigabitEthernet statistics command on L2SW4 results in:

  L2SW4# show mls interface GigabitEthernet 1/1 statistics

  output queues dropped:

  queue:

  threshold1

  threshold2

  threshold3

  queue 0

  0

  0

  0

  queue 1

  309232345

  450

  0

  queue 2

  300

  10

  0

  queue 3

  91

  0

  0

  Repeating this command results in the counters incrementing for queue 1 threshold 1. What are two options for reducing the packet loss on this interface while preserving the end-to-end DSCP marking? (Choose two)

  A. Configure I/O#1 to mark this traffic with a different DSCP that is mapped to a less congested queue
  B. Increase the buffer allocation for input queue 1
  C. Increase the buffer allocation for output queue 1
  D. Alter the service policy to police to a higher CIR
  E. Change the egress queue map on L2SW4 to map this traffic to a less congested queue
  C. Increase the buffer allocation for output queue 1
  E. Change the egress queue map on L2SW4 to map this traffic to a less congested queue

• Question 52:

  Which option allows an EtherNet/IP I/O device to be safely installed where it is subject to water immersion?

  A. The device is rated IP20 and the power wiring is installed securely to the terminal block.
  B. The device is rated IP67 and a power cordset is used.
  C. The device is rated IP67 and immersed to 10 m.
  D. The device is rated IP20 and immersed to 10 m.
  B. The device is rated IP67 and a power cordset is used.

• Question 53:

  Which three of the following components must be elected before the Spanning Tree Protocol can converge in a switched LAN? (Choose three.)

  A. designated ports
  B. duplex operating mode
  C. fast mode ports
  D. root bridge
  E. root ports
  F. BDPU priority
  A. designated ports
  D. root bridge
  E. root ports

• Question 54:

  What can be done to increase the security in depth in an industrial zone?

  A. Add additional disk storage to the IDS server
  B. Add specific SCADA signatures to the IDS server
  C. Create a high availability solution for the IDS server
  D. Place a 'data diode' in front of the IDS server
  B. Add specific SCADA signatures to the IDS server

• Question 55:

  Which prompt is used to configure parameters for the Ethernet ports of an industrial switch?

  A. Switch(config-if)#
  B. Switch(config-if-ind)#
  C. Switch(config-line)#
  D. Switch(config-ind)#
  E. Switch(config-vlan)#
  A. Switch(config-if)#

• Question 56:

  Which in-depth approach is used when deploying defense in an industrial zone?

  A. Besides using a dedicated firewall / DMZ construction use an IOS based firewall on the WAN router connecting the industrial site to the Internet.
  B. Use NTP to make sure that time stamps of log messages are synchronized such that you can do root cause analysis.
  C. Deploy an IDS solution with knowledge about industrial protocols in the industrial zone in combination with a firewall.
  D. Use multiple firewalls from different vendors in such a way that network traffic will have to traverse both firewalls so that security holes of one firewall is caught by the other firewall.
  C. Deploy an IDS solution with knowledge about industrial protocols in the industrial zone in combination with a firewall.

• Question 57:

  It is determined that an intermittent high packet loss event is occurring within a segment of the network. The assigned task is to determine the cause. Which of these conditions should be suspected? A )



  B )



  C )



  D )



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 58:

  You have reached the limit of IPv4 IGMP groups available on a Cisco IE 3000 switch that was deployed using the Express Setup. Which CLI command will increase the number of available IPv4 IGMP groups and multicast routes from 256 to 1000 on this switch?

  A. switch(config)#sdm prefer routing
  B. switch(config)#sdm prefer vlan igmp
  C. switch(config)#sdm prefer routing igmp
  D. switch(config)#sdm prefer vlan
  A. switch(config)#sdm prefer routing

• Question 59:

  You are making changes to a Stratix 5700 using an Add On Profile (AOP) and a controller which is on-line with RSLogix5000. When do the changes you have made get published to the switch?

  A. While online in RSLogix 5000 software the changes made in the AOP are pushed to the switch after pressing the Set button.
  B. All of the changes are automatically pushed to the switch.
  C. Changes to the AOP can only be made from the switch, not in RSLogix 5000.
  D. RSLogix 5000 will push the changes in the AOP to the Stratix 5700 when you right click on the switch, and choose download to switch
  A. While online in RSLogix 5000 software the changes made in the AOP are pushed to the switch after pressing the Set button.

• Question 60:

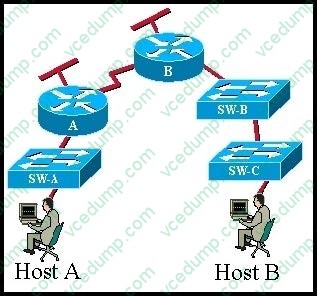

  Exhibit:



  Refer to the exhibit. CCNA.com has the industrial network shown in the exhibit. All switches are configured as layer 2 switches and are using VLAN 1 as their management VLAN. Each VLAN 1 interface has been assigned the correct IP address. What is the purpose of assigning a default gateway to SW-C switch?

  A. allows connectivity between the VLAN 1 interface on SW-C and other devices in the network.
  B. allows connectivity between Host A and other devices in the network.
  C. allows connectivity between Host B and other devices in the network.
  D. allows the switch to pass traffic between Host A and Host B
  A. allows connectivity between the VLAN 1 interface on SW-C and other devices in the network.
