Cisco 200-601 Online Questions & Answers

• Question 71:

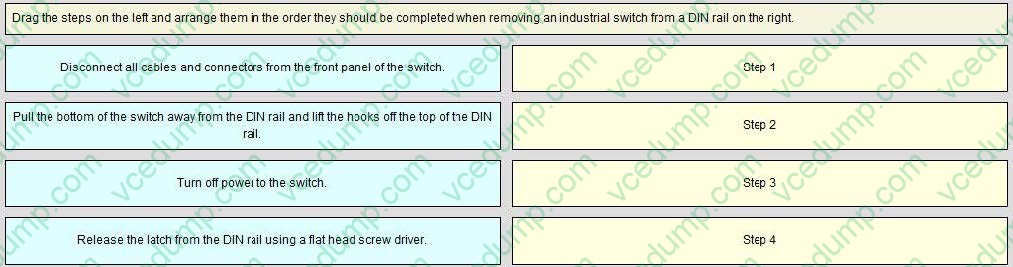

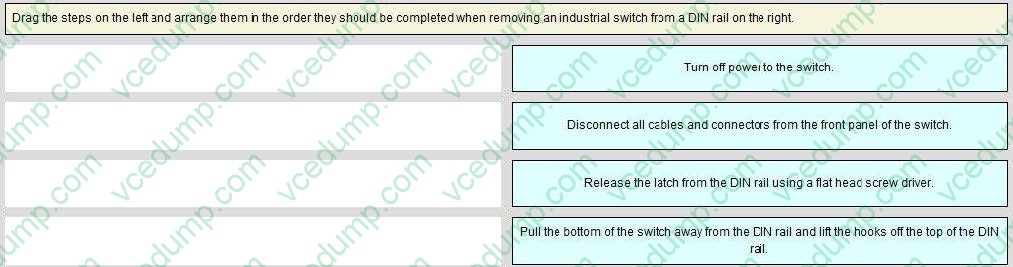

  DRAG DROP

  Select and Place:





• Question 72:

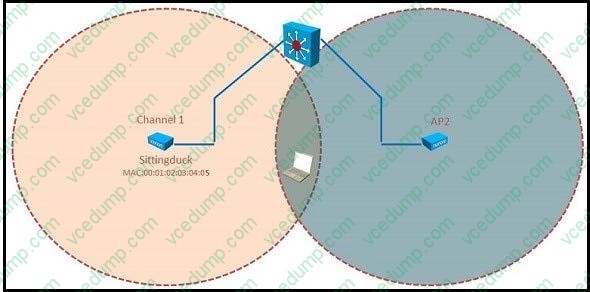

  Refer to the exhibit.



  Which values are correct for AP 2 to allow for efficient roaming?

  A. Channel 6, SSID Sittingduck, BSSID 00:0a:0b:0c:0d:0e
  B. Channel 1, SSID Sittingduck, BSSID 00:01:02:03:04:05
  C. Channel 1, SSID Sittingduck, BSSID 00:0a:0b:0c:0d:0e
  D. Channel 6, SSID Sittingduck, BSSID 00:01:02:03:04:05
  A. Channel 6, SSID Sittingduck, BSSID 00:0a:0b:0c:0d:0e

• Question 73:

  Which CLI command will display IGMP snooping information in a Cisco IE2000 or Stratix 5700 switch?

  A. switch#show snooping ip igmp
  B. switch#show igmp snooping
  C. switch#show ip igmp snooping
  D. switch#show ip snooping
  C. switch#show ip igmp snooping

• Question 74:

  Which statement is correct regarding ProfiNET communication classes?

  A. ProfiNET-RT traffic is carried in UDP and TCP packets
  B. ProfiNET-NRT is used to carry time critical status information
  C. ProfiNET-IRT requires switches with hardware time scheduling capabilities
  D. ProfiNET-NRT is prioritized as Layer-2 Class-of-Service 1 (CoS 1)
  C. ProfiNET-IRT requires switches with hardware time scheduling capabilities

• Question 75:

  Which two are possible solutions to control which devices can communicate between industrial zones? (Choose two)

  A. Use per zone private IP addressing and deploy NAT to control traffic between zones
  B. Put access control lists on switches connecting industrial zones to control traffic
  C. Attach each zone to a firewall to control intra-zone traffic
  D. Deploy QoS traffic shaping to limit the volume of traffic between industrial zones
  E. Deploy an IDS system between the zones to control intra-zone traffic
  B. Put access control lists on switches connecting industrial zones to control traffic
  C. Attach each zone to a firewall to control intra-zone traffic

• Question 76:

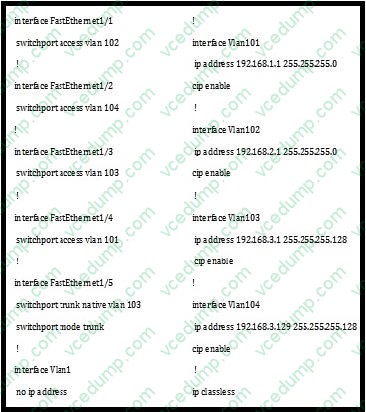

  Exhibit:



  Refer to the exhibit. Which port should a PLC with IP address 192.168.3.65 be plugged into in order to communicate to the rest of the network?

  A. FastEthernet1/1
  B. FastEthernet1/2
  C. FastEthernet1/3
  D. FastEthernet1/4
  E. FastEthernet1/5
  C. FastEthernet1/3

• Question 77:

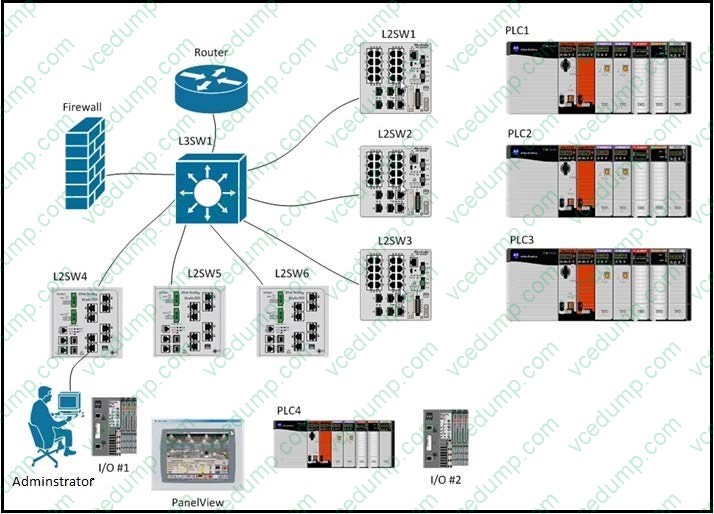

  Refer to exhibit. The administrator has configured the following device IP settings, but did not keep track of which ports the devices were connected to. The administrator is able to ping each device but needs to update the network documentation to include the switch and interface where each device is connected. The administrator does not want to walk to each device and switch to track down the information.



  Which steps below would you execute in sequence to document the switch and interface where each device is connected?

  1.

  View the ARP table on L3SW1

  2.

  View the ARP table on the administrator's station

  3.

  View the ARP table on L2SW4

  4.

  PING all the devices

  5.

  View the MAC address table on all switches

  6.

  View the MAC address table on the administrator's station

  A. 2,4,5
  B. 2,5,4
  C. 4,3,6
  D. 4,1,5
  D. 4,1,5

• Question 78:

  A ProfiNET management system operator is unable to see diagnostic information for a Cisco Industrial Ethernet switch that has been added to a SIMATIC management station. Based on the provided CLI output, which statement is correct?

  switch# show profinet status

  State : Enabled Vlan : 201 Id : IE2000-Switch Connected : Yes ReductRatio : 128 GSD version : Mis-match

  A. The assigned ProfiNET VLAN is not valid and should be less than 100
  B. LLDP has been disabled on this switch
  C. The GSD file version on the switch does not match the GSD file version on the management station
  D. The Reduction Ration has been set too low
  C. The GSD file version on the switch does not match the GSD file version on the management station

• Question 79:

  Exhibit:

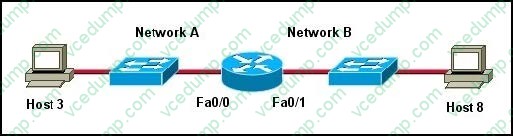

  Refer to the exhibit. Host 3 on Network A is sending data to Host 8 on Network B. Which address is the default gateway of Host 3?

  A. the address of the switch interface that is connected to router interface Fa0/0
  B. the address of the switch interface that is connected to router interface Fa0/1
  C. the address of the host that is connected to Network A
  D. the address of the host that is connected to Network B
  E. the address of the router interface Fa0/0
  F. the address of the router interface Fa0/1
  E. the address of the router interface Fa0/0

• Question 80:

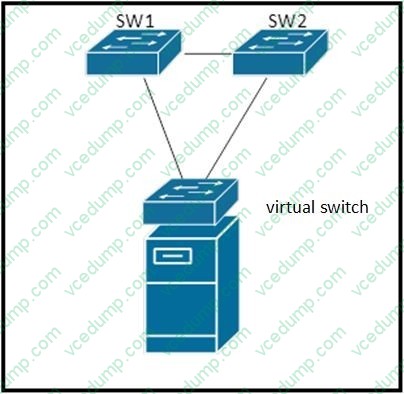

  Refer to the exhibit.



  SW1, SW2 and virtual switch are connected in a loop. SW1 and SW2 are standard layer-2 switches. Which loop prevention mechanism is best suited for use within this topology?

  A. Per-VLAN Rapid Spanning Tree Protocol+
  B. End-Host Mode
  C. Multi-chassis EtherChannel
  D. BPDU Guard
  B. End-Host Mode
