Cisco 200-601 Online Practice Questions and Exam Preparation

Cisco 200-601 Online Questions & Answers

• Question 31:

  A small manufacturing company has a Class C network address on the plant floor and needs to create five subnets, each accommodating 25 endpoints. Which subnet mask needs to be configured?

  A. 255.255.240.0
  B. 255.255.255.128
  C. 255.255.255.192
  D. 255.255.255.224
  E. 255.255.255.240
  F. 255.255.255.248
  D. 255.255.255.224

• Question 32:

  After commissioning several Stratix 5700 switches in a ring topology, you want to verify the installation against the network logical design. Specifically, you want to verify where the IGMP querier resides. What command can be issued in CLI to display the IP of the querier per VLAN?

  A. switch# show ip igmp snooping querier
  B. switch# show igmp snooping querier
  C. switch# show igmp querier
  D. switch# show ip igmp querier
  A. switch# show ip igmp snooping querier

• Question 33:

  A shutdown in the cookie cutter machine was traced to a broken network cable. What are two reasons that explain why using DLR is an appropriate choice for network resiliency? (Choose two)

  A. DLR is designed for single network operation at the machine level
  B. Moving to a linear topology will reduce the number of cables and so reduce risk of cable failure
  C. DLR is the only resiliency technology that is supported by CIP Safety
  D. Layer 2 resiliency protocols like REP and RSTP do not have a fast enough convergence time for motion control
  E. Half of the network traffic goes clockwise on the ring and the other half counter- clockwise, reducing by 50% the impact of cable failure
  A. DLR is designed for single network operation at the machine level
  D. Layer 2 resiliency protocols like REP and RSTP do not have a fast enough convergence time for motion control

• Question 34:

  Cisco Industrial Ethernet switches are capable of sending alarm messages to ProfiNET management stations using the ProfiNET-IO protocol. Which four are alarms that can be configured for an interface? (Choose four)

  A. Port Not Forwarding
  B. Port Not Operating
  C. Port LLDP Disabled
  D. Port QoS Disabled
  E. Port Duplex Mismatch
  F. Port FCS Errors Exceeded Threshold
  G. Port CRC Errors Exceeded Threshold
  H. Port Link Fault
  A. Port Not Forwarding
  B. Port Not Operating
  F. Port FCS Errors Exceeded Threshold
  H. Port Link Fault

• Question 35:

  To correctly integrate a Cisco Industrial Ethernet switch into a ProfiNET management system such as SIMATIC STEP 7 or TIA Portal, which is a mandatory action?

  A. Configure an IP address on the ProfiNET VLAN interface
  B. The General Station Description (GSD) file must be uploaded from the switch to the management system.
  C. Enable Quality of Service (QoS) and ensure the management station interface is trusted
  D. Enable SNMP on the switch
  B. The General Station Description (GSD) file must be uploaded from the switch to the management system.

• Question 36:

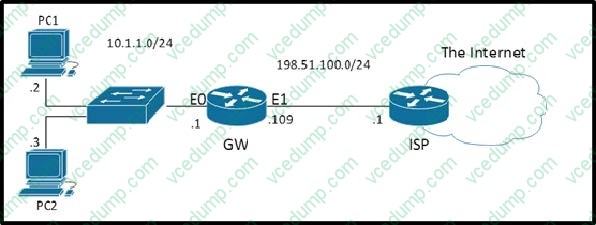

  Refer to the exhibit.



  NAT has been configured on the router 'GW' and the IP addresses of router 'GW' have been configured properly. Users of PC1 and PC2 are able to ping the IP address 198.51.100.1 but are unable to reach any other IP addresses on the Internet. The ISP confirmed that their configuration is correct. Which option would likely correct the problem?

  A. ip access-list extended ACL_OUTBOUND permit ip 10.1.1.0 0.0.0.255 any interface Ethernet1 ip access-group ACL_OUTBOUND out
  B. interface Ethernet1 ip nat outside
  C. interface Ethernet0 ip nat inside
  D. ip route 0.0.0.0 0.0.0.0 198.51.100.1
  D. ip route 0.0.0.0 0.0.0.0 198.51.100.1

• Question 37:

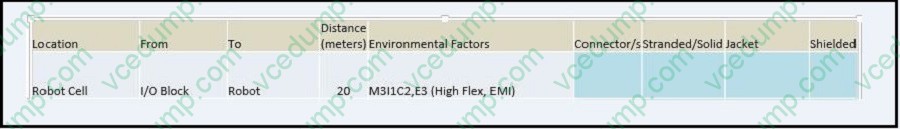

  Refer to the exhibit. The Robot Cell is in a bottling plant. This cell environment needs to consider high flex, EMI, and possible exposure to moisture. Which physical media components need to be considered to prevent network degradation or interruptions?



  A. Stranded, shielded wire with an industrial jacket and M12 connectors
  B. Solid, unshielded commercial jacket wire, and M12 connectors
  C. Stranded, unshielded wire with an industrial jacket, and commercial grade RJ45 connectors
  D. Solid, shielded wire with commercial grade jacket, and commercial grade RJ45 connectors
  A. Stranded, shielded wire with an industrial jacket and M12 connectors

• Question 38:

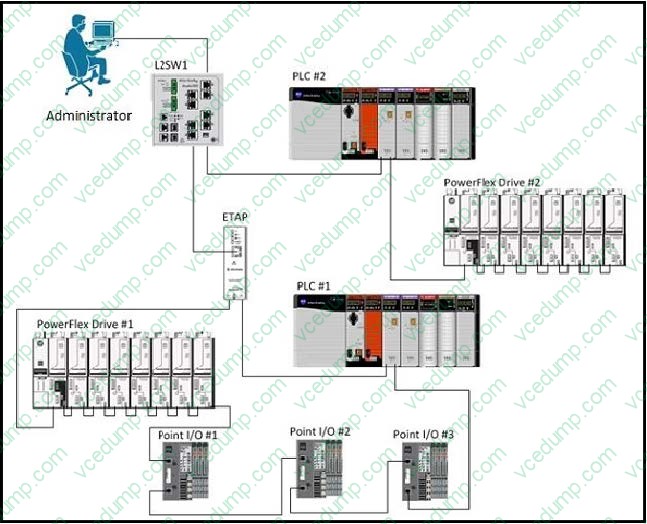

  Refer to the exhibit.



  An expansion project added an E-Tap and Device Level Ring to interface FastEthernet1/1 of L2SW1. The administrator has looked at the logs of L2SW1 and found that FastEthernet1/1 was in an error-disabled state.Using command line access on L2SW1, the administrator issued the following commands in configuration mode:

  L2SW1(config)# interface FastEthernet 1/1 L2SW1(config-if)# shutdown L2SW1(config-if)# no shutdown

  The administrator checked the logs of L2SW1 and found the following:

  Mar 30 02:23:17.588: %PM-4-ERR_DISABLE: bpduguard error detected on Fa1/1, putting Fa1/1 in err-disable state

  The administrator checked the software configuration of the switch port and found the following:

  interface FastEthernet1/1 switchport access vlan 310 switchport mode access speed 100 duplex full no mdix auto spanning-tree portfast spanning-tree bpduguard enable

  Why has the port gone error-disabled?

  A. interface FastEthernet1/1 is configured as an access port on the wrong VLAN.
  B. There is a duplex mismatch between interface FastEthernet1/1 and the E-Tap.
  C. The E-Tap is not configured as a ring supervisor causing a loop on interface FastEthernet1/1.
  D. The E-Tap is configured at 10Mbps and the switch port is configured at 100Mbps.
  E. Automatic MDI Crossover detection is disabled.
  C. The E-Tap is not configured as a ring supervisor causing a loop on interface FastEthernet1/1.

• Question 39:

  Which option best describes the ProfiNET Discovery and Configuration Protocol (DCP)?

  A. Can be used to override both static and dynamically (DHCP/BOOTP) assigned IP addresses
  B. Cannot be used to reset a device to factory defaults
  C. Is only supported in Conformance Class B and C devices
  D. Uses the ProfiNET-IRT communication class
  A. Can be used to override both static and dynamically (DHCP/BOOTP) assigned IP addresses

• Question 40:

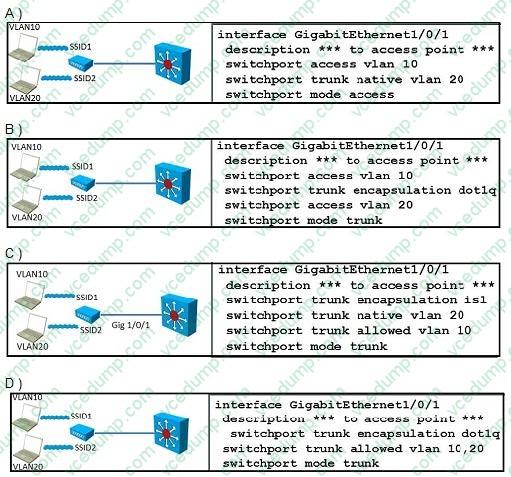

  Which scenario represents the correct configuration to support the SSIDs of this autonomous access point?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D
