Cisco 200-601 Online Practice Questions and Exam Preparation

Cisco 200-601 Online Questions & Answers

• Question 61:

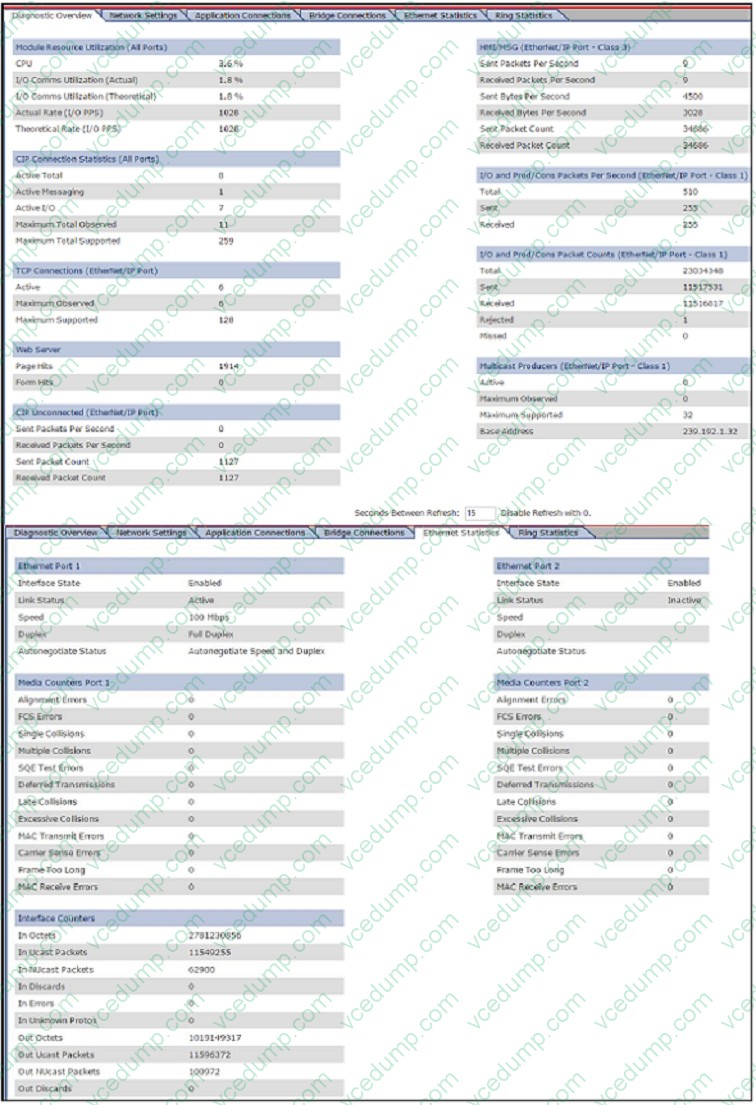

  Refer to the exhibit.

  Which two parameters can be used to diagnose an overloaded system? (Choose two)



  A. Ethernet Port 1 Speed
  B. Module Resource Allocation Actual Rate
  C. Class 3 Received bytes per second
  D. Media Counters Alignment Errors
  E. TCP Connections Active
  B. Module Resource Allocation Actual Rate
  E. TCP Connections Active

• Question 62:

  Which of the following correctly pairs the dotted decimal subnet mask with the correct number of binary bits that represent the subnet mask?

  A. 255.255.255.192 and /25
  B. 255.255.255.248 and /28
  C. 255.255.255.224 and /26
  D. 255.255.255.248 and /27
  E. 255.255.255.240 and /28
  F. 255.255.255.240 and /16
  E. 255.255.255.240 and /28

• Question 63:

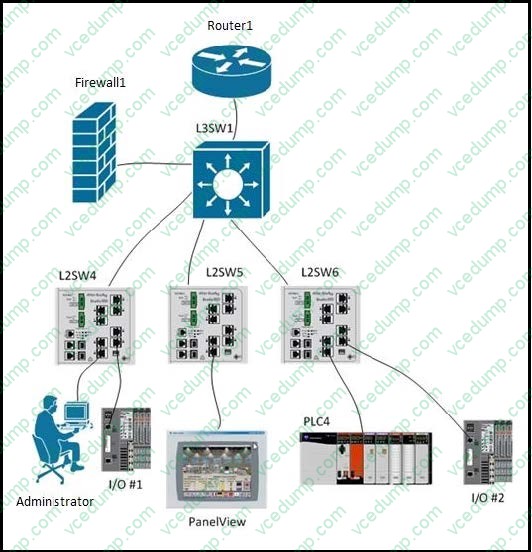

  Refer to the exhibit.



  You are required to implement traffic segmentation in the network. See the table for relevant device details:

  L2SW4, L2SW5, and L2SW6 are connected to L3SW1 with 802.1Q trunks with VLAN 191 and VLAN 398 allowed on the trunk.

  You have the following information from L3SW1:

  L3SW1# show run interfaces

  interface Vlan1

  no ip address

  shutdown

  !

  interface Vlan2

  ip address 10.2.2.2 255.255.255.248

  !

  interface Vlan191

  ip address 10.10.27.126 255.255.255.192

  !

  interface Vlan200

  ip address 10.20.20.1 255.255.255.248

  !

  interface Vlan398

  ip address 10.15.153.1 255.255.255.0

  L3SW1# show ip route

  *** Output Omitted *** 10.0.0.0/8 is variably subnetted, 5 subnets, 3 masks

  C 10.2.2.1/29 is directly connected, Vlan2

  C 10.10.27.64/26 is directly connected, Vlan191

  C 10.15.153.0/24 is directly connected, Vlan398

  C 10.20.20.0/29 is directly connected, Vlan200

  S 10.200.200.0/24 [1/0] via 10.20.20.2

  S* 0.0.0.0/0 [1/0] via 10.2.2.1

  You are required to implement a configuration that will meet the following connectivity requirements:

  A. Put interface VLAN 191 and interface VLAN 398 into different Virtual Routing and Forwarding (VRF) instances on L3SW1
  B. Deploy an inbound ACL on interface VLAN 191 to control the traffic from the Administrator's Station and PanelView to PLC#1 and I/O#1
  C. No change is required, the traffic is already limited appropriately by the VLAN segmentation
  D. Implement an ACL on Firewall1 to control the traffic flow between VLAN 191 and VLAN

  B. Deploy an inbound ACL on interface VLAN 191 to control the traffic from the Administrator's Station and PanelView to PLC#1 and I/O#1

• Question 64:

  Which statement is correct regarding Media Redundancy Protocol (MRP) in a ring of ProfiNET devices?

  A. When a link fault is detected, MRP rings must converge in less than 100 milliseconds
  B. MRP defines two device roles, Media Redundancy Master and Media Redundancy Client
  C. MRP can support rings of up to 250 devices
  D. MRP is only supported on network switches
  B. MRP defines two device roles, Media Redundancy Master and Media Redundancy Client

• Question 65:

  Which selection is a reason why IGMP snooping should be configured on a switched network?

  A. IGMP snooping populates the snooping table with the results of DHCP requests and can be used by Dynamic ARP Inspection to block IP spoofing attacks at Layer-2.
  B. IGMP snooping verifies the source IP address of every IPv4 packet to ensure that it hasn't been originated from a port different than its return path.
  C. IGMP snooping is used to filter ping requests and results to avoid overflowing the MAC address table of the switch.
  D. IGMP snooping allows a Layer-2 switch to limit the transmission of multicast frames to only the ports that have members of the relevant IGMP group.
  D. IGMP snooping allows a Layer-2 switch to limit the transmission of multicast frames to only the ports that have members of the relevant IGMP group.

• Question 66:

  Which five are characteristics that describe Cisco Industrial switches? (Choose five)

  A. Din rail mount
  B. 19 inch rack mount
  C. Fanless
  D. Fans
  E. Swappable SD flash card
  F. Alarm relay
  G. -5ºC to 45ºC operating environment
  H. ProfiNET conformance class C compliance
  A. Din rail mount
  B. 19 inch rack mount
  C. Fanless
  E. Swappable SD flash card
  F. Alarm relay

• Question 67:

  It is common to use Resilient Ethernet Protocol (REP) on the manufacturing floor as a resiliency protocol, as opposed to the Enterprise where it is not generally deployed. What are two reasons why REP is more suitable for the plant floor? (Choose two)

  A. REP is only supported on Industrial Ethernet switches, it is not supported on Catalyst switches.
  B. REP converges faster than Spanning Tree, allowing for greater network availability.
  C. REP supports Industrial Ethernet protocols better because it moves the packets faster.
  D. Running dual cables from access switches to an aggregation switch can have a much higher cost on the plant floor than in the Enterprise and running a ring protocol like REP provides resiliency at a lower cost.
  E. Industrial protocols can be negatively impacted by the number of nodes the Ethernet frame traverses, REP provides a topology with no more than 3 nodes for any data path.
  B. REP converges faster than Spanning Tree, allowing for greater network availability.
  D. Running dual cables from access switches to an aggregation switch can have a much higher cost on the plant floor than in the Enterprise and running a ring protocol like REP provides resiliency at a lower cost.

• Question 68:

  How are I/O timeout and Safety I/O timeout calculated?

  A. An I/O connection will timeout based on the lower of 4x RPI or 100ms. Safety I/O timeout is calculated as 4xRPI.
  B. An I/O connection will timeout based on the lower of 3x RPI or 100ms. Safety I/O timeout is calculated as 3xRPI.
  C. An I/O connection will timeout based on the lower of 4x RPI or 150ms. Safety I/O timeout is calculated as 2xRPI.
  D. An I/O connection will timeout based on the lower of 3x RPI or 150ms. Safety I/O timeout is calculated as 3xRPI.
  A. An I/O connection will timeout based on the lower of 4x RPI or 100ms. Safety I/O timeout is calculated as 4xRPI.

• Question 69:

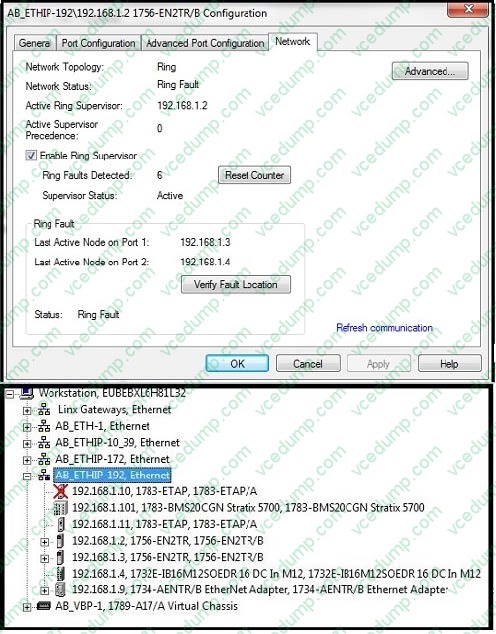

  Refer to the exhibit.

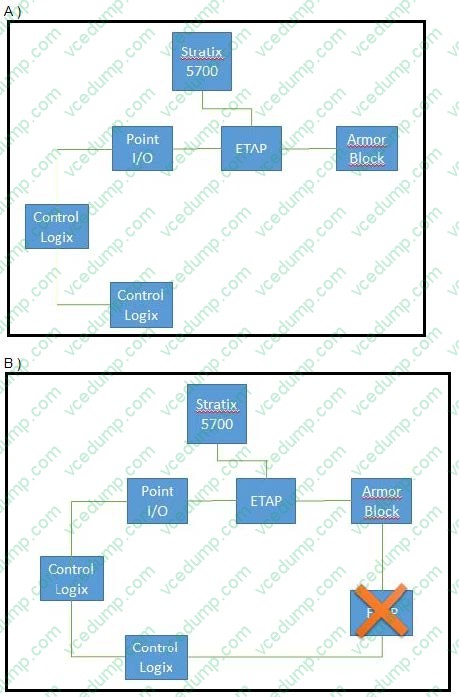

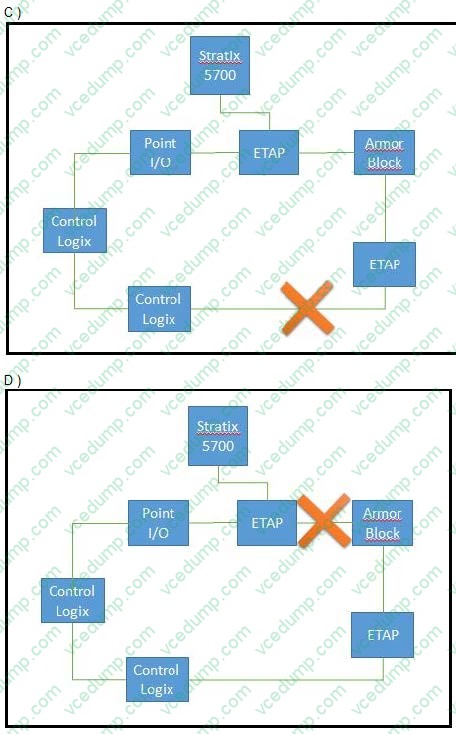

  Network Faceplates have not been installed on the HMI and so you need to map a network based on information available from RSLinx. Which most accurately represents the network configuration?





  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B

• Question 70:

  Profinet has been disabled on a Cisco Industrial Ethernet switch, which CLI commands correctly enable ProfiNET on VLAN 10?

  A. switch(config)#profinet switch(config)#profinet vlan 10
  B. switch#enable profinet switch(config)#profinet vlan 10
  C. switch(config)#profinet switch(config)#vlan 10 switch(config-vlan)#profinet
  D. switch#enable profinet switch(config)#vlan 10 switch(config-vlan)#profinet
  A. switch(config)#profinet switch(config)#profinet vlan 10
