• Question 11:

  A cookie cutter machine requires 2 standard controllers and a safety controller. All of these controllers and machine level I/O have been placed on VLAN 104. Both standard controllers must monitor a photocell on this machine. Which IP address is used to transfer this status information?

  A. 10.17.104.16
  B. 192.168.1.16
  C. 239.192.3.16
  D. 239.192.254.16
  C. 239.192.3.16

• Question 12:

  Which configuration enables an Industrial Ethernet switch to participate in PTP clock selection and sets the priority value that would break the tie between switches with matching default criteria to 50?

  A. ptp mode boundary ptp priority1 10 ptp priority2 50
  B. ptp mode boundary ptp priority1 50 ptp priority2 10
  C. ptp mode e2etransparent ptp priority1 50 ptp priority2 10
  D. ptp mode e2etransparent ptp priority1 10 ptp priority2 50
  A. ptp mode boundary ptp priority1 10 ptp priority2 50

• Question 13:

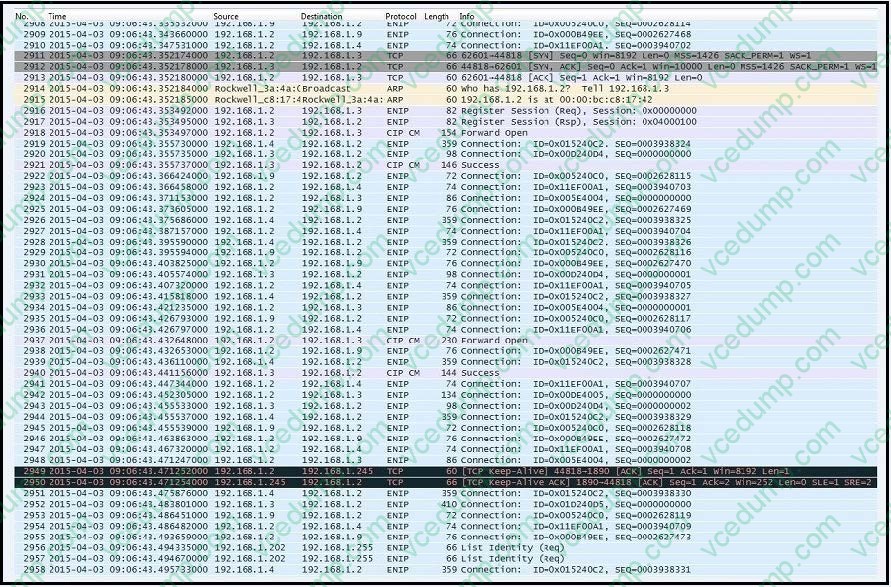

  Refer to the exhibit. Which lines represent a CIP connection being established between two devices?



  A. 2914 and 2915
  B. 2918 and 2921
  C. 2920 and 2924
  D. 2937 and 2940
  B. 2918 and 2921

• Question 14:

  Which command globally enables QoS on a Cisco Industrial Ethernet switch?

  A. switch(config)#qos enable
  B. switch(config)#mls queuing enable
  C. switch#enable queuing
  D. switch(config)#mls qos
  D. switch(config)#mls qos

• Question 15:

  Refer to the exhibit.



  All of the vlans listed in the routing table below are trunked using 802.1q and are active on all switches. PLC1, PLC2, and PLC3 each has IP address 192.168.0.1/24 and are connected to ports configured for vlan 50. L2SW1, L2SW2, and L2SW3 are not using vlan trunking for vlan 50. L3SW1 has following routing table: 10.0.0.0/8 is variably subnetted, 12 subnets, 2 masks C 10.3.138.0/23 is directly connected, Vlan307 C 10.3.136.0/23 is directly connected, Vlan306 C 10.15.153.0/24 is directly connected, Vlan398 C 10.3.142.0/23 is directly connected, Vlan309 C 10.3.140.0/23 is directly connected, Vlan308 C 10.3.186.0/23 is directly connected, Vlan293 C 10.15.154.0/24 is directly connected, Vlan399 C 10.3.184.0/23 is directly connected, Vlan292 C 10.3.190.0/23 is directly connected, Vlan295 C 10.3.188.0/23 is directly connected, Vlan294 C 10.3.182.0/23 is directly connected, Vlan291 C 10.3.180.0/23 is directly connected, Vlan290 PLC1, PLC2, and PLC3 cannot be reconfigured. What can be done to be able to simultaneously communicate with PLC1, PLC2, and PLC3?

  A. Enable NAT on L3SW1
  B. Enable NAT on L2SW1 ?L2SW3
  C. Enable NAT on L2SW4
  D. Add vlan 50 to L2SW4 and assign the administrator's an IP address on 192.168.0.0/24 network
  B. Enable NAT on L2SW1 ?L2SW3

• Question 16:

  Which three network mechanisms can be used for securely segmenting an industrial network? (Choose three)

  A. VLANs
  B. OSPF
  C. REP
  D. VRFs
  E. Firewalls
  F. Spanning-tree
  A. VLANs
  D. VRFs
  E. Firewalls

• Question 17:

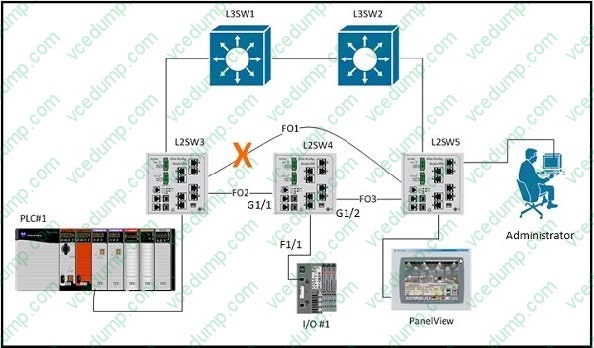

  Refer to the exhibit.



  The control system depicted in the exhibit uses VLAN 300 for all of its device ports and PVST is enabled on each switch to switch connection. L2SW4 was inserted between L2SW3 and L2SW5. Links FO2 and FO3 were added and FO1 was

  disconnected.

  Prior to the installation of L2SW4, PanelView was able to communicate with PLC#1. After the change, PLC#1 and PanelView are still able to communicate but neither PLC#1 or PanelView are able to communicate with I/O #1.

  L2SW4# show run interfaces FastEthernet 1/1

  description I/O#1

  switchport access vlan 300

  switchport mode access

  spanning-tree portfast

  spanning-tree bpduguard enable

  L2SW4# show interfaces trunk

  Port Mode Encapsulation Status Native vlan

  Gi1/1 on 802.1q trunking 1

  Gi1/2 on 802.1q trunking 1 Port Vlans allowed on trunk

  Gi1/1 1,3-9, 301-305,400 Gi1/2 1,3-9, 301-305,400 Port Vlans allowed and active in management domain

  Gi1/1 1,3-9, 301-305,400 Gi1/2 1,3-9, 301-305,400 Port Vlans in spanning tree forwarding state and not pruned

  Gi1/1 1,3-9, 301-305,400 Gi1/2

  Based on the output from the switch, what is preventing I/O#1 from communicating with PLC#1 and PanelView?

  A. Interface FastEthernet 1/1 on LWSW4 should be configured as a trunk port
  B. The trunks connecting L2SW4 to L2SW3 and L2SW5 have the wrong encapsulation type
  C. The trunks connecting L2SW4 to L2SW3 and L2SW5 don't allow VLAN 300 traffic
  D. BPDU guard has error-disabled interface FastEthernet 1/1 on LWSW4
  C. The trunks connecting L2SW4 to L2SW3 and L2SW5 don't allow VLAN 300 traffic

• Question 18:

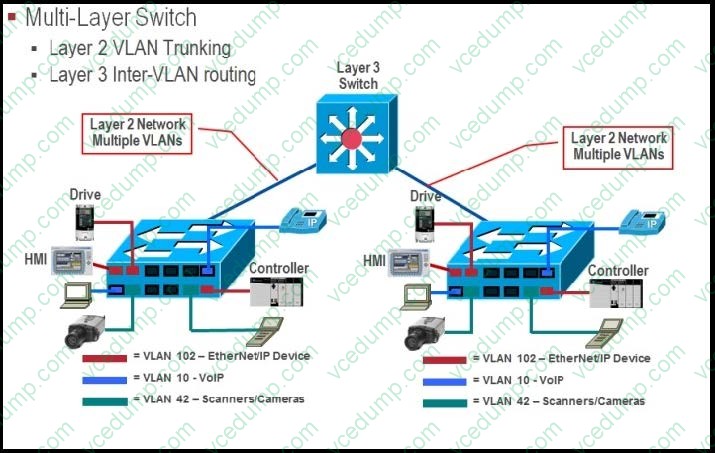

  Exhibit:



  Refer to the exhibit. What are three traffic and interconnection requirements for the devices in the exhibit? (Choose three.)

  A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
  B. EtherNet/IP devices such as the controller, drive, VoIP phone, and IP camera should be in the same VLAN.
  C. CIP traffic has the highest bandwidth requirement so it needs the highest QoS setting.
  D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
  E. Real-time motion control and VoIP traffic can share the same VLAN with the proper QoS setting.
  F. IEEE1588 and PTP are important for ensuring real-time synchronization.
  A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
  D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
  F. IEEE1588 and PTP are important for ensuring real-time synchronization.

• Question 19:

  Why is SSH preferred over Telnet as a method of accessing a network device to alter or view the configuration?

  A. Telnet encrypts only the login information, not the entire transmission.
  B. SSH requires fewer network resources and no additional configuration.
  C. Telnet is more difficult to use and configure than SSH.
  D. SSH encrypts the login and session information.
  D. SSH encrypts the login and session information.

• Question 20:

  You are a called upon to troubleshoot connectivity problems to a network device on a production floor. You have used ping and traceroute to verify that you cannot connect to the device from the management network. The network is 209.165.202.128/27 and the device has been given the IP address 209.165.202.158 and mask 255.255.255.224. You have verified that you can reach the device with your computer connected to the same switch as the device. What could be the cause of this problem?

  A. The device is set to the wrong subnet mask.
  B. The device is set to the wrong IP address.
  C. The device has no IP default gateway.
  D. The device is connected to a switchport in the wrong VLAN.
  C. The device has no IP default gateway.
