• Question 21:

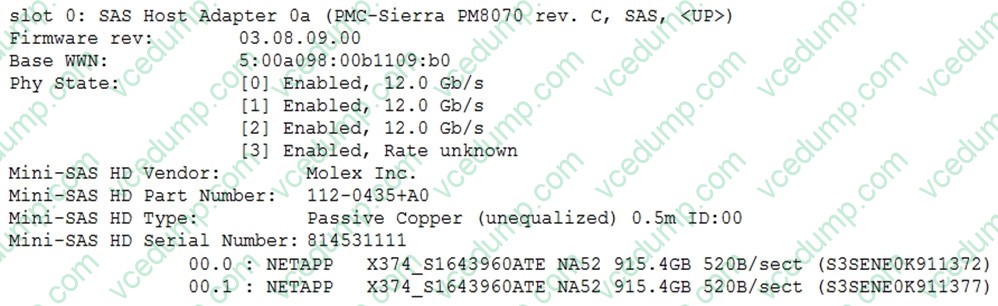

  After completing the installation of a DS224C shelf, you observe the error shown in the exhibit. Which action should you take to troubleshoot the error? (Choose two.)

  A. Re-seat the IOM module.
  B. Re-seat the SAS card.
  C. Perform a takeover-giveback.
  D. Reconnect the SAS cable.
  A. Re-seat the IOM module.
  D. Reconnect the SAS cable.

• Question 22:

  You are installing a new 2-node AFF A220 cluster running ONTAP 9.5. The customer would like to use the UTA2 adapters from the first controller to connect to the 10GbE front-end switches. On the second controller, they would like to use the first UTA2 port as a target FC port, and the second as an FC initiator.

  In this scenario, according to NetApp Best practices, what should your customer do?

  A. Change all the UTA2 ports from CNA mode to FC mode.
  B. Change all the UTA2 ports to CNA to support both FC and Ethernet.
  C. Change the first two ports of each controller to FC and the last two to CNA.
  D. Change the UTA2 ports from CNA mode to FC mode on the first controller.
  C. Change the first two ports of each controller to FC and the last two to CNA.

• Question 23:

  Click the Exhibit button.

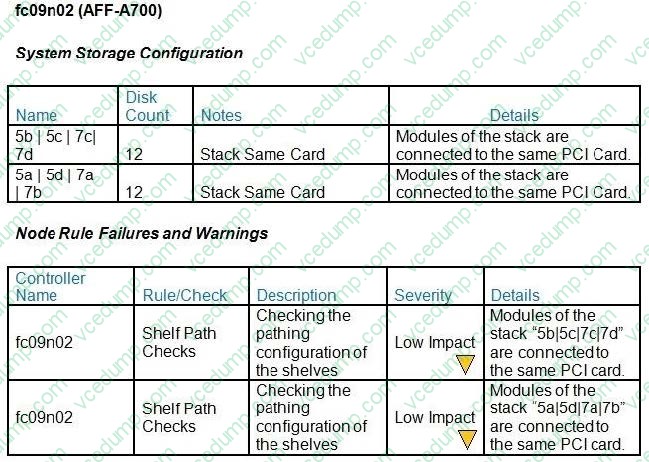

  After running Config Advisor 5.0 on a newly deployed ONTAP system, you are reviewing the output with the customer, and you find the warnings shown in the exhibit. Which action should you perform before you leave the customer site?

  A. Explain to the customer that the warnings are not relevant because of the quad-path HA cabling.
  B. Remove all of the SAS cables from behind the controllers and replace them with FC cables.
  C. Explain to the customer that Config Advisor does not support the AFF A700 and FAS900 systems.
  D. Review the Hardware Universe Web site for calling guidance.
  B. Remove all of the SAS cables from behind the controllers and replace them with FC cables.

• Question 24:

  Config Advisor reports that you have a single point of failure on a stack of shelves. After investigation, you have assigned the following ports to each stack:

  stack 1 - ports 0a and 0b stack 2 - ports 3a and 4b stack 3 - ports 4a and 3b

  In this scenario, which two changes would you make to the cabling to solve the problem? (Choose two.)

  A. Cable stack 3 to ports 4a and 0b.
  B. Cable stack 2 to ports 4a and 4b.
  C. Cable stack 1 to ports 0a and 3b.
  D. Cable stack 3 to ports 3a and 3b.
  B. Cable stack 2 to ports 4a and 4b.
  C. Cable stack 1 to ports 0a and 3b.

• Question 25:

  Click the Exhibit button.

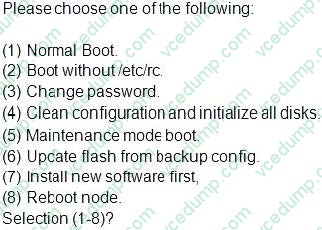

  While planning for an installation, you download ONTAP 9.5 as requested by the customer. As you begin the installation, you determine that the system shipped with ONTAP 9.0 software installed. Because of this, you boot to the Special Boot Menu shown in the exhibit.

  What should you use to upgrade the ONTAP software on the customer's cluster?

  A. Use option 6, "Update flash from backup config" to upgrade to ONTAP 9.5 software.
  B. Use option 7, "Install new software first," to upgrade to ONTAP 9.5 software.
  C. Use option 5, "Maintenance mode boot," and then use the software update command to upgrade to ONTAP 9.5 software.
  D. Use option 5, "Maintenance mode boot", and then use the system node image update command to upgrade to ONTAP 9.5 software.
  A. Use option 6, "Update flash from backup config" to upgrade to ONTAP 9.5 software.

• Question 26:

  Which statement about LIFs is true?

  A. Cluster LIFs and data LIFs can share a port.
  B. One cluster-management LIF exists per node.
  C. One port can host multiple data LIFs.
  D. A data LIF can be associated with multiple SVMs.
  C. One port can host multiple data LIFs.

• Question 27:

  You have a 4-node FAS8060 cluster. You are using the vol move command to relocate a volume from an aggregate on node 1 to an aggregate on node 4. In this scenario, which network is used for the traffic being relocated?

  A. the node management network
  B. the HA interconnect
  C. the intercluster network
  D. the cluster interconnect
  D. the cluster interconnect

• Question 28:

  You are performing an automated upgrade of a 2-node cluster. Node-01 upgrades successfully. But during the node-02 upgrade, there is a power outage at the site. When power is restored and the nodes are booted, you receive this message: Warning: The Cluster is in a mixed version state. Update all of the nodes to the same version as soon as possible.

  In this scenario, which command provides information that will help you understand the problem?

  A. system node upgrade show-task-status
  B. system node image package show
  C. system node upgrade-revert show
  D. system node image show
  B. system node image package show

• Question 29:

  A customer wants to reduce the disk allocation requirement for the root aggregate and increase usable storage by partitioning the disks into one large part and one small part. The small part is used for the root aggregate and the large part for the data aggregates.

  In this situation, what is this feature called?

  A. ONTAP
  B. storage virtual machine
  C. Advanced Drive Partitioning
  D. RAID
  C. Advanced Drive Partitioning

• Question 30:

  In which two configurations would Advanced Drive Partitioning be used by default in ONTAP 9.5? (Choose two.)

  A. an AFF A700 with one DS2246 shelf containing 24 960GB SSDs
  B. a FAS2554 with 24 internal 1000 GB SATA HDDs
  C. a FAS8040 with one DS2246 shelf containing 24 900 GB SAS disks
  D. a FAS9000 with one shelf DS212C with 24 800 GB SAS HDDs
  A. an AFF A700 with one DS2246 shelf containing 24 960GB SSDs
  C. a FAS8040 with one DS2246 shelf containing 24 900 GB SAS disks
