Juniper JN0-360 Online Practice Questions and Exam Preparation

Juniper JN0-360 Online Questions & Answers

• Question 121:

  You are deploying IS-IS in your network to enable the routing of only IPv6. Assume that the loopback interface has been properly configured.

  What is the minimum required configuration to enable only IPv6 routing in IS-IS?

  A. user@host# show protocols isis rib-group inet6; interface ge-0/0/0.0; interface lo0.0 { passive; } user@host# show interfaces ge-0/0/0 unit 0 { family inet6 address fd85:5944:1aee:026::1/64; }
  B. user@host# show protocols isis interface ge-0/0/0.0; interface lo0.0 { passive; } user@host# show interfaces ge-0/0/0 unit 0 { family iso; family inet6 address fd85:5944:1aee:026::1/64; }
  C. user@host# show protocols isis no-ipv4-routing; interface ge-0/0/0.0 interface lo0.0 { passive; } user@host# show interfaces ge-0/0/0 unit 0 { family iso; family inet6 address fd85:5944:1aee:026::1/64; }
  D. user@host# show protocols isis no-ipv4-routing; interface ge-0/0/0.0; interface lo0.0 { passive; } user@host# show interfaces ge-0/0/0 unit 0 { family iso; family inet6; }
  E. user@host# show protocols isis traffic-engineering { family inet6 { shortcuts; } } interface ge-0/0/0.0; interface lo0.0 { passive; } user@host# show interfaces ge-0/0/0 unit 0 { family inet6 address fd85:5944:1aee:026::1/64; family iso; }
  C. user@host# show protocols isis no-ipv4-routing; interface ge-0/0/0.0 interface lo0.0 { passive; } user@host# show interfaces ge-0/0/0 unit 0 { family iso; family inet6 address fd85:5944:1aee:026::1/64; }

• Question 122:

  Which three statements are true about tunneling IPv6 traffic over IPv4 networks? (Choose three.)

  A. The source tunnel endpoint encapsulates the native IPv6 packet inside IPv4
  B. The source tunnel endpoint disassembles the IPv6 packet and reassembles it as IPv4
  C. The intermediary hops are responsible for de-encapsulating and re-encapsulating the IPv4 packet to process the IPv6 payload
  D. The source tunnel endpoint forwards the IPv4 network with the encapsulated IPv6 payload through the IPv4 network
  E. The destination tunnel endpoint de-encapsulates the IPv6 packet and forwards/processes the packet natively
  A. The source tunnel endpoint encapsulates the native IPv6 packet inside IPv4
  D. The source tunnel endpoint forwards the IPv4 network with the encapsulated IPv6 payload through the IPv4 network
  E. The destination tunnel endpoint de-encapsulates the IPv6 packet and forwards/processes the packet natively

• Question 123:

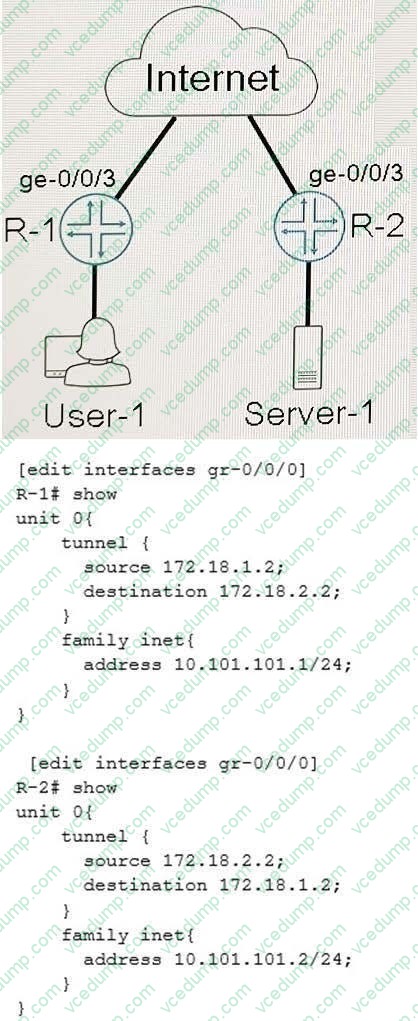

  Click the Exhibit.



  Referring to the exhibit, the GRE tunnel between R-1 and R2 allows connectivity between User-1 and Server-1. User-1 can communicate with Server-1 with packets that are up to 1448 bytes in size. However, if the packet size is larger than 1448, User-1 cannot communicate with Server-1. In this scenario, how do you solve the communication problem?

  A. Change the physical MTU on the ge-0/0/3 interfaces on R-1 and R-2 to 1448 bytes.
  B. Change the physical MTU on the gr-0/0/0 interfaces on R-1 and R-2 to 1448 bytes.
  C. Apply the allow-fragmentation statement to the GRE tunnel configuration.
  D. Apply the path-mtu-discovery statement to the GRE tunnel configuration.
  C. Apply the allow-fragmentation statement to the GRE tunnel configuration.

• Question 124:

  What is the role of the route distinguisher (RD) in a Layer 3 VPN?

  A. The RD controls the allocation of MPLS labels within a VRF.
  B. The RD allows different VRFs to contain the same IP prefixes.
  C. The RD is used to create unique routing processes within the global routing instance.
  D. The RD is used to control the import and export of routes within a VRF.
  B. The RD allows different VRFs to contain the same IP prefixes.

• Question 125:

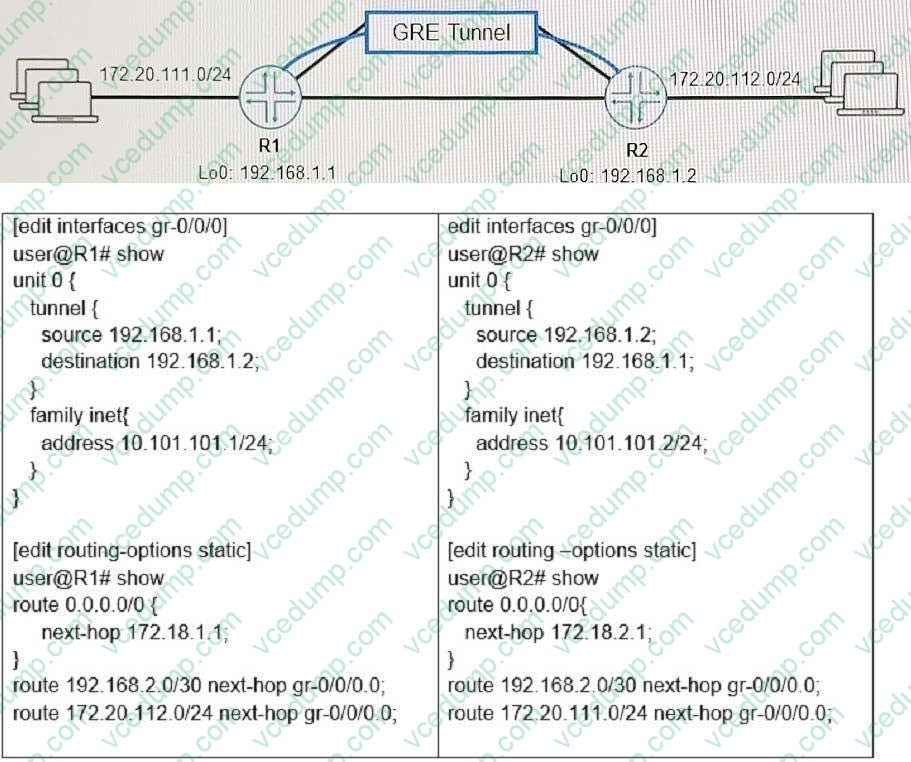

  Click the Exhibit.



  You have just configured a GRE tunnel, but you notice that the GRE tunnel is flapping. Referring to the exhibit, which two would you take to solve this problem? (Choose two.)

  A. Add a specific static route to the local peer's network with the remote devices'loopback address as the next-hop gateway.
  B. Add a specific route to the remote device's loopback address with the next-hop device defined as the next-hop gateway.
  C. Set the GRE interface with a larger TTL value.
  D. Remove the existing 192.168.2.0/30 static route.
  B. Add a specific route to the remote device's loopback address with the next-hop device defined as the next-hop gateway.
  D. Remove the existing 192.168.2.0/30 static route.

• Question 126:

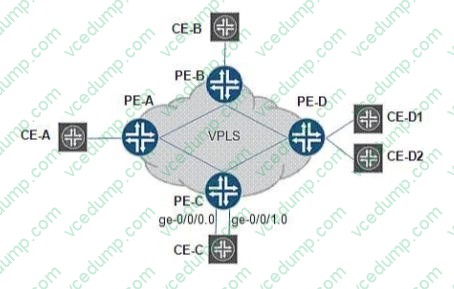

  Click the Exhibit button



  Based on the illustration shown in the exhibit, what would PE-B do with a VPLS packet received from PE-A if the matching entry in its VPLS routing table showed the destination was connected to PE-D?

  A. PE-B would flood the packet to all attached PEs
  B. PE-B would forward the packet to the root PE device
  C. PE-B would forward the packet to all attached CE devices
  D. PE-B would discard the packet
  C. PE-B would forward the packet to all attached CE devices

• Question 127:

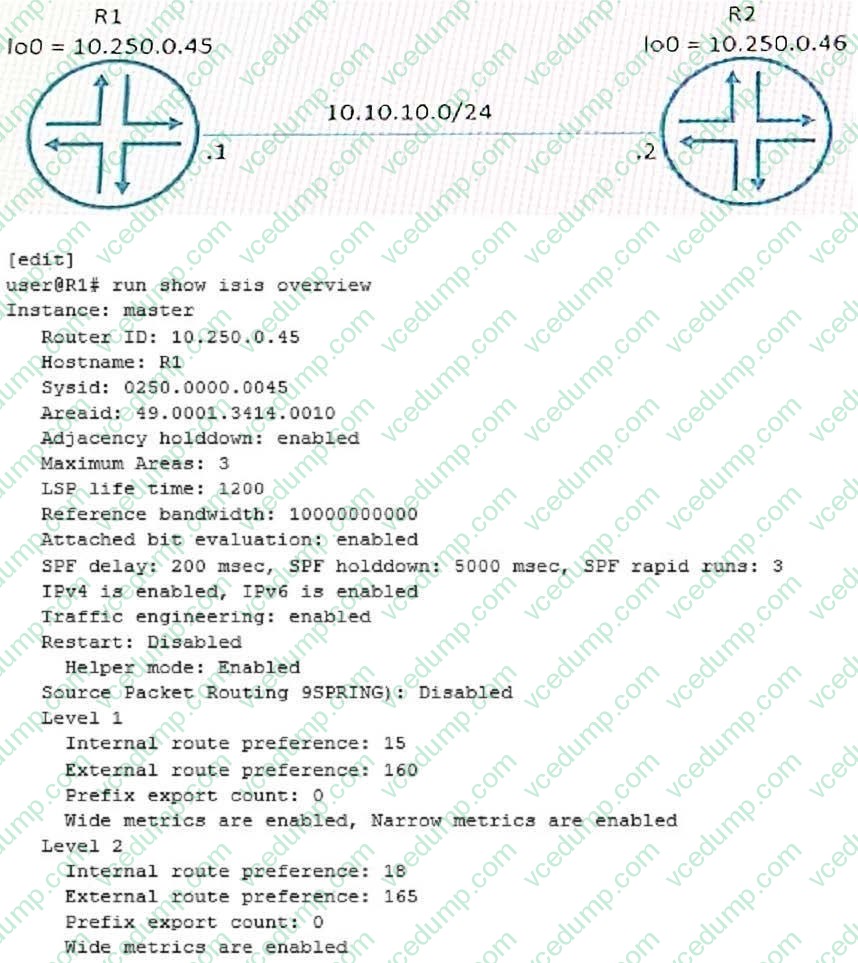

  Click the exhibit.



  Referring to the exhibit, which configuration must be set on R2 to from a Level 1 IS-IS adjacency with R1?

  A. Set interfaces lo0 unit 0 family iso address 49.0001.3415.0010.0250.0000.0046.00
  B. Set interfaces lo0 unit 0 family iso address 49.0002.3414.0010.0250.0000.0046.00
  C. Set interfaces lo0 unit 0 family iso address 49.0002.3415.0010.0250.0000.0046.00
  D. Set interfaces lo0 unit 0 family iso address 49.0001.3414.0010.0250.0000.0046.00
  A. Set interfaces lo0 unit 0 family iso address 49.0001.3415.0010.0250.0000.0046.00

• Question 128:

  You are logged into a PE router participating in a Layer 3 VPN as defined in RFC 4364. You would like to ping the remotely connected CE router's loopback address. The address of the loopback is 122.161.2.1, the VPN routing-instance is called VPN-C. Which command will accomplish this goal?

  A. ping instance VPN-C 122.161.2.1
  B. ping routing-instance VPN-C 122.161.2.1
  C. ping VPN-C 122.161.2.1
  D. ping vpn-instance VPN-C 122.161.2.1
  B. ping routing-instance VPN-C 122.161.2.1

• Question 129:

  Which IS-IS packet is used to determine the level of an IS-IS neighbor?

  A. IIH
  B. LSP
  C. PSNP
  D. CSNP
  A. IIH

• Question 130:

  What are two ways to assign an IPv6 to an interface? (Choose two.)

  A. Use static addressing.
  B. Use neighbor discovery.
  C. Use an auto-configuration based on the interface MAC address.
  D. Use an IPv6 routing protocol.
  A. Use static addressing.
  C. Use an auto-configuration based on the interface MAC address.
