Juniper JN0-360 Online Questions & Answers

• Question 141:

  Which statement is correct about the inet.3 routing table?

  A. MPLS creates a copy of the mpls.0 table and stores it in the inet.3 routing table.
  B. The inet.3 routing table is used by transit routers to identify label values.
  C. BGP can use the inet.3 routing table to resolve next hops.
  D. MPLS uses the inet.3 routing table to assign labels.
  C. BGP can use the inet.3 routing table to resolve next hops.

• Question 142:

  You are asked to configure an MC-LAG, in active-active mode, between PE1 and PE2. Which configuration is correct?

  D

• Question 143:

  What are two characteristics of an interface that has been placed in the blocking state by STP? (Choose two.)

  A. It drops all data frames
  B. It listens to received BPDUs
  C. It uses learned MAC addresses to populate the MAC table
  D. It forwards outbound data frames only
  A. It drops all data frames
  B. It listens to received BPDUs

• Question 144:

  -- Exhibit -{master}[edit]

  user@router-RE0# run show task replication

  Stateful Replication: Enabled

  RE modE. Master

  Protocol Synchronization Status

  OSPF Complete

  RIP Complete

  BGP Complete

  MPLS Complete

  LDP Complete

  {master}[edit]

  user@router-RE0# run show bgp summary | match 192.168.1.1

  192.168.1.1 65056 288 327 0 2 1:05 Establ

  {backup}[edit]

  user@router-RE1# run show system switchover

  Graceful switchover: On

  Configuration databasE. Ready

  Kernel databasE. Ready

  Peer statE. Steady State

  {backup}[edit]

  user@router-RE1# run show bgp summary | find 192.168.1.1

  192.168.1.1 65056 592 737 3778 2 1:33 Establ

  {backup}[edit] user@router-RE1# run show bgp replication Synchronization master: Session statE. Up, SincE. 6d 20:42:51 Flaps: 1, Last flap reason: Commit-sync error Protocol statE. Idle, SincE. 5d 19:41:52 Synchronization statE. Complete Number of peers waitinG. AckWait: 0, SoWait: 0, ScheduleD. 0 rsync walk at: inet.0 - , queued 0 Messages sent: Open 1, Establish 7415, Update 17, Error , Complete 48 Messages receiveD. Open 1, Request 1 wildcard 47 targeted, EstablishAck 2827, CompleteAck 4 -- Exhibit -

  Click the Exhibit button.

  Referring to the exhibit, which statement is correct?

  A. An RE switchover is likely to result in BGP disruption, but no dataplane impact will be seen.
  B. An RE switchover is likely to result in BGP disruption which will also effect the dataplane.
  C. The system is not yet GRES ready, you need to wait for kernel synchronization to complete.
  D. The system is NSR ready and a switchover should be hitless to the BGP control and data plane.
  D. The system is NSR ready and a switchover should be hitless to the BGP control and data plane.

• Question 145:

  You have been asked to define a default gateway for traffic leaving a router. This route should use interface so-0/0/0 as its next-hop. Which type of route would be suited for this scenario?

  A. a static route
  B. a generated route
  C. a martian route
  D. an aggregate route
  A. a static route

• Question 146:

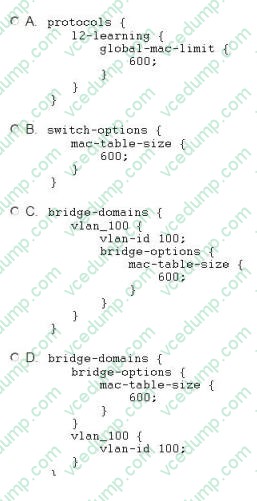

  Which configuration can be applied to ensure that no more than 600 MAC addresses are learned by a virtual switch?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 147:

  Which statement is true about GRE encapsulation?

  A. Only the IP payload is encapsulated by GRE.
  B. Only the IP header is encapsulated by GRE.
  C. The entire packet is encapsulated by GRE.
  D. The entire frame is encapsulated by GRE.
  B. Only the IP header is encapsulated by GRE.

• Question 148:

  Router B is an OSPF router connected to both Area 0 and Area 2. Area 2 has been configured as a totally stubby area. Which three LSA types does Router B suppress from Area 2? (Choose four.)

  A. Router LSA
  B. Network LSA
  C. External LSA
  D. Summary LSA
  E. ASBR Summary LSA
  A. Router LSA
  B. Network LSA
  C. External LSA
  E. ASBR Summary LSA

• Question 149:

  What are two types of BPDUs in the Spanning Tree Protocol? (Choose two.)

  A. configuration
  B. hello
  C. topology change notification
  D. link state
  A. configuration
  C. topology change notification

• Question 150:

  You are asked to deploy OSPF between two routers over a point-to point link. Which three fields in the OSPF hello packet must match? (Choose three.)

  A. network mask
  B. hello interval
  C. options
  D. dead interval
  E. backup designated router
  B. hello interval
  C. options
  D. dead interval
