Juniper JN0-360 Online Practice Questions and Exam Preparation

Juniper JN0-360 Online Questions & Answers

• Question 131:

  You have configured MPLS and RSVP in your network using all of the Junos defaults. You established an LSP in your network which is reporting an up status but no traffic is using it. Which two statements reflect potential causes for this issue? (Choose two)

  A. The LSP egress address is a physical interface address
  B. family MPLS was omitted from the router configurations
  C. No BGP routes are being advertised from the remote neighbor
  D. The LSP egress address does not match the BGP next-hop address
  C. No BGP routes are being advertised from the remote neighbor
  D. The LSP egress address does not match the BGP next-hop address

• Question 132:

  Which three reasons would account for this issue? (Choose three.)

  A. A lack of or a malformed ISO network entity title (NET) on the loopback interface would cause this issue.
  B. The interface MTU might be less than 1492.
  C. The IS-IS protocol on the loopback interface has not been enabled.
  D. The area IDs might be matched and should be set differently.
  E. An ISO NET might not be configured on the physical interface.
  A. A lack of or a malformed ISO network entity title (NET) on the loopback interface would cause this issue.
  B. The interface MTU might be less than 1492.
  C. The IS-IS protocol on the loopback interface has not been enabled.

• Question 133:

  Your customer would like to forward traffic using DLCI 600 and maintain Layer 2 information across a VPN. Which solution will meet these requirements?

  A. a Layer 3 VPN
  B. a Layer 2 VPN
  C. Virtual Private LAN Service (VPLS)
  D. an IPsec VPN
  B. a Layer 2 VPN

• Question 134:

  -- Exhibit -

  [edit protocols bgp] user@router# show group internal { neighbor 10.0.16.2; }

  The exhibit shows a partial configuration fo an internal BGP session.

  Which two statements must be added to complete the configuration? (Choose two.)

  A. a local-address statement
  B. a type ibgp statement
  C. a next-hop-self statement
  D. a type internal statement
  A. a local-address statement
  D. a type internal statement

• Question 135:

  Which statement is true regarding IS-IS?

  A. IS-IS PDUs are also known as LSAs
  B. IS-IS PDUs are transmitted at Layer 3
  C. All IS-IS routers run a single routing algorithm
  D. IS-IS PDUs are hosts that send and receive packets
  C. All IS-IS routers run a single routing algorithm

• Question 136:

  You have configured an IP-IP tunnel between Router A and Router B

  Which Junos operational mode command is used to verify that the tunnel interface is up and operational?

  A. show chassis tunnel status
  B. show tunnel interface
  C. show interfaces terse
  D. show interfaces tunnel
  C. show interfaces terse

• Question 137:

  Which three statements are true about BGP? (Choose three)

  A. iBGP peering adds value in small networks with a single upstream connection
  B. iBGP peering adds value in small networks with multiple upstream connections
  C. eBGP peering adds value in small networks with multiple upstream connections
  D. iBGP peering adds value in large enterprise environments with multiple upstream connections
  E. eBGP peering adds value in large enterprise environments with multiple upstream connections
  C. eBGP peering adds value in small networks with multiple upstream connections
  D. iBGP peering adds value in large enterprise environments with multiple upstream connections
  E. eBGP peering adds value in large enterprise environments with multiple upstream connections

• Question 138:

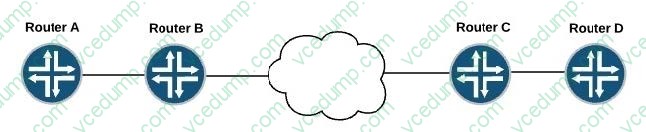

  In the network shown in the exhibit, you want to configure a GRE tunnel on Router B that is destined for Router C. Which route should be used on Router B to provide reachability to the tunnel destinations?

  A. static route to the loopback address of Router A
  B. static route to the loopback address of Router B
  C. static route to the loopback address of Router C
  D. static route to the loopback address of Router D
  C. static route to the loopback address of Router C

• Question 139:

  Which two statements regarding the MPLS label information base are correct? (Choose two.)

  A. The MPLS label information base is stored in the inet.3 table.
  B. The MPLS label information base is stored in the mpls.0 table.
  C. The label information base is used by all LSRs to forward LSP traffic.
  D. The label information base is used by transit LSRs to forward LSP traffic.
  B. The MPLS label information base is stored in the mpls.0 table.
  D. The label information base is used by transit LSRs to forward LSP traffic.

• Question 140:

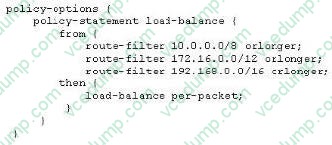

  Click the Exhibit button When the Junos configuration shown in the exhibit is applied to the router, which routes in the forwarding table will begin load-balancing packet flows?



  A. all routes in the forwarding table
  B. all OSPF routes in the forwarding table
  C. all BGP routes in the forwarding table
  D. all RFC1918 routes in the forwarding table
  D. all RFC1918 routes in the forwarding table
