HP HP2-T25 Online Practice Questions and Exam Preparation

HP HP2-T25 Online Questions & Answers

• Question 51:

  An engineer is installing a new quad 1 GB NIC in a ProLiant DL360 G7 server. This server already has a full length PCIe card installed. What must the engineer do to install the new NIC?

  A. Install the half-height NIC version only.
  B. There are insufficient slots in the server to support the new card.
  C. Replace the full-height bracket with the supplied half-height bracket.
  D. Install the NIC in the slot used by the full-length card and then install a half-height bracket on the full- length card.
  A. Install the half-height NIC version only.

  ---

  There exist a full lenght and a half length PCI expansion slot.

• Question 52:

  You are working on an HP ProLiant DL380 G7. HP Support wants you to send them a copy of the survey that captures detailed information about the server. How do you generate this file?

  A. During boot up, press the F10 key when prompted.
  B. Run Insight Diagnostics. The survey runs automatically. Navigate to the Survey tab, and save the survey to a USB memory flash drive.
  C. Boot SmartStart, navigate to the Software tab, and choose Server Documentation.
  D. During boot up of the server, press the F8 key when prompted.
  B. Run Insight Diagnostics. The survey runs automatically. Navigate to the Survey tab, and save the survey to a USB memory flash drive.

  ---

  *

  HP Insight Diagnostics is a proactive server management tool, available in both Online and Offline editions. Insight Diagnostics provides diagnostics and troubleshooting capabilities to assist IT administrators who verify server installations, troubleshoot problems, and perform repair validation.

  *

  The HP Insight Diagnostics Survey feature displays system configuration information on the Survey tab.

• Question 53:

  You replaced a Smart Array P812 in a DL380 G7 storage server. What should you do next?

  A. Verify that the firmware level is current.
  B. Install the BBWC battery.
  C. Check the FBWC charge.
  D. Replace the cache module.
  A. Verify that the firmware level is current.

  ---

  Note:

  * SCOPE Any ProLiant DL380 G6 or ProLiant DL360 G7 server configured with a Smart Array P812 controller and an HP StorageWorks Modular Smart Array 60 or Modular Smart Array 70 direct-attached and an upgrade to the MSA firmware is attempted using HP Smart Update Manager (HP SUM) Version 4.2.1 shipped in Smart Update Firmware DVD 9.30.

  Note : This issue may also occur on other G6 and G7-series servers with a Smart Array P812 and MSA60/ MSA70 installed.

  RESOLUTION

  The HP Service Pack for ProLiant (SPP) may not support upgrading the MSA60 or MSA 70 firmware. Use Smart Update Firmware DVD 10.00 or 10.10 to correct this issue:

• Question 54:

  What does adding the battery or flash backed cache upgrade NOT enable?

  A. RAID 60 migration
  B. array expansion
  C. logical drive extension
  D. stripe size migration
  C. logical drive extension

  ---

  Note:

  * Error checking and correcting (ECC) DRAM technology protects the data while it is in cache. Smart Array battery-backed or flash-backed cache backup mechanisms protect the cache data against a server crash and power loss.

• Question 55:

  What is required by iLO to support Agentless management? (Select two.)

  A. System Location
  B. SNMP Alert Destination
  C. Read Community
  D. Write Community
  E. Trap Community
  B. SNMP Alert Destination
  C. Read Community

  ---

  Configuring HP Agentless Management manually

  For HP SIM 7.0 to manage a ProLiant Gen8 server using HP Agentless Management, you need to configure certain SNMP parameters on the server. To configure SNMP, select Management from the iLO 4 GUI Administration browser menu.

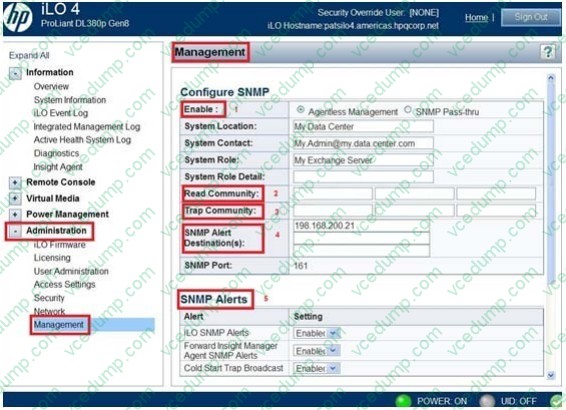

  Figure 5 shows the Management screen and the SNMP parameters that you need to configure.

  To configure SNMP on the ProLiant Gen8 server, complete the following steps:

  1.

  Enable Agentless Management.

  2.

  (C) Enter a common Read Community string for HP SIM 7.0 and the ProLiant Gen8 server.

  3.

  Optionally, enter a common Trap Community string for HP SIM 7.0 and the ProLiant Gen8 server.

  4.

  (B) Enter the IP address or DNS name for the HP SIM 7.0 IP address in the SNMP Alert Destinations(s) field.

  5.

  Enable all of the SNMP Alerts: iLO SNMP Alerts, Forward Insight Manager SNMP Alerts (if the SNMP agent is installed in the OS), and Cold Start Trap Broadcast.



• Question 56:

  A customer has placed a service call because RAID 6 cannot be configured on a Smart Array P420i controller using 4 disk drives. What is the most likely cause of the problem?

  A. The customer needs a minimum of 6 disk drives to support RAID 6.
  B. The battery backed cache option is not installed.
  C. The P420i is Smart Array Controller is defective.
  D. The P420i Smart Array Controller does not support RAID 6.
  B. The battery backed cache option is not installed.

  ---

  HP Smart Array Controller requirements - minimum of:

  *

  HP Smart Array P212, P410, P410i, or P411 controller 256MB Cache Module

  *

  Battery Kit for Battery Backed Write Cache (BBWC)

  *

  1 or 2 GB Flash Back Write Cache module (FBWC)

  *

  1 SSD/HDD physical SDD that will be 100% dedicated to caching. Any Gen8 supported HDD(s) and SSD (s)

  *

  An updated version of the Array Configuration Utility (ACU) to configure HP SmartCache

  Note:

  *

  RAID 6 (Advanced Data Guarding)

  Incorrect:

  Not A: RAID 6 extends RAID 5 by adding an additional parity block; thus it uses block-level striping with twoparity blocks distributed across all member disks.

• Question 57:

  An engineer needs to add two Extended Runtime Modules (ERM) on an existing HP R7000 UPS. How does the engineer need to configure the R7000 UPS with the extra available battery runtime?

  A. In HP Power Manager, log on and click on the Setup tab to update the number of ERMs.
  B. In HP Power Protector, log on and click on the R7000. Configure the power source and update the number of ERMs.
  C. Use the OCP of the R7000 and configure the R7000 with two extra ERMs.
  D. Connect the sense and ERM cable from the first ERM to the UPS and from the second ERM to the first ERM. The R7000 will update the number of ERMs automatically.
  D. Connect the sense and ERM cable from the first ERM to the UPS and from the second ERM to the first ERM. The R7000 will update the number of ERMs automatically.

  ---

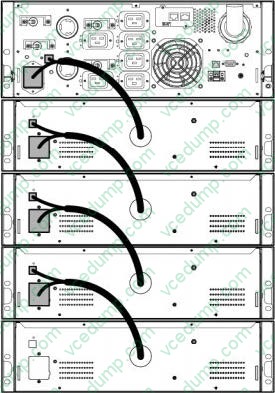

  Connecting the ERM to the UPS Connect both ends of the split ERM cable to the ERM connectors on the UPS rear panel. To install additional ERMs, connect both ends of the split ERM cable from the next ERM into the connectors on the rear panel of the previous ERM. Up to four ERM units can be connected Charging the ERM batteries Connect the UPS to a grounded utility power outlet. When the UPS is plugged in, it automatically enters Standby mode and begins charging the ERM batteries. With the UPS in Standby mode, allow the ERM batteries to charge for at least 24 hours before putting the UPS into service. IMPORTANT: To verify the attached ERMs are recognized, confirm the number of installed ERMs using the UPS front panel control via the UPS Status Menu.



• Question 58:

  How do you enter the RBSU on Post?

  A. F8
  B. F9
  C. F11
  D. F12
  B. F9

  ---

  Tuning procedures Tuning with the ROM-based Setup Utility To configure BIOS low-latency options using RBSU:

  1.

  Boot the server.

  2.

  When prompted during POST, press F9 to enter RBSU.

  3.

  When the RBSU menu appears, press CTRL-A to display the option for the Service Options menu.

  4.

  Browse through the menus to change the parameters.

• Question 59:

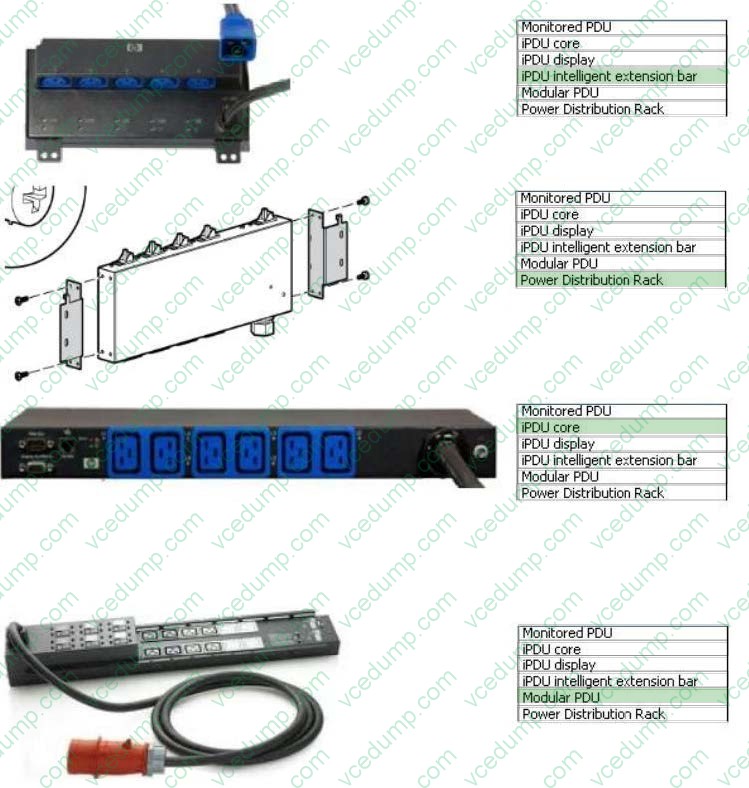

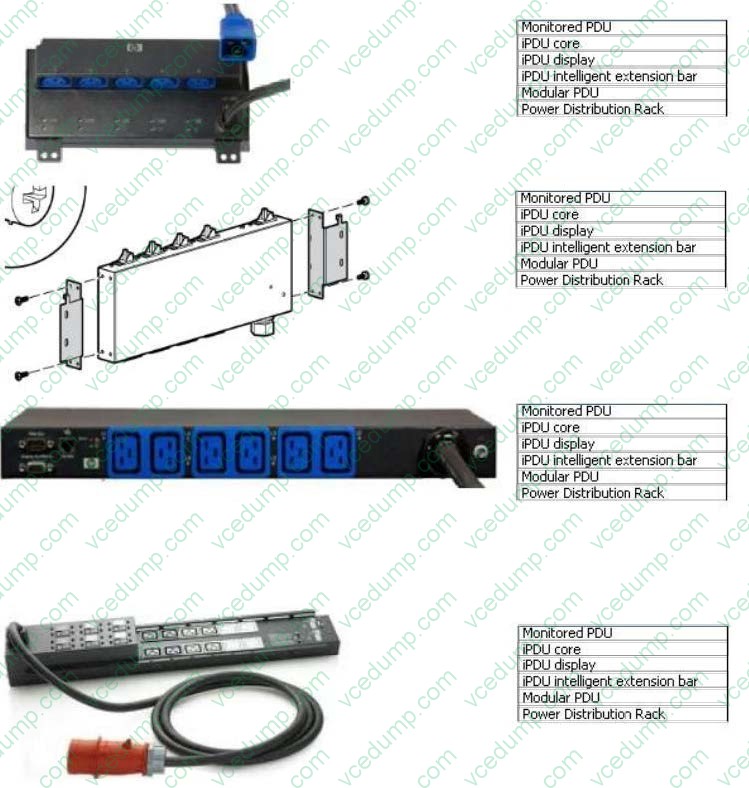

  Match the correct description to each image.

  Hot Area:





• Question 60:

  Which UEFI command is used to back up and store the NVRAM variables of a HP Integrity rx2800 i2?

  A. nvrambkp -f
  B. dmpstore -s
  C. efi_backup -s fs0:
  D. drvcfg -s
  B. dmpstore -s

  ---

  dmpstore Displays, stores, and restores all UEFI NVRAM variables
