HP HP2-T25 Online Questions & Answers

• Question 31:

  A customer has an HP Smart Array P420i Zero Memory Controller and the current configuration has the minimum number of drives for RAID 1 and one hotspare.

  What is the minimal requirement to upgrade it to RAID 5?

  A. One more hard disk
  B. One more hard disk with FBWC
  C. FBWC only
  D. Two more hard disks
  A. One more hard disk

  ---

  RAID 5 requires 3 hard drives, whereas RAID 1 requires only two. One extra hard drive is required here. Note:

  *

  Flash Backed Write Cache (FBWC).

  *

  RAID5 is available on the SA P420/P420i with a minimum of 512MB cache.

  Incorrect:

  Not C:

  RAID 6 requirement: Minimum of 512 MB FBWC with SuperCap and Smart Array Advanced Pack License 2.0 key option upgrades

• Question 32:

  An engineer is replacing components in a ProLiant server. When should an ESD strap be used?

  A. An ESD only needs to be used when working in moist environments.
  B. An ESD strap needs to be used when working on uncarpeted floors.
  C. An ESD strap is only needed when static electricity is felt.
  D. An ESD strap is not needed since ESD protection is built into the components.
  E. An ESD must always be used when replacing components.
  B. An ESD strap needs to be used when working on uncarpeted floors.
  E. An ESD must always be used when replacing components.

  ---

  An ESD strap is used to protect from static electricity.

• Question 33:

  What should be installed on a ProLiant Gen8 Server to display operating system information within the iLO GUI?

  A. Agentless Management Service
  B. HP Management Agents
  C. System Management
  D. Home Page ProLiant Support Pack
  A. Agentless Management Service

  ---

  HP ProLiant Gen8 Agentless Management Overview

  * iLO supports Inventory and Configuration, Health Status, SNMP Alerting, Pre-Failure Alerting, Redundancy Status and Alerting, and SNMP Data Collection.

• Question 34:

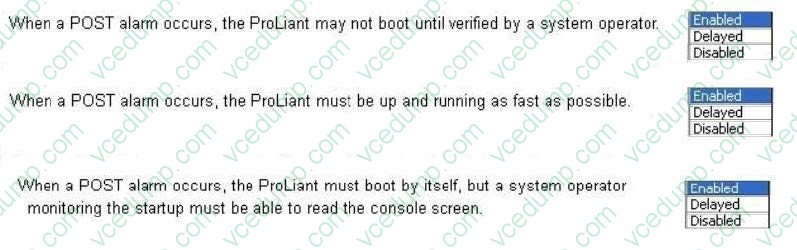

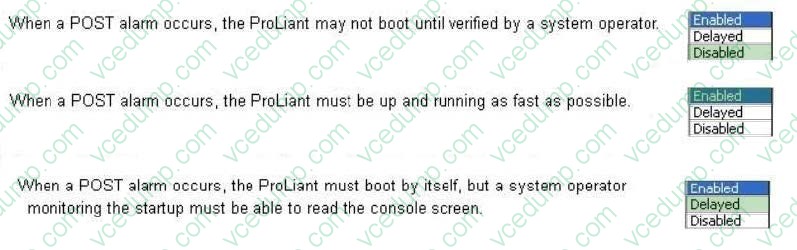

  Match each ProLiant RBSU setting with its description.

  Hot Area:





• Question 35:

  The mother board of an HP Integrity rx2800 i2 server needs to be replaced. Which statements are correct? (Select two.)

  A. If a Trusted Platform Module (TPM) is installed on the original system board, order and install a new TPM for the new system board.
  B. Use the UEFI shell SYSSET command to check and correct system settings, such as serial number, after the replacement.
  C. If no Trusted Platform Module (TPM) is installed on the original system board, make sure you remove it from the new system board, as it comes with a TPM installed.
  D. If a Trusted Platform Module (TPM) is installed on the original system board, take over the the original TPM to the new system board.
  E. Use the iLO/MP SYSSET command to check and correct system settings, such as serial number, after the replacement.
  A. If a Trusted Platform Module (TPM) is installed on the original system board, order and install a new TPM for the new system board.
  B. Use the UEFI shell SYSSET command to check and correct system settings, such as serial number, after the replacement.

  ---

  A (not D): Removing and replacing the system board IMPORTANT: If your system board has a TPM installed, you must order a new TPM when you order a replacement system board.Before replacing the system board, you must first back up the current TPM settings. See the HP-UX operating system documentation for more information. The TPM is not a customer-installable component. If you need to replace a TPM on a replacementsystem board, contact an HP authorized service provider.

  WARNING! Once the TPM is installed on your system board, it cannot be removed. If the TPM fails, the system board needs to be replaced. Attempting to remove the TPM from the system board will void any existing HP service contract and cause the server to fail.

  B: After you replace the system board, you must to set the SAS mode to RAID if that was your previous configuration.

  1.

  During the server startup, wait for UEFI Front Page, press S to launch the UEFI Shell.

  2.

  Get the saupdate.efi utility tool.

  3.

  Enter saupdate.efi set_mode 0:1:0:0 raid to change the SAS mode to RAID. etc

• Question 36:

  Which LED is a new feature for the 6 GB SATA disk drive in Gen8 servers?

  A. Configuration
  B. Activity
  C. Do Not Remove
  D. Unit
  C. Do Not Remove

  ---

  What's new

  *

  Introducing all new 6Gb/sec SATA Midline drives with enhanced data rate, exclusively for use with all new HP ProLiant Gen8 servers and available in a wide range of capacity points

  *

  Entirely re-designed Small Form Factor (SFF) and Large Form Factor (LFF) universal hot plug carriers exclusively for HP ProLiant Gen8 servers

  *

  Intuitively designed drive activity and status LEDs and a DO NOT Remove indicator compatible with Gen8 Smart Array controllers

• Question 37:

  You have a P421/1GB FBVVC with three hard disks configured as RAID 5. What is the minimum requirement to upgrade the disk's configuration to RAID 60? (Select two.)

  A. BBWC
  B. Smart Array Advanced Pack 2.0
  C. Five more hard disks
  D. Three more hard disks
  B. Smart Array Advanced Pack 2.0
  C. Five more hard disks

  ---

  B: HP Smart Array Advanced Pack (SAAP) delivers value added software features with the Smart Array Controller, which will further enhance performance, reliability, and availability of customer data. These features will be delivered to the

  customer via a license key which enables the functionality on the Smart Array Controller Hardware. These licensed features provides an easy key activation to enable features such as added RAID protection with RAID 6 (Advanced Data

  Guarding) and 60 providing advanced drive/ data protection. Other features include more secure methodology to erase drives offering more security, performance improvements for video streaming among other advancements.

  C (not D): RAID 60 requires 8 hard drives minimum.

• Question 38:

  What must you consider when installing redundant fans?

  A. Locate the fans as specified in the server's documentation.
  B. Locate redundant fans on the side of the CPU.
  C. Locate the fans on the memory side.
  D. Place redundant fans in any location.
  A. Locate the fans as specified in the server's documentation.

  ---

  Note:

  * Example:

  HP Support document

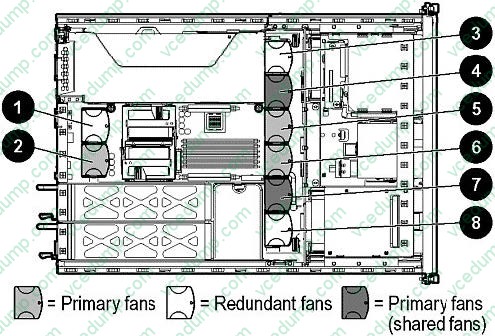

  ProLiant DL380 G3 - Configuring the System Fans

  You must observe the following requirements when installing redundant hot-plug fans:

  To ensure optimum cooling, populate the primary fan locations, 2, 4, 5, 6, and 7, before populating the redundant locations.

  If a primary fan fails, replace the non functioning fan before installing fans in redundant locations.



• Question 39:

  What are common types of virtualization? (Select two.)

  A. cooling
  B. power
  C. software
  D. client
  E. server
  D. client
  E. server

  ---

  D: HP Client Virtualization solutions Virtualization brings data center-level control and security to a client near you.

  E: Note:

  * The HP Sizer for Server Virtualization is an automated, downloadable tool that provides quick and helpful sizing guidance for "best-fit" HP server and storage configurations running in VMware vSphere 5.0 or Microsoft Hyper-V R2 environments.

• Question 40:

  What is the default port to use to access the System Management Homepage with Internet Explorer for a ProLiant Server?

  A. 2301
  B. 2321
  C. 2381
  D. 2391
  C. 2381

  ---

  To start HP Insight Diagnostics from the browser:

  1.

  Open the browser.

  2.

  In the address field, enter the following: https://localhost:2381/hpdiags/frontend2/frontend.phpGetting started 11
