HP HP0-Y52 Online Practice Questions and Exam Preparation

HP HP0-Y52 Online Questions & Answers

• Question 31:

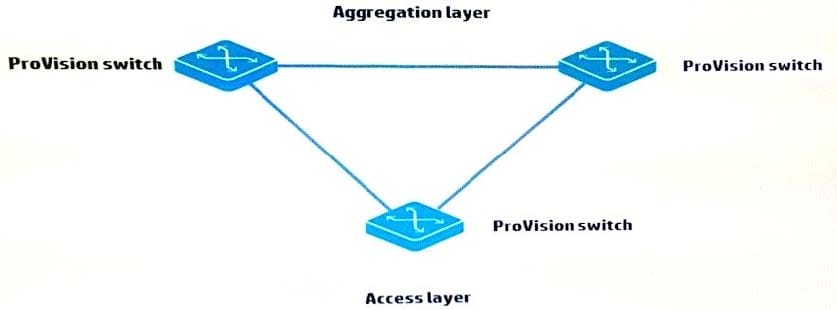

  Refer to the exhibit.



  The switches in the exhibit are all HP ProVision switches that run Multiple Spanning Tree Protocol (MSTP).

  The network administrator wants all of the switch-to-switch links shown in the exhibit to be available for forwarding routed traffic. What should the administrator do to accomplish this?

  A. Configure the switch-to-switch ports as MSTP auto-edge ports.
  B. Configure link-keepalive on the switch-to-switch ports.
  C. Configure BPDU filters on the switch-to-switch ports.
  D. Configure links on a switch as a standard link aggregation.
  C. Configure BPDU filters on the switch-to-switch ports.

• Question 32:

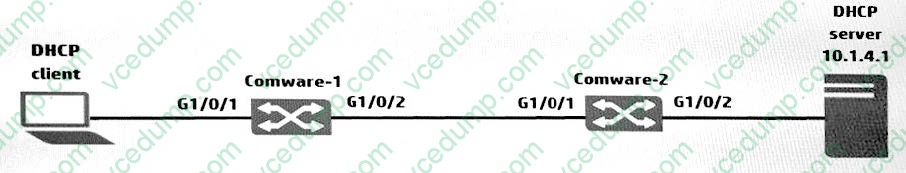

  Refer to the exhibit.



  The physical interfaces for Comware-1 and Comware-2 switches in the exhibit are configured in routed mode and OSPF. Both switches have the three subnets in their routing tables. The administrator wants to use DHCP to assign addressing information to the users. Based on the exhibit, where should the administrator configure DHCP relay?

  A. Comware-1. G1/0/2
  B. Comware-1, G1/0/1
  C. Comware-2. G1/0/2
  D. Comware-2, G1/0/1
  B. Comware-1, G1/0/1

• Question 33:

  A company has a network comprised of HP Comware and ProVision switches. A network administrator purchases HP Intelligent Management Center (IMC) to manage the switches in this network. Which step must the administrator perform on the Comware switches but not on the ProVision switches?

  A. Configure SNMP traps.
  B. Configure VTY interface authentication.
  C. Define SNMPv2 community strings or SNMPv3 groups and users.
  D. Configure telnet or SSH.
  B. Configure VTY interface authentication.

• Question 34:

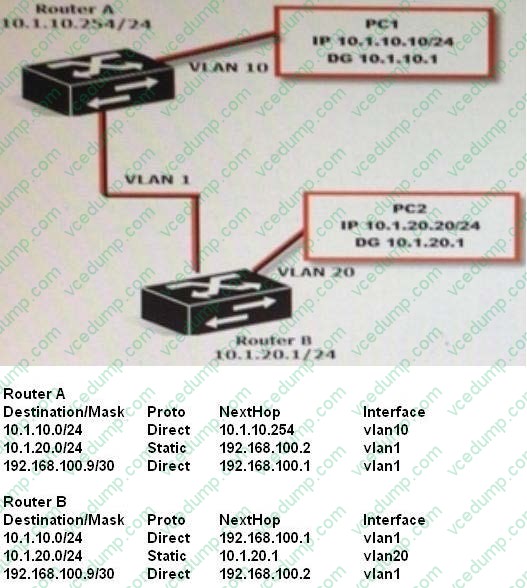

  Refer to the exhibit.

  Exhibit: Network diagram and routing tables



  Why does traffic from PC1 fail to reach PC2?

  A. Only static routes have been enabled
  B. The subnet mask is incorrect on the routers
  C. There is no route back from router B
  D. A default gateway setting is incorrect
  C. There is no route back from router B

• Question 35:

  Two switches are members in an active Intelligent Resilient Framework (IRF) virtual device. A network administrator joins a third switch to the IRF virtual device. Which switch is now the master?

  A. The current master of the IRF virtual device always remains the master.
  B. The switch with the lowest member ID always becomes the master.
  C. The switch with the lowest priority value always becomes the master.
  D. The switch with the highest priority value always becomes the master.
  D. The switch with the highest priority value always becomes the master.

• Question 36:

  Which HP software platform provides centralized network management, monitoring, and configuration of wired and wireless network infrastructure devices, as well as traffic monitoring, user management, and other capabilities?

  A. HP IntelligentManagement Center (IMC)
  B. HP Intelligent Resilient Framework (IRF)
  C. HP Virtual Cloud Networking (VCN)
  D. HP Virtual Connect FlexFabric
  A. HP IntelligentManagement Center (IMC)

• Question 37:

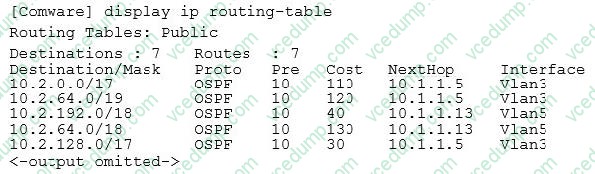

  Refer to the exhibit.



  Examine the partial HP switch output shown in the exhibit. Based on this output, if the switch receives a packet with a destination IP address of 10.2.90.87, which entry in the routing table would the switch use to forward the packet?

  A. 10.2.128.0/17
  B. 10.2.0.0/17
  C. 10.2.64.0/19
  D. 10.2.64.0/18
  C. 10.2.64.0/19

• Question 38:

  An HP ProVision switch is operating at its factory default settings. A network administrator connects the switch to a VLAN with a DHCP server. The switch-to-switch connection is carrying untagged traffic. The administrator wants to log in to the switch CLI using Telnet.

  How should the administrator contact the switch and log in?

  A. Contact the switch at its DHCP-assigned IP address and log in with the default password hp.
  B. Contact the switch at its default IP address 192.168.1.1/24 and log in without entering a password.
  C. Contact the switch at its DHCP-assigned IP address and log in without entering a password.
  D. Contact the switch at its default IP address 192.168.1.1/24 and log in with the default password hp.
  B. Contact the switch at its default IP address 192.168.1.1/24 and log in without entering a password.

• Question 39:

  A network administrator configures OSPF in an HP ProVision based network. The administrator is concerned that a rogue device might connect to an access layer switch and introduce OSPF routes to the company's routing topology.

  The access VLANs do not contain additional routers.

  Which configuration should the administrator apply for these access VLANs to prevent them from forming an adjacency with rogue devices?

  A. router ospfno vlan neighbor-adjacency
  B. route spfip silent-vlan
  C. router ospf passive-vlan
  D. vlan ip ospf passive
  D. vlan ip ospf passive

• Question 40:

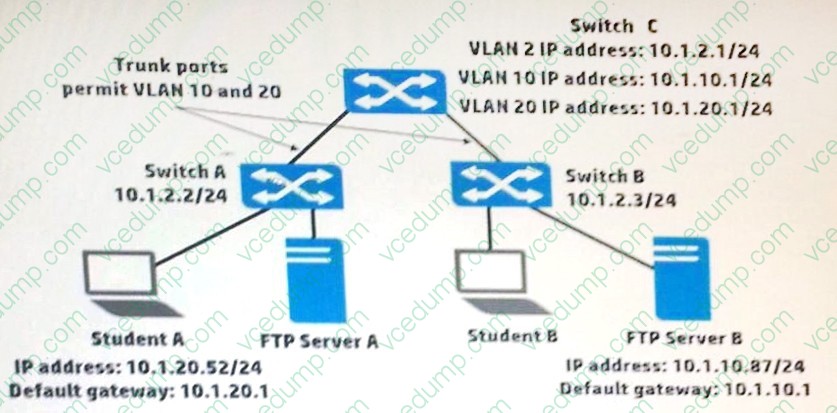

  Refer to the exhibit.



  Assume that Student A's ARP table is empty. Student A is preparing to send an FTP packet to FTP Server B and needs to discover the proper destination MAC address. For which IP address does Student A send an ARP request?

  A. 10.1.10.1
  B. 10.1.10.87
  C. 10.1.2.2
  D. 10.1.20.1
  D. 10.1.20.1
