HP HP0-Y52 Online Practice Questions and Exam Preparation

HP HP0-Y52 Online Questions & Answers

• Question 21:

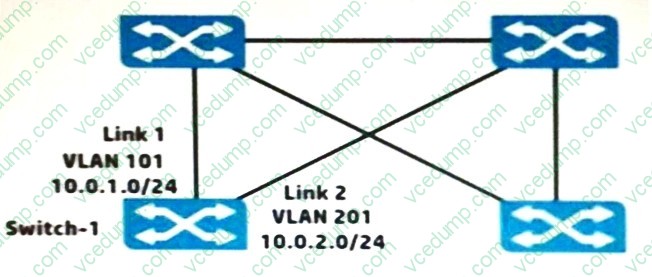

  Refer to the exhibit.



  Switch-1 is an HP ProVision switch.

  A network administrator wants Switch-1 to run Open Shortest Path First (OSPF) and create neighbor relationship on Links 1 and 2. What should the administrator do to accomplish this?

  A. Access the VLAN context for the VLANs assigned to Links 1 and 2, and enable OSPF.
  B. Access the global configuration context, and create OSPF routes to 10.0.1.0/24 and 10.0.2.0/24.
  C. Access the physical interface context for the Link 1 and 2 ports, and enable OSPF.
  D. Access the OSPF area 0 context and specify the networks on Links 1 and 2 (10.0.1.0 0.0.0.255 and 10.0.2.0 0.0.0.255).
  B. Access the global configuration context, and create OSPF routes to 10.0.1.0/24 and 10.0.2.0/24.

• Question 22:

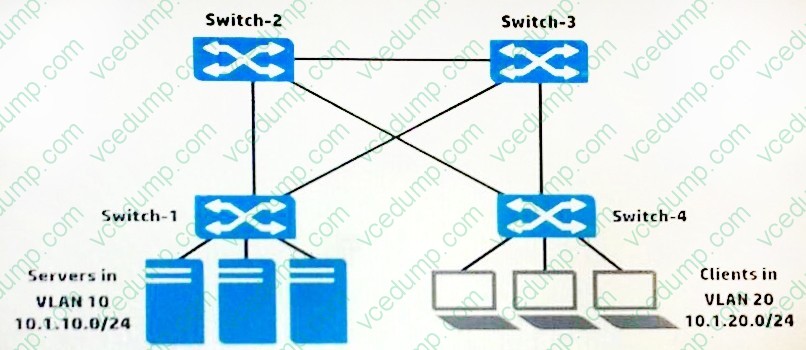

  Refer to the exhibit.



  The switches in the exhibit are all HP Comware switches that run Multiple Spanning Tree Protocol (MSTP).

  The network administrator wants to ensure that each switch-to-switch link is in its own subnet. The administrator also wants to make sure that all of the links are available for routing during normal operation. How should the administrator configure the physical switch-to-switch interfaces to accomplish these goals?

  A. Configure them as trunk ports that permit VLANs 10 and 20.
  B. Configure them as any type of port, and make sure spanning tree is enabled on them.
  C. Configure them as route-mode ports.
  D. Configure them as hybrid ports that carry VLAN 10 and 20 as untagged.
  A. Configure them as trunk ports that permit VLANs 10 and 20.

• Question 23:

  An administrator is configuring OSPF on an HP ProVision switch. What is one of the steps that the administrator must take?

  A. The administrator must create an OSPF area before assigning a VLAN interface to that area.
  B. The administrator must set a global router ID before enabling OSPF.
  C. The administrator must set an OSPF router ID before enabling OSPF.
  D. The administrator must assign a VLAN interface its IP address before specifying the corresponding network in an OSPF area.
  A. The administrator must create an OSPF area before assigning a VLAN interface to that area.

• Question 24:

  Which HP device or port type can modify, read, and respond with frames that include 802.1Q VLAN tags?

  A. Comwaretrunk ports
  B. Comwareroute-mode ports
  C. ProVisionloopback ports
  D. ProVisionuntagged ports
  A. Comwaretrunk ports

• Question 25:

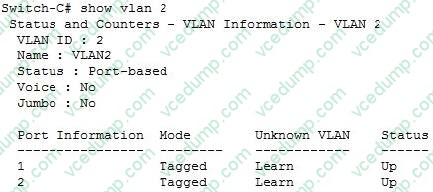

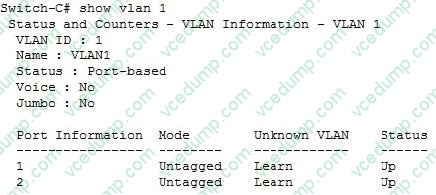

  Refer to the exhibits. Exhibit 1



  Exhibit 2



  A network administrator executes the show vlan commands and sees the output shown in the exhibits. How must the administrator configure a connected port on an HP Comware switch?

  A. as a trunk port
  B. as an access port
  C. as an untagged port
  D. as a mixed port
  A. as a trunk port

• Question 26:

  A customer wants to implement multiple links between a server and a single HP Comware switch in order to increase the amount of bandwidth for more throughput. Which feature should the network administrator implement to accomplish this?

  A. MSTP
  B. IRF
  C. link aggregation
  D. MIMO
  B. IRF

• Question 27:

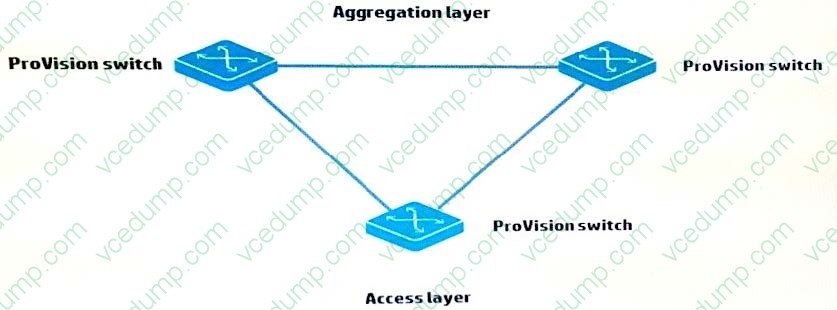

  Refer to the exhibit.



  Based on the topology shown in the exhibit, which symptom does a network administrator see if the HP switches are in their factory default states?

  A. Mislearned MAC addresses
  B. Unicast storms
  C. Multiple ARP requests
  D. Layer 3 loop
  C. Multiple ARP requests

• Question 28:

  What is one feature that MSTP has that RSTP does not have?

  A. load-sharing on redundant links
  B. alternate root ports
  C. multiple designated ports per segment
  D. one set of BPDUs per VLAN
  A. load-sharing on redundant links

• Question 29:

  A mid-sized company purchases HP Intelligent Management (IMC) to manage 500 nodes. In addition to the base platform, the company purchases the UAM, WSM, and NTA modules. Which deployment method should this company use to install their IMC base platform and modules?

  A. Stand-alone
  B. Distributed
  C. Centralized
  D. Hierarchical
  B. Distributed

• Question 30:

  Which privilege level would a network administrator use to configure an HP ProVision switch?

  A. Super
  B. User
  C. Manager
  D. Administrator
  C. Manager
