• Question 681:

  In the RSTP standard, the port that the switch directly connects to the terminal instead of the other bridge is defined as ().

  A. Fast port
  B. Backup port
  C. Root port
  D. Edge port
  D. Edge port

• Question 682:

  [RTA]aaa [RTA-aaa]domain huawei [RTA-aaa-domain-huawei]authentication-scheme au1 [RTA-aaa-domain-huawei]authentication-scheme au2 The network administrator performs the above configuration on the Huawei router RT

  A. If a user needs to be authenticated in the authentication domain "huawei", the following is true. The correct description is ().
  B. Will use the "authentication-scheme au1" certification
  C. Will use the "authentication-scheme au2" certification
  D. will use the "authentication-scheme au1" certification, if "au1" is deleted, will use "au2"
  E. will use the "authentication-scheme au2" certification, if "au2" is deleted, will use "au1
  B. Will use the "authentication-scheme au1" certification

• Question 683:

  On a broadcast network with four routers, all the routers run OSPFv3, and the DR priorities of all the routers are not 0. How many adjacencies are there on the network?

  A. 4
  B. 6
  C. 5
  D. 3
  A. 4

• Question 684:

  [Huawei]rip 1 [Huawei-rip-1]version 2 Refer to the command output. An administrator wishes to configure RIP. Which other command needs to configured for RIP routes to be advertised?

  A. import-route GigabitEthernet 0/0/1
  B. network 192.168.1.0 0.0.0.255
  C. network GigabitEthernet 0/0/1
  D. network 192.168.1.0
  D. network 192.168.1.0

• Question 685:

  Which of the following commands is used to enter the system-view from the user view on a Huawei router?

  A. system-view
  B. enable
  C. configure terminal
  D. interface system
  A. system-view

• Question 686:

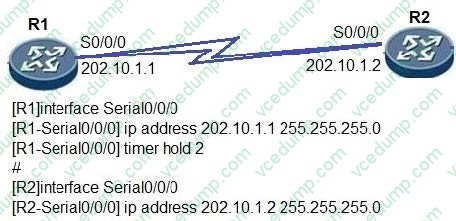

  According to the following topology and configuration, R1 and R2 are connected through low-speed serial cables and PPP is used to encapsulate data link layer packets. When the Holdtime values of R1 and R2 are different, PPP negotiation and communication fail.



  A. TRUE
  B. FALSE
  A. TRUE

• Question 687:

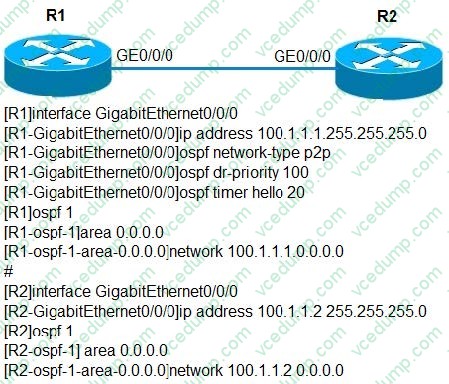

  Refer to the graphic, which of the following statements is true about OSPF topology and configuration?



  A. A stable OSPF neighbor relationship can be set up between R1 and R2.
  B. After the default network type of the interface on R1 is restored to broadcast, a stable OSPF neighbor relationship can be set up between R1 and R2.
  C. After the default network type of the interface on R1 is restored to broadcast and the hello packet sending interval is changed to 10s, a stable OSPF neighbor relationship can be set up between R1 and R2.
  D. Compared with R1, R2 is more likely to become the DR because the DR priority of the interface on R2 is lower than that of R1.
  C. After the default network type of the interface on R1 is restored to broadcast and the hello packet sending interval is changed to 10s, a stable OSPF neighbor relationship can be set up between R1 and R2.

• Question 688:

  Refer to the graphic.

  Which of the following statements correctly describe the Frame Relay devices? (Choose two)

  A. RTA is a DTE device.
  B. FRA is a DTE device.
  C. FRB is a DCE device.
  D. The interface on RTA is a DCE interface
  A. RTA is a DTE device.
  C. FRB is a DCE device.

• Question 689:

  Host A has been connected to switch A and configured with an IP address. When Host A initially forwards a frame, what action will be taken by Switch A?

  A. Switch A will drop this frame.
  B. Switch A will attempt to flood the frame to all ports except for the G0/0/1 interface.
  C. Switch A will forward the frame via ports G0/0/1, G0/0/2 and G0/0/3.
  D. Switch will receive this frame before returning the frame to G0/0/1.
  B. Switch A will attempt to flood the frame to all ports except for the G0/0/1 interface.

• Question 690:

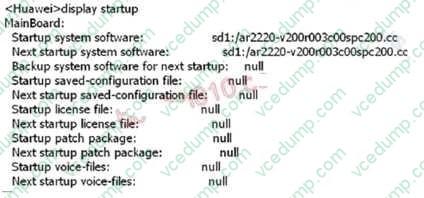

  The above is the display startup information of the AR2200 router. For this information, the error is ().



  A. The running configuration file is not saved
  B. When the device starts using the system file, ar2220-v200r003c00spc200.cc
  C. The system file cannot be modified when the device starts next time.
  D. The system file of the next startup of the device can be modified by using the command "startup system software.cc".
  C. The system file cannot be modified when the device starts next time.
