Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 11:

  If the IPv4 address of a host on a local area network (LAN) is 192.168.1.1/30, which of the following destination IPv4 addresses can be carried in data packets that the host can decapsulate?

  A. 192.168.1.1
  B. 192.168.1.2
  C. 192.168.1.3
  D. 255.255.255.255
  B. 192.168.1.2

• Question 12:

  As shown in the figure, regarding the frame relay device, the following description is correct (). (multiple choice)

  A. RTA is a DTE device
  B. FRA is a DTE device
  C. FRB is a DCE device
  D. The S1/0/1 interface on the RTA is the DCE interface.
  A. RTA is a DTE device
  C. FRB is a DCE device

• Question 13:

  Which of the following address types are of IPv6 addresses?

  A. Unicast address
  B. Anycast address
  C. Multicast address
  D. Broadcast address
  A. Unicast address
  B. Anycast address
  C. Multicast address

• Question 14:

  In OSPFv3, router IDs can be used automatically generated by the system.

  A. True
  B. False
  A. True

• Question 15:

  What types of networks are supported by the OSPF protocol? (multiple choice)

  A. Point-to-Point
  B. Broadcast
  C. Non-Broadcast Multi-Access
  D. Point-to-Multipoint
  A. Point-to-Point
  B. Broadcast
  C. Non-Broadcast Multi-Access
  D. Point-to-Multipoint

• Question 16:

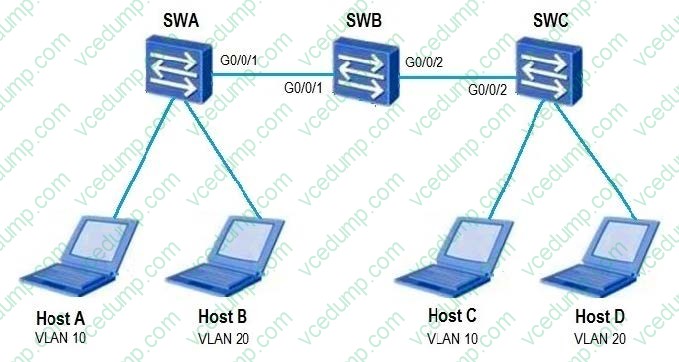

  Refer to the graphic.



  VLANs 10 and 20 have been created on both SWA and SWC. VLAN 10 has been manually created on SWB. SWB has learned VLAN 20 from SWA via GVRP, allowing the hosts to belong to different VLANs as shown. If port Interface G0/0/1 on SWB is changed to fixed mode, what will happen?

  A. Host A will still be able to communicate with Host C.
  B. Host B will still be able to communicate with Host D.
  C. Hosts that belong to the same VLAN will still be able to communicate.
  D. All hosts will be unable to communicate with any other host.
  A. Host A will still be able to communicate with Host C.

• Question 17:

  Which of the following technologies is used to bind MAC addresses to interfaces on a switch?

  A. SEP.
  B. Port security.
  C. ACL.
  D. NAT.
  B. Port security.

• Question 18:

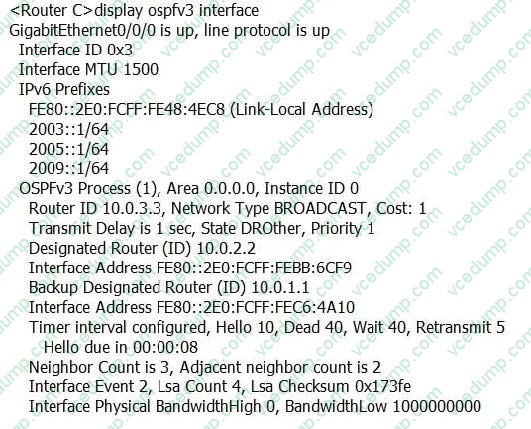

  According to the following configuration of Router C, how many global unicast address prefixes are advertised by Router C?



  A. 1
  B. 4
  C. 2
  D. 3
  D. 3

• Question 19:

  Two authentication domains "Area1" and "Area2" are configured on the authentication server. If the user uses the correct username "huawei" and the password is used. The code "hello" is authenticated, and which authentication domain is this user assigned to?

  A. Authentication domain "Area1"
  B. Authentication domain "Area2"
  C. Authentication domain "default domain"
  D. Authentication domain "default_admin domain"
  C. Authentication domain "default domain"

• Question 20:

  The network administrator creates VLAN 10 and assigns an IP address to VLANIF10. When using the command "display ip interface brief", the administrator finds that VLANIF10 is down. What should be done to enable VLANIF10?

  A. Use the command "undo shutdown" under the interface view for VLANIF10
  B. Assign a physical interface that has either an active of inactive physical state to VLAN 10
  C. Assign only a physical interface that has an active physical state to VLAN 10
  D. Add an interface that has an active physical state and a trunk port associated with VLAN 10
  C. Assign only a physical interface that has an active physical state to VLAN 10
