Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 1:

  The MAC address of G0/0/1 on a router is 00E0-FC03-AA73. The IP address of this interface is 2001::2E0:FCFF:AA73, root. Based on this information, it can be determined that the interface identifier of this interface is based on ().

  A. DHCPv6
  B. Auto-link
  C. ARP
  D. EUI-64
  D. EUI-64

• Question 2:

  When using VRP, which of the following commands is used to configure the PPP authentication method as PAP?

  A. ppp pap
  B. ppp authentication-pap
  C. ppp authentication-mode pap
  D. ppp pap-authentication
  C. ppp authentication-mode pap

• Question 3:

  Which of the following protocols is used in Frame Relay to map the address to DLCI dynamically?

  A. ARP protocol
  B. RARP protocol
  C. InARP protocol
  D. Map protocol
  C. InARP protocol

• Question 4:

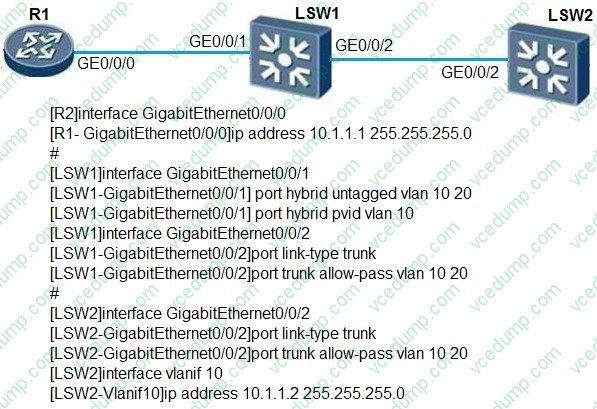

  Refer to the graphic, after the ping 10.1.1.2 command is executed on R1, LSW1 receives a tagged data frame from VLAN 10 on LSW2.



  A. TRUE
  B. FALSE
  B. FALSE

• Question 5:

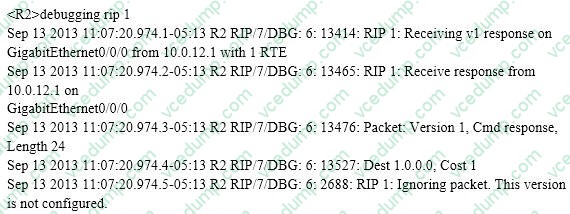

  Refer to the debug output. Following configuration of R2, the administrator discovers that the behavior is not as expected and performs debugging. Based on the output from the debug, what is the source of the problem?

  A. R2 has configured an ACL to block the route to network 1.0.0.0
  B. R2 has enabled split horizon.
  C. R1 is using authentication, however R2 is not.
  D. R2 is operating using RIPv2, while R1 is using RIPv1.
  D. R2 is operating using RIPv2, while R1 is using RIPv1.

• Question 6:

  Which of the following fields exist in both IPv6 and IPv4 packet headers?

  A. Source Address
  B. Destination Address
  C. Version
  D. Next Header
  A. Source Address
  B. Destination Address
  C. Version

• Question 7:

  The users who log on the router through Telnet are not permitted to configure IP address. What is the possible reason?

  A. Communication failures occur between the user and the router.
  B. The authentication mode of Telnet is set incorrectly.
  C. Privilege level of Telnet is set incorrectly.
  D. SNMP parameters are set incorrectly.
  C. Privilege level of Telnet is set incorrectly.

• Question 8:

  On the command line interface of the Huawei AR router, the save command saves the current system time.

  A. Correct
  B. Error
  B. Error

• Question 9:

  Which of the following are routed protocols? (Choose two)

  A. IP
  B. OSPF
  C. BGP
  D. IPX
  A. IP
  D. IPX

• Question 10:

  What is the number range of a basic ACL?

  A. 2000-2999
  B. 3000-3999
  C. 4000-4999
  D. 6000-6031
  A. 2000-2999
