Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 671:

  STP root switch priority range is 0 65536

  A. Yes
  B. Wrong
  B. Wrong

• Question 672:

  A router functioning as a Proxy receives an ARP request packet, but finds that the destination address in the packet is not intended for itself. In this case, what will the router do? (Choose two)

  A. Discard the packet.
  B. Check for a route that matches the destination address.
  C. Forward its MAC address to the ARP request sender after finding that a route to the destination address is available.
  D. Broadcast the ARP request packet.
  B. Check for a route that matches the destination address.
  C. Forward its MAC address to the ARP request sender after finding that a route to the destination address is available.

• Question 673:

  Which of the following statements describes the network shown? (Choose two)

  A. There are 6 collision domains in the network.
  B. There are 2 broadcast domains in the network.
  C. There are 4 collision domains in the network.
  D. There are 6 broadcast domains in the network.
  B. There are 2 broadcast domains in the network.
  C. There are 4 collision domains in the network.

• Question 674:

  Which of the following commands can be used to check the session status of a PPPoE client?

  A. display ip interface brief
  B. display current-configuartion
  C. display pppoe-client session packet
  D. display pppoe-client session summary
  D. display pppoe-client session summary

• Question 675:

  system view [Huawei]command privilege level 3 view user save The correct statement about the above configuration command is ()

  A. Modify the save command of a user to have a permission level of 3
  B. Modify the permission level of the save command in the user view to 3
  C. Modify the user view command to a permission level of 3, and save the configuration
  D. Modify the user's permission level to 3, and save the configuration
  B. Modify the permission level of the save command in the user view to 3

• Question 676:

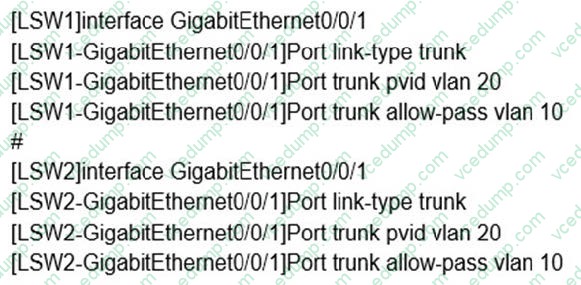

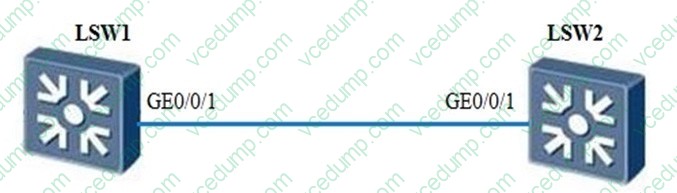

  According to the topology and configuration of interconnected interfaces of switches shown in the figure, the data frame tagged with VLAN 10 can be forwarded correctly between the two switches.





  A. True
  B. False
  A. True

• Question 677:

  When using the Tracert program to test the path through which the target node passes, the default is to count () times for each Traceroute.

  A. 3
  B. 4
  C. 6
  D. 8
  A. 3

• Question 678:

  UDP is connectionless oriented, which of the following must be used in order to ensure reliability?

  A. Internet Protocol
  B. Application Layer Protocol
  C. Network Layer Protocol
  D. Transmission Control Protocol
  B. Application Layer Protocol

• Question 679:

  Which of the following cannot be the length of an IPv4 packet header?

  A. 64B
  B. 60B
  C. 20B
  D. 32B
  A. 64B

• Question 680:

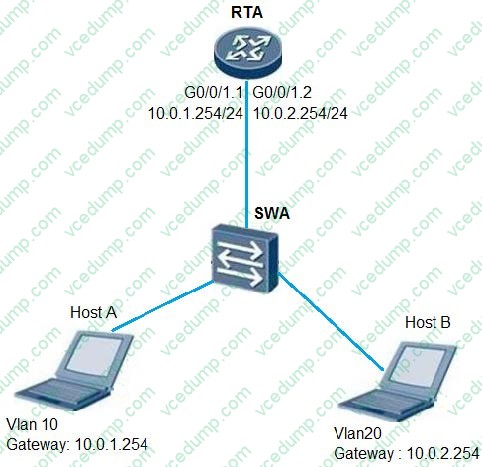

  As shown in the figure, if Host A and Host B want to implement inter-VLAN communication through one- arm routing, which one should be configured under G0/0/1.1 interface of RTA. Set?



  A. dot1q termination vid 1
  B. dot1q termination vid 10
  C. dot1q termination vid 20
  D. dot1q termination vid 30
  B. dot1q termination vid 10
