Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 651:

  Which of the following parameter settings for terminal emulation are correct when configuring a Huawei router through the Console port?

  A. 4800bps, 8 data bits,1 stop bits, odd parity check, and no flow control
  B. 9600bps, 8 data bits, 1 stop bits, no parity check, and no flow control
  C. 9600bps, 8 data bits, 1 stop bits, even parity check, and hardware flow control
  D. 19200bps, 8 data bits, 1 stop bits, no parity check, and no flow control
  B. 9600bps, 8 data bits, 1 stop bits, no parity check, and no flow control

• Question 652:

  An AR2200 router in the company network cannot boot. In order to resolve this, the administrator wishes to update the VRP software. What should he/she do?

  A. The administrator should use a console cable to connect the router and host, and directly upgrade the device.
  B. The administrator should use FTP to transfer the VRP software, by configuring the AR2200 router as an FTP client.
  C. The administrator should use DHCP to boot the AR2200, and then use the AR2200 router as a TFTP client to download the VRP software from the server.
  D. The administrator should use the telnet command on the client to remote access the device, and
  B. The administrator should use FTP to transfer the VRP software, by configuring the AR2200 router as an FTP client.

• Question 653:

  If PPP authentication fails, which type of packet will be sent to the authenticated peer by the authenticator?

  A. Authenticate-Ack
  B. Authenticate-Nak
  C. Authenticate-Reject
  D. Authenticate-Reply
  B. Authenticate-Nak

• Question 654:

  [RTA]acl 2001 [RTA-acl-basic-2001]rule 20 permit source 20.1.1.0 0.0.0.255 [RTA-acl-basic-2001]rule 10 deny source 20.1.1.0 0.0.0.255

  Refer to the configuration output. Which of the following statements is correct regarding the configuration of the ACL on RTA?

  A. Packets from network 20.1.1.0/24 network will be denied.
  B. Packets from network 20.1.1.0/24 network will be permitted.
  C. Packets destined for network 20.1.1.0/24 will be denied.
  D. Packets destined for network 20.1.1.0/24 will be permitted.
  A. Packets from network 20.1.1.0/24 network will be denied.

• Question 655:

  When searching the routing table, a router follows the longest matching rule.

  Which of the following parameters does the length is the longest matching rule indicate?

  A. Next-hop IP address length
  B. Cost
  C. Mask length
  D. Preference value of the routing protocol
  C. Mask length

• Question 656:

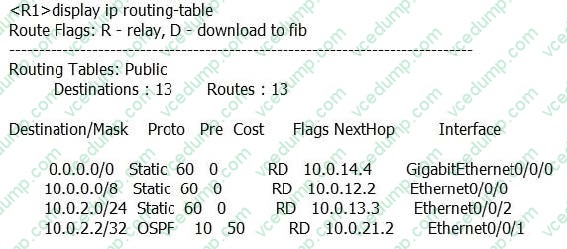

  The output of the following command on router R1 is as follows.



  Which of the following statements are true?

  A. The router discards the packets destined for 11.0.0.0/8.
  B. The packets destined for 12.0.0.0/8 are forwarded through Ethernet0/0/0 on the router.
  C. The router forwards the packets destined for 12.0.0.0/8.
  D. The packets destined for 11.0.0.0/8 are forwarded through GigabitEthernet0/0/0 on the router.
  C. The router forwards the packets destined for 12.0.0.0/8.
  D. The packets destined for 11.0.0.0/8 are forwarded through GigabitEthernet0/0/0 on the router.

• Question 657:

  Huawei AR G3 series routers can update system files through FTP and TFTP. The following description is correct () (multiple choice)

  A. AR G3 series routers can be used as FTP clients.
  B. AR G3 series routers can be used as FTP Server
  C. AR G3 series routers can be used as TFTP clients.
  D. AR G3 series routers can be used as TFTP Server
  A. AR G3 series routers can be used as FTP clients.
  B. AR G3 series routers can be used as FTP Server
  C. AR G3 series routers can be used as TFTP clients.

• Question 658:

  Two routers have established a point-to-point network using PPP. The administrator has configured the routers to run OSPF in the same area with the same router ID, what will behavior will occur as a result of the configuration?

  A. The routers will build a neighbor relationship even though both routers are using the same router ID.
  B. VRP will notify of a router ID conflict between the two routers.
  C. The routers will build an adjacency even though both routers are using the same router ID.
  D. The routers will not send hello packets to each other because they are using the same router ID.
  B. VRP will notify of a router ID conflict between the two routers.

• Question 659:

  After a fault occurs in the network, the administrator finds out that the configuration of a router has been modified. What measures should the administrator take to avoid? Avoid this happening again? (multiple choice)

  A. The administrator should configure all account login devices except the administrator to have a privilege level of 0.
  B. The administrator should configure AAA to authenticate and authorize users who log in to the device.
  C. The administrator should configure the ACL to control only the administrator to log in to the device.
  D. The administrator should enable port-security on the management port of the route
  A. The administrator should configure all account login devices except the administrator to have a privilege level of 0.
  B. The administrator should configure AAA to authenticate and authorize users who log in to the device.
  C. The administrator should configure the ACL to control only the administrator to log in to the device.

• Question 660:

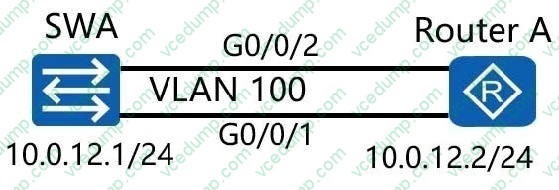

  As shown in the following figure, switch A and router A are connected through two links. The two links are aggregated in manual load balancing mode. The aggregation port number is 1. The aggregated link needs to carry VLAN tag 100. Switch A uses the trunk link.

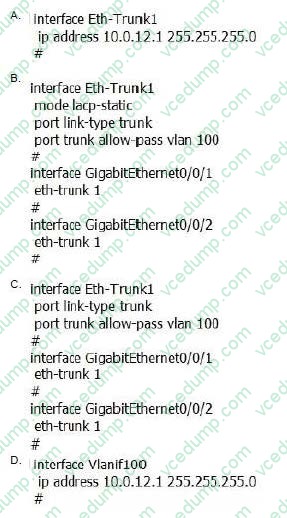

  Which of the following configurations need to be performed on switch A?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  B. Option B
