• Question 211:

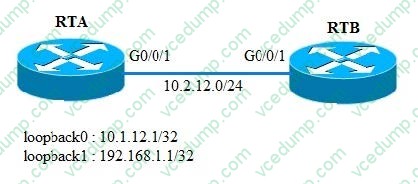

  Refer to the graphic. RTA and RTB are running RIPv1. RTA has advertised 10.0.0.0 and 192.168.1.0 to the RIP network. Which routes will exist in the IP routing table of RTB? (Choose all that apply)



  A. 10.0.0.0/8
  B. 192.168.1.1/32
  C. 10.1.12.1/32
  D. 192.168.1.0/24
  A. 10.0.0.0/8
  D. 192.168.1.0/24

• Question 212:

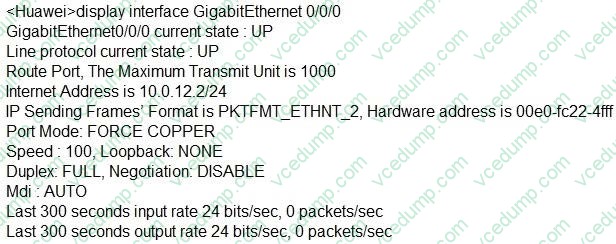

  The following shows a command output on a device. Which of the following statements are true? (Choose three.)



  A. The IP address of the interface is 10.0.12.2/24.
  B. The MTU value of the interface is 1000.
  C. The working rate of the interface is 1 Gbit/s.
  D. The MAC address of the interface is 00e0-fc22-4fff.
  A. The IP address of the interface is 10.0.12.2/24.
  B. The MTU value of the interface is 1000.
  D. The MAC address of the interface is 00e0-fc22-4fff.

• Question 213:

  Refer to the graphic.

  Two switches have been connected as shown and both support STP. The administrator has configured switch A as a DHCP server and set interface VLANIF1 of switch B to obtain an IP address from switch

  A. A link failure occurs on port interface G0/0/1 of switch B. What action will occur as a result?
  B. The two switches will be unable to communicate.
  C. Switch B will send a DHCP Discovery message to obtain a new IP address.
  D. Swich B will continue to use the IP address obtained from Switch A
  E. Switch B will send a DHCP Release message to release the IP address.
  C. Switch B will send a DHCP Discovery message to obtain a new IP address.

• Question 214:

  A frame relay PVC is configured on the router and found to be invalid. What is the possible cause? (multiple choice)

  A. Configure the same DLCI on the same router
  B. LMI type configuration error
  C. Frame Relay encapsulation type configuration error
  D. DLCI configuration error
  B. LMI type configuration error
  C. Frame Relay encapsulation type configuration error
  D. DLCI configuration error

• Question 215:

  You can use the preference preference to configure the priority value of a RIP route or the command in the RIP process of the Huawei device. After specifying a routing policy, set the priority value for the specific route that meets the conditions.

  A. Correct
  B. Error
  A. Correct

• Question 216:

  Which of the following fields in the packet shown will be encrypted by the ESP protocol of IPsec VPN?



  A. TCP Header, Data, ESP Trailer
  B. ESP Header, TCP Header, Data
  C. ESP Header, TCP Header, Data, ESP Trailer
  D. ESP Header, TCP Header, Data, ESP Trailer, ESP Auth
  A. TCP Header, Data, ESP Trailer

• Question 217:

  When STP is running on Huawei Sx7 series switches, the priority of the switch is () by default.

  A. 4096
  B. 8192
  C. 16384
  D. 32768
  D. 32768

• Question 218:

  Which of the following protocols can be used on a Layer 2 network with redundant links to prevent loops?

  A. UDP
  B. VRRP
  C. STP
  D. ARP
  C. STP

• Question 219:

  192.168.1.127/25 stands for the () address.

  A. Host
  B. Network
  C. Multicast
  D. Broadcasting
  D. Broadcasting

• Question 220:

  The main function of .InARP is to solve the protocol address of the peer device connected to each virtual link, including IP address and IPX address.

  A. Correct
  B. Error
  A. Correct
