• Question 201:

  The administrator wishes to change name of the router. Under which view should the administrator be in order to achieve this?

  A. User-view
  B. System-view
  C. Interface-view
  D. Protocol-view
  B. System-view

• Question 202:

  When the header length of an IPv4 data packet is 20B and the total packet length is 1500B, what is the valid payload of the packet?

  A. 1500B
  B. 1480B
  C. 1520B
  D. 20B
  B. 1480B

• Question 203:

  As shown in the figure, the network administrator wants to manually aggregate the two physical links between the SWA and the SWB into an Eth-Trunk link. The correct one is ().



  A. It works normally after aggregation
  B. It can be aggregated. Only GE port can be used after aggregation.
  C. Can be aggregated, only Ethernet port can be used after aggregation
  D. Cannot be aggregated
  D. Cannot be aggregated

• Question 204:

  The following description of static and dynamic routing errors is ().

  A. Static routing is simple to configure and easy to manage when applied in an enterprise.
  B. After administrators deploy dynamic routing protocols in the enterprise network, post- maintenance and expansion can be more convenient.
  C. After a link fails, static routes can automatically complete network convergence.
  D. Dynamic routing protocols take up more system resources than static routes
  C. After a link fails, static routes can automatically complete network convergence.

• Question 205:

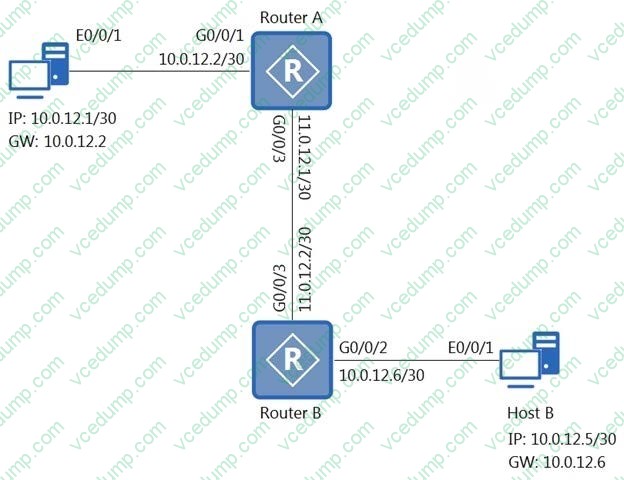

  On the network shown in the figure, which of the following commands can be used to enable host A to successfully ping host B?



  A. Router A : ip route-static 10.0.12.5 255.255.255.252 11.0.12.2 Router B : ip route-static 10.0.12.1 255.255.255.252 11.0.12.1
  B. Router A : ip route-static 0.0.0.0 0.0.0.0 11.0.12.2 Router B : ip route-static 0.0.0.0 0.0.0.0 11.0.12.1
  C. Router A : ip route-static 0.0.0.0 0.0.0.0 11.0.12.1 Router B : ip route-static 0.0.0.0 0.0.0.0 11.0.12.2
  D. Router A : ip route-static 10.0.12.5 255.255.255.252 11.0.12.1 Router B : ip route-static 10.0.12.1 255.255.255.252 11.0.12.2
  A. Router A : ip route-static 10.0.12.5 255.255.255.252 11.0.12.2 Router B : ip route-static 10.0.12.1 255.255.255.252 11.0.12.1
  B. Router A : ip route-static 0.0.0.0 0.0.0.0 11.0.12.2 Router B : ip route-static 0.0.0.0 0.0.0.0 11.0.12.1

• Question 206:

  Which of the following packets is used by OSPF to discover and maintain neighbor relationships?

  A. HELLO
  B. LSU
  C. LSR
  D. DD
  A. HELLO

• Question 207:

  Two routers are connected via serial interfaces, for which the link-protocol is PPP. The network administrator wishes to configure PPP authentication to improve security on this link. Which PPP authentication method provides a more secure solution?

  A. CHAP
  B. PAP
  C. MD5
  D. SSH
  A. CHAP

• Question 208:

  Refer to the command output. Which statement is true regarding this command?



  A. The configuration represents a static route to the 192.168.1.1 network
  B. The configuration represents a static route to the 10.0.12.0 network.
  C. The preference value of this configured route is 100.
  D. If the router has learned the same destination network via a dynamic routing protocol, the static route will always take precedence.
  B. The configuration represents a static route to the 10.0.12.0 network.

• Question 209:

  Refer to the graphic. RTA is a DTE device connected to a Frame Relay switch, and uses dynamic address mapping to establish the PVC. With regards to the configuration, which of the following commands are not necessary? (Choose two).

  A. [RTA-Serial1/0/1]ip address 172.16.1.1 24
  B. [RTA-Serial1/0/1]link-protocol FR
  C. [RTA-Serial1/0/1]fr interface-type dte
  D. [RTA-Serial1/0/1]fr inarp
  C. [RTA-Serial1/0/1]fr interface-type dte
  D. [RTA-Serial1/0/1]fr inarp

• Question 210:

  The two routers are connected through a serial port, and the serial link is encapsulated in PPP. Which of the following parameters is required before the PPP link is Up? negotiatable? (multiple choice)

  A. MRU
  B. Authentication Password
  C. Magic-Number
  D. Authentication Protocol
  A. MRU
  C. Magic-Number
  D. Authentication Protocol
