Huawei H12-211 Online Practice Questions and Exam Preparation

Huawei H12-211 Online Questions & Answers

• Question 181:

  An administrator wishes to update the VRP software of company's AR2200 router. How can this be achieved? (Choose three)

  A. The administrator can use FTP to transfer the VRP software, with the AR2200 router as the FTP client.
  B. The administrator can use FTP to transfer the VRP software, with the AR2200 router as the FTP server.
  C. The administrator can use TFTP to transfer the VRP software, with the AR2200 router as the TFTP server.
  D. The administrator can use TFTP to transfer the VRP software, with the AR2200 router as the TFTP client.
  A. The administrator can use FTP to transfer the VRP software, with the AR2200 router as the FTP client.
  B. The administrator can use FTP to transfer the VRP software, with the AR2200 router as the FTP server.
  D. The administrator can use TFTP to transfer the VRP software, with the AR2200 router as the TFTP client.

• Question 182:

  What command can I type in system view to switch to user view?

  A. system-view
  B. router
  C. quit D. user-view
  C. quit D. user-view

• Question 183:

  Which of the following packets is sent by a DHCPv6 client before it sends a request packet to the DHCPv6 server?

  A. RA
  B. RS
  C. NA
  D. NS
  D. NS

• Question 184:

  An AR2200 router learned the route entries to the same network and the routes learned through OSPF through OSPF and RIPv2. The overhead value is 4882, and the number of hops learned by RIPv2 is 4, and there will be () in the router's routing table.

  A. RIPv2 routing
  B. OSPF and RIPv2
  C. OSPF routing
  D. Both do not exist
  C. OSPF routing

• Question 185:

  Which of the following statements about static route preference on Huawei devices is false?

  A. Static route preference ranges from 0 to 255.
  B. Default static route preference is 60.
  C. Static route preference is either internal or external. Administrators can modify external preferences.
  D. If static route preference is 255, the route cannot be used.
  A. Static route preference ranges from 0 to 255.

• Question 186:

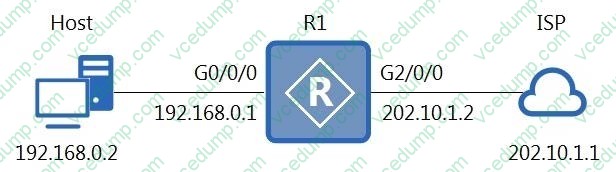

  Refer to the graphic, the static NAT command is executed on R1. When a PC connected to R1 accesses the Internet, the destination address in the packets does not change.



  [R1]interface GigabitEthernet1/0/0

  [R1-GigabitEthernet1/0/0]ip address 192.168.0.1 255.255.255.0 # [R1]interface GigabitEthernet2/0/0 [R1-GigabitEthernet2/0/0]ip address 202.10.1.2 255.255.255.0 [R1]nat static global 202.10.1.3 inside 192.168.0.2 netmask 255.255.255.255 [R1]ip route-static 0.0.0.0 0.0.0.0 202.10.1.1

  A. True
  B. False
  A. True

• Question 187:

  You can use the vlan batch command to create multiple VLANs in batches on the Huawei switch to simplify the configuration process.

  A. Correct
  B. Error
  A. Correct

• Question 188:

  In the case of Huawei router, what is the "-i" parameter in a Ping command issued on a VRP operating system used to set?

  A. Interface for sending an Echo Request packet
  B. Source IP address for sending an Echo Request packet
  C. Interface for receiving an Echo Reply packet
  D. Destination IP address for receiving an Echo Reply packet
  A. Interface for sending an Echo Request packet

• Question 189:

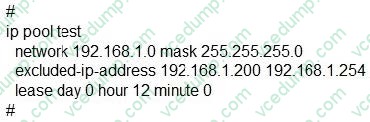

  The following shows the DHCP address pool configuration of a router. Which of the following statements are true? (Choose three.)



  A. The lease time of the IP address is 12 hours.
  B. The DHCP client may obtain the IP address 192.168.1.2.
  C. The address pool has 199 available IP addresses.
  D. The address pool has 55 available IP addresses.
  A. The lease time of the IP address is 12 hours.
  B. The DHCP client may obtain the IP address 192.168.1.2.
  C. The address pool has 199 available IP addresses.

• Question 190:

  The correct DD packet and LSA description for OSPF middle age is (). (multiple choice) A. The DD message contains the details of the LSA.

  B. The DD packet contains only the header information of the LSA.
  C. The head of the LSA can uniquely identify an LSA
  D. LSA head is just a small part of the LSA
  B. The DD packet contains only the header information of the LSA.
  C. The head of the LSA can uniquely identify an LSA
  D. LSA head is just a small part of the LSA
