Extreme Networks EW0-300 Online Practice Questions and Exam Preparation

Extreme Networks EW0-300 Online Questions & Answers

• Question 1:

  What is true when different VLAN that are protected by Spanning Tree share the same physical ring topology?

  A. They have to be configured in the same STPD when in EMISTP mode.
  B. They may be configured in different STPD when in EMISTP mode, but have to shareone Root bridge
  C. When configured in 802.1D mode, there is only one Root Bridge
  D. They may be configured in different STPD when in 802.1D mode.
  C. When configured in 802.1D mode, there is only one Root Bridge

• Question 2:

  In normal operation the master node in the EAPS ring blocks the secondary port for all non-control traffic belonging to the EAPS domain.

  A. TRUE
  B. FALSE
  A. TRUE

• Question 3:

  The Address Resolution Protocol enables a device to learn a destinations MAC address by using the destinations known IP addresses in the ARP request.

  A. TRUE
  B. FALSE
  A. TRUE

• Question 4:

  EAPS protection switching is similar to what can be achieved with the Spanning Tree Protocol but one of the big advantages of EAPS is

  A. EAPS also supports star topologies
  B. EAPS has a recovery time of less than a second in case of link failure.
  C. An EAPS domain supports multiple root bridges, thus alternative path
  D. EAPS eliminates the need for protocols like ESRP or VRRP that bring defaultgateway redundancy.
  B. EAPS has a recovery time of less than a second in case of link failure.

• Question 5:

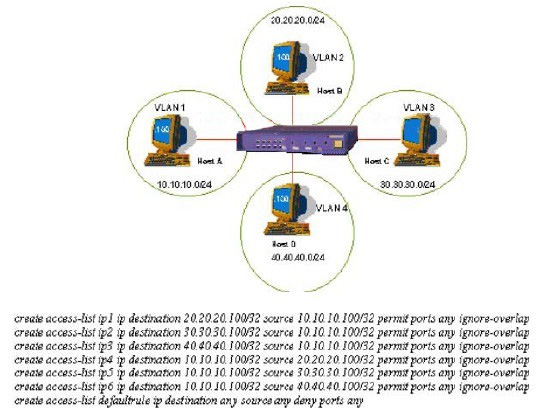

  Exhibit



  According to accompanying diagram and ACL configuration it is possible for Host A (10.10.10.100) and Host C (30.30.30.100) to successfully communicate.

  A. TRUE
  B. FALSE
  A. TRUE

• Question 6:

  What is the function of a Bootstrap Router?

  A. To inform all PIM-DM routers about the RP?.
  B. To inform all RP? About active multicast streams.
  C. To inform all PIM-SM routers about the RP?.
  D. To tunnel multicast traffic towards the Mbone.
  C. To inform all PIM-SM routers about the RP?.

• Question 7:

  The LSP overload bit in IS-IS can be set by a router to inform neighbor routers that this routers link state database is not complete so the others can ignore this unreliable router in their SPF calculations.

  A. TRUE
  B. FALSE
  A. TRUE

• Question 8:

  What is the meaning of the IEEE 802.3 SNAP field in an Ethernet frame?

  A. The SNAP field allows you to support Ethernet II frame, it contains the ether typevalue.
  B. The SNAP field allows you to encapsulate token-ring traffic
  C. The SNAP field allows you to encapsulate FDDI traffic
  D. None of the above
  A. The SNAP field allows you to support Ethernet II frame, it contains the ether typevalue.

• Question 9:

  In PIM sparse mode the Bootstrap Router election is based on the highest IP address.

  A. True
  B. False
  B. False

• Question 10:

  OSI stands for Open System Interconnection, which is known as an International standard protocol architecture.

  A. TRUE
  B. FALSE
  A. TRUE
