Microsoft 74-409 Online Practice Questions and Exam Preparation

Microsoft 74-409 Online Questions & Answers

• Question 61:

  A company has Active Directory Domain Services (AD DS) domain controllers that run on Windows Server 2012 R2 servers. There are two forests, and each has a single domain. There is a two-way forest trust between the forests. The company uses Hyper-V for server virtualization. The Hyper-V environment contains the Hyper-V host servers as shown in the following table:



  You prepare to deploy System Center 2012 R2 Data Protection Manager (DPM) to back up the Hyper-V environment. The deployment must meet the following requirements:

  ensure that all Hyper-V servers can be backed up by using DPM Hyper-V hosts in the perimeter network must use certificate-based authentication Hyper-V hosts in the internal network must use Kerberos authentication minimize the total number of DPM servers

  You need to deploy DPM to the environment. What should you deploy?

  A. four DPM servers in the internal network and two DPM servers in the perimeter network
  B. two DPM servers in the internal network only
  C. two DPM servers in the internal network and two DPM servers in the perimeter network
  D. two DPM servers in the internal network and one DPM server in the perimeter network
  D. two DPM servers in the internal network and one DPM server in the perimeter network

  ---

  http://technet.microsoft.com/en-us/library/hh757970.aspx

• Question 62:

  A company has a Windows Server 2012 R2 server that has the Hyper-V role installed. The server has a single processor and a single 10-gigabit network interface card (NIC). 12 virtual machines (VMs) run on the server.

  You need to configure Hyper-V to allow higher network throughput and reduce processing overhead related to network operations. What should you do?

  A. Run the Windows PowerShell command Set-VMNetworkAdapter -VmqWeight 0 on the VMs.
  B. In Hyper-V Manager, disable the protected network option for all NICs on the VMs.
  C. in Hyper-V Manager, enable the Single Root I/O Virtualization (SR-IOV) option on the VMs.
  D. Disable Internet Protocol security (IPsec) task offloading on the VMs.
  C. in Hyper-V Manager, enable the Single Root I/O Virtualization (SR-IOV) option on the VMs.

  ---

  What is SR-IOV

  Requires support in network adapter Provides Direct Memory Access to virtual machines Increases network throughput Reduces network latency Reduces CPU overhead on the Hyper-V server Virtual machine bypasses virtual switch Supports Live Migration, even when different SR_IOV adapters are used

• Question 63:

  A company has a highly-secure network infrastructure environment. All servers in the environment run Windows Server 2012 R2.

  You must create a new virtual machine (VM) that meets the following requirements:

  1.

  The VM must minimize the risk that unauthorized firmware will run when the VM starts.

  2.

  The VM must load the operating system only if all operating system files have a valid signature. You need to create the new VM. What should you do?

  A. Create a Generation 2 VM and disable Secure Boot.
  B. Create a Generation 1 VM and use a synthetic network adapter.
  C. Create a Generation 1 VM and enable Secure Boot.
  D. Create a Generation 2 VM with the default settings.
  D. Create a Generation 2 VM with the default settings.

  ---

  Ref: http://technet.microsoft.com/en-us/library/dn282285.aspx Secure Boot is a feature that helps prevent unauthorized firmware, operating systems, or UEFI drivers (also known as option ROMs) from running at boot time.

  Note

  Secure Boot is enabled by default for generation 2 virtual machines. This can be modified after the virtual machine has been created.

• Question 64:

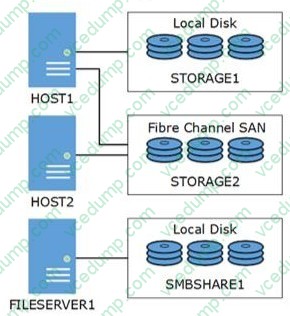

  A company has a Hyper-V environment that includes three servers named HOST1, HOST 2, and FILESERVER1. HOST1 and HOST2 run Windows Server 2012 R2 that have the Hyper-V role installed. FILESERVER1 runs Windows Server 2008 R2 and has the File Services role installed. All of the hardware supports Offloaded Data Transfer (ODX). The servers are configured as shown in the following diagram:



  STORAGE1 is encrypted with BitLocker.

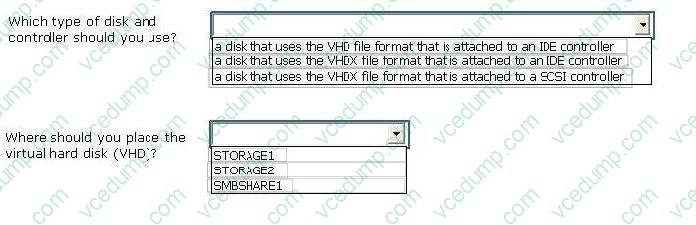

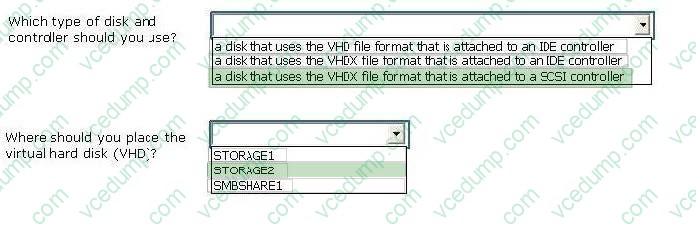

  You need to support ODX for all of the virtual machines on HOST1. Use the drop-down menus to complete each statement based on the information presented in the screenshot. Each correct selection is worth one point.

  Hot Area:





  ---

  Ref: http://technet.microsoft.com/en-us/library/jj200627.aspx

• Question 65:

  You administer a Hyper-V environment that includes two servers named SERVER1 and SERVER2. SERVER1 runs Windows Server 2008 R2 SP1. SERVER2 runs Windows Server 2012 R2. Both servers have the Hyper-V role installed.

  SERVER1 contains a virtual machine named VM-APP1. VM-APP1 runs Windows Server 2003 R2 SP2.

  You plan to migrate VM-APP1 from SERVER1 to SERVER2. To test the process, you migrate a copy of VM-APP1 from SERVER1 to SERVER2 and observe that the mouse does not function. The mouse on VM-APP1 must work correctly after you migrate it to SERVER2.

  You need to migrate the VM-APP1.

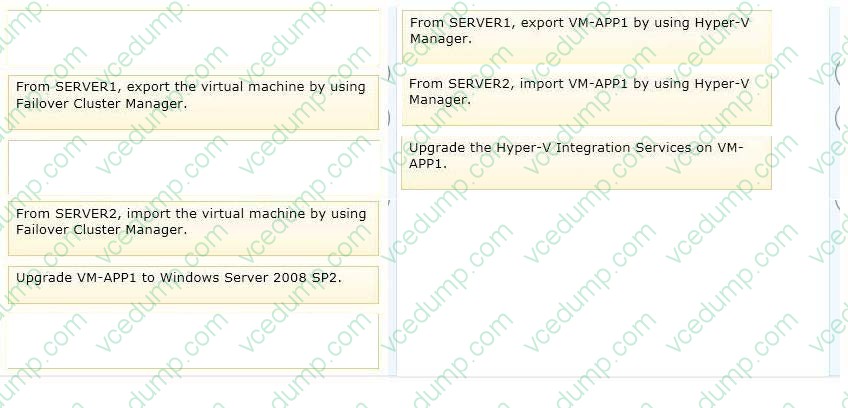

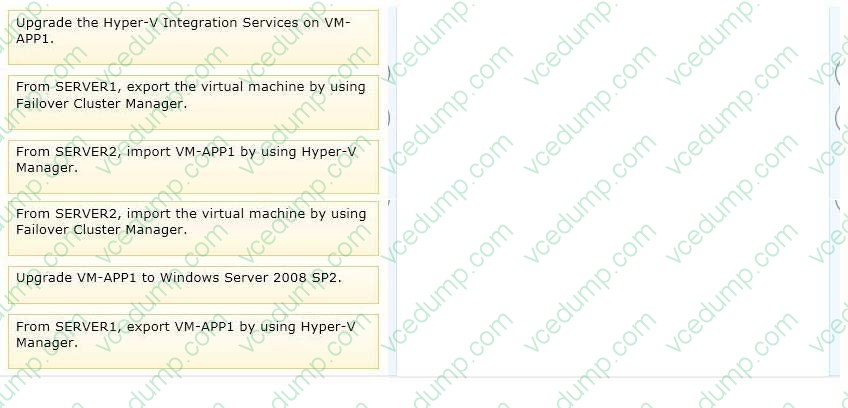

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





  ---

  Note:

  * You want to move one or more virtual machines to a new host server. Microsoft makes this possible through the Hyper-V Manager's Import and Export functions. Explanation:

  - You want to move one or more virtual machines to a new host server. Microsoft makes this possible through the Hyper-V Manager's Import and Export functions.

  - To ensure the mouse works, Hyper-V integration services must be updated. You can install this after you boot up the VM and log in with an administrative account.

  Alternatively, navigate to the device containing the ISO image and double click on it to invoke the setup process.

  If an earlier version of Hyper-V Integration Services is detected by the setup process, the option will be provided to install the latest release in place of the old release.

  Once completed, the guest system will need to be rebooted before the services will be active.

• Question 66:

  You administer a Windows Server 2012 R2 Hyper-V host server that contains production and test virtual machines (VMs). You plan to optimize the performance of the VMs.

  The following settings must be applied to the VMs:

  You must set a maximum value for the input/output operations per second (IOPS) on the test VMs.

  You must set a minimum value for the IOPS on the production VMs.

  You need to configure the environment. What should you do?

  A. On all VMs, enable Network Quality of Service (QoS).
  B. Create a shared virtual hard disk (VHD).
  C. On the Hyper-V host server, enable Resource Metering.
  D. On all VMs, enable Storage Quality of Service (QoS).
  D. On all VMs, enable Storage Quality of Service (QoS).

  ---

  Ref: http://technet.microsoft.com/en-us/library/dn282281.aspx

• Question 67:

  You are the virtualization administrator for an organization that manages private and public cloud-based resources. The organization uses Windows Server 2012 R2 servers that have the Hyper-V role installed. All Hyper-V host servers are

  configured as nodes in a four-node cluster. The organization also uses System Center 2012 R2 Configuration Manager. Operating system updates to each host server require a system reboot. You need to ensure that the virtual machines

  remain online during any reboots required by the updates.

  What should you do?

  A. in System Center 2012 R2 Configuration Manager, add all of the servers to a collection. Deploy updates to the collection.
  B. Apply updates by using the Virtual Machine Servicing Tool (VMST).
  C. Implement cluster-aware updating with the Cluster-Aware Updating (CAU) wizard.
  D. Configure orchestrated updates of Hyper-V host clusters in System Center 2012 R2 Virtual Machine Manager (VMM).
  C. Implement cluster-aware updating with the Cluster-Aware Updating (CAU) wizard.

  ---

  CAU is a tool that coordinates software updates on a cluster node, and Configuration Manager also performs server software updates. It is important to configure these tools so that they do not have overlapping coverage of the same servers in any data-center deployment. This ensures that the objective behind using CAU is not inadvertently defeated, because Configuration Manager-driven updating does not incorporate cluster awareness.

  CAU and Configuration Manager can work together to deliver synergistic value. By using the public plug- in interface architecture in CAU, Configuration Manager can leverage the cluster awareness of CAU. This allows a customer who already has Configuration Manager deployed to use the cluster awareness capabilities of CAU while taking advantage of the Configuration Manager infrastructure, such as distribution points, approvals, and the Configuration console.

  Ref: http://technet.microsoft.com/en-us/library/hh831367.aspx

• Question 68:

  A company has a server that runs Windows Server 2012 R2. The Hyper-V role is installed on the server. The server has virtual machines (VMs) that run Windows Server 2012 R2. You create two VMs. You also create four virtual hard disks.

  Two of the virtual hard disks use the VHD file format and two use the VHDX file format.

  You plan to create a failover cluster by using the two VMs on the Hyper-V host server.

  You need to prepare the storage for the VMs.

  What should you do?

  A. Enable virtual hard disk sharing for one of the VHDX-based hard disks.
  B. Run the Windows PowerShell cmdlet Optimize-VHD against the VHD-based hard disks.
  C. Enable virtual hard disk sharing for one of the VHD-based hard disks.
  D. Run the Windows PowerShell cmdlet Optimize-VHD against the VHDX-based hard disks.
  A. Enable virtual hard disk sharing for one of the VHDX-based hard disks.

  ---

  Ref: http://technet.microsoft.com/en-us/library/dn265980.aspx http://technet.microsoft.com/en-us/library/dn281956.aspx Note: Disk sharing can only be set on VHDX disks.

  Shared virtual hard disk functionality in guest failover clusters exclusively uses the .vhdx file format. Although the shared virtual hard disk must use the .vhdx file format for the data drive, the operating system disk for a virtual machine can use

  either the .vhd or the .vhdx file format.

• Question 69:

  A company has a network that contains one Active Directory Domain Services (AD DS) domain. The domain and forest functional levels are set to Windows Server 2008. All domain controllers run Windows Server 2012. You need to enable the Active Directory Recycle Bin for the forest. What should you do?

  A. Raise the domain and forest functional levels to Windows Server 2012 R2.
  B. Deploy new domain controllers that have Windows Server 2012 R2 installed.
  C. Raise the domain and forest functional levels to Windows Server 2008 R2.
  D. Upgrade the domain controllers to Windows Server 2012 R2.
  C. Raise the domain and forest functional levels to Windows Server 2008 R2.

  ---

  Ref: http://technet.microsoft.com/en-us/library/dd379484(v=ws.10).aspx By default. Active Directory Recycle Bin in Windows Server 2008 R2 is disabled. To enable it, you must first raise the forest functional level of your AD DS or AD LDS environment to Windows Server 2008 R2, which in turn requires all forest domain controllers or all servers that host instances of AD LDS configuration sets to be running Windows Server 2008 R2. After you set the forest functional level of your environment to Windows Server 2008 R2, you can use the instructions in this guide to enable Active Directory Recycle Bin.

• Question 70:

  Server 2012 R2. The company also has two virtual machines (VMs) that run Windows Server 2012. The VMs are NOT part of a domain.

  You plan to deploy a guest cluster by using a shared virtual hard disk (VHDX). You must use native disk support that is included in the Failover Clustering feature.

  The compliance department requires that you perform as many tasks as possible with your domain account for auditing purposes.

  You need to prepare to create the guest cluster.

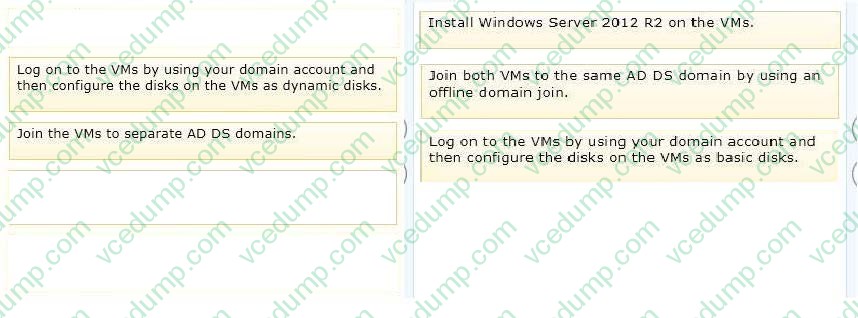

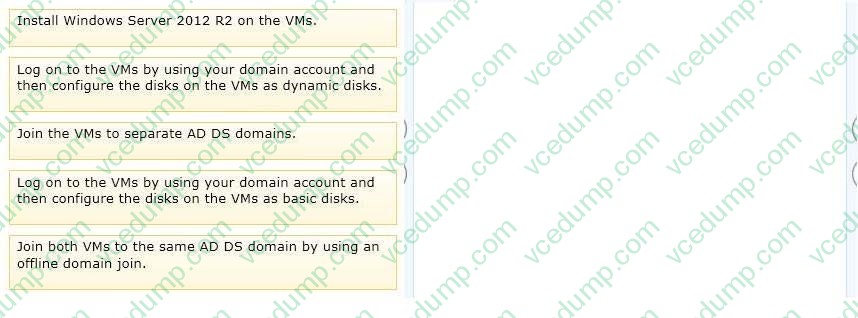

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





  ---

  -Install Windows Server 2012 R2 on the VMs.

  -Join both VMs to the same AD DS domain by using an offline domain join.

  -Log on to the VMs by using your domain account and then configure the disks on the VMs as ba- sic disks.
