Microsoft 74-409 Online Questions & Answers

• Question 91:

  You plan to implement guest clustering that contains two virtual machines (VMs). You review the following information from one of the VMs:

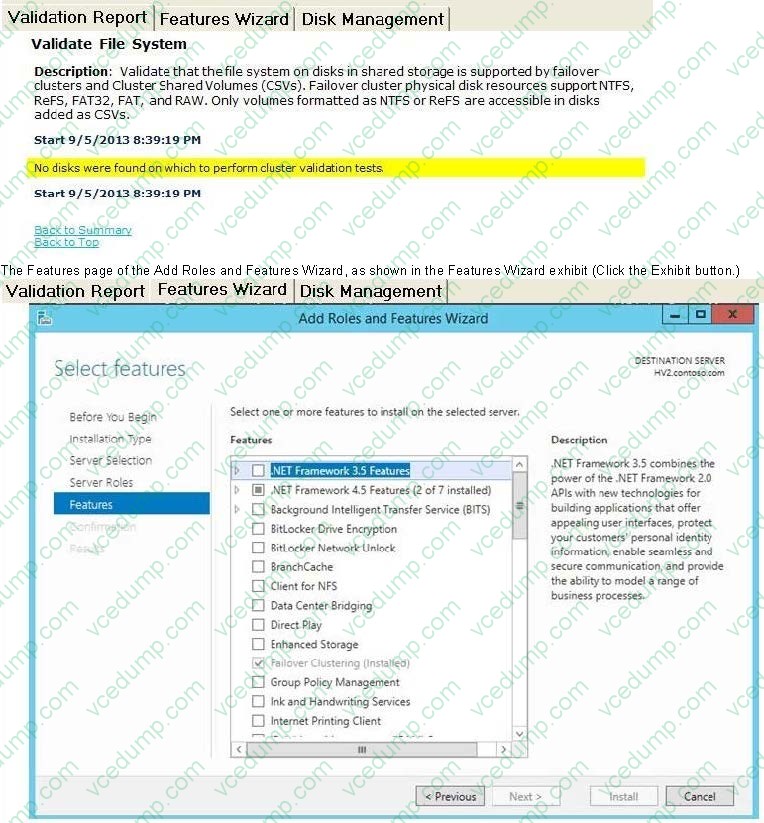

  The Validate File System test results in the Failover Clustering Validation Report, as shown in the Validation Report exhibit (Click the Exhibit button.)



  The Features page of the Add Roles and Features Wizard, as shown in the Features Wizard exhibit (Click the Exhibit button.)

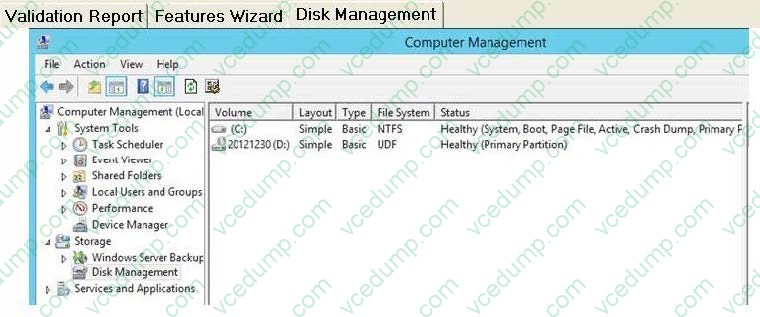

  The disk management settings, as shown in the Disk Management exhibit (Click the Exhibit button.)



  You need to ensure that you can implement guest clustering. For each of the following statements, select Yes if the statement is true. Otherwise, select No.

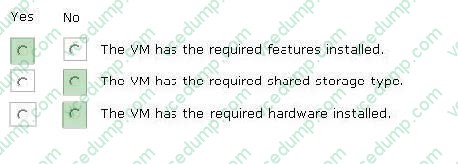

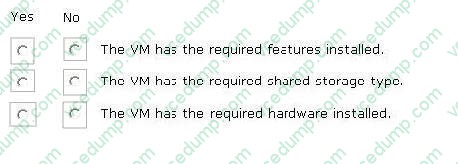

  Hot Area:





• Question 92:

  You are the virtualization administrator for an organization that manages private and public cloud-based resources. The organization uses Windows Server 2008 R2 SP1 Hyper-V. All Hyper-V host servers are configured as nodes in a four-node cluster. The organization also uses System Center 2012 R2.

  Operating system updates to each host server require a system reboot. You need to ensure that the virtual machines remain online during any reboots required by the updates. What should you do?

  A. Apply updates by using the Virtual Machine Servicing Tool (VMST).
  B. Configure orchestrated updates of Hyper-V host clusters in System Center 2012 R2 Virtual Machine Manager (VMM).
  C. Implement cluster-aware updating with the Cluster-Aware Updating (CAU) wizard.
  D. In System Center 2012 R2 Configuration Manager, add all of the servers to a collection. Deploy updates to the collection.
  C. Implement cluster-aware updating with the Cluster-Aware Updating (CAU) wizard.

  ---

  http://technet.microsoft.com/en-us/library/hh831694.aspx

  CAU is an automated feature that enables you to update clustered servers with little or no loss of availability during the update process. During an Updating Run, CAU transparently performs the following tasks:

  ?Puts each node of the cluster into node maintenance mode

  ?Moves the clustered roles off the node

  ?Installs the updates and any dependent updates

  ?Performs a restart if necessary

  ?Brings the node out of maintenance mode

  ?Restores the clustered roles on the node

  ?Moves to update the next node

  For many clustered roles (formerly called clustered applications and services) in the cluster, the automatic update process triggers a planned failover, and it can cause a transient service interruption for connected clients. However, in the case

  of continuously available workloads such as Hyper-V with live migration or file server with SMB Transparent Failover, CAU can coordinate cluster updates with no impact to the service availability.

  Note

  The CAU feature is only compatible with Windows Server 2012 R2 and Windows Server 2012 failover clusters and the clustered roles that are supported on those versions.

• Question 93:

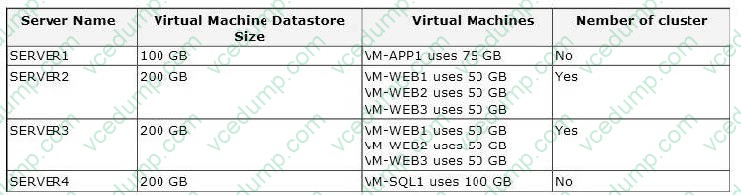

  You administer the following Windows Server 2012 R2 Hyper-V environment:



  The environment also contains a computer named WORKSTATION1 that runs Windows 8. You need to perform maintenance on SERVER1. You have the following requirements:

  Perform live migration for VM-APP1.

  Use one of the Hyper-V management tools on WORKSTATION1 to perform the live migration tasks.

  You need to migrate VM-APP1.

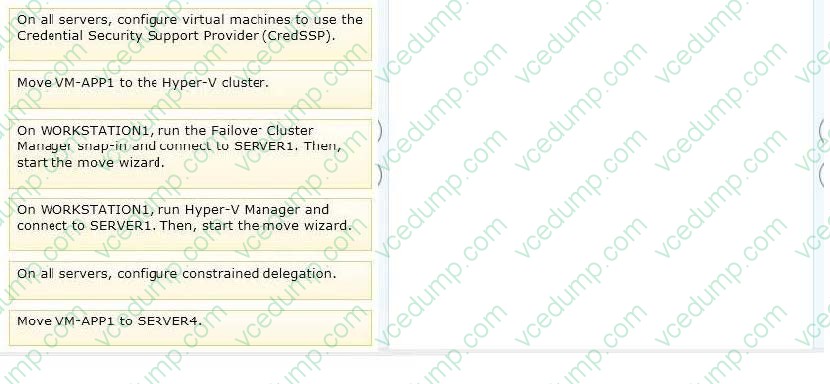

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





  ---

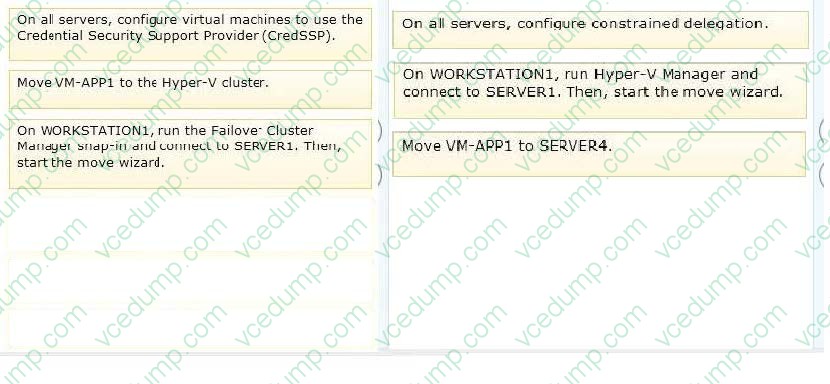

  * Box 1:

  / (Optional) Configure constrained delegation

  If you have decided to use Kerberos to authenticate live migration traffic, configure constrained delegation before you proceed to the rest of the steps. / To manage the tasks with remote management tools, configure constrained delegation and select Kerberos as the authentication protocol.

  * (Box2, Box 3) To move a running virtual machine

  Connect to the source server using one of the following methods (unless you are signed in to the source server):

  / From Server Manager, click All Servers and then click the name of the source server.

  / From Hyper-V Manager, in the navigation pane, click the name of the source server.

• Question 94:

  You administer a server that runs Windows Server 2012 R2 with the Hyper-V role installed. You plan to deploy a new virtual machine (VM) to the server. The data stored by the VM doubles each month.

  You have the following requirements:

  The virtual hard disk (VHD) must minimize the storage space requirements.

  Changes to the VHD must NOT require user intervention.

  You need to create the VHD. What should you create?

  A. a dynamically expanding file that uses the VHD file format
  B. a file that uses the VSV file format for the data LUN
  C. a differencing file that uses the VHD file format
  D. a differencing file that uses the VHDX file format
  C. a differencing file that uses the VHD file format

• Question 95:

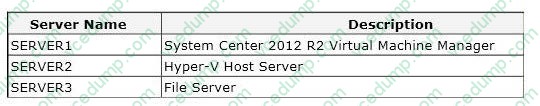

  A company has the following servers:



  You are implementing the virtualization storage.

  You need to assign Server Message Block (SMB) 3.0 file shares to the Hyper-V host servers. Which three actions should you perform? Each answer presents part of the solution.

  A. Assign the file share to SERVER2.
  B. Add SERVER3 as a storage device.
  C. Assign the file share to SERVER1.
  D. Add SERVER2 as a storage device.
  E. Create a file share on SERVER3.
  F. Create a file share on SERVER2.
  A. Assign the file share to SERVER2.
  B. Add SERVER3 as a storage device.
  E. Create a file share on SERVER3.

  ---

  B: Step 1: Add the file server (server3) as a storage device. Add a storage device--As a first step, add a storage device or Windows-based file server to the VMM console.

  E: Step 2: Create a file share on the file server (server3). Create a file share--Create a file share on the Windows-based file server.

  A: Step 3: Assign the share to the Host server (Server2) Assign the share--Assign the share to a virtual machine host or cluster.

  Ref: http://technet.microsoft.com/en-us/library/jj614620.aspx

• Question 96:

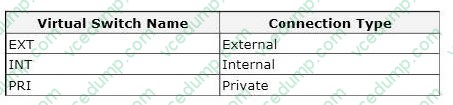

  You have a Windows Server 2012 R2 server with the Hyper-V role installed. The host server hosts a virtual machine (VM) named NYC-VM. The virtual switches for the host server are configured as follows:



  NYC-VM must meet the following requirements: communicate with all of the VMs on the same virtualization host server communicate with the virtualization host server must NOT communicate with VMs on different virtualization host servers

  You need to configure the virtual switch for NYC-VM. What should you do?

  A. On NYC-VM, enable virtual LAN identification.
  B. Run the Windows PowerShell command Connect-VMNetworkAdapter -VMName NYC-VM -SwitchName INT.
  C. Connect NYC-VM to the EXT switch.
  D. Run the Windows PowerShell command Connect-VMNetworkAdapter -VMName NYC-VM -SwitchName EXT.
  A. On NYC-VM, enable virtual LAN identification.

  ---

  http://technet.microsoft.com/en-us/library/cc816585%28v=ws.10%29.aspx

• Question 97:

  A company has a server that has System Center 2012 R2 Virtual Machine Manager (VMM) installed. A specific user must be able to create logical networks in VMM. You need to grant the user the required permissions. What should you do?

  A. in VMM, grant the user the Administrator role.
  B. in VMM, create a self-service role that has the Deploy action assigned.
  C. in Server Manager, add the user to the local Administrators group.
  D. In VMM, grant the user the Tenant Administrator role.
  A. in VMM, grant the user the Administrator role.

  ---

  Ref: http://technet.microsoft.com/en-us/library/gg610588.aspx Account requirements To complete this procedure, you must be a member of the Administrator or the Delegated Administrator user role. Delegated administrators can only associate a logical network to host groups that are included in their administrative scope.

• Question 98:

  You administer a Windows Server 2012 R2 server with the Hyper-V role installed. You plan to integrate the Hyper-V host server with the existing storage infrastructure.

  You need to configure all virtual machines (VMs).

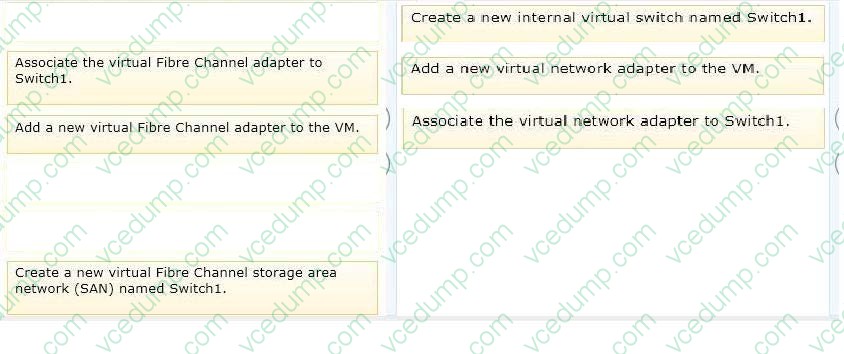

  Which three actions should you perform in sequence?

  To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





• Question 99:

  A company uses System Center 2012 R2 Operations Manager and System Center 2012 R2 Virtual Machine Manager (VMM). You need to provide a detailed overview of the fabric that services the company's private clouds. What should you do?

  A. Import the Management Pack for System Center 2012 R2 VMM Fabric Dashboard.
  B. Use the System Center Global Service Monitor as part of the monitoring strategy.
  C. Import the Management Pack for System Center 2012 Service Manager.
  D. Use the Windows Intune service as part of the monitoring strategy.
  A. Import the Management Pack for System Center 2012 R2 VMM Fabric Dashboard.

  ---

  Ref: http://www.networkworld.com/community/blog/whats-new-operations-manager-system- center-2012-r2

  Fabric Monitoring A close integration between System Center 2012 R2 Virtual Machine Manager and System Center 2012 R2 Operations Manager introduces System Center cloud monitoring of virtual layers for private cloud environments. To get this new functionality, use the System Center 2012 Management Pack for System Center 2012 R2 Virtual Machine Manager Dashboard, which is imported automatically when you integrate Operations Manager and Virtual Machine Manager. For information about how to integrate Operations Manager and Virtual Machine Manager, see Configuring Operations Manager Integration with VMM.
