Microsoft 74-409 Online Questions & Answers

• Question 1:

  You administer the Hyper-V environment for a large organization. The organization uses Windows Server 2012 R2 servers that have the Hyper-V role installed and System Center 2012 R2 Virtual Machine Manager (VMM). You create a

  virtual machine template that has the Operations Manager 2012 R2 agent pre- installed.

  You receive the following Operations console alert for all domain controller VMs that use the VM template:

  The script 'AD Replication Partner Op Master Consistency' Failed to create object. 'McActiveDir.ActiveDirectory'. This is an unexpected error. The error returned was 'ActiveX component can't create object' (OxlAD) The Active Directory

  Management Pack Objects (OOMADs) components are not installed on the Domain Controller. These components are required for the monitoring scripts to run successfully. See Alert Knowledge for additional details.

  You need to correct the issue for the virtual machines that use the template.

  What should you do?

  A. Configure the agent to run as a user account that is a member of the Domain Admins security group.
  B. In the Administration pane on the Operations console, create a Windows Run As Account containing a user account that is a member of the Domain Admins security group. Associate this Run As Account with the AD MP Account Run As Profile.
  C. In the Administration pane on the Operations Console, find the affected agent-managed computers and enable agent proxy.
  D. Install the Active Directory Management Pack helper object on the managed computers.
  D. Install the Active Directory Management Pack helper object on the managed computers.

  ---

  The Active Directory Management Pack Objects (OOMADs) components are not installed on the Domain Controller. These components are required for the monitoring scripts to run successfully. http://technet.microsoft.com/en-us/library/ cc180617.aspx

• Question 2:

  A company has a Hyper-V host server that runs Windows Server 2012 R2 Datacenter edition. The host server has a Generation 2 virtual machine (VM) that runs Windows Server 2012 R2 Standard edition. The drive that contains the VM system partition is at 90 percent of its capacity.

  You have the following requirements:

  The VM must continue to run during any system maintenance activities.

  You must use the least amount of administrative effort to accomplish the task.

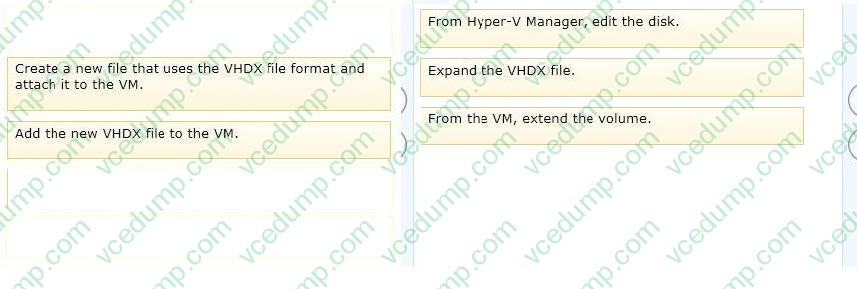

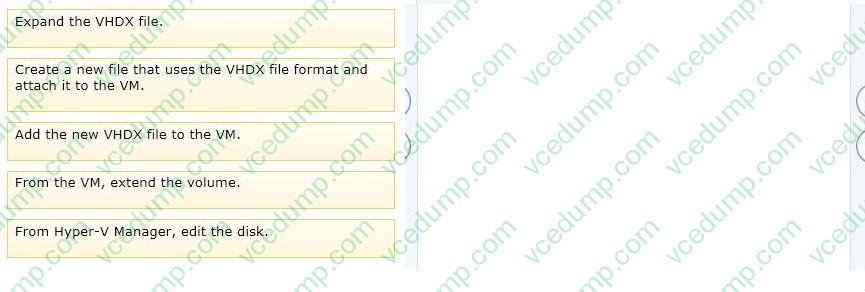

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





• Question 3:

  You plan to implement guest clustering.

  You review the following information:

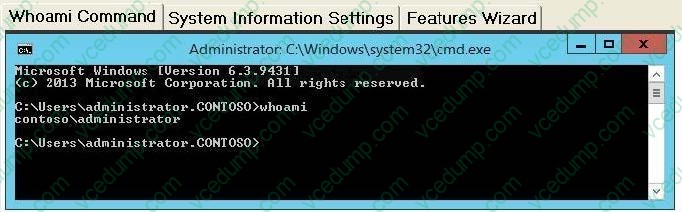

  Whoami results, as shown in the Whoami Command exhibit (Click the Exhibit button.)

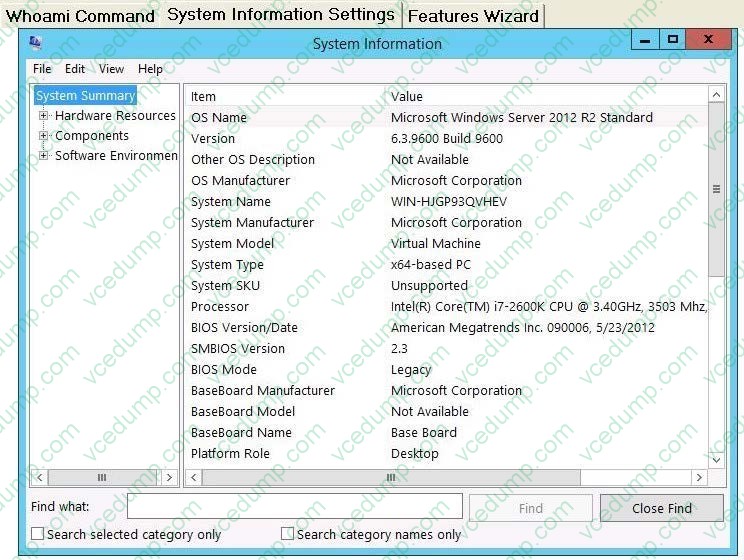

  System information settings, as shown in the System Information Settings exhibit (Click the Exhibit button.)

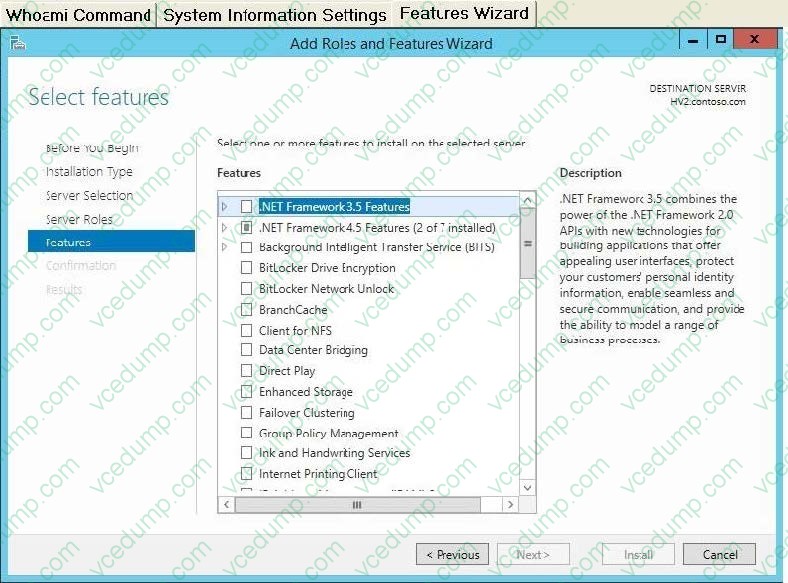

  The Add Roles and Features Wizard, as shown in the Features Wizard exhibit (Click the Exhibit button.)

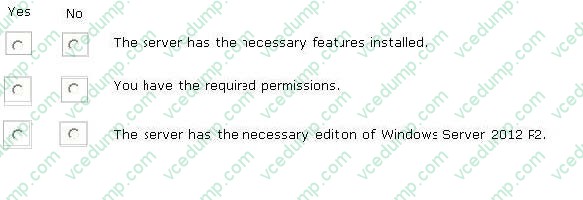

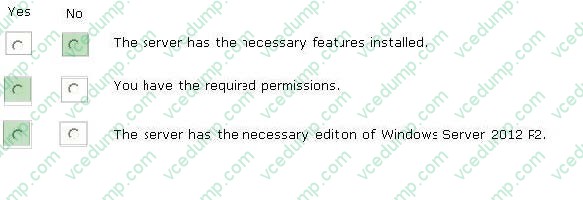

  You need to ensure that you can implement guest clustering. For each of the following statements, select Yes if the statement is true. Otherwise, select No. Each correct selection is worth one point.

  Hot Area:





  ---

  The Failover Clustering feature needs to be installed.

  Ref: http://technet.microsoft.com/en-us/library/dn265980.aspx

• Question 4:

  You administer a Hyper-V environment that uses Windows Server 2012 R2 and System Center 2012 R2 Virtual Machine Manager (VMM).

  A line-of-business (LOB) application requires two virtual machines (VMs). Each VM must have direct access to existing Fibre Channel storage.

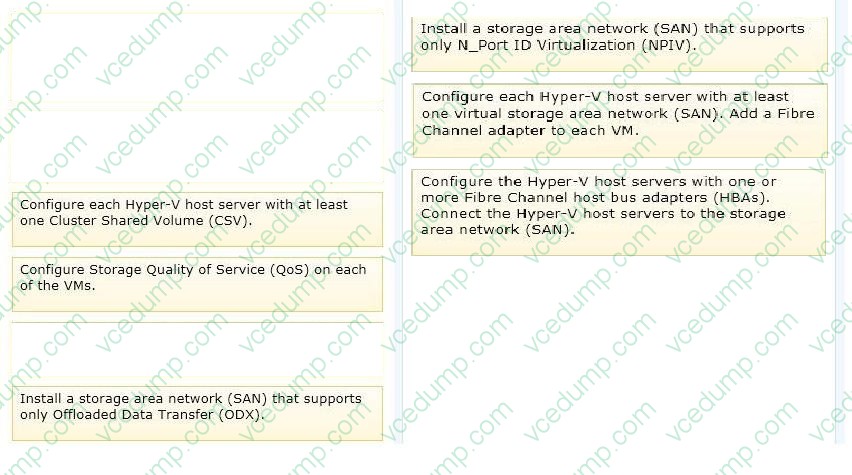

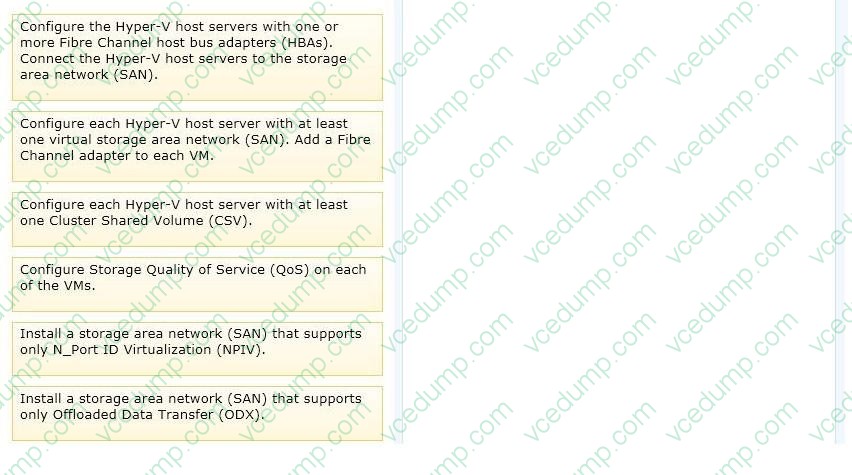

  You need to ensure that the two VMs have direct access to Fibre Channel storage. Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





  ---

  Note:

  * The virtual Fibre Channel feature in Hyper-V requires the following:

  One or more installations of Windows Server 2012 with the Hyper-V role installed. Hyper-V requires a computer with processor support for hardware virtualization.

  * A computer with one or more Fibre Channel host bus adapters (HBAs) that have an updated HBA driver that supports virtual Fibre Channel. Updated HBA drivers are included with the in-box HBA drivers for some models. The HBA ports to be used with virtual Fibre Channel should be set up in a Fibre Channel topology that supports NPIV. To determine whether your hardware supports virtual Fibre Channel, contact your hardware vendor or OEM.

  * An NPIV-enabled SAN.

  * Virtual machines configured to use a virtual Fibre Channel adapter, which must use Windows Server 2008, Windows Server 2008 R2, or Windows Server 2012 as the guest operating system.

  * Storage accessed through a virtual Fibre Channel supports devices that present logical units. Virtual Fibre Channel logical units cannot be used as boot media.

• Question 5:

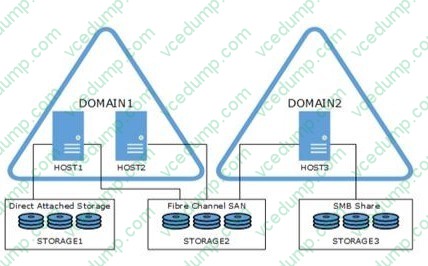

  A company has a Windows Server 2012 R2 Hyper-V environment that includes two separate Active Directory Domain Services (AD DS) domains. The environment also has three servers named HOST1, HOST2, and HOST3 that have the Hyper-V role installed. HOST1 and HOST2 are configured as a failover cluster. The environment is configured as shown in the following diagram:



  You plan to deploy two new virtual machines named VM-Server1 and VM-Server2. You have the following requirements:

  1. Deploy both virtual machines as a failover cluster.

  2. Utilize virtual hard disk (VHD) sharing for the cluster.

  3. The virtual machines must survive a host server hardware failure.

  You need to deploy the virtual machines.

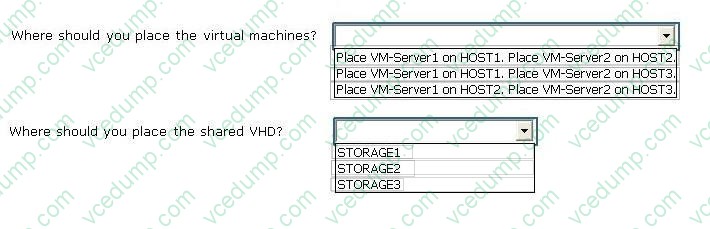

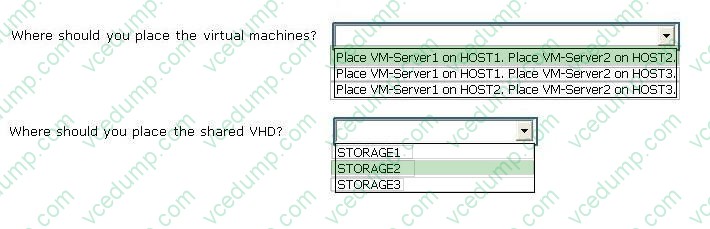

  Use the drop-down menus to complete each statement based on the information presented in the screenshot. Each correct selection is worth one point.

  Hot Area:





• Question 6:

  You administer two Windows 2012 R2 servers that have the Hyper-V role installed. You plan to deploy a new Hyper-V cluster. The cluster instance must NOT be added to Active Directory. You need to deploy the cluster. What should you do?

  A. Use Hyper-V Manager to deploy the cluster.
  B. Use Failover Cluster Manager to deploy the cluster.
  C. Run the Windows PowerShell cmdlet New-Cluster. Specify ActiveDirectoryAndDNS for the AdministrativeAccessPoint parameter.
  D. Run the Windows PowerShell cmdlet New-Cluster. Specify DNS for the AdministrativeAccessPoint parameter.
  D. Run the Windows PowerShell cmdlet New-Cluster. Specify DNS for the AdministrativeAccessPoint parameter.

  ---

  Ref: http://technet.microsoft.com/en-us/library/dn265970.aspx To deploy an Active Directory-detached cluster, you must use Windows PowerShell. You cannot use Failover

  Cluster Manager.

  To create the failover cluster, start Windows PowerShell as an administrator, and then use the New-Cluster cmdlet with the AdministrativeAccessPoint parameter set to a value of DNS.

• Question 7:

  A company consolidates multiple data centers into a single centralized datacenter by using a Windows Server 2012 R2 server that has the Hyper-V role installed. You must be able to support chargeback based on the usage of the following resources:

  1.

  average CPU usage per virtual machine (VM)

  2.

  average physical memory used by a VM over a period of time

  3.

  highest amount of memory assigned to a VM over a period of time

  4.

  highest amount of disk spaced assigned to a VM over a period of time

  You need to track the resources without installing any additional tools. Which tool should you use?

  A. Process Explorer
  B. Resource Metering
  C. Reliability Monitor
  D. Resource Monitor
  B. Resource Metering

  ---

  Ref: http://technet.microsoft.com/en-us/library/hh831661.aspx

• Question 8:

  You are the virtualization administrator for an organization. The organization uses all components of System Center 2012 R2 in the production environment. A power supply in a Hyper-v host server fails. The host server continues to run and

  host virtual machines in this degraded state.

  You have the following requirements:

  Move virtual machines from host servers that are running in a degraded state to another host server.

  Prevent placement of new virtual machines on degraded host servers.

  You need to configure the environment.

  Which System Center feature should you implement?

  A. Dynamic Optimization
  B. Performance and Resource Optimization (PRO)
  C. Shared VHDX files
  D. Placement Rules
  B. Performance and Resource Optimization (PRO)

  ---

  Ref: http://technet.microsoft.com/en-us/gg552992.aspx

  What is Performance and Resource Optimization (PRO)?

  PRO helps ensure that virtual machine hosts and virtual machines are operating in the most efficient possible manner. PRO generates recommendations for remedial actions based on alerts that Operations Manager generates. You can

  configure PRO to implement the preconfigured corrective actions automatically.

• Question 9:

  A company has one Active Directory Domain Services (AD DS) forest that contains two domains. All servers run Windows Server 2012 R2. The company uses iSCSI storage and Fibre Channel storage.

  You plan to deploy a single Hyper-V failover cluster that uses Cluster Shared Volumes (CSV). The cluster must include virtual machines from both domains. You need to ensure that you can deploy a failover cluster.

  What should you do?

  A. Join each Hyper-V host server to the same AD DS domain.
  B. Deploy clustered storage spaces.
  C. Deploy Serial Attached SCSI (SAS).
  D. Join each Hyper-V host server to different AD DS domains.
  A. Join each Hyper-V host server to the same AD DS domain.

  ---

  Ref: http://technet.microsoft.com/en-us/library/dn505754.aspx Domain role: All servers in the cluster must be in the same Active Directory domain. As a best practice, all clustered servers should have the same domain role (either member server or domain controller). The recommended role is member server.

• Question 10:

  You have a Windows Server 2012 R2 server that has the Hyper-V role installed. The company has the following requirements for the Hyper-V host server:

  Virtual machines (VMs) must only communicate with other VMs and the Hyper- V host server.

  You must be able to monitor all TCP/IP packets to and from VMs from the moment that VMs are able to communicate.

  You must support a third-party program that uses the Network Driver Interface Specification (NDIS) API to monitor the TCP/IP packets between VMs.

  You need to configure the environment.

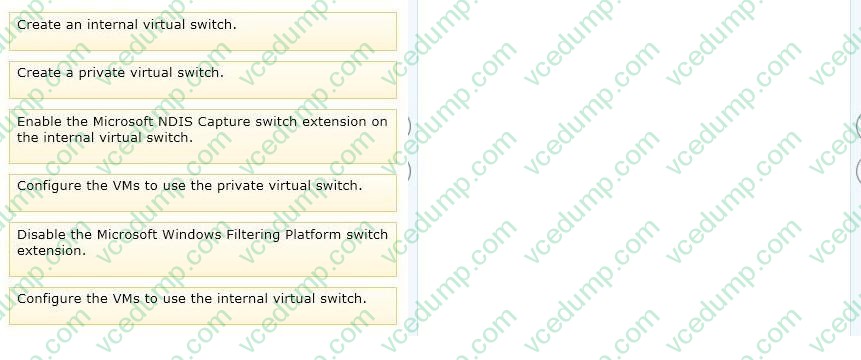

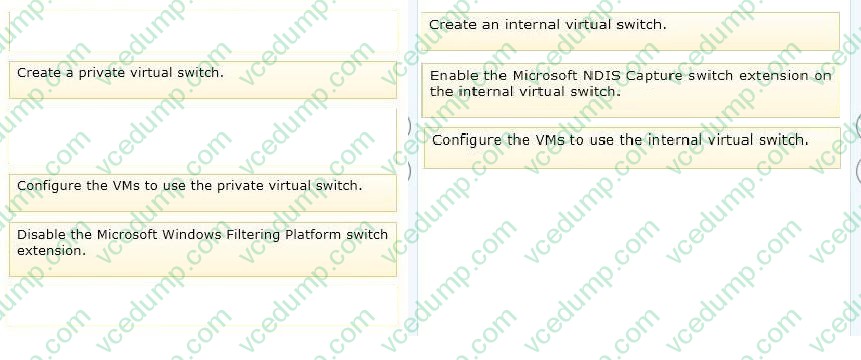

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:
