Microsoft 70-697 Online Questions & Answers

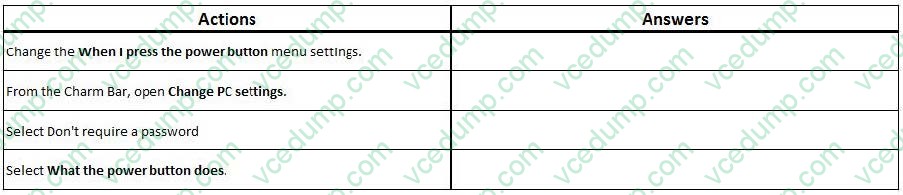

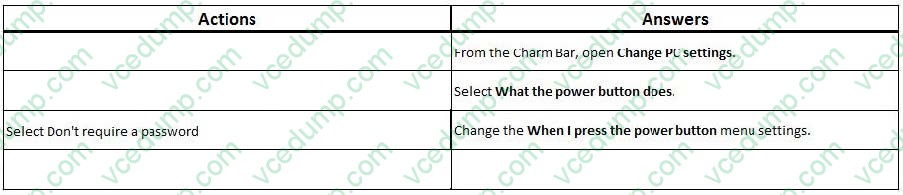

• Question 31:

  DRAG DROP

  You administer Windows 8 Pro computers in your company network. You discover that Sleep, Shut down and Restart are the only options available when you select the Power button as shown in the following exhibit (Click the Exhibit button.)



  You need to enable hibernation on the computer. Which three steps should you perform in sequence?

  Select and Place:

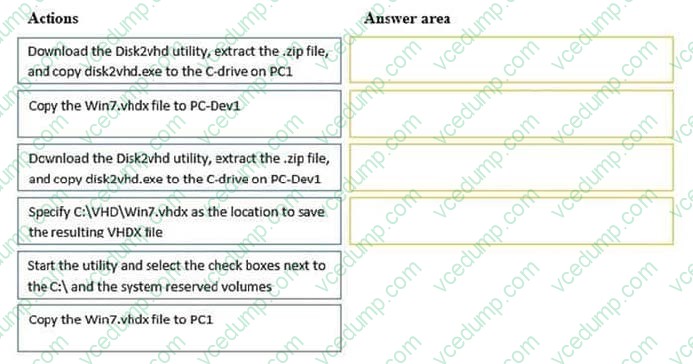

• Question 32:

  DRAG DROP

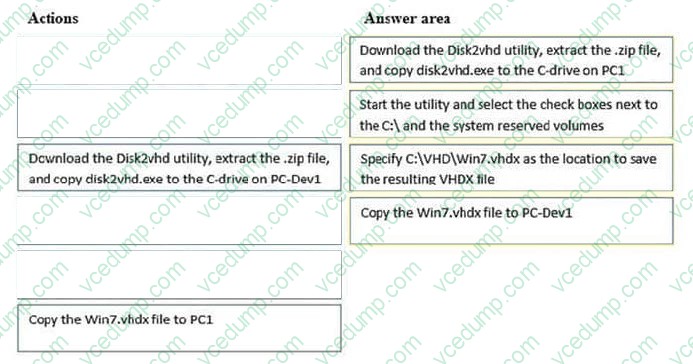

  You are the system administrator for a small business. A developer runs Hyper-V on a Windows 10 device named PC-Dev1.

  The developer must deploy a Windows 7 virtual machine (VM) to PC-Dev1. You plan to use an existing Windows 7 device named PC1 to create the image for the VM. PC1 uses MBR for the partition style. This partition style must be used for the VM.

  You need to prepare and convert the VM.

  Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





• Question 33:

  You have a client Windows 10 Enterprise computer. The computer is joined to an Active Directory domain. The computer does not have a Trusted Platform Module (TPM) chip installed.

  You need to configure BitLocker Drive Encryption (BitLocker) on the operating system drive.

  Which Group Policy object (GPO) setting should you configure?

  A. Allow access to BitLocker-protected fixed data drives from earlier version of Windows.
  B. Require additional authentication at startup.
  C. Allow network unlock at startup.
  D. Configure use of hardware-based encryption for operating system drives.
  B. Require additional authentication at startup.

  ---

  To make use of BitLocker on a drive without TPM, you should run the gpedit.msc command. You must then access the Require additional authentication at startup setting by navigating to Computer Configuration\Administrative Templates \Windows Components\Bit Locker Drive Encryption\Operating System Drives under Local Computer Policy. You can now enable the feature and tick the Allow BitLocker without a compatible TPMcheckbox.

  References: http://www.howtogeek.com/howto/6229/how-to-use-bitlocker-on-drives-without-tpm/ https://technet.microsoft.com/en-us/library/jj679890.aspx#BKMK_depopt4

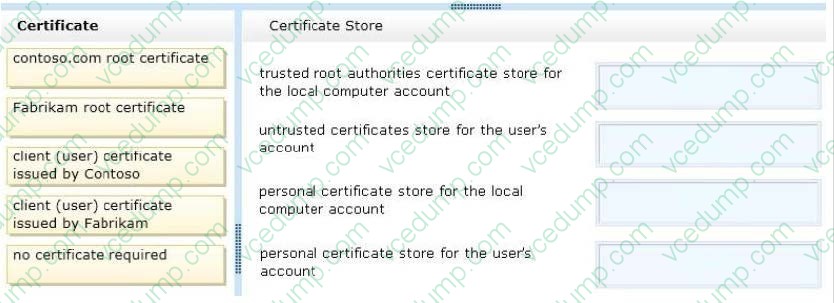

• Question 34:

  DRAG DROP

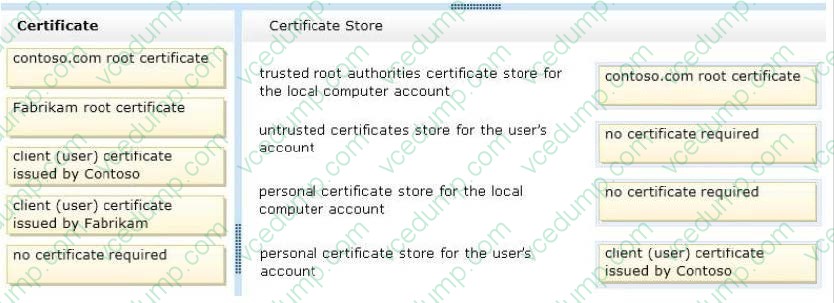

  You support desktop computers for a company named Fabrikam, Inc. The computers are members of the Active Directory domain named fabrikam.com. Fabrikam works with a supplier named Contoso, Ltd.

  Each company has a public key infrastructure (PKI), and no public certificate authorities (CAs) are used. Fabrikam employees regularly use a Contoso website that is hosted on a server in the contoso.com domain.

  The website requires SSL and mutual authentication.

  You need to configure the computers to allow Fabrikam users to access the Contoso website without any warning prompts. You also need to use the fewest certificates possible.

  Which certificate or certificates should you use?

  Select and Place:

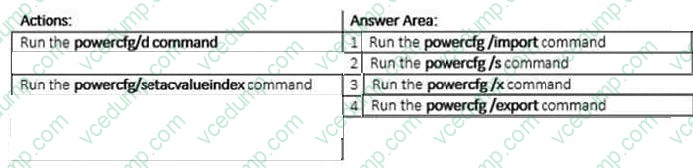

• Question 35:

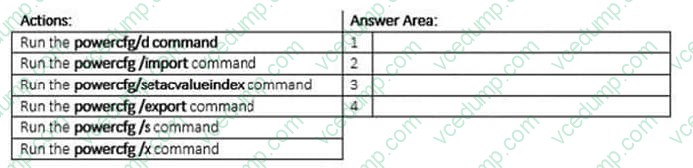

  You are the desktop administrator for a small company.

  Your workgroup environment consists of Windows 10 Enterprise computers.

  You want to prevent 10 help desk computers from sleeping. However, you want the screens to shut off after a certain period of time if the computers are not being used.

  You need to configure and apply a standard power configuration scheme for the 10 help desk computers on your network.

  Which four Actions should you perform in sequence?

  Select and Place:





• Question 36:

  A company has an Active Directory Domain Services (AD DS) domain. All client computers run Windows 10 Enterprise. Some computers have a Trusted Platform Module (TPM) chip.

  You need to configure a single Group Policy object (GPO) that will allow Windows BitLocker Drive Encryption on all client computers.

  Which two actions should you perform? Each correct answer presents part of the solution.

  A. Enable the Require additional authentication at startup policy setting.
  B. Enable the Enforce drive encryption type on operating system drives policy setting.
  C. Enable the option to allow BitLocker without a compatible TPM.
  D. Configure the TPM validation profile to enable Platform Configuration Register indices (PCRs) 0, 2, 4, and 11.
  A. Enable the Require additional authentication at startup policy setting.
  C. Enable the option to allow BitLocker without a compatible TPM.

  ---

  We need to allow Windows BitLocker Drive Encryption on all client computers (including client computers that do not have Trusted Platform Module (TPM) chip). We can do this by enabling the option to allow BitLocker without a compatible TPM in the group policy. The `Allow BitLocker without a compatible TPM' option is a checkbox in the `Require additional authentication at startup' group policy setting. To access the `Allow BitLocker without a compatible TPM' checkbox, you need to first select Enabled on the `Require additional authentication at startup' policy setting.

  References: http://www.howtogeek.com/howto/6229/how-to-use-bitlocker-on-drives-without-tpm/

• Question 37:

  You administer a Windows 10 Enterprise computer that runs Hyper-V. The computer hosts a virtual machine with multiple snapshots. The virtual machine uses one virtual CPU and 512 MB of RAM.

  You discover that the virtual machine pauses automatically and displays the state as paused-critical.

  You need to identify the component that is causing the error.

  Which component should you identify?

  A. no virtual switch defined
  B. insufficient memory
  C. insufficient hard disk space
  D. insufficient number of virtual processors
  C. insufficient hard disk space

  ---

  In this question, the VM has "multiple snapshots" which would use up a lot of disk space. Virtual machines will go into the "Paused-Critical" state in Hyper-V if the free space on the drive that contains the snapshots goes below 200MB. One thing that often trips people up is if they have their virtual hard disks configured on one drive ?but have left their snapshot files stored on the system drive. Once a virtual machine snapshot has been taken?the base virtual hard disk stops expanding and the snapshot file stores new data that is written to the disk ?so it is critical that there is enough space in the snapshot storage location.

  References: http://blogs.msdn.com/b/virtual_pc_guy/archive/2009/04/22/why-is-my-virtual-machine-paused-critical-hyper-v.aspx

• Question 38:

  HOTSPOT

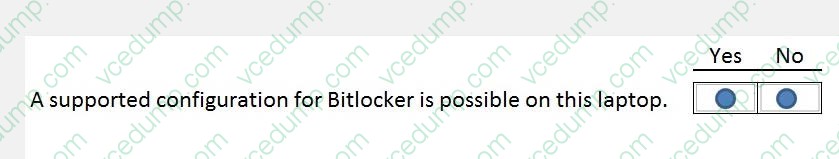

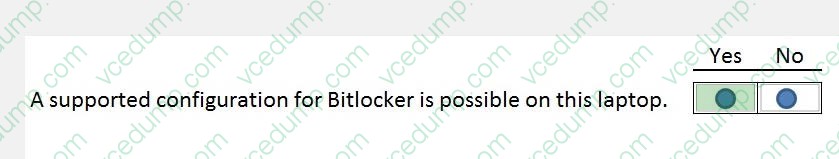

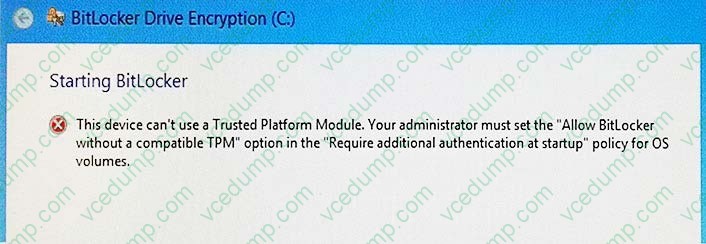

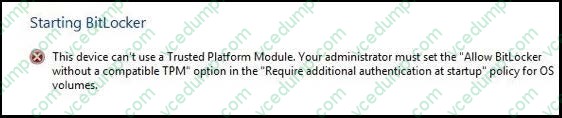

  You provide support for a small company. The company purchases a Windows 10 laptop for an employee who travels often. The company wants to use BitLocker to secure the hard drive for the laptop in case it is lost or stolen. While attempting to enable BitLocker, you receive the error message shown in the following image:



  Hot Area:

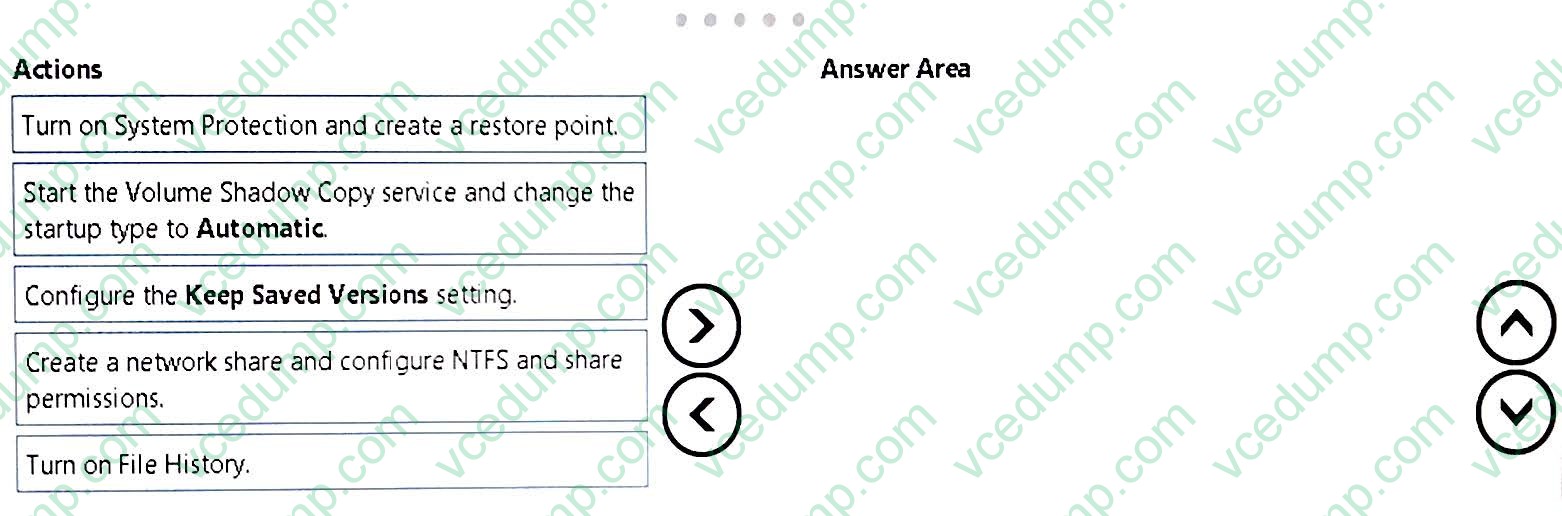

• Question 39:

  DRAG DROP

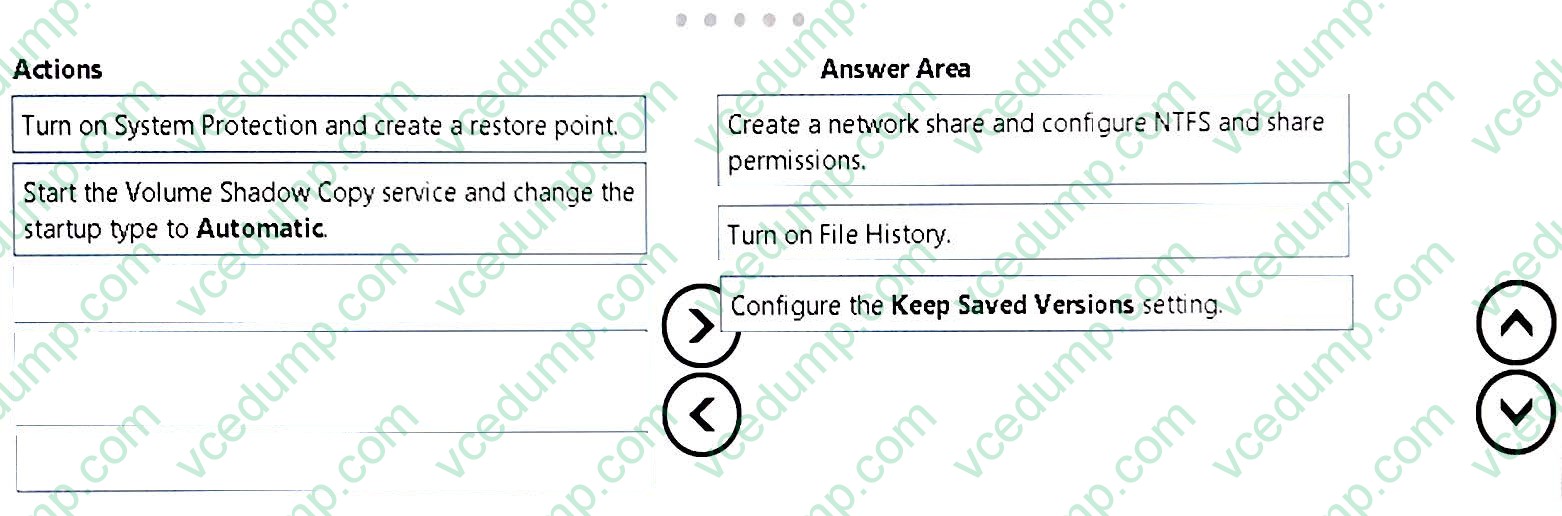

  You administer Windows 10 Enterprise computers.

  Users in the accounting department ask you to configure a recovery solution for Microsoft Word and Excel files.

  You need to ensure that users can restore Microsoft Word and Excel files to previous versions for up to 30 days.

  Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

  Select and Place:





• Question 40:

  HOTSPOT

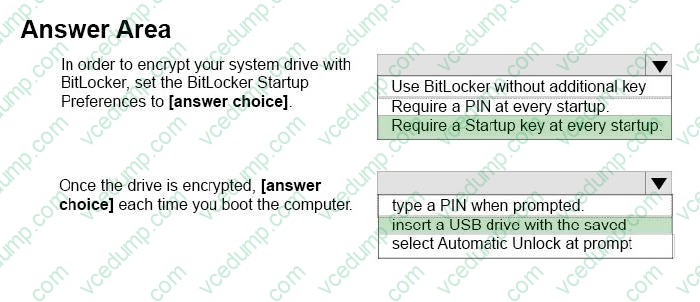

  You are the PC support specialist for Contoso, Ltd.

  Your department upgrades your company's laptops to Windows 10 Enterprise.

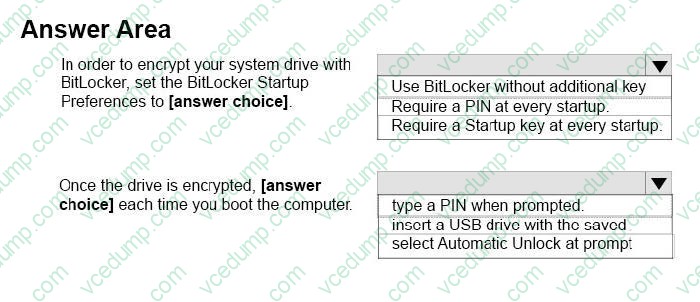

  You need to use BitLocker to encrypt the system drives on these laptops. You attempt to encrypt several laptops but receive an error message shown in the following image:



  Use the drop-down menus to select the answer choice that completes each statement. Note: Each correct selection is worth one point.

  Hot Area:
