Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 61:

  Your network contains a server named Server1. Server1 has three hard disk drives. Two hard disk drives named C and E are configured as simple volumes. The third hard disk drive contains 500 GB of unallocated space.

  Drive E hosts a shared folder named Folder1. Users report that they fail to save files to Folder1. You discover that drive E has no free space.

  You need to ensure that users can save files to Folder1.

  What should you do?

  A. From the Disk Management console, run the Add Mirror wizard.
  B. From the Disk Management console, run the Extend Volume Wizard.
  C. From the Share and Storage Management console, run the Provision Storage Wizard.
  D. From the Share and Storage Management console, run the Provision a Shared Folder Wizard.
  B. From the Disk Management console, run the Extend Volume Wizard.

  ---

  Extend a Simple or Spanned Volume A spanned volume is a dynamic volume that consists of disk space on more than one physical disk. If a simple volume is not a system volume or boot volume, you can extend across additional disks. If you extend a simple volume across multiple disks, it becomes a spanned volume. You can extend a volume only if it does not have a file system or if it is formatted using the NTFS file system.

  You cannot extend volumes formatted using FAT or FAT32.

  Backup Operator or Administrator is the minimum membership required to complete the actions below. Extending a simple or spanned volume

  1.

  In Disk Management, right-click the simple or spanned volume you want to extend.

  2.

  Click Extend Volume.

  3.

  Follow the instructions on your screen.

  Source: http://technet.microsoft.com/en-us/library/cc753058.aspx

• Question 62:

  You have installed the Web Server (IIS) role on a server with Windows Server 2008. Company uses SMTP for email.

  You need prevent unauthorized transmissions without disrupting valid email traffic.

  A. Creata firewall role to block all outbound SMTP traffic.
  B. Configure High alert items to be removed in Windows Defender.
  C. Enable the TLS encryption option in the outbound security settings.
  D. Add an SMTP relay restriction that limits access to authorized server on the network.
  D. Add an SMTP relay restriction that limits access to authorized server on the network.

• Question 63:

  Your network contains a two-node Hyper-V cluster that hosts 10 virtual machines (VMs). You discover that when a failover occurs, all of the VMs fail over simultaneously. You need to modify the cluster so that you can fail over each VM individually.

  What should you do first?

  A. Add a third node to the cluster.
  B. Create a Clustered Shared Volume.
  C. Add a new disk to the failover cluster.
  D. Modify the properties of the cluster failover.
  B. Create a Clustered Shared Volume.

• Question 64:

  Your company has an Active Directory domain. You have a server that runs Windows Server 2008. The Terminal Services role is installed on the server.

  The company security policy does not allow users to copy and paste information to a local computer during a Terminal Services session.

  You deploy the remote application named APP1.

  You need to configure Terminal Services to meet the security requirement.

  What should you do?

  A. Enable the Use temporary folders per session option.
  B. Change the Security Encryption Level to FIPS Compliant.
  C. Deselect the Clipboard option in the RDP Settings for the published application.
  D. Disable the Drive option in the RDP-Tcp Client Setting properties for the server.
  C. Deselect the Clipboard option in the RDP Settings for the published application.

  ---

  To ensure that the users are not allowed to copy and paste information to a local computer during a Terminal Services session, you need to deselect the Clipboard option in the RDP Settings for the published application When connecting to a terminal server using an RDP client, many of the local resources are available within the remote session, including the client file system, smart cards, audio (output), serial ports, printers (including network), and the clipboard.

  These redirection facilities allow users to easily take advantage of the capabilities of their client device from within the remote session. Similarly clipboard can be used to copy and paste information to local computer. To stop the copy paste, you need to go to Terminal Services Configuration and on the Client Settings tab, under Disable the following Clipboard mapping to disable client clipboard mapping.

  Reference: Configure settings for mapping client devices/ Using Terminal Services Configuration http://technet2.microsoft.com/windowsserver/en/library/17d44d9a-cf4b-4a6a-94ec- 093cb5f8b2b71033.mspx?mfr=true

  Reference: Frequently Asked Windows Terminal Services Questions! / New Features and Improvements http://www.msterminalservices.org/faq/WindowsTerminalServices/?page=5

• Question 65:

  You have a server that runs the Remote Desktop Gateway (RD Gateway) role service. Users need to connect remotely through the gateway to desktop computers located in their offices. You create a security group named Remote1 for the users who need to connect to computers in their offices.

  You need to enable the users to connect to the RD Gateway.

  What should you do?

  A. Add the Remote1 security group to the local remote desktop users group on the RD Gateway server.
  B. Create a connection authorization policy. Add the Remote1 security group and enable Device redirection.
  C. Create a resource authorization policy. Add the Remote1 security group and enable Users to connect to any resource.
  D. Create a Group Policy object and enable the Set RD Gateway authentication method properties to Ask for credentials, use Basic protocol. Apply the policy to the RD Gateway server.
  B. Create a connection authorization policy. Add the Remote1 security group and enable Device redirection.

  ---

  Once you've installed a RemoteApp, enabling it for TS Web Access is done by right-clicking the configured RemoteApp in the TS RemoteApp Manager and ing Show in TS Web Access. Please Note: -Since Windows2008R2 Terminal Services (TS) is now rebranded to Remote Desktop Services (RDS)

  Source: http://technet.microsoft.com/en-us/query/dd314392

• Question 66:

  You install the Web Server (IIS) role on a server that runs Windows Server 2008 R2. Your company's default Web site has an IP address of 10.10.0.1.

  You add a Web site named HelpDesk. The HelpDesk Web site cannot be started.

  You need to configure the Helpdesk Web site so that it can be started.

  What should you do?

  A. Run the iisreset /enable command on the server.
  B. Configure the Helpdesk Web site to use a host header.
  C. Run the appcmd add site /name: HelpDesk /id:2 /physicalPath: c:\HelpDesk /binding:http/*:80: helpdesk command on the server.
  D. Run the set-location Cliteralpath "d:\HelpDesk_content" HelpDesk ID:2 location port:80 domain:helpdesk command in the Microsoft Windows PowerShell tool on the server.
  B. Configure the Helpdesk Web site to use a host header.

  ---

  Configure a Host Header for a Web Site (IIS 7)

  Host headers (also known as domain names or host names) let you assign more than one site to a single IP address on a Web server.

  To configure a host header for a site

  1.

  Open IIS Manager. For information about opening IIS Manager, see Open IIS Manager (IIS 7).

  2.

  In the Connections pane, expand the Sites node in the tree, and then select the site for which you want to configure a host header.

  3.

  In the Actions pane, click Bindings.

  4.

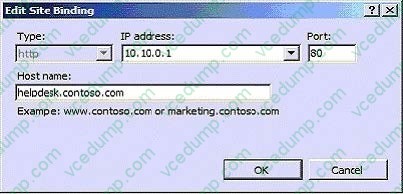

  In the Site Bindings dialog box, select the binding for which you want to add a host header and then click Edit or click Add to add a new binding with a host header.

  5.

  In the Host name box, type a host header for the site, such as www.contoso.com.

  6.

  Click OK.

  7.

  To add an additional host header, create a new binding with the same IP address and port, and the new host header. Repeat for each host header that you want to use this IP address and port.



  Source: http://technet.microsoft.com/en-us/library/cc753195(WS.10).aspx

• Question 67:

  Your network contains a server named Server1 that has the Remote Desktop Services (RDS) server role installed and all of the RDS role services installed.

  You need to install the RemoteFX cap driver on Server1.

  Which tool should you use?

  A. Remote Desktop Session Host Configuration
  B. Remote Desktop Connection Manager
  C. Remote Desktop Services Manager
  D. Dism
  E. Windows System Resource Manager (WSRM)
  F. Netsh
  G. Mstsc
  H. Remote Desktop Gateway Manager
  I. Rdpinit
  J. Regedit
  D. Dism

  ---

  To install the RemoteFX cap driver

  From an elevated command prompt, type dism /online /enable-feature /featurename: Microsoft- Windows-RemoteFX-EmbeddedVideoCap-Setup-Package, and then press ENTER. After the command has completed successfully, restart the RemoteFX server. http://technet.microsoft.com/ru-ru/library/gg607270 (v=ws.10).aspx

• Question 68:

  Your company has a server named Server1 that runs Windows Server 2008 and Microsoft Hyper-V.

  Server1 hosts three virtual machines.

  Company policy states that the virtual machines must not connect to the company network.

  You need to configure all of the virtual machines to connect to each other. You must meet the company policy.

  Which two actions should you perform? (Each answer presents part of the solution. Choose two.)

  A. Select the Not connected option for each virtual machine.
  B. Enable the Enable virtual LAN identification option for each virtual machine.
  C. Set the Connection to Host for the network interface card.
  D. Set the Connection to None for the network interface card.
  B. Enable the Enable virtual LAN identification option for each virtual machine.
  C. Set the Connection to Host for the network interface card.

  ---

  To ensure that all the virtual machines connect to each other and you meet the company policy also, you need to first enable the Enable virtual LAN identification option for each virtual machine and then set the Connection to Host for the network interface card. You can use virtual LAN identification as a way to isolate network traffic. However, this type of configuration must be supported by the physical network adapter.

  Reference: Step-by-Step Guide to Getting Started with Hyper-V To create a virtual network http://technet2.microsoft.com/windowsserver2008/en/library/c513e254-adf1-400e-8fcb- c1aec8a029311033.mspx?mfr=true



• Question 69:

  Your network contains an SMTP server named server1.contoso.com that runs Windows Server 2008 R2. You run telnet.exe server1.contoso.com 25 and uccessfully connect to Server1.

  You restart Server1.

  You run telnet.exe server1.contoso.com 25 again and fail to connect to Server1. You need to ensure that you can connect to the SMTP service on Server1.

  What should you modify first?

  A. the access control settings of the SMTP Virtual Server
  B. the properties of the Simple Mail Transfer Protocol (SMTP) service
  C. the security settings of the SMTP Virtual Server
  D. Windows Firewall on Server1
  B. the properties of the Simple Mail Transfer Protocol (SMTP) service

• Question 70:

  Your network contains a Web server that runs a Server Core installation of Windows Server 2008 R2. You need to install the ASP.NET feature on the server. What should you run?

  A. appcmd.exe
  B. dism.exe
  C. sconfig.cmd
  D. slmgr.vbs
  B. dism.exe

  ---

  Enable ASP.NET on Windows Server 2008 R2

  Windows Server 2008 R2 Server Core includes subsets of the 2.0/3.0/3.5 .NET Framework. The Framework makes it possible to run an almost full-featured version of ASP.NET. However, there are 3 limitations that you should take into consideration when working with ASP.NET on Server Core:

  No MMC Snap-in. To configure, host, and manage Server Core hosted ASP.NET websites, you must do so via a remote connection from an IIS Management Console (i.e. MMC snap-in) running on a client computer. You can also manage practically every aspect of IIS sites and applications via a local administrative command console using the command line utility APPCMD. No System.Web.Mail Namespace. The namespace System.Web.Mail is not supported because CDOSYS is not present on Server Core. The System.Web.Mail namespace was deprecated some time ago, so chances are that your code is no longer using them anyway. Use System.Net.Mail instead as it offers the same functionality.

  The Web Application Tool (WAT) is not available on Windows Server 2008 R2 Core. Before installing the Web Server Role, IIS and dependencies, we must make sure that the .NET Framework is installed. To install the 2.0 and 3.0 .NET Framework, use the Deployment Image Servicing and Management (DISM) utility using the following parameters:

  dism /online /enable-feature /featurename:NetFx2-ServerCore dism /online /enable-feature /featurename:NetFx3-ServerCore The optional server role that must be configured to enable ASP.NET on IIS 7 is called IIS-ASPNET. This role has various pre-requisites that must first be installed. The first one is the Web Server Role, which can be enabled via following command:

  dism /online /enable-feature /featurename:IIS-WebServerRole Once you have enabled the IIS-WebServerRole, three additional roles must be installed prior to the installation of the IIS-ASPNET role:

  IIS-ISAPIFilter IIS-ISAPIExtensions IIS-NetFxExtensibility

  These roles are installed by issuing the following commands (in corresponding order):

  dism /online /enable-feature /featurename:IIS-ISAPIFilter dism /online /enable-feature /featurename:IIS-ISAPIExtensions dism /online /enable-feature /featurename:IIS-NetFxExtensibility

  Now, install the IIS-ASPNET optional feature using the following command:

  dism /online /enable-feature /featurename:IIS-ASPNET

  Source: http://code.msdn.microsoft.com/R2CoreASPNET
