Microsoft 70-643 Online Questions & Answers

• Question 81:

  Your company named Contoso, Ltd. has a Network Load Balancing cluster named nlb.contoso.com. The cluster hosts are named WEB1 and WEB2. The cluster is configured with a single port rule that evenly distributes HTTP traffic between

  both hosts.

  You need to configure WEB2 to handle all HTTPS traffic for nlb.contoso.com. You must retain the even distribution of HTTP traffic between WEB1 and WEB2.

  Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

  A. In the properties for WEB2, change the Handling priority option for the TCP 443 port rule to the value of 1.
  B. In the properties for WEB1, change the Handling priority option for the TCP 443 port rule to the value of 0.
  C. In the properties for the cluster, create a new port rule for port TCP 443 that has the Filtering mode option set to Single host.
  D. In the properties for the cluster, create a new port rule for port TCP 443 that has the Filtering mode option set to Multiple host and the Affinity option set to the value of Single.
  A. In the properties for WEB2, change the Handling priority option for the TCP 443 port rule to the value of 1.
  C. In the properties for the cluster, create a new port rule for port TCP 443 that has the Filtering mode option set to Single host.

  ---

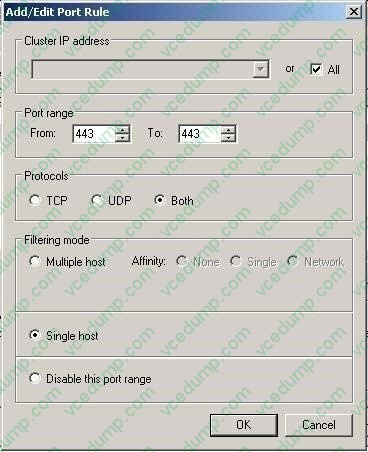

  Cluster Properties

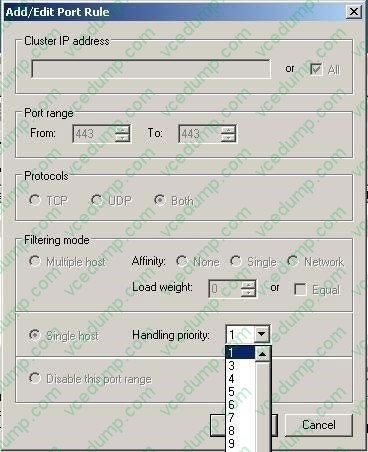

  Cluster Host Properties



• Question 82:

  Your network contains a server named Server1 that runs Windows Server 2008 R2. You need to configure Server1 as a Key Management Service (KMS) host.

  What should you do first?

  A. At the command prompt, run slmgr.vbs and specify the /dli option.
  B. At the command prompt, run slmgr.vbs and specify the /ipk option.
  C. From the Server Manager console, run the Add Features Wizard and install the Online Responder Tools.
  D. From the Server Manager console, run the Add Features Wizard and install the Windows Process Activation Service.
  B. At the command prompt, run slmgr.vbs and specify the /ipk option.

  ---

  To install a KMS host on a Windows Vista or Windows Server 2008 computer

  1.

  Log on to the computer that will serve as the KMS host.

  2.

  Open an elevated command prompt. To do this, click Start, click All Programs, click Accessories, right-click Command Prompt, and then click Run as administrator.

  3.

  To install your KMS key, type the following at the command prompt, and then press Enter:

  cscript C:\windows\system32\slmgr.vbs /ipk

  4.

  Activate the KMS host with Microsoft?using one of the following:

  4a. For online activation, type the following at the command prompt and then press Enter:

  cscript C:\windows\system32\slmgr.vbs /ato

  4b. For telephone activation, type the following at the command prompt and then press Enter:

  slui.exe 4

  5.

  After activation is complete, restart the Software Licensing Service using the Service application

  Source: http://technet.microsoft.com/en-us/library/cc303280.aspx#_Install_KMS_Hosts

• Question 83:

  You have a server that runs Windows Server 2008 R2. The server has Remote Desktop Web Access (RD Web Access) installed.

  Several line-of-business applications are available on the server by using RD Web Access.

  You install a new application on the server.

  You need to make the application available through RD Web Access.

  What should you do?

  A. From the command prompt, run the mstsc.exe command and specify the /v parameter.
  B. From the RD Web Access Web site, specify the data source for RD Web Access.
  C. From RemoteApp Manager, add the application to the RemoteApp Programs list.
  D. From the Local Users and Groups snap-in, add the users to the TS Web Access Computers group.
  C. From RemoteApp Manager, add the application to the RemoteApp Programs list.

  ---

  Once you've installed a RemoteApp, enabling it for TS Web Access is done by right-clicking the configured RemoteApp in the TS RemoteApp Manager and selecting Show in TS Web Access. Please Note: -Since Windows2008R2 Terminal Services (TS) is now rebranded to Remote Desktop Services (RDS)Source: http://technet.microsoft.com/en-us/query/dd314392

• Question 84:

  You manage a server named SSP1 that runs Windows Server 2008. SSP1 has the Windows SharePoint Services (WSS) role in standalone mode.

  You manage another Windows Server 2008 server named SSP2. You install the WSS role on SSP2. During the installation, you indicate that SSP2 must be a member of a WSS server farm.

  You are unable to connect to SSP1 in the server farm.

  You need to configure SSP1 and SSP2 in a WSS server farm.

  What should you do?

  A. Restart the Web Management service on SSP1.
  B. Set the Microsoft .NET Framework Trust Level to Low on both SSP1 and SSP2.
  C. Set the Microsoft .NET Framework Trust Level to Medium on both SSP1 and SSP2.
  D. Uninstall and reinstall WSS on SSP1 and select the server farm mode during the installation.
  D. Uninstall and reinstall WSS on SSP1 and select the server farm mode during the installation.

  ---

  To configure both ERA1 and ERA2 in the WSS server farm, you should uninstall the WSS on ERA1 and select the server farm mode while reinstalling it. The server farm mode will enable you to configure both the servers in the WSS server farm. Microsoft Windows SharePoint Services was designed to be useful in large server farms, supporting hundreds or thousands of SharePoint sites and millions of users. When you manage a server farm environment for Windows SharePoint Services, you need to make certain choices about configuring your environment, and you need to be aware of how Windows SharePoint Services works in that environment. This topic explains those choices, and describes how to work with Windows SharePoint Services in a large-scale, server farm environment.

  Reference: http://www.microsoft.com/resources/documentation/wss/2/all/adminguide/en- us/stsf15.mspx?mfr=true

• Question 85:

  Your network contains a Web server named Server1 that runs Windows Server 2008 R2.

  You modify the configuration of Server1.

  You need to restore the previous Web server configuration.

  What should you run?

  A. appcmd.exe
  B. iisback.vbs
  C. iisext.vbs
  D. iisreset.exe
  A. appcmd.exe

  ---

  Backup/Restore via the command line

  Backing up IIS7 configuration is as simple as copying the \windows\system32\inetsrv\config directory (and subdirectories) into a backup directory, so you don't need anything special to do it.

  Just include this directory in whatever your OS/content back-up plan is, or write a custom script to do it.

  To help make managing backups easy, we've added a simple cmd-line option to AppCmd.exe that makes management of backup/restore sets easy. For example, to backup configuration, run the follow command:

  %windir%\system32\inetsrv\appcmd.exe add backup "My Backup Name" to restore that backup, run this command:

  %windir%\system32\inetsrv\appcmd.exe restore backup "My Backup Name" to delete a backup, run this command:

  %windir%\system32\inetsrv\appcmd.exe delete backup "My Backup Name"

  http://blogs.iis.net/bills/archive/2008/03/24/how-to-backup-restore-iis7-configuration.aspx

• Question 86:

  Your company has a single Active Directory domain. All the servers run Windows Server 2008 R2. You have a server named FS1 that has the File Services server role installed. The disks are configured as shown in the following exhibit.



  You need to create a new drive volume to support data striping with parity. What should you do?

  A. Add another disk. Create a New RAID-5 Volume.
  B. Create a new Striped Volume by using Disk 1 and Disk 2.
  C. Create a New Mirrored Volume by using Disk 1 and Disk 2.
  D. Create a New Spanned Volume by using Disk 1 and Disk 2.
  C. Create a New Mirrored Volume by using Disk 1 and Disk 2.

• Question 87:

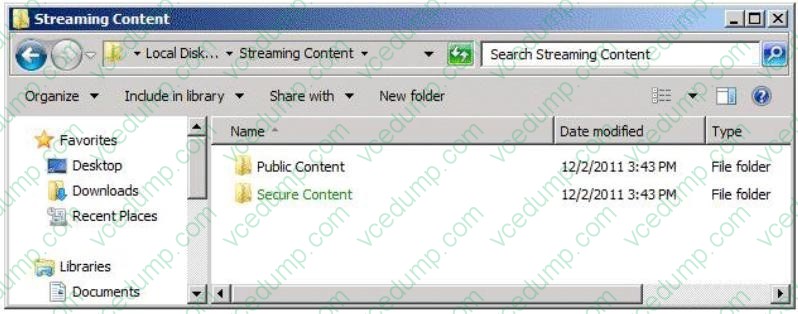

  Your network contains a server named Server1 that has the Streaming Media Services server role installed. Server1 streams content from two folders as shown in the exhibit. (Click the Exhibit button.)



  You discover that you can stream content from the public Content folder, but you cannot stream content from the Secure Content folder.

  You need to ensure that you can stream content from both folders.

  What should you configure?

  A. the Windows Audio Endpoint Builder service
  B. the WMS negotiate Authentication plug-in at the publishing point level
  C. the WMS NTFS ACL Authorization plug-in at the publishing point level
  D. the Windows Media Services service
  E. the WMS Negotiate Authentication plug-in at the server level
  F. the WMS NTFS ACL Authorization plug-in at the server level
  D. the Windows Media Services service

  ---

  Green color means that this folder was encrypted by EFS.

  Sourcing from an encrypted directory Security concerns may require that you maintain some or all of your content in an encrypted directory. The encryption process encodes the data in a file so that it is unreadable to a computer or account that does not have the appropriate file encryption key. In the Windows operating system, the file encryption key is assigned to an account. Anyone who logs on using that account is then able to decrypt and use the content.

  Windows Media Services can decrypt and stream encrypted content if it is logged on to the proper account. By default, Windows Media Services logs on to the Network Service account. To access the encrypted content, you must set Windows Media Services to log on to the same account that encrypted the content. You can change the account Windows Media Services uses to log on to the computer by using Microsoft Management Console. For more information about encryption, accounts, and user privileges, see Windows Help and Support.

  http://technet.microsoft.com/en-us/library/cc754882.aspx

• Question 88:

  You have a server named Server1 that runs Windows Server 2008 R2. Server1 has the Key Management Service (KMS) installed. You need to identify how many computers were activated by Server1.

  What should you run?

  A. cliconfg.exe
  B. mrinfo.exe Server1
  C. slmgr.vbs / dli
  D. slui.exe
  C. slmgr.vbs / dli

  ---

  slmgr.vbs /dli - Retrieves the current KMS activation count from the KMS host.



  Source: http://technet.microsoft.com/en-us/library/ff793407.aspx:

• Question 89:

  Your network contains a server named WMS1 that has the Streaming Media Services server role installed. You have a publishing point as shown in the exhibit. (Click the Exhibit button.)



  You create a new playlist named Contoso_Promo.wsx.

  You need to configure the Contoso Ltd. Event publishing point to use the Contoso_Promo.wsx playlist.

  What should you do first?

  A. Disconnect all of the connections to the publishing point.
  B. Stop the publishing point.
  C. Configure stream splitting.
  D. Stop Windows Media Services.
  B. Stop the publishing point.

• Question 90:

  Your network contains an Active directory domain named fabrikam.com. The domain contains a Web server named Web1 that runs Windows Server 2008 R2.

  You create three application pools named AppPool1, AppPool2, and AppPool3.

  You need to recycle AppPool1 without affecting AppPool2 and AppPool3.

  Which tool should you use?

  A. Services
  B. Internet Information Services (IIS) Manager
  C. Internet Information Services (IIS) 6.0 Manager
  D. Iisreset
  B. Internet Information Services (IIS) Manager

  ---

  Ref: http://technet.microsoft.com/en-us/library/cc770764(v=ws.10).aspx
