Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 41:

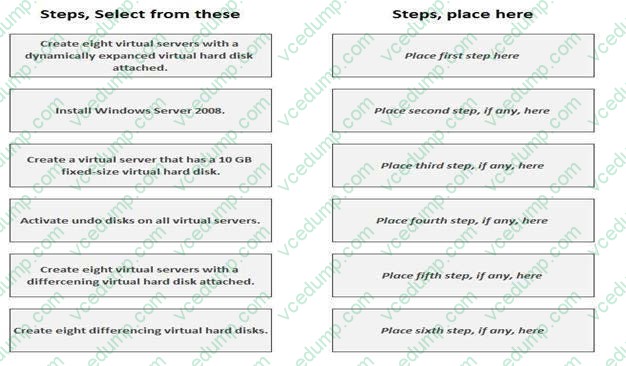

  Your company has a server named VS1 that runs Windows Server 2008 R2 and Hyper-V. You want to create eight virtual servers that run Windows Server 2008 R2 and configure the virtual servers as an Active Directory forest for testing purposes. You discover that VS1 has only 30 GB of free hard disk space. You need to install the eight new virtual servers on VS1.

  What should you do? (To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.)

  Select and Place:





• Question 42:

  You have 10 servers that run Windows Server 2008 R2. The servers have the Web Server (IIS) server role installed. The servers are members of a Web server farm. The servers host the same Web site.

  You need to configure the servers to meet the following requirements:

  Allow changes to the Web server configurations that are made on one server to be made on all servers in the farm.

  Minimize administrative effort to perform the configuration changes.

  What should you do?

  A. On all servers, configure the Shared Configuration settings.
  B. On one server, configure the Shared Configuration setting.
  C. On one server, create a scheduled task that copies the Intepub folder to the other servers.
  D. Create a DFS Namespace. On each server configure the Inetpub folder as the target of the DFS Namespace.
  A. On all servers, configure the Shared Configuration settings.

  ---

  To configure settings to use shared configuration files and encryption keys

  1.

  Open IIS Manager and click the server node. For information about opening IIS Manager, see Open IIS Manager (IIS 7).

  2.

  In Features View, double-click Management Service.

  3.

  On the Management Service page, in the Actions pane, click Stop.

  4.

  In the toolbar, click the back button.

  5.

  In Features View, double-click Shared Configuration.

  6.

  Select Enable shared configuration to enable the Shared Configuration feature.

  7.

  Under Configuration Location, in the Physical path box, type the physical path or click the browse button (...) to locate the physical path of the configuration directory.

  8.

  In the User name box, type a user name of an account that has access to the configuration directory. Then in the Password and Confirm Password boxes, type the password associated with this user account.

  9.

  In the Actions pane, click Apply.

  10.

  In the Encryption Keys Password dialog box, in the Enter encryption key password box, type the password that is used to access the encryption keys in the configuration directory. Then click OK. Note This is the password that was specified when the configuration files and encryption keys were exported.

  11.

  Close IIS Manager and then reopen it. In the Connections pane, click the server node.

  12.

  In Features View, double-click Management Service. 13.On the Management Service page, in the Actions pane, click Start Source: http://technet.microsoft.com/en-us/library/cc771871(WS.10).aspx

• Question 43:

  Your network contains a Key Management Service (KMS) host named Server 1

  On a client computer named Computer1 that runs Windows 7, you discover the following error message in the Event log: "0xC004F00F The Software Licensing Server reported that the hardware ID binding is beyond level of tolerance."

  You need to prevent the error message from appearing on Computer1.

  What should you do from Computer1?

  A. Restart the Windows Update service.
  B. Run slmgr.vbs /ato.
  C. Run slmgr.vbs /xpr.
  D. Restart the Windows Process Activation Service.
  B. Run slmgr.vbs /ato.

  ---

  Error message: The Software Licensing Server reported that the hardware ID binding is beyond level of tolerance.

  Cause: The hardware has changed, or the drivers were updated on the system.

  Troubleshooting steps: For the MAK, reactivate the system during the "Out of Tolerance" grace period by using online or telephone activation. For KMS, run the slmgr.vbs -ato command.

  http://technet.microsoft.com/en-us/library/ff793399.aspx

• Question 44:

  You have a Windows Server 2008 R2 server that has the Web Server (IIS) server role installed. The server hosts multiple Web sites.

  You need to configure the server to automatically release memory for a single Web site. You must achieve this goal without affecting the other Web sites.

  What should you do?

  A. Create a new Web site and edit the bindings for the Web site.
  B. Create a new application pool and associate the Web site to the application pool.
  C. Create a new virtual directory and modify the Physical Path Credentials on the virtual directory.
  D. From the Application Pool Defaults, modify the Recycling options.
  B. Create a new application pool and associate the Web site to the application pool.

  ---

  To configure the server to automatically release memory for a single website without affecting the other Web sites, you need to create a new application pool and associate the Web site to the application pool.

  An application pool is a group of one or more URLs that are served by a worker process or a set of worker processes. Application pools set boundaries for the applications they contain, which means that any applications that are running

  outside a given application pool cannot affect the applications in the application pool.

  You can configure the server to automatically release memory or to release memory after reaching maximum used memory.

  Reference: IIS 7.0: Managing Application Pools in IIS 7.0 http://technet2.microsoft.com/windowsserver2008/en/library/1dbaa793-0a05-4914-a065-4d109db3b9101033.mspx?mfr=true

  Reference: IIS 7.0: Configuring Recycling Settings for an Application Pool http://technet2.microsoft.com/windowsserver2008/en/library/0d5770e3-2f6f-4e11-a47c-9bab6a69ebc71033.mspx?mfr=true

• Question 45:

  Your network contains a server named Server1 that has the Streaming Media Services server role installed.

  Server1 has the WMS Http Server Control Protocol plug-in and the WMS Server RTSP Control Protocol plug-in enabled.

  All client computers run Windows 7.

  The corporate website contains links to on-demand media content that is hosted on Server1. You install the Web Server (IIS) server role on Server1 by using the default settings.

  You change the port of the WMS HTTP Server Control Protocol plug-in to 1450.

  Users report that the links on the corporate website no longer work.

  You need to ensure that the users can access the on-demand media content by clicking the links on the corporate website.

  What should you do? (Each correct answer presents a complete solution. Choose three.)

  A. On Server1, bind the HTTP protocol of the Default Web Site to port 1450.
  B. On Server1, disable the Default Web Site
  C. On the corporate website, change the URLs of the links to use rtsp://server1.
  D. On the corporate website, change the URLs of the links to use mms://server1.
  E. On Server1, disable the WMS Server RTSP Control Protocol plug-in.
  F. On the corporate website, change the URLs of the links to use http://server1:1450.
  C. On the corporate website, change the URLs of the links to use rtsp://server1.
  D. On the corporate website, change the URLs of the links to use mms://server1.
  F. On the corporate website, change the URLs of the links to use http://server1:1450.

  ---

  Section: sharepoint and wmp

  Windows Media Services tries to use port 80 by default, but Web servers frequently reserve that port. To avoid port conflict, use a port other than 80 for HTTP streaming. If you do not use the default port, the URL that a player uses to connect to the publishing point must include the new port number. For example, if you change the HTTP port to port 1450, the connection URL would be http://server:1450/publishing_point.

  http://technet.microsoft.com/en-us/library/cc754336.aspx ----

  About Protocol Rollover If clients that support RTSP connect to a Windows Media server using an RTSP URL moniker (for example, rtsp://) or an MMS URL moniker (for example, mms://), the server uses protocol rollover to stream the content to the client to provide an optimal streaming experience. Automatic protocol rollover from RTSP/MMS to RTSP with UDP-based or TCP-based transports (RTSPU or RTSPT), or even HTTP (if the WMS HTTP Server Control Protocol plug-in is enabled) may occur as the server tries to negotiate the best protocol and provide an optimal streaming experience for the client. Earlier versions of Windows Media Player, such as Windows Media Player for Windows XP, do not support the RTSP protocol. When these players attempt to connect to a Windows Media server using an MMS URL moniker, automatic protocol rollover from MMS to HTTP occurs, if the WMS HTTP Server Control Protocol plug-in is enabled on the server.

  To make sure that your content is available to all clients that connect to your server, ports on your firewall must be opened for all of the connection protocols that might be used during protocol rollover. For more information, see Allocating Ports for Windows Media Services. You can force your Windows Media server to use a specific protocol by identifying the protocol to be used in the announcement file (for example, rtspu:// server/publishing_point/file). However, to provide an optimal streaming experience for all client versions, we recommend that the URL use the general MMS protocol. If clients connect to your stream using a URL with an MMS URL moniker, any necessary protocol rollover occurs automatically. Be aware that users can disable streaming protocols in the property settings of Windows Media Player. If a user disables a protocol, it is skipped during rollover. For example, if HTTP is disabled, then URLs will not roll over to HTTP. For more information, see Windows Media protocol reference. http://technet.microsoft.com/en-US/library/ee126137(v=ws.10).aspx

• Question 46:

  Your network contains a server named Server1 that runs Windows Server 2008 R2.

  You add a new 3-terabyte hard disk to Server1.

  You need to create a 3-terabyte volume.

  What should you do first?

  A. Disable write caching for the hard disk.
  B. Initialize the disk as a Master Boot Record (MBR) disk.
  C. Initialize the disk as a GUID Partition Table (GPT) disk.
  D. Disable direct memory access (DMA) for the hard disk controller.
  C. Initialize the disk as a GUID Partition Table (GPT) disk.

  ---

  A GPT disk uses the GUID partition table (GPT) disk partitioning system. A GPT disk offers these benefits: Allows up to 128 primary partitions. Master Boot Record (MBR) disks can support up to four primary partitions and an additional 124 partitions inside extended partitions. Allows a much larger partition size--greater than 2 terabytes (TB), which is the limit for MBR disks.

  Provides greater reliability because of replication and cyclical redundancy check (CRC) protection of the partition table can be used as a storage volume on all x64-based platforms, including platforms running Windows XP Professional x64 Edition. Starting with Windows Server 2003 SP1, GPT disks can also be used as a storage volume on x86-based Windows platforms. Can be used as a boot volume on x64-based editions of Windows 7, Windows Vista, and Windows Server 2008. Starting with Windows Server 2003 SP1, GPT disks can also be used as a boot volume on Itaniumbased\ systems.

  Note: Windows only supports booting from a GPT disk on systems that contain Unified Extensible Firmware Interface (UEFI) boot firmware.

  Source: http://www.microsoft.com/whdc/device/storage/GPT-on-x64.mspx

• Question 47:

  Your network uses Multiple Activation Key (MAK) licenses. You perform a Server Core installation of Windows Server 2008 R2.

  During the installation, you enter the license key.

  You need to activate Windows Server 2008 R2 on the server.

  Which command should you run?

  A. slmgr.vbs -ipk
  B. install-callpack
  C. ocsetup.exe was-windowsactivationservice
  D. slmagr.vbs -ato
  D. slmagr.vbs -ato

  ---

  (If you already entered the product key during Windows Setup, you can skip this first step.) Then, type the following command to perform the actual activation: slmgr ato You can also use Slmgr command to activate a remote installation. For more information, type slmgr at a command prompt.

• Question 48:

  You install the FTP role service on a server that runs Windows Server 2008 R2. Users receive an error message when they attempt to upload files to the FTP site.

  You need to allow authenticated users to upload files to the FTP site.

  What should you do?

  A. Run the ftp Ca 192.168.1.200 command on the server that runs Windows Server 2008.
  B. Run the appcmd unlock config command on the server that runs Windows Server 2008.
  C. Configure Write permissions on the FTP site. Configure the NTFS permissions on the FTP destination folder for the Authenticated Users group to Allow-Modify.
  D. Configure Write permissions on the FTP site. Configure the NTFS permissions on the FTP destination folder for the Authenticated Users group to Allow C Write attributes.
  C. Configure Write permissions on the FTP site. Configure the NTFS permissions on the FTP destination folder for the Authenticated Users group to Allow-Modify.

• Question 49:

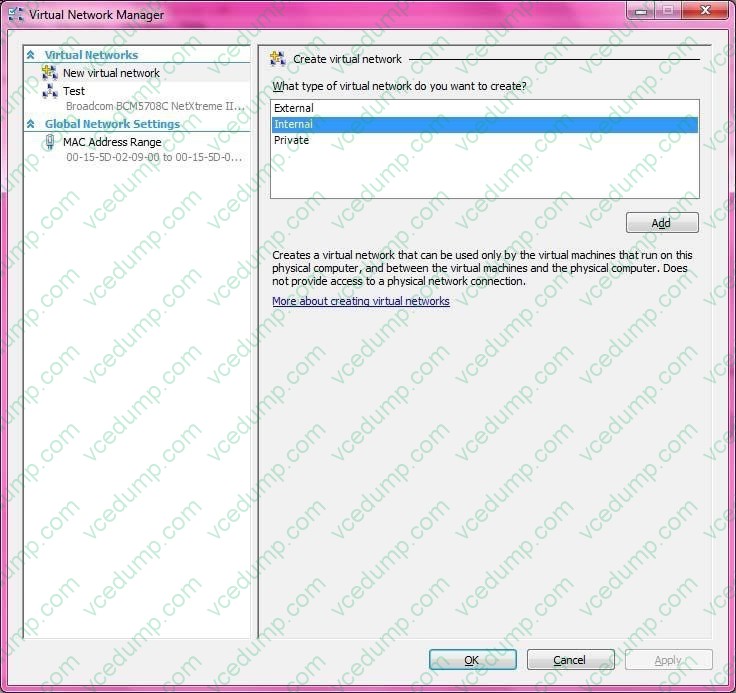

  You have a server that runs Windows Server 2008 R2 and has the Hyper-V server role installed? You create a new virtual machine.

  You need to configure the virtual machine to meet the following requirements:

  Allow network communications between the virtual machine and the host system.

  Prevent communications to other network servers.

  What should you do first?

  A. Install the Microsoft Loopback Adapter.
  B. Create a new Virtual Network.
  C. Enable Internet Connection Sharing (ICS).
  D. Set the Connection to None for the network interface card.
  B. Create a new Virtual Network.

  ---



• Question 50:

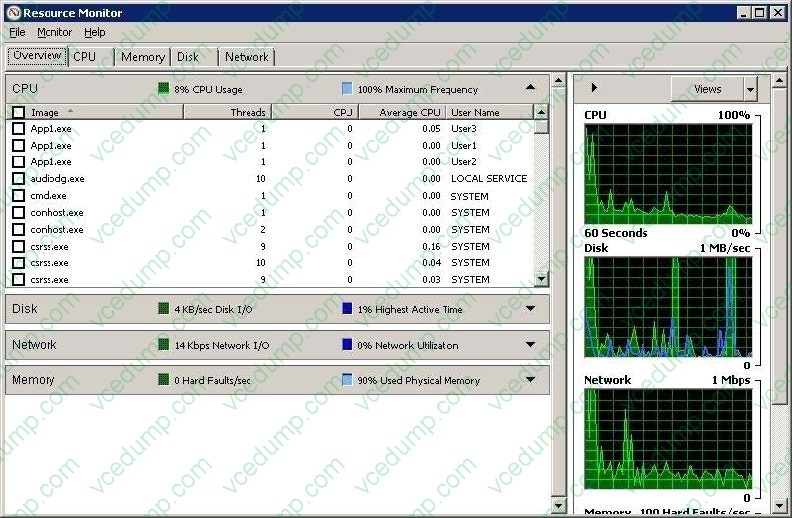

  Your network contains a server named Server1 that runs Windows Server 2008 R2. Server1 has the Remote Desktop Session Host (RD Session Host) role ervice installed. Server1 hosts a RemoteApp program named App1.

  You need to view a list of users who are currently running App1. The list must display the CPU resources that App1 uses for each user.

  Which tool should you use?

  A. Performance Monitor
  B. RemoteApp Manager
  C. Remote Desktop Services Manager
  D. Resource Monitor
  D. Resource Monitor

  ---
