Microsoft 70-643 Online Questions & Answers

• Question 381:



  Your network contains two servers. The servers are configured as shown in the following table. All client computers run the 32-bit version of Windows Vista.

  Your company purchases a new sales application named SalesAppl. SalesAppl is a 64-bit application. SalesAppl is associated with the .abc file I extension.

  You need to ensure that when users in the sales department open files that have the .abc file extension, SalesAppl automatically opens.

  What should you do?

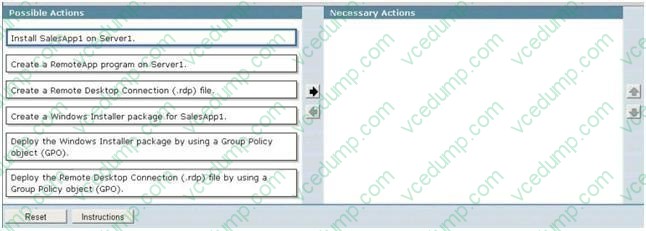

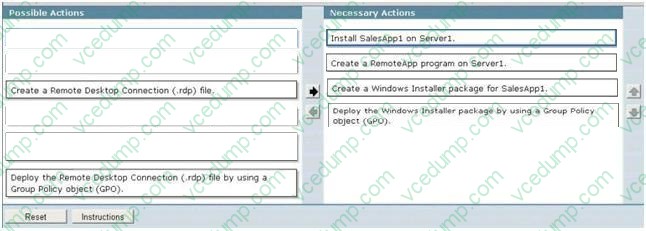

  To answer, move the appropriate actions from the Possible Actions list to the Necessary Actions area and arrange them in the correct order.

  Select and Place:





• Question 382:

  Your network contains three servers named Server1, Server2, and Server3.

  Server1 and Server2 are accessible from the internal network only.

  Server3 is located on a perimeter network.

  Users connect to Server1 and Server2 to run RemoteApp programs.

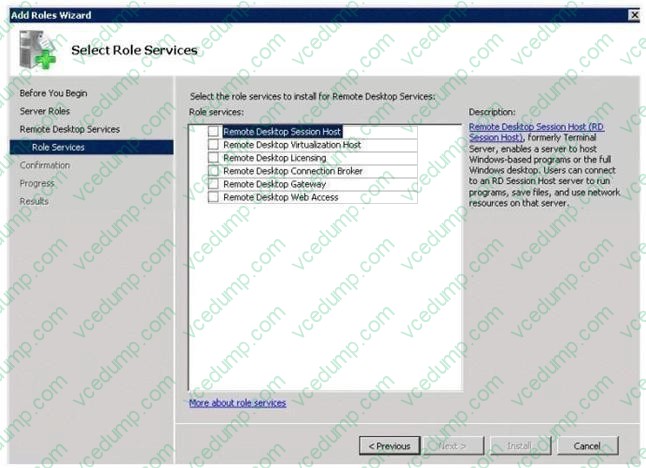

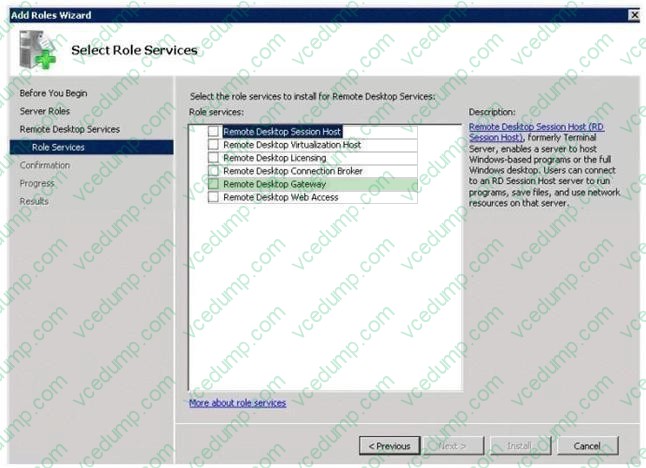

  You need to ensure that remote users can run the RemoteApp programs on Server1 and Server?. The solution must minimize the number of ports that must be opened on the internal firewall. Which role service or role services from the Add

  Roles Wizard should you install on Server3? To answer, select the appropriate role service or role services in the answer area. Select only the required role service or role services.

  Hot Area:





  ---

  Original MS exam have an typing error in this question. You must read "Server1" instead of "Server3". select RD Gateway Role

• Question 383:

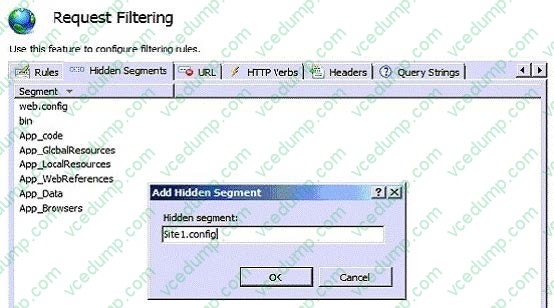

  Your network contains a Web site. The Web site contains a configuration file named Site1.config. You need to prevent users from accessing Site1.config through the Web site.

  Which Internet Information Services (IIS) feature should you configure for the site?

  A. Directory Browsing
  B. HTTP Response Headers
  C. ISAPI Filters
  D. Request Filtering
  D. Request Filtering

  ---



• Question 384:

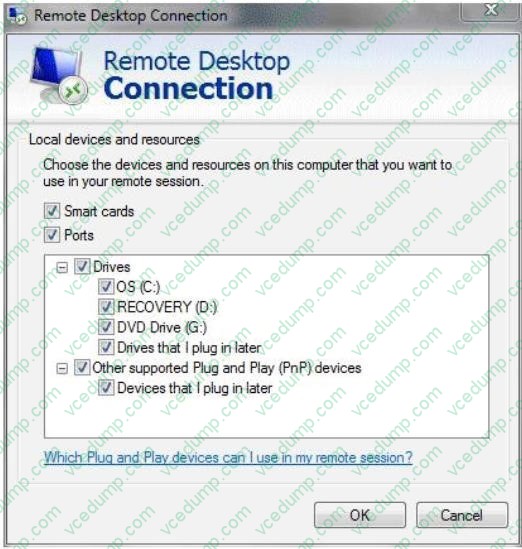

  Your network contains a server named Server1 that has the Remote Desktop Session Host (RD Session Host) role service installed. You enable Plug and Play device redirection for Server1 by using a Group Policy. You verify that the Group Policy is applied to Server1. From a client computer, you configure Remote Desktop Connection as shown in the exhibit. (Click the Exhibit button.)



  You discover that when you establish a Remote Desktop session to Server1, Plug and Play devices are not redirected.

  You need to ensure that Plug and Play devices are redirected during Remote Desktop sessions to Server1.

  What should you do? (Each correct answer presents part of the solution. Choose two.)

  A. On Server1, modify the Sessions settings of the RDP-Tcp Properties.
  B. On Server1, install the Desktop Experience feature.
  C. From the client computer, modify the Experience settings of Remote Desktop Connection.
  D. On Server1, install the Quality Windows Audio Video Experience feature.
  E. On Server1, modify the Client Settings of the RDP-Tcp Properties.
  B. On Server1, install the Desktop Experience feature.
  E. On Server1, modify the Client Settings of the RDP-Tcp Properties.

  ---

  Ref: http://technet.microsoft.com/en-us/library/cc725887(v=ws.10).aspx

• Question 385:



  Your network contains a server that has Microsoft SharePoint Foundation 2010 installed.

  You need to back up the server farm configuration.

  The solution must minimize the size of the backup.

  What should you select from Backup and Restore in Central Administration?

  A. From Granular Backup, click Export a site or list.
  B. From Granular Backup, click Perform a site collection backup.
  C. From Farm Backup and Restore, click Perform a backup.
  D. From Farm Backup and Restore, click Configure backup settings.
  C. From Farm Backup and Restore, click Perform a backup.

  ---

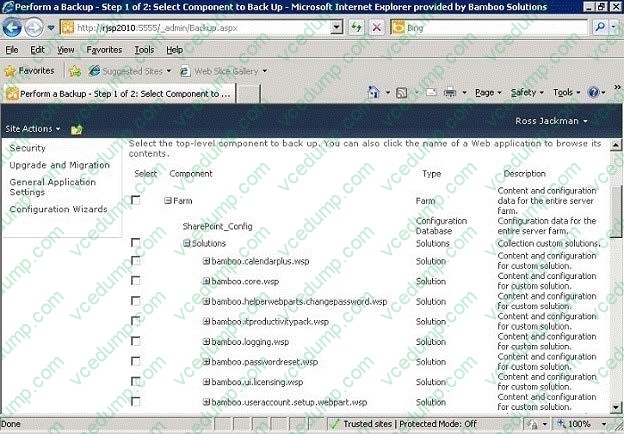

  From Central Administration -> Backup and Restore -> Farm Backup and Restore, click Perform a Backup:



  On this page, components to be included in the farm backup are selected. A description of each component is included in the right-hand column. Select the components to be backed up, then click Next.



  Source: http://community.bamboosolutions.com/blogs/sharepoint- 2010/archive/2010/12/03/sharepoint-2010-cookbook-backing-up-datapart-1-farm-backup.aspx

• Question 386:

  Your network contains a Web server named Web1.

  You need to configure Web1 to authenticate users by using a custom Web page.

  Which authentication method should you enable on Web1?

  A. Forms Authentication
  B. Basic Authentication
  C. ASP.NET Impersonation
  D. Digest Authentication
  A. Forms Authentication

• Question 387:

  Your company has a Windows Server 2003 Active Directory domain. A server named Server1 runs Windows Server 2008 R2. The Remote Desktop Services server role is installed on Server1. A server named Server2 runs Windows Server 2003. The TS Licensing role service is installed on Server2. You need to configure the Remote Desktop Services Per User Client Access License (RD Per User CAL) tracking and reporting to work on both Server1 and Server2.

  What should you do?

  A. Rename Server1 to have the same computer name as the domain and join it to a workgroup.
  B. Add Server1 to the servers managed by the Windows Server 2003 TS Licensing service.
  C. Uninstall the TS Licensing role service on Server2 and install Remote Desktop Licensing role service on Server1. Configure RD Per User CAL tracking and reporting on Server1.
  D. Activate the TS Licensing Server on Server 2.
  C. Uninstall the TS Licensing role service on Server2 and install Remote Desktop Licensing role service on Server1. Configure RD Per User CAL tracking and reporting on Server1.

  ---

  Q: We have a Windows 2003 domain network and are planning to add a Windows 2008 R2 member server to the domain and use it as a remote desktop server.

  My question is this a supported configuration? If yes, should I install the TS licensing server on our 2003 DC and add the Windows 2008 R2 CALs in there or we should install the RD license service role in the same server as the Remote Desktop service role computer.

  A: That scenario is supported. However, 2008 R2 RDS CALs can ONLY be issued by a Windows 2008 R2 Licensing Server. So yes, you will have to install the licensing role onto your r2 server and use that as the license manager.

  Q: So all I need is to install all the necessary RDS components including the license services onto the member server and add the TS CALs in there. There is nothing I have to do on the existing Windows CALs license server or DC, right?

  A: That's correct. You will, however, most likely have to manually point your 2008 R2 RDSHS to the R2 license server (itself in your case). Source: http://social.technet.microsoft.com/Forums/en- US/windowsserver2008r2rds/thread/561828c7-e7b5-4f9c-bae1-2331214a0ed7

• Question 388:

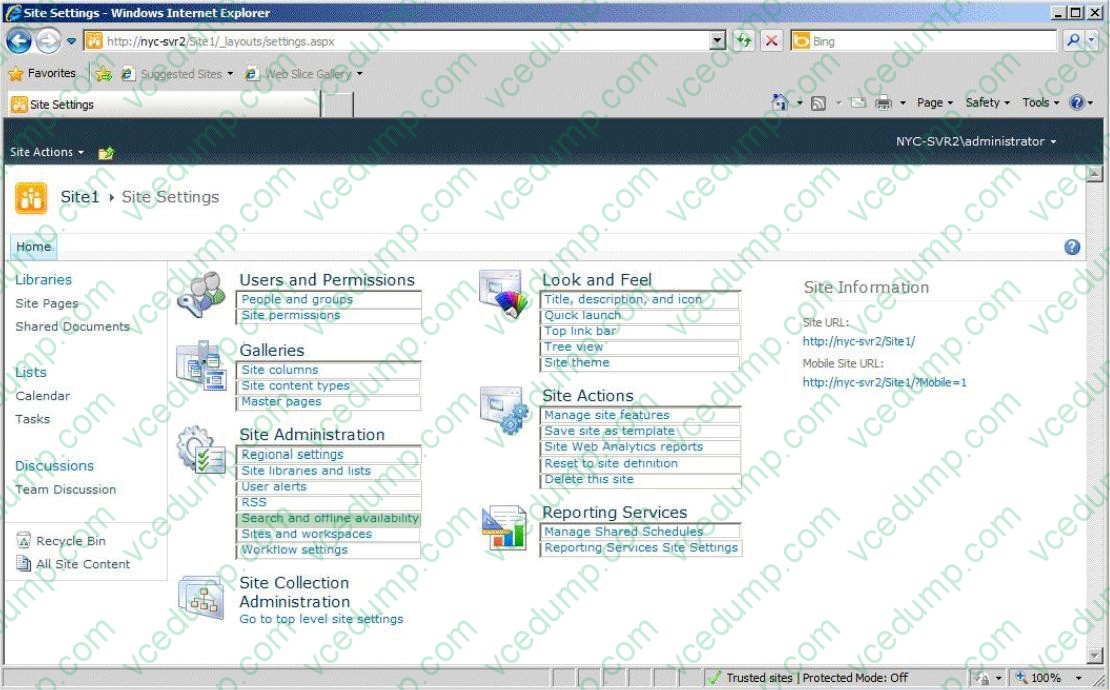

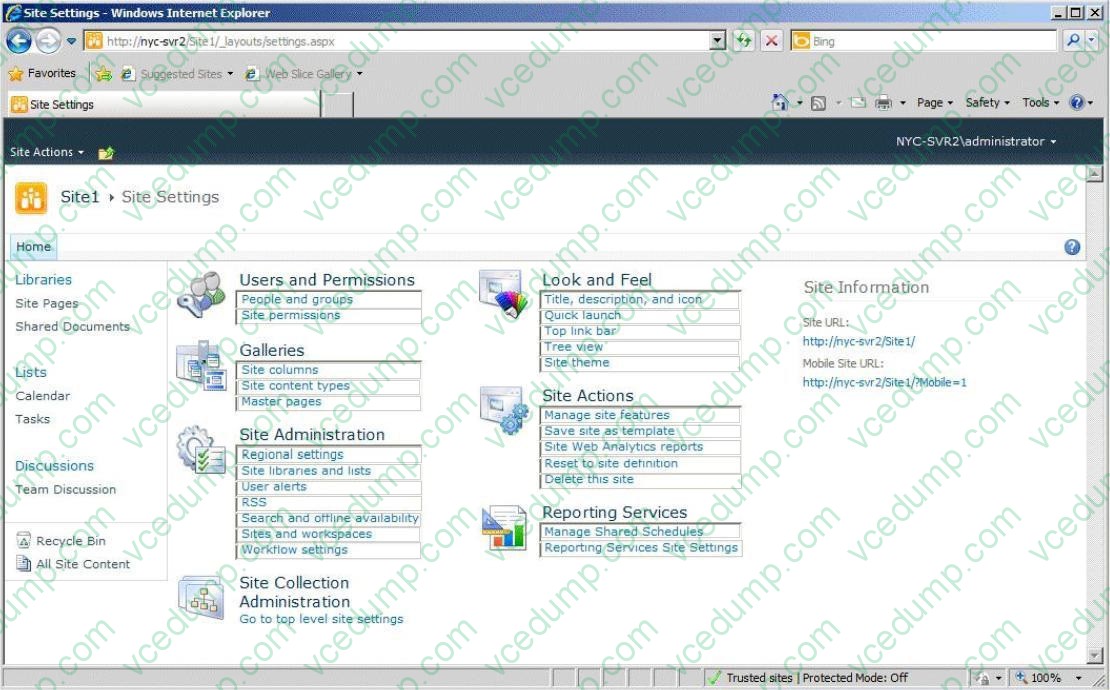

  Your network contains a server that has Microsoft SharePoint Foundation 2010 installed. The server has a site named Site1.

  You need to prevent the content of Site1 from being indexed.

  What should you configure?

  To answer, select the appropriate link in the answer area.

  Hot Area:





• Question 389:

  Your company has an Active Directory domain. All servers in the domain run Windows Server 2008 R2. The RD Gateway role service is installed on a server named Server1. The Remote Desktop Services server role is installed on two servers named Server2 and Server3. Server2 and Server3 are configured in a load balancing Remote Desktop Services farm named Farm1. You deploy the RD Connection Broker service on a new server named Server4. You confirm that the RD Connection Broker works correctly.

  You deploy a hardware load balancing device to handle the load distribution to the Remote Desktop Services farm. The device has specialized support for remote desktop services and routing tokens. You discover that the RD Connection Broker no longer works correctly. You need to ensure that the RD Connection Broker works correctly. Which Group Policy object (GPO) should you create and apply to the Remote Desktop Server farm?

  A. A GPO that enables the Use IP Address Redirection policy setting in the RD Connection Broker section of the Remote Desktop Services Group Policy template.
  B. A GPO that disables the Use IP Address Redirection policy setting in the RD Connection Broker section of the Remote Desktop Services Group Policy template.
  C. A GPO that enables the Use RD Connection Broker load balancing policy setting in the RD Connection Broker section of the Remote Desktop Services Group Policy template.
  D. A GPO that disables the Use RD Connection Broker Load Balancing policy setting in the RD Connection Broker section of the Remote Desktop Services Group Policy template.
  B. A GPO that disables the Use IP Address Redirection policy setting in the RD Connection Broker section of the Remote Desktop Services Group Policy template.

  ---

  Use IP Address Redirection

  If you disable this policy setting, the IP address of the RD Session Host server is not sent to the client. Instead, the IP address is embedded in a token. When a client reconnects to the load balancer, the routing token is used to redirect the client to their existing session on the correct RD Session Host server in the farm. Only disable this setting when your network load-balancing solution supports the use of RD Connection Broker routing tokens and you do not want clients to directly connect by IP address to RD Session Host servers in the load-balanced farm. Source: http://technet.microsoft.com/en-us/library/ee791821(WS.10).aspx

• Question 390:

  You have a server that runs Windows Server 2008. The server has the Windows Server virtualization role service installed. You create a new virtual machine and perform an installation of Windows Server 2008 on the virtual machine. You

  configure the virtual machine to use the physical network card of the host server.

  You notice that you are unable to access network resources from the virtual machine.

  You need to ensure that the virtual host can connect to the physical network.

  What should you do?

  A. On the host server, install the MS Loopback adapter.
  B. On the host server, enable the Multipath I/O feature.
  C. On the virtual machine, install the MS Loopback adapter.
  D. On the virtual machine, install Windows Server virtualization Guest Integration Components.
  D. On the virtual machine, install Windows Server virtualization Guest Integration Components.

  ---

  To ensure that the virtual host can connect to the physical network, you need to install Windows Server virtualization Guest Integration Components on the virtual machine. The network adapter in the VM ported from Virtual Server to Windows Server is no longer recognized. Workaround is to add a legacy network adapter to the VM. In WSv, the network adapter seen by the guest OS is not an emulated device (DEC/Intel 21140 Ethernet adapter. It is an entirely new, high performance, purely synthetic device available as part of the Windows Server virtualization Integration Components call Microsoft VMBus Network Adapter

  Reference: Archive for the 'Virtual Server/PC/WSv/Hyper-V' Category / Windows Server 2008 Common FAQ (condensed) http://www.leedesmond.com/weblog/index.php?cat=6andpaged=3
