Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 371:

  Your network contains a server named Server1 that has the Remote Desktop Licensing (RD Licensing) role service installed.

  You need to ensure that you can restore the RD Licensing environment if Server1 fails. What should you include in the backup? (Each correct answer presents part of the solution. Choose two.)

  A. the folder that contains the configuration files of the license server
  B. the folder that contains the database of the license server
  C. the local certificate store
  D. the system state
  B. the folder that contains the database of the license server
  D. the system state

  ---

  Back Up a Remote Desktop License Server

  You should back up your Remote Desktop license server regularly by using the Windows Server Backup tool or the backup software deployed in your environment. This helps protect your licensing data from accidental loss if your system experiences hardware or storage failure. When backing up a license server, back up both the System State data and the folder in which the RD Licensing database is installed. This ensures that data in both the registry and the RD Licensing database is backed up.

  Source: http://technet.microsoft.com/en-us/library/cc753582.aspx

• Question 372:

  Your network contains a server that has Microsoft SharePoint Foundation 2010 installed.

  A user named User1 is a member of the Members group.

  You create a new page in an existing SharePoint site.

  You need to prevent User1 from modifying the page. The solution must ensure that User1 is allowed to modify other pages in the site.

  What should you do first?

  A. Modify the site permissions.
  B. Edit the properties of the page.
  C. Stop the inheritance of permissions.
  D. Change the default Permission Levels.
  C. Stop the inheritance of permissions.

  ---

  About permission inheritance Permissions on securable objects within a site are inherited from the parent object by default. You can break inheritance and use fine-grained permissions -- unique permissions on the list or library, folder, or item or document level -- to gain more control of the actions users can take on your site. Stopping inheriting permissions copies the groups, users, and permission levels from the parent object to the child object, and then breaks the inheritance. When permission inheritance is broken, all permissions are explicit and any changes to parent object do not affect the child object. If you restore inherited permissions, the child object will inherit its users, groups, and permission levels from the parent again, and you will lose any users, groups, or permission levels that were unique to the child object.

  For ease of management, use permission inheritance wherever possible.

  Source: http://technet.microsoft.com/en-us/library/cc287752.aspx

• Question 373:

  You have a Remote Desktop Services (RDS) server farm named farm.contoso.com. The farm contains five servers.

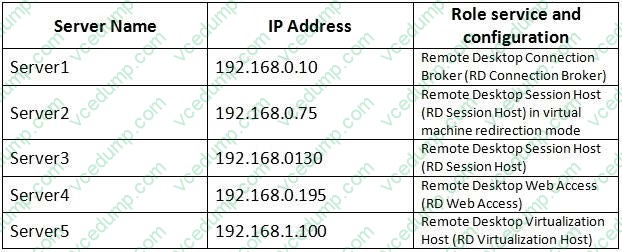

  The Servers are configured as shown in the following table.



  The farm is configured to host virtual desktops.

  All users access the virtual desktops by using RD Web Access.

  Users who use Remote Desktop Connection 6.1 report that they cannot connect to their personal virtual desktop by using RD Web Access.

  You verify that the users who use Remote Desktop Connection 7.0 can access their personal virtual desktop by using RD Web Access.

  What should you do? (Each correct answer presents part of the solution. Choose two.)

  A. Create a canonical name (CNAME) record for server2.contoso.com.
  B. From Remote Desktop Connection Manager, configure an alternative server name.
  C. Create a host (A) record named Redirect that points to 192.168.1.100
  D. Create a host (A) record named Redirect that points to 192.168.0.75
  E. From Remote Desktop Session Host Configuration, configure Server2 for dedicated farm redirection.
  F. Create a canonical name (CNAME) record for server5.contoso.com.
  B. From Remote Desktop Connection Manager, configure an alternative server name.
  F. Create a canonical name (CNAME) record for server5.contoso.com.

  ---

  To provide redirection to virtual desktops for clients that are using Remote Desktop Connection (RDC) 6.1 or earlier, you must specify an alternative server name

  on the Redirection Settings tab in the Virtual Desktops Properties dialog box in the Remote Desktop Connection Manager tool. For information about configuring

  redirection settings for virtual desktops, see Configure Redirection Settings for Virtual Desktops.

  To configure an alternative server name, you must create a DNS host resource record for the alternative server name that maps the alternative server name to the

  IP address of the Remote Desktop Session Host (RD Session Host) server that is configured to provide redirection to virtual desktops.

  To add a DNS entry for an alternative server name

  Open the DNS snap-in. To open the DNS snap-in, log on to a computer where the DNS snap-in has been installed, click Start, point to Administrative Tools, and

  then click DNS. Expand the server name of the DNS server that you want to configure, expand Forward Lookup Zones, and then expand the domain name.

  Right-click the appropriate zone, and then click New Host (A or AAAA). In the Name (uses parent domain name if blank) box, type the alternative server name. In

  the IP address box, type the IP address of the RD Session Host server that is configured to provide redirection to virtual desktops.

  Click Add Host.

  When you are finished, click Done.

  Source: http://technet.microsoft.com/en-us/library/ee216772.aspx

• Question 374:

  Your network contains a server named Server1 that runs Windows Server 2008 R2 Service Pack 1 (SP1).

  You attempt to create a folder on a volume and you receive the following error message: "The media is write protected."

  You need to ensure that you can create files and folders on the volume.

  Which Diskpart command should you run?

  A. active
  B. add
  C. assign
  D. attach vdisk
  E. attributes
  F. automount
  G. break
  H. repair
  I. compact vdisk
  J. retain
  E. attributes

  ---

  Attributes volume

  Displays, sets, or clears the attributes of a volume.

  Attributes volume [{set | clear}] [{hidden | readonly | nodefaultdriveletter | shadowcopy}] [noerr]

  attributes volume clear readonly

  http://technet.microsoft.com/en-us/library/gg252643(v=ws.10)

• Question 375:

  Your network contains two standalone servers named Server1 and Server2. Server1 has Microsoft SQL Server 2008 Reporting Services installed. Server2 has the MTP Server feature installed. You configure the Reporting Services on

  Server1 to send reports by using Server2.

  You need to ensure that Server2 sends the reports.

  What should you do on Server2?

  A. Configure a smart host
  B. Configure TLS encryption
  C. Modify the Relay restrictions settings
  D. Modify the Connection control settings
  C. Modify the Relay restrictions settings

  ---

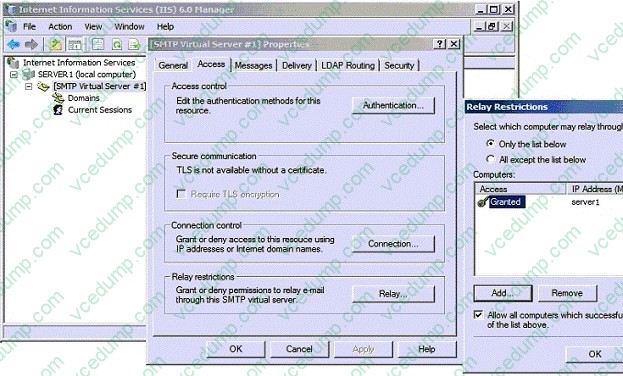

  To change the SMTP Virtual Server Relay Restrictions, one needs to use the Internet Information Servers (IIS) 6.0 Manager. This is an IIS Role Service that needs to be installed (IIS 6 Management Console)



• Question 376:

  Your network contains an Active Directory domain named adatum.com. The domain contains a server named Server5 that has the Remote Desktop Services (RDS) server role installed and all of the RDS role services installed.

  Server5 is configured as a file server and a Remote Desktop services server.

  You need to identify the number of Remote Desktop Services client access licenses (RDS CALs) on Server5.

  Which tool should you use?

  A. Regedit
  B. Remote Desktop Gateway Manager
  C. Dism
  D. Rdpsign
  E. Netsh
  F. Remote Desktop Services Manager
  G. Windows System Resource Manager (WSRM)
  H. Rdpinit
  I. Mstsc
  J. Remote Desktop Connection Manager
  L

  ---

  This server has all RDS roles installed, therefore it also has License Server Role.



  On the license server, open Remote Desktop Licensing Manager. To open Remote Desktop Licensing Manager, click Start, point to Administrative Tools, point to Remote Desktop Services, and then click Remote Desktop Licensing Manager.

• Question 377:

  Your network contains a server that runs Windows Server 2008 R2. You need to install the Streaming Media Services role on the server.

  What should you do first?

  A. Download and install Windows Media Encoder 9 Series x64 Edition.
  B. Download and install Windows Media Services 2008 for Windows Server 2008 R2.
  C. From Server Manager, click Check for new roles.
  D. From Server Manager, install the Quality Windows Audio Video Experience (qWave) feature.
  B. Download and install Windows Media Services 2008 for Windows Server 2008 R2.

  ---

  How to install Windows Media Services for Windows Server 2008 R2 The Streaming Media Services role is not included in the Windows Server 2008 R2 operating system. This role includes the latest version of Microsoft Windows Media Services, Windows Media Services 2008 for Windows Server 2008 R2.

  To obtain Windows Media Services 2008 for Windows Server 2008 R2, you must obtain and then run the Microsoft Update Standalone Package (MSU) file for the Streaming Media Services role. You must run this file on the updated platform.

  1. Download and then run the MSU file for the Streaming Media Services role. To do this, follow these steps:

  a.

  Visit the following Microsoft Web site: http://www.microsoft.com/downloads/details.aspx?FamilyID=b2cdb043-d611-41c9-91b7- cddf6e5fdf6b

  b.

  Download and run the Windows6.1-KB963697-x64.msu file.

  2.

  Start Server Manager. To do this, click Start, point to Administrative Tools, and then click Server Manager.

  3.

  On the Action menu in Server Manager, click Refresh, and then wait for the update to finish. Note You can check the update status on the lower-left side of the status bar in Server Manager.

  4.

  Restart Server Manager.

  5.

  In Server Manager, add the Streaming Media Services role. To do this, click Add Roles under Roles Summary, and then click Streaming Media Services in the Add Roles wizard.

  Source: http://support.microsoft.com/kb/963697

• Question 378:

  Your company has an Active Directory domain. You have a server named KMS1 that runs Windows Server 2008 R2. You install and configure Key Management Service (KMS) on KMS1. You plan to deploy Windows Server 2008 R2 on 10

  new servers. You install the first two servers. The servers fail to activate by using KMS1.

  You need to activate the new servers by using the KMS server.

  What should you do first?

  A. Complete the installation of the remaining eight servers.
  B. Configure Windows Management Instrumentation (WMI) exceptions in Windows Firewall on the new servers.
  C. Install Volume Activation Management Tool (VAMT) on the KMS server and configure Multiple Activation Key (MAK) Proxy Activation.
  D. Install Volume Activation Management Tool (VAMT) on the KMS server and configure Multiple Activation Key (MAK) Independent Activation.
  A. Complete the installation of the remaining eight servers.

  ---

  Key Management Service

  With KMS, IT pros can complete activations on their local network, eliminating the need for individual computers to connect to Microsoft for product activation.

  KMS is a lightweight service that does not require a dedicated system and can easily be co-hosted on a system that provides other services. By default, volume editions of Windows 7 and Windows Server 2008 R2 connect to a system that

  hosts the KMS service to request activation. No action is required from the user.

  KMS requires a minimum number of computers (physical or virtual machines) in a network environment.

  The organization must have at least five computers to activate Windows Server 2008 R2 and at least 25 computers to activate clients that are running Windows 7.

  These minimums are referred to as activation thresholds.

  To use KMS activation with Windows 7, the computer must have the qualifying OS license (often obtained through OEMs as part of the new PC purchase) and contain a Windows Marker in BIOS.

  Source: http://technet.microsoft.com/en-us/library/ff793423.aspx

• Question 379:

  Your network contains a server named Server1 that runs Windows Server 2008 R2. Server1 has the Streaming Media Services role installed.

  On Server1, you create an on-demand publishing point named PublishingPoint1. You need to ensure that only members of a group named Group1 can access content from PublishingPoint1.

  Which two plug-ins should you configure for PublishingPoint1? (Each correct answer presents part of the solution. Choose two.)

  A. WMS Anonymous User Authentication
  B. WMS IP Address Authorization
  C. WMS Negotiate Authentication
  D. WMS Publishing Points ACL Authorization
  C. WMS Negotiate Authentication
  D. WMS Publishing Points ACL Authorization

  ---

  WMS Negotiate Authentication The WMS Negotiate Authentication plug-in grants access to the server based upon the user's network logon approval. This plug-in uses an encrypted challenge/response scheme to authenticate users. It is a secure form of authentication

  because the user name and password are not sent across the network; the player acknowledges the password by using a cryptographic exchange with the Windows Media server. Because this plug-in relies upon established user logon

  credentials, the player and server must be on the same domain or on trusted domains. Negotiate authentication does not work across proxy servers or other firewall applications.

  Source: http://technet.microsoft.com/en-us/library/cc730972.aspx

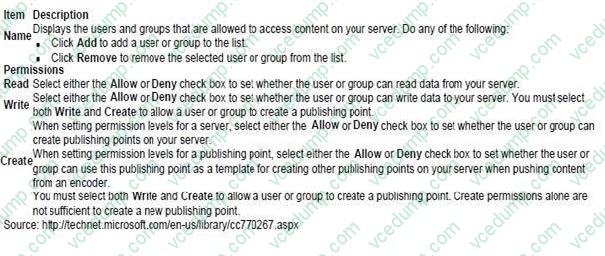

  WMS Publishing Points ACL Authorization

  The WMS Publishing ACL Authorization plug-in is used to control access to your content based on the permissions you have set on your publishing points. You can configure the following options on the General tab for this plug-in.



• Question 380:

  Your company has a server named VS1 that runs Windows Server 2008 R2 and Hyper-V. You want to create eight virtual servers that run Windows Server 2008 R2 and configure the virtual servers as an Active Directory forest for testing purposes. You discover that VS1 has only 30 GB of free hard disk space. You need to install the eight new virtual servers on VS1.

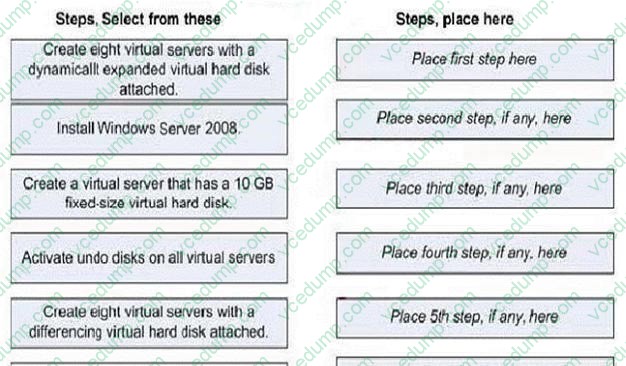

  What should you do? (To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.)

  Select and Place:
