Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 351:

  Your network contains a Network Load Balancing (NLB) cluster named NLB01. NLB01 contains two servers named Node1 and Node2 that run Windows Server 2008 R2. Node1 and Node2 are configured as shown in the following table:



  You need to install Windows updates on Node1 to meet the following requirements:

  Prevent new connections to Node1 while the updates are installed. Provide connected users with the ability to complete their session on Node1 before the updates are installed.

  What should you do first?

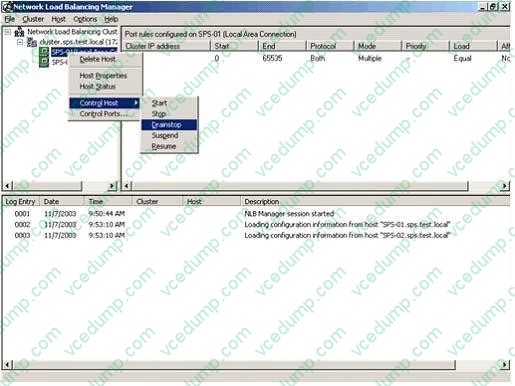

  A. From Network Load Balancing Manager, right-click Model and click Drainstop.
  B. From Network Load Balancing Manager, right-click Node1 and click Suspend.
  C. From the Services console, right-click Workstation and click Pause.
  D. From the Services console, right-click Server and click Pause.
  A. From Network Load Balancing Manager, right-click Model and click Drainstop.

  ---

  Drainstopping is used to tell the server to continue processing existing requests but not accept any new requests, thus gracefully taking the server down.



  http://office.microsoft.com/download/afile.aspx?AssetID=AM102437081033

• Question 352:



  Your network contains two Web servers that run Windows Server 2008 R2. Each Web server hosts three Web sites.

  You need to see the number of active connections to each Web site in a consolidated view.

  Which tool should you use?

  A. Internet Information Services (IIS) Manager
  B. Performance Monitor
  C. Resource Monitor
  D. Task Manager
  B. Performance Monitor

• Question 353:

  Your network contains a server that runs Windows Server 2008 R2 and has the Hyper-V server role installed. The network contains a virtual machine (VM) named VM1.

  The virtual hard disk (VHD) file for VM1 is stored on drive C. The snapshot files for VM1 are stored on drive D. You take several snapshots of VM1.

  After taking the snapshots, you discover that the state of VM1 is paused-critical.

  You need to ensure that you can resume VM1.

  The solution must prevent data loss on VM1. What should you do?

  A. Change the VHD type of VM1.
  B. Delete the .avhd files for VM1.
  C. Increase the free disk space on drive C.
  D. Increase the free disk space on drive D.
  D. Increase the free disk space on drive D.

• Question 354:

  A server runs Windows Server 2008. The Terminal Services role is installed on the server. You deploy a new application on the server. The application creates files that have an extension of .xyz.

  You need to ensure that users can launch the remote application from their computers by double- clicking a file that has the .xyz extension.

  What should you do?

  A. Configure the Remote Desktop Connection Client on the users' computers to point to the server.
  B. Configure the application as a published application by using a Remote Desktop Program file.
  C. Configure the application as a published application by using a Windows Installer package file.
  D. Configure the application as a published application by using a Terminal Server Web Access Web site.
  C. Configure the application as a published application by using a Windows Installer package file.

  ---

  Launching Apps from the Desktop For users who want to double-click documents to launch the application, terminal services now provides the ability to "install" the remote application's link to the desktop. This process effectively wraps the RemoteApp's RDP file into a Windows Installer package--an MSI file--that is later installed to desktops in the environment. At the same time, the installed MSI can modify the file extension associations on the desktop to reroute a double-clicked file to its associated RemoteApp on the terminal server. Figure 3 shows how the file extension associations have been modified on a client system after a Word RemoteApp is installed. Now, double-clicking any of the common Word file extensions will launch Word via the Remote Desktop Connection.

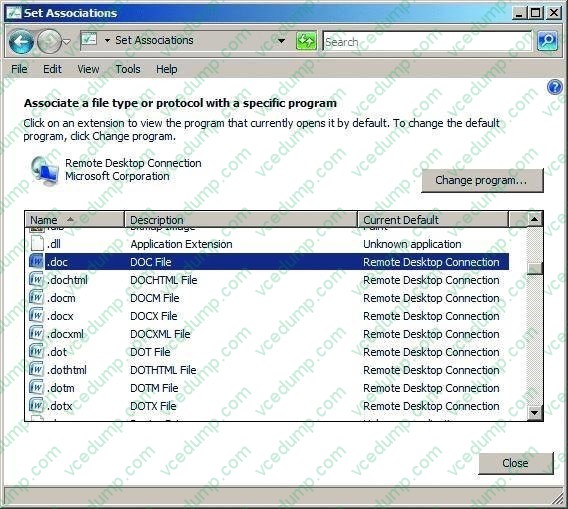

  Figure 3 File extension associations that have been altered to launch the Remote Desktop Connection To create a Windows Installer package out of an existing RemoteApp, first navigate to the TS RemoteApp Manager. Right-click the RemoteApp of interest and select Create Windows Installer Package. By default, all created Windows Installer packages are stored in the location C:\Program Files\Packaged Programs, but this location can be changed from within the RemoteApp Wizard. Also configurable within the wizard are the name and port for the server that will host the RemoteApp, as well as server authentication, certificate settings, and TS Gateway settings. Settings that relate to the application's location after installation to a candidate desktop are shown in Figure 4. As you can see, it is possible to create a shortcut on the desktop as well as to a location within the Start menu folder. The most important checkbox on this screen is at the very bottom. It's the checkbox for Take over client settings, and it re-associates any file extension associations for the RemoteApp from the local desktop to the terminal server. This checkbox must be selected if you want users to be able to double-click documents to launch their TS-hosted application. Click Next and Finish to complete the wizard. Please Note: -Since Windows2008R2 Terminal Services (TS) is now rebranded to Remote Desktop Services (RDS)-Source: http://technet.microsoft.com/en-us/query/dd314392

• Question 355:

  Your network contains a server that has the Remote Desktop Session Host (RD Session Host) role service installed.

  You need to prevent administrators from logging other administrators off of the console session.

  What should you do?

  A. From the RDP-Tcp properties of the RD Session Host server, modify the Sessions settings.
  B. From the Computer Configuration Group Policy settings, modify the Remote Desktop Session Host settings.
  C. From the User Configuration Group Policy settings, modify the Remote Desktop Connection Client settings.
  D. From the RDP-Tcp properties of the RD Session Host server, modify the Client Settings.
  B. From the Computer Configuration Group Policy settings, modify the Remote Desktop Session Host settings.

  ---

  Connections

  Policy settings in this node control connection settings on a Remote Desktop Session Host server. The full path of this node in the Group Policy Management Console is Computer Configuration\Policies\Administrative Templates\Windows

  Components\Remote Desktop Services\Remote Desktop Session Host \Connections.

  Deny logoff of an administrator logged in to the console session This policy setting determines whether an administrator attempting to connect remotely to the console of a server can log off an administrator currently logged on to the console.

  This policy is useful when the currently connected administrator does not want to be logged off by another administrator. If the connected administrator is logged off, any data not previously saved is lost.

  If you enable this policy setting, logging off the connected administrator is not allowed. If you disable or do not configure this policy setting, logging off the connected administrator is allowed.

  Note

  The console session is also known as Session 0. Console access can be obtained by using the /console switch from Remote Desktop Connection in the computer field name or from the command line

  Source: http://technet.microsoft.com/en-us/library/ee791922.aspx

• Question 356:

  Your company has an Active Directory domain. The company runs Remote Desktop Services.

  Standard users who connect to the Remote Desktop Session Host Server are in the TSUsers organizational unit (OU). Administrative users are in the TSAdmins OU. No other users connect to the Remote Desktop Session Host Server.

  You need to ensure that only members of OU1 can run the Remote Desktop Protocol files.

  What should you do?

  A. Create a Group Policy object (GPO) that configures the Allow .rdp files from unknown publishers policy setting in the Remote Desktop Client Connection template to Disabled. Apply the GPO to the TSUsers OU.
  B. Create a Group Policy object (GPO) that configures the Allow .rdp files from valid publishers and users default .rdp settings policy setting in the Remote Desktop Client Connection template to Disabled. Apply the GPO to the TSUsers OU.
  C. Create a Group Policy object (GPO) that configures the Allow .rdp files from valid publishers and users default .rdp settings policy setting in the Remote Desktop Client Connection template to Enabled. Apply the GPO to the TSAdmins OU.
  D. Create a Group Policy object (GPO) that configures the Specify SHA1 thumbprints of certificates representing trusted .rdp publishers policy setting in the Remote Desktop Client Connection template to Enabled. Apply the GPO to the TSAdmins OU.
  C. Create a Group Policy object (GPO) that configures the Allow .rdp files from valid publishers and users default .rdp settings policy setting in the Remote Desktop Client Connection template to Enabled. Apply the GPO to the TSAdmins OU.

  ---

  To ensure that only members of the TermSerAdmin OU can run the Remote Desktop Protocol files, you need to enable the Allow .rdp files from valid publishers and users default .rdp settings policy setting in the Remote Desktop Client Connection template.

  This policy setting allows you to specify whether users can run Remote Desktop Protocol (.rdp) files from a publisher that signed the file with a valid certificate. A valid certificate is one issued by an authority recognized by the client, such as the issuers in the client's Third-Party Root Certification Authorities certificate store.

  This policy setting also controls whether the user can start an RDP session by using default .rdp settings (for example, when a user directly opens the Remote Desktop Connection [RDC] client without specifying an .rdp file). If you enable this policy setting, users can run .rdp files that are signed with a valid certificate.

  Users can also start an RDP session with default .rdp settings by directly opening the RDC client. When a user starts an RDP session, the user is asked to confirm whether they want to connect.

  If you disable this policy setting, users cannot run .rdp files that are signed with a valid certificate. Additionally, users cannot start an RDP session by directly opening the RDC client and specifying the remote computer name. When a user tries to start an RDP session, the user receives a message that the publisher has been blocked

  Reference: Remote Desktop Connection Client http://technet2.microsoft.com/windowsserver2008/en/library/76fb7e12-b823-429b-9887- 05dc70d28d0c1033.mspx?mfr=true

• Question 357:

  Your network contains two Hyper-V hosts named Server1 and Server2.

  Server1 and Server2 belong to a failover cluster. Server1 and Server2 are connected to the same 2- terabyte logical unit number (LUN).

  The cluster will host 20 highly available virtual machines (VMs).

  You need to ensure that the VMs can fail over independently. Which action should you select from Failover Cluster Manager?

  To answer, select the appropriate action in the answer area.

  Hot Area:





• Question 358:

  Your network consists of a single Active Directory domain. The domain contains a server that runs Windows Server 2008 R2. The server has Microsoft SharePoint Foundation 2010 installed. You need to allow users to create distribution lists from a SharePoint site.

  What should you do on the SharePoint Foundation 2010 server?

  A. Set the outgoing mail character set to 1200(Unicode).
  B. Enable the SharePoint Directory Management Service.
  C. Configure the site to accept messages from authenticated users only.
  D. Configure the site to use the default Rights Management server in Active Directory Domain Services.
  B. Enable the SharePoint Directory Management Service.

  ---

  To configure WSS server in such a way that it allow users to create distribution lists from a SharePoint site, you need to enable the SharePoint Directory Management Service on the server. A distribution list contains the email addresses of

  existing address lists as well as the email addresses of other site members.

  Distribution lists are available only if the SharePoint Directory Management Service is enabled in Central Administration.

  All new subsites that are created in an email-enabled site collection are automatically email-enabled also. If you choose to use an existing group during site creation, the distribution list for the parent site (if available) will be associated with the

  new site

  Reference: Introduction to incoming email/ New site creation walkthrough http://office.microsoft.com/en-us/help/HA100823061033.aspx

• Question 359:

  Your network contains two servers that have the Remote Desktop Web Access (RD Web Access) role service installed. Each server hosts three different RemoteApp programs.

  You deploy a new server that has the Remote Desktop Connection Broker (RD Connection Broker) role service installed.

  Users report that when they connect to one of the RD Web Access servers, they see only three applications.

  You need to ensure that the users see all six RemoteApp programs when they connect to an RD Web Access server.

  Which two actions should you perform? (Each correct answer present part of the solution. Choose two.)

  A. From RemoteApp Manager, configure the RD Gateway Settings
  B. From RemoteApp Manager, configure the Digital Signature Settings.
  C. From Remote Desktop Connection Manager, add RemoteApp sources.
  D. From Remote Desktop Connection Manager, add RD Web Access servers.
  C. From Remote Desktop Connection Manager, add RemoteApp sources.
  D. From Remote Desktop Connection Manager, add RD Web Access servers.

  ---

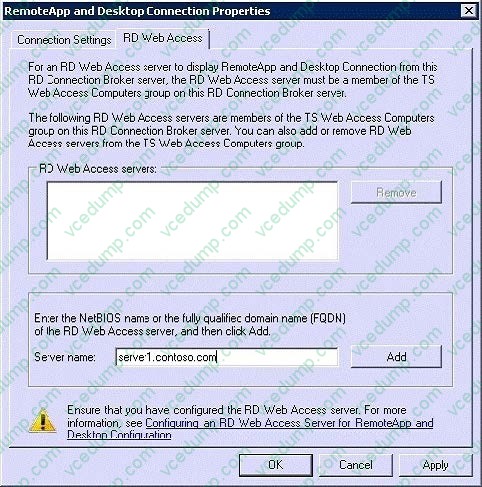

  To add a RD Web Access Server by using Remote Desktop Connection Manager

  1.

  Log on to Remote Desktop Connection Broker as CONTOSO\Administrator.

  2.

  Click Start, point to Administrative Tools, point to Remote Desktop Services, and then click Remote Desktop Connection Manager.

  3.

  I the Actions pane, click Add RD Web Access Server.

  4.

  In the Server name box, type the computer name and then click Add.

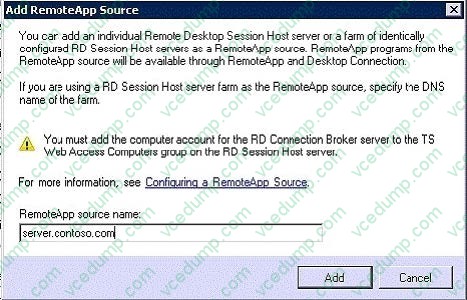

  To add a RemoteApp source by using Remote Desktop Connection Manager

  1.

  Log on to Remote Desktop Connection Broker as CONTOSO\Administrator.

  2.

  Click Start, point to Administrative Tools, point to Remote Desktop Services, and then click Remote Desktop Connection Manager.

  3.

  In the Actions pane, click Add RemoteApp Source.

  4.

  In the RemoteApp source name box, type the computer name and then click Add.



• Question 360:

  Your network contains two servers named Server1 and Server2 that run Windows Server 2008 R2.

  Server1 and Server2 have the Hyper-V server role and the Failover Clustering feature installed.

  You deploy a new virtual machine (VM) named VM1 on Server1.

  You need to ensure that VM1 is available if one of the Hyper-V servers fails.

  What should you do?

  A. Install the Network Load Balancing (NLB) feature on VM1.
  B. Install the Network Load Balancing (NLB) feature on Server1.
  C. Install the Failover Clustering feature on VM1. From Failover Cluster Manager on VM1, click Configure a Service or Application.
  D. From Failover Cluster Manager on Server1, click Configure a Service or Application.
  D. From Failover Cluster Manager on Server1, click Configure a Service or Application.

  ---

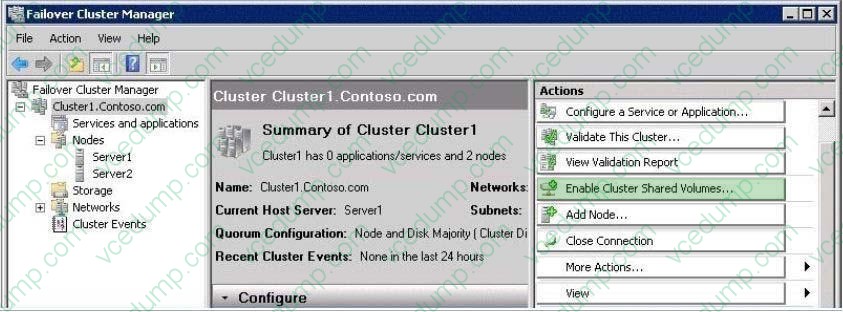

  To configure a virtual machine for high availability

  1.

  Be sure that you have installed the Hyper-V role and have reviewed the steps in Checklist: Create a Clustered Virtual Machine. This procedure is a step in that checklist.

  2.

  In the Failover Cluster Manager snap-in, if the cluster that you want to configure is not displayed, in the console tree, right-click Failover Cluster Manager, click Manage a Cluster, and then select or specify the cluster that you want.

  3.

  If the console tree is collapsed, expand the tree under the cluster that you want to configure.

  4.

  Click Services and Applications.

  5.

  If you have already created the virtual machine, skip to step 6. Otherwise, use the New Virtual Machine Wizard to create a virtual machine and configure it for high availability:

  a.

  In the Action pane, click Virtual machines, point to Virtual machine, and then click a node. The virtual machine will initially be created on that node, and then be clustered so that it can move to another node or nodes as needed.

  b.

  If the Before You Begin page of the New Virtual Machine Wizard appears, click Next. c. Specify a name for the virtual machine, and then select Store the virtual machine in a different location and specify a disk in shared storage or, if Cluster Shared Volumes is enabled, a Cluster Shared Volume (a volume that appears to be on the system drive of the node, under the \ClusterStorage folder).

  d.

  Follow the instructions in the wizard. You can specify details (such as the amount of memory, the network, and the virtual hard disk file) now, and you can also add or change configuration details later.

  e.

  When you click Finish, the wizard creates the virtual machine and also configures it for high availability. Skip the remaining step in this procedure.

  6. If you have already created the virtual machine and only want to configure it for high availability, first make sure that the virtual machine is not running. Then, use the High Availability Wizard to configure the virtual machine for high availability:

  a.

  In the Action pane, click Configure a Service or Application. b. If the Before You Begin page of the High Availability Wizard appears, click Next. c. On the Select Service or Application page, click Virtual Machine and then click Next. d. Select the virtual machine that you want to configure for high availability, and complete the wizard.

  e.

  After the High Availability wizard runs and the Summary page appears, if you want to view a report of the tasks that the wizard performed, click View Report.

  Source: http://technet.microsoft.com/en-us/library/dd759216.aspx
