Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 341:

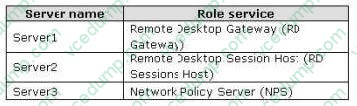

  Your network contains three servers. The servers are configured as shown in the following table.



  You need to configure Server1 to use Network Access Protection (NAP) for all client connections.

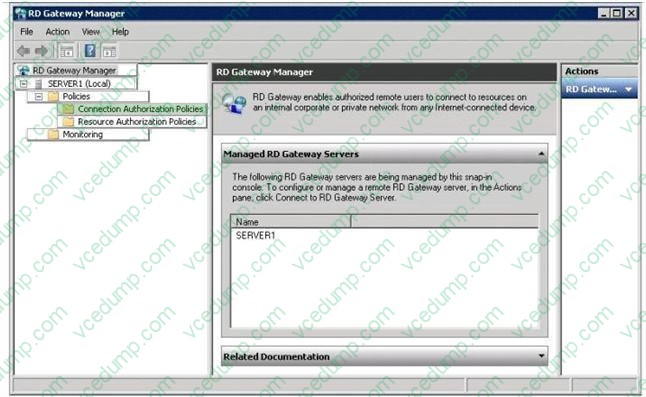

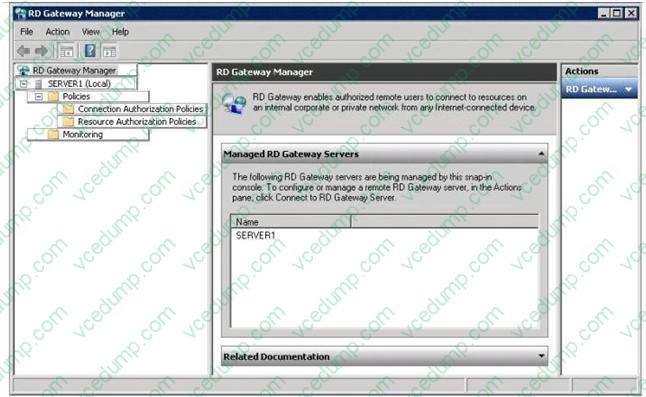

  Which node from RD Gateway Manager should you use to make this configuration?

  To answer, select the appropriate node in the answer area.

  Hot Area:





• Question 342:

  Your network contains a server named Server1 that runs Windows Server 2008 R2. Server1 has the Remote Desktop Gateway (RD Gateway) role service installed. You add the Domain Users group to a connection authorization policy

  named TS_CAP_01.

  You need to ensure that only client computers that have Windows Firewall enabled can connect to Remote Desktop resources through the RD Gateway.

  What should you do?

  A. From Remote Desktop Gateway Manager, modify the properties of the TS_RAP_01 resource authorization policy.
  B. From Remote Desktop Gateway Manager, modify the properties of the TS_CAP_01 connection authorization policy.
  C. From the Network Policy Server console, modify the properties of the TS_CAP_01 network policy.
  D. From the Network Policy Server console, modify the properties of the TS GATEWAY AUTHORIZATION POLICY connection request policy.
  C. From the Network Policy Server console, modify the properties of the TS_CAP_01 network policy.

• Question 343:

  You install the Windows SharePoint Services (WSS) role on a server that runs Windows Server 2008. You create a group named SPReviewers that will access content on the WSS server.

  You need to restrict the permissions for the SPReviewers group to viewing items, opening items, and viewing versions.

  Which permissions should you configure for the SPReviewers group?

  A. Read
  B. Design
  C. Contribute
  D. Limited Access
  A. Read

  ---

  To restrict the permissions of the group to viewing items, opening items, and viewing versions, you need to assign Read permission. The Read permission level includes the View Items, Open Items, View Pages, and View Versions permissions (among others), all of which are needed to read documents, items, and pages on a SharePoint site.

  Reference: About security features of Windows SharePoint Services 3.0 http://office.microsoft.com/en-us/sharepointtechnology/HA100215781033.aspx

• Question 344:

  Your network contains two Hyper-V hosts named Server1 and Server2. Server1 and Server2 belong to a failover cluster. Server1 and Server2 are connected to the same 2-terabyte logical unit number (LUN).

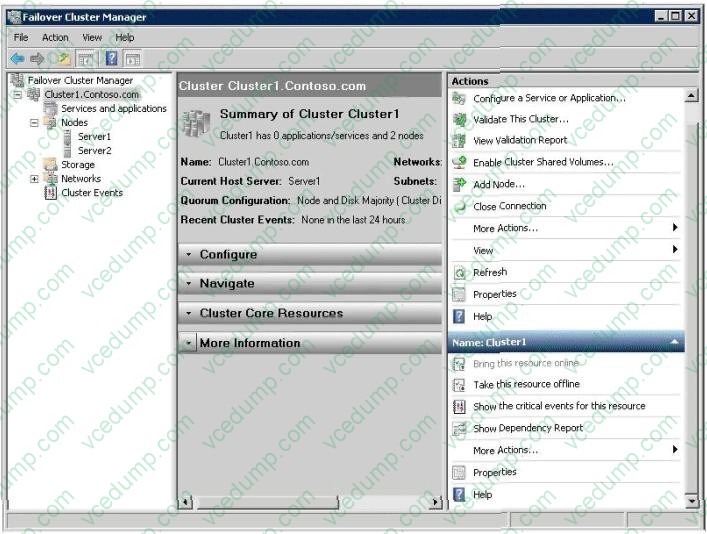

  You open Failover Cluster Manager as shown in the exhibit. (Click the Exhibit button.)



  The cluster will host 20 highly available virtual machines (VMs). You need to ensure that the VMs can fail over independently.

  Which action should you select from Failover Cluster Manager?

  A. validate This Cluster
  B. Add Node
  C. Enable Cluster Shared Volumes
  D. Configure a Service or Application
  C. Enable Cluster Shared Volumes

• Question 345:

  Your network contains a server named Server1 that has the Remote Desktop Services (RDS) server role installed and the Remote Desktop Session Host (RD Session Host) role service installed. You have a line-of-business application

  named App1 that runs on Server1. App1 accesses a database application named App2. App2 does not support multiple connections from the same IP address.

  Users access App1 by using Remote Desktop sessions.

  You discover that only one user can access App1 at a time.

  You need to ensure that at least 10 users can access App1 simultaneously.

  What should you do? (Each correct answer presents part of the solution. Choose two.)

  A. Configure Server1 to use 10 static IP addresses.
  B. Add a DHCP server to the same subnet as Server1.
  C. On Server1, enable Remote Desktop IP Virtualization.
  D. On Server1, configure the RDP-Tcp Properties.
  E. Configure Server1 to obtain an IP address automatically.
  B. Add a DHCP server to the same subnet as Server1.
  C. On Server1, enable Remote Desktop IP Virtualization.

• Question 346:

  Your network contains a server named Server1 that runs Windows Server 2008 R2.

  You add a new 1TB hard disk to Server1.

  You need to minimize the risk of file system corruption or loss on the new volume in the event of a system failure.

  What should you do?

  A. Initialize the disk as a GUID partition Table (GPT) disk.
  B. Initialize the disk as a Master Boot Record (MBR) disk.
  C. Disable write caching for the hard disk.
  D. Disable direct memory access (DMA) for the hard disk controller.
  C. Disable write caching for the hard disk.

• Question 347:

  Your network contains a Web server that runs Windows Server 2008 R2. Users can connect to the Default Web Site.

  You create a new Web site and assign the site a host header. Users cannot connect to the new Web site by using the host header. You need to ensure that users can connect to the new Web site by using the host header.

  What should you do?

  A. Create an Alias (CNAME) record in DNS for the host header.
  B. Create a service location (SRV) record in DNS for the host header.
  C. Modify the Windows Firewall configuration on the Web server.
  D. Modify the Windows Firewall configuration on the users' computers.
  A. Create an Alias (CNAME) record in DNS for the host header.

• Question 348:

  Your network contains a server named WDS1 that has the Windows Deployment Services (WDS) server role installed. WDS1 is used to deploy Windows 7.

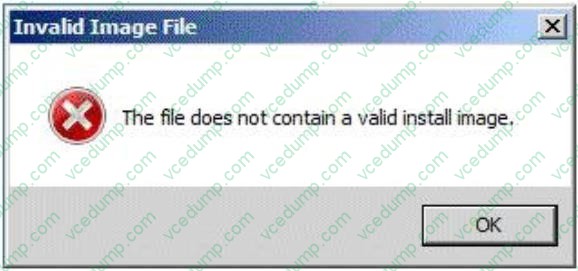

  You create a virtual hard disk (VHD) file that contains an installation of Windows Server 2008 R2 Service Pack 1 (SP1), From the Windows Deployment Services console, you attempt to add the VHD file, and you receive the error message shown in the exhibit. (Click the Exhibit button.)



  You need to ensure that you can deploy the VHD file by using WDS. What should you do?

  A. Run vvdsutil.exe and specify the update-serverfiles parameter.
  B. Run wdsutil.exe and specify the add-image parameter.
  C. Run imagex.exe and specify the /apply parameter.
  D. Run imagex.exe and specify the /append parameter.
  B. Run wdsutil.exe and specify the add-image parameter.

• Question 349:

  Your network contains a server named Server1 that has the Streaming Media Services server role installed. Server1 is located in the perimeter network.

  A firewall named Firewall1 connects the perimeter network and the Internet.

  You need to ensure that clients from the Internet can access streaming content from Server1 by using RTSP. The solution must minimize the number of open ports on Firewall1.

  Which two inbound firewall ports should you open on Firewall1? (Each correct answer presents part of the solution. Choose two.)

  A. TCP 6881
  B. UDP 8080
  C. TCP 1755
  D. TCP 554
  E. UDP 5005
  D. TCP 554
  E. UDP 5005

  ---

  The scheme rtsp requires that commands are issued via a reliable protocol (within the Internet, TCP), while the scheme rtspu identifies an unreliable protocol (within the Internet, UDP). If the port is empty or not given, port 554 is assumed.

  The semantics are that the identified resource can be controlled by RTSP at the server listening for TCP (scheme "rtsp") connections or UDP (scheme "rtspu") packets on that port of host, and the Request-URI for the resource is rtsp_URL.

  For example, the RTSP URL: rtsp://media.example.com:554/twister/audiotrack Systems implementing RTSP MUST support carrying RTSP over TCP and MAY support UDP. The default port for the RTSP server is 554 for both UDP and TCP.

  http://www.ietf.org/rfc/rfc2326.txt

  Firewalls for unicast streaming

  To configure a firewall for unicast streaming, you must open the ports on the firewall that are required for the connection protocols that are enabled on your server.

  If you are streaming content by using either the MMS protocol or the RTSP protocol, you must support both User Datagram Protocol (UDP) and Transmission Control Protocol (TCP).

  Open the ports To enable Windows Media Player and other clients to use the HTTP protocol, the RTSP protocol, or the MMS protocol to connect to a Windows Media server that is behind a firewall, open the following ports.

  http://support.microsoft.com/kb/827562/en-us

• Question 350:

  Your network contains a server that runs Windows Server 2008 R2. The server has Microsoft SharePoint Foundation 2010 installed.

  You create a new Web application named WebApp1.

  You need to configure WebApp1 to meet the following requirements:

  Internal users must be authenticated by using Kerberos authentication. External users must be authenticated by using NTLM authentication.

  What should you do first?

  A. Extend WebApp1.
  B. Modify the User Policy.
  C. Modify the Permissions Policy.
  D. Configure the Alternate Access Mappings.
  A. Extend WebApp1.

  ---

  Extend a Web application If you want to expose the same content in a Web application to different types of users by using additional URLs or authentication methods, you can extend an existing Web application into a new zone. When you extend the Web application into a new zone, you create a separate Internet Information Services (IIS) Web site to serve the same content, but with a unique URL and authentication type. An extended Web application can use up to five network zones (Default, Intranet, Internet, Custom, and Extranet). For example, if you want to extend a Web application so that customers can access content from the Internet, you select the Internet zone and choose to allow anonymous access and grant anonymous users readonly permissions. Customers can then access the same Web application as internal users, but through different URLs and authentication settings. For more information, see Configure anonymous access for a claims-based Web application (SharePoint Foundation 2010), and Plan authentication methods (SharePoint Foundation 2010).

  Source: http://technet.microsoft.com/en-us/library/cc288162.aspx
