Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 271:

  You manage a member server that runs Windows Server 2008 R2. The server has the Remote Desktop Services server role installed. Windows System Resource Manager (WSRM) is installed on the server.

  Users report performance degradation on the Remote Desktop Session Host Server. You monitor the server and notice that one user is consuming 100 percent of the processor time. You create a resource-allocation policy named Policy1 that limits each user to 30 percent of the total processor time. You observe no performance improvement.

  You need to configure WSRM to enforce Policy1.

  What should you do?

  A. Set Policy1 as the Profiling Policy.
  B. Set Policy1 as the Managing Policy.
  C. Restart the Remote Desktop Configuration service.
  D. Launch the WSRM application by using the user context of the Remote Desktop Session Host Server System account.
  B. Set Policy1 as the Managing Policy.

  ---

  Resource-Allocation Policies

  WSRM uses resource-allocation policies to determine how computer resources, such as CPU and memory, are allocated to processes running on the computer.

  There are two resource-allocation policies that are specifically designed for computers running Terminal Services. The two Terminal Services-specific resource-allocation policies are:

  Equal_Per_User

  Equal_Per_Session

  To implement the Equal_Per_Session resource-allocation policy Open the Windows System Resource Manager snap-in.

  In the console tree, expand the Resource Allocation Policies node. Right-click Equal_Per_Session, and then click Set as Managing Policy. If a dialog box appears informing you that the calendar will be disabled, click OK.

  Source: http://technet.microsoft.com/en-us/library/cc771218(WS.10).aspx

• Question 272:

  Your network contains a server that has the Hyper-V server role installed. The server hosts a virtual machine (VM) named VM1.

  VM1 runs Windows Server 2008 R2 and has the file server role installed.

  You need to add more disk space to VM1.

  The solution must minimize the amount of downtime for VM1.

  What should you do first on VM1?

  A. Add a virtual disk to IDE controller 0.
  B. Add a virtual disk to IDE controller 1.
  C. Add a virtual disk to the SCSI controller.
  D. Add a pass-through disk to IDE controller 0.
  C. Add a virtual disk to the SCSI controller.

• Question 273:

  Your network contains an Active Directory domain. The domain contains a member server named Server1. Server1 has the Windows Deployment Services (WDS) server role installed. You need to ensure that only approved client computers receive a boot image from Server1.

  Which settings should you modify on Server1?

  A. Computer Account Location
  B. PXE Boot Policy
  C. Client Naming Policy
  D. PXE Response Policy
  D. PXE Response Policy

• Question 274:

  You have two servers that run Windows Server 2008 R2 Enterprise. Both servers have the Failover Clustering feature installed. You configure the servers as a two-node cluster. The cluster nodes are named NODE1 and NODE2.

  You have an application named PrintService that includes a print spooler resource. You need to configure the cluster to automatically return the PrintService application to NODE1 after a failover.

  Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

  A. Set the Period (hours) option to 0 in the properties of the print spooler resource.
  B. Move NODE1 to the top of the list of preferred owners for the PrintService application.
  C. Enable the Allow Failback and Immediate options for the PrintService application.
  D. Disable the If restart is unsuccessful, failover all resources in this server or application option in the properties of the print spooler resource.
  B. Move NODE1 to the top of the list of preferred owners for the PrintService application.
  C. Enable the Allow Failback and Immediate options for the PrintService application.

  ---

  Preferred nodes list defined If you define a complete preferred nodes list for a group (that is, one listing all the nodes in the cluster), then the Cluster service uses this defined list as its internal list. However, if you define a partial preferred nodes list for a group, then the Cluster service uses this defined list as its internal list and appends any other installed nodes not on the preferred list, ordered by their node IDs. For example, if you created a 5-node cluster (installing the nodes in the order Node1, Node2, Node3, Node4, and Node5) and defined Node3, Node4, and Node5 as preferred owners for the resource group, PRINTGR1, the Cluster service would maintain this ordered list for PRINTGR1: Node3, Node4, Node5, Node1, Node2. How the Cluster service uses this list depends on whether the resource group move is due to a resource/node failure or a manual move group request.

  Preferred lists and resource or node failures For resource group or node failures, the group fails over to the node next to the current owner on the preferred nodes list. In the example above, if the resource up PRINTGR1 on Node3 fails, then the Cluster service would fail that group over to the next node on the list, Node4. If you allow failback for that group, then when Node3 comes up again, the Cluster service will fail back PRINTGR1 to that node.

  Source: http://technet.microsoft.com/en-us/library/cc737785.aspx

• Question 275:

  Your company has an Active Directory domain. The Terminal Services role is installed on a member server named TS01. The Terminal Services Licensing role service is installed on a new test server named TS10 in a workgroup.

  You cannot enable the Terminal Services Per User Client Access License (TS Per User CAL) mode in the Terminal Services Licensing role service on TS10.

  You need to ensure that you can use TS Per User CAL mode on TS10.

  What should you do?

  A. Join TS10 to the domain.
  B. Disjoin TS01 from the domain.
  C. Extend the schema to add attributes for Terminal Services Licensing.
  D. Create a Group Policy object (GPO) that configures TS01 to use TS10 for licensing.
  A. Join TS10 to the domain.

  ---

  To ensure that you could employ Terminal Services per User CAL mode on TK2, you need to connect TK2 to the Active Directory domain because TS Per User CAL tracking and reporting is supported only in domain-joined scenarios. Reference: TS Licensing/Are there any special considerations? http://technet2.microsoft.com/windowsserver2008/en/library/5a4afe2f-5911-4b3f-a98a-338b442b76041033.mspx?fr=true

• Question 276:

  You install the Windows Deployment Services (WDS) role on a server that runs Windows Server 2008 R2.

  When you attempt to upload spanned image files to the WDS server, you receive an error message. You need to ensure that the image files can be uploaded.

  What should you do?

  A. Grant the Authenticated Users group Full Control on the \REMINST directory.
  B. Run the wdsutil /Convert command at the command prompt on the WDS server.
  C. Run the imagex /Export command at the command prompt to export *.swm files to one destination *.wim on the WDS server.
  D. Run the wdsutil /add-image /imagefile:\\server\share\sources\install.wim /image type:install command for each component file individually at the command prompt on the WDS server.
  C. Run the imagex /Export command at the command prompt to export *.swm files to one destination *.wim on the WDS server.

  ---

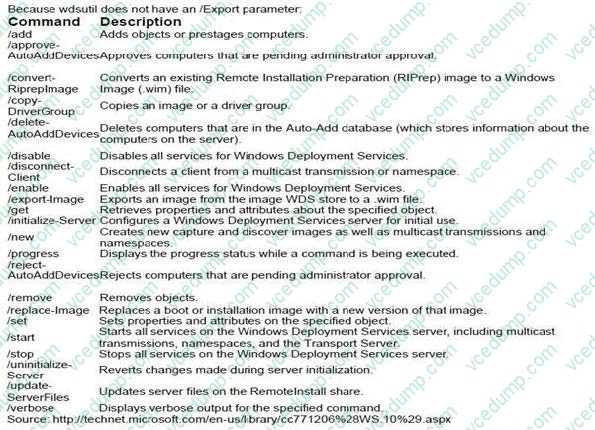

  Known issues with creating images

  You cannot add split .wim (.swm) files to your Windows Deployment Services server. Instead, you must combine the split images into a single .wim file. Source:

  http://download.microsoft.com/download/b/b%2F5/bb50037f-e4ae-40d1-a898-7cdfcf0ee9d8/ WS08_STEP_BY_STEP_GUIDE/Step-by StepGuideForWindowsDeploymentServicesInWindowsServer2008_En.doc One can combine multiple

  .swm files to an .wim file with imagex.exe: imagex /export src_file src_numbersrc_name dest_file dest_name {/boot | /check | /compress [type] | /ref [splitwim.swm] /temp| /logfile filename.log} Exports a copy of the specified .wim file to another

  .wim file. The source and destination files must use the same compression type. You can also optimize an image by exporting to a new image file. When you modify an image, ImageX stores additional resource files that increase the overall

  size of the image. Exporting the image will remove unnecessary resource files. src_file Specifies the file path of the .wim file that contains the image to be copied. src_number Specifies the number of the specific volume within the .wim file.

  src_name Specifies the name that identifies the image in the source .wim file. dest_file Specifies the file path of the .wim file that will receive the image copy. dest_name Specifies the unique name for the image in the destination .wim file. /ref

  splitwim.swm Enables the reference of split .wim files (SWMs). splitwim.swm is the name and location of additional split files.

  Wildcards are accepted.

  Source: http://technet.microsoft.com/en-us/library/dd799302%28WS.10%29.aspx Image Merge

  Merge the previously splitted image file back into a single image file. imagex /ref c:\data\splitmerge\output2\splitmerge*.swm /check /export c:\data \splitmerge\output2\splitmerge.swm 1 c:\data\splitmerge\output3\splitmerge.wim "splitmerge" /

  COMPRESS maximum

  Source: http://www.verboon.info/index.php/2009/10/splitting-and-merging-image-files-with- imagex/* I've changes the answer from wdsutil /Export to imagex /Export because I couldn't verify the awnser in the dump.*



• Question 277:

  Your network contains a server named Server1 that runs Windows Server 2008 R2.

  Server1 has the SMTP Server feature installed and has one SMTP Virtual Server named SMTP1.

  You need to configure Server1 to meet the following requirements:

  Relay email messages for contoso.com.

  Relay email messages for nwtraders.com.

  Prevent the relaying of email messages to other domains.

  What should you do?

  A. Configure two alias domains to SMTP1.
  B. Configure two remote domains to SMTP1.
  C. Modify the relay restrictions list of SMTP1.
  D. Modify the connection control settings of SMTP1.
  B. Configure two remote domains to SMTP1.

  ---

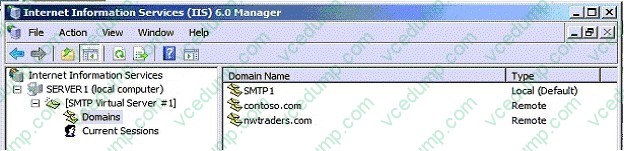

  Configuring SMTP Virtual Server Relay for Remote Domains You can configure an SMTP virtual server to relay incoming mail to your SMTP/POP3 server. The SMTP virtual server can also accept and relay mail to other domains within your organization. Specifying a relay server overrides the smart host setting in the Advanced Delivery box of the SMTP virtual server.

  Procedures To configure an SMTP virtual server to relay mail to a remote domain

  1.

  In IIS Manager, double-click the SMTP virtual server that you want to configure, right-click Domains, point to New, and then click Domain. The New SMTP Domain Wizard starts.

  2.

  Click Remote, and then click Next.

  3.

  In the Name box, type a name for the remote domain, and then click Finish.

  4.

  In IIS Manager, right-click the new remote domain, and then click Properties.

  5.

  On the General tab, select the Allow incoming mail to be relayed to this domain check box to allow the SMTP server to act as a mail relay.

  6.

  On the General tab under Route domain, click Forward all mail to smart host, and then type the fully qualified domain name or the IP address of the internal network corporate mail server through which you would like to route messages for this remote domain.

  7.

  Click OK, and then stop and restart the SMTP virtual server. After you configure the remote domain, all mail that is addressed to the remote domain is relayed to the smart host that you configured. Mail that is not deliverable is stored in the Inetpub\Mailroot\Badmail folder.



  Source: http://technet.microsoft.com/en-us/library/cc775967.aspx

• Question 278:

  Your network contains a server that runs Windows Server 2008 R2. You install Windows Media Services on the server.

  You need to stream a live video broadcast. The solution must minimize any delays caused by network congestion.

  What should you do?

  A. Create a broadcast publishing point that delivers content by using unicast. Stream the content by using HTTP.
  B. Create an on-demand publishing point that delivers content by using unicast. Stream the content by using HTTP.
  C. Create a broadcast publishing point that delivers content by using multicast. Stream the content by using real-time streaming protocol (RTSP).
  D. Create an on-demand publishing point that delivers content by using unicast. Stream the content by using real-time streaming protocol (RTSP).
  C. Create a broadcast publishing point that delivers content by using multicast. Stream the content by using real-time streaming protocol (RTSP).

• Question 279:

  You have a server that runs Windows Server 2008. The server has the Windows Media Services server role installed.

  You plan to distribute a video file on DVD media. Users will view the video while working on computers that are not connected to the Internet.

  You need to distribute the video to users. You also need to protect the video from unauthorized use and illegal distribution. What should you do?

  A. From Windows Media Services, publish the video as streaming content, and then burn the video to a DVD.
  B. From Windows Media Services, advertise the video. Create a DVD that contains the HTML and ASPX files for the advertised video.
  C. From Windows Media Digital Rights Manager, package the video and then advertise the video on the corporate Web site.
  D. From Windows Media Digital Rights Manager, create a package and a license for the video file. Burn the packaged video to a DVD.
  D. From Windows Media Digital Rights Manager, create a package and a license for the video file. Burn the packaged video to a DVD.

  ---

  To distribute a video file on DVD media while making sure that the video file is protected from unauthorized use and illegal distribution, you need to create a package and a license for the video file and then burn the packaged video to a DVD using Windows Media Digital Rights Manager.

  Windows Media Rights Manager is the technology that allows you to package Windows Media DRM files and issues licenses. You can use Windows Media Rights Manager to encrypt a given digital media file, lock it with a key, and bundle additional information from the content provider. This results in a packaged file that can only be played by the person who has obtained a license. Windows Media Rights Manager can also act as the license clearing house, authenticating the consumer's request for a license and issuing the license to the user.

  Reference: Windows Media DRM FAQ http://www.microsoft.com/windows/windowsmedia/forpros/drm/faq.aspx#drmfaq_1_1

• Question 280:

  Your company has a server named VS1 that runs Windows Server 2008 R2 and Hyper-V.

  You want to create eight virtual servers that run Windows Server 2008 R2 and configure the virtual servers as an Active Directory forest for testing purposes.

  You discover that VS1 has only 30 GB of free hard disk space.

  You need to install the eight new virtual servers on VS1.

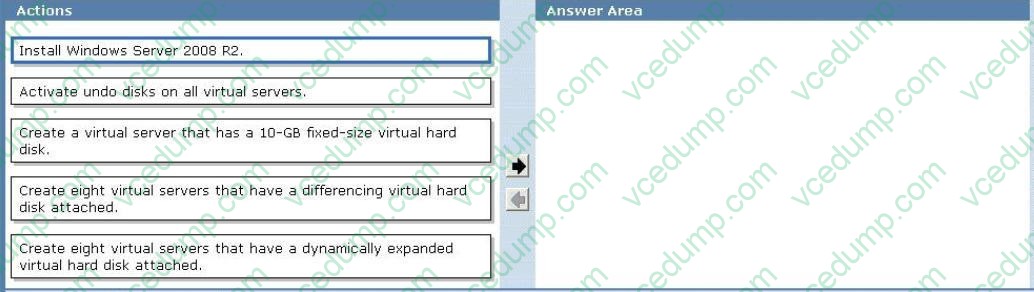

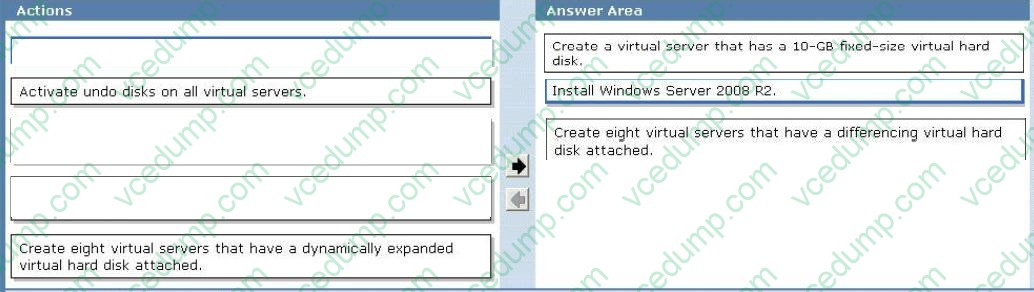

  What should you do? (To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.)

  Select and Place:
