Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 261:

  Your network contains a server named Server1 that has two volumes named C and D.

  You add a new volume.

  You need to ensure that you can access data on the new volume by using the path D:\data.

  What should you do?

  A. From Disk Management, create a volume mount point.
  B. From Disk Management, attach a virtual hard disk (VHD).
  C. At the command prompt, run the diskraid.exe command and specify the /v parameter.
  D. At the command prompt, run the dism.exe command and specify the /mount-wim parameter.
  A. From Disk Management, create a volume mount point.

  ---

  Assign a mount point folder path to a drive

  You can use Disk Management to assign a mount-point folder path (rather than a drive letter) to the drive.

  Mount-point folder paths are available only on empty folders on basic or dynamic NTFS volumes. Backup Operator or Administrator is the minimum membership required.

  Assigning a mount-point folder path to a drive

  1.

  In Disk Manager, right-click the partition or volume where you want to assign the mount-point folder path, and then click Change Drive Letter and Paths.

  2.

  Do one of the following:

  To assign a mount-point folder path, click Add. Click Mount in the following empty NTFS folder , type the path to an empty folder on an NTFS volume, or click Browse to locate it. To remove the mount-point folder path, click it and then click

  Remove.

  Additional considerations

  If you are administering a local or remote computer, you can browse NTFS folders on that computer.

  When assigning a mount-point folder path to a drive, use Event Viewer to check the system log for any Cluster service errors or warnings indicating mount point failures. These errors would be listed as ClusSvc in the Source column and

  Physical Disk Resource in the Category column.

  Source: http://technet.microsoft.com/en-us/library/cc753321.aspx

• Question 262:

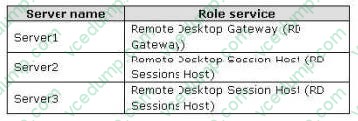

  Your network contains three servers. The servers are configured as shown in the following table.

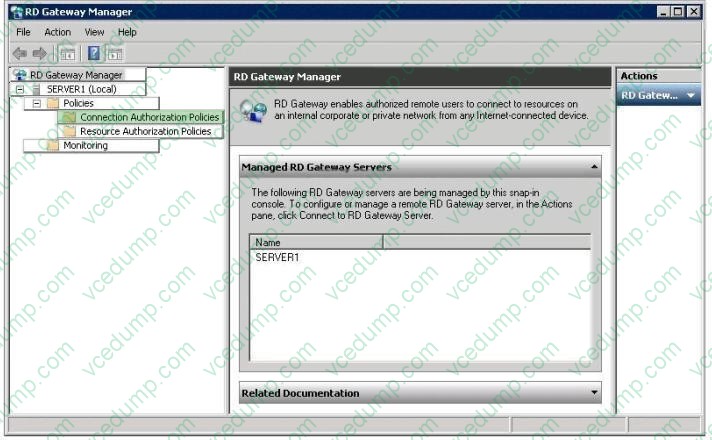

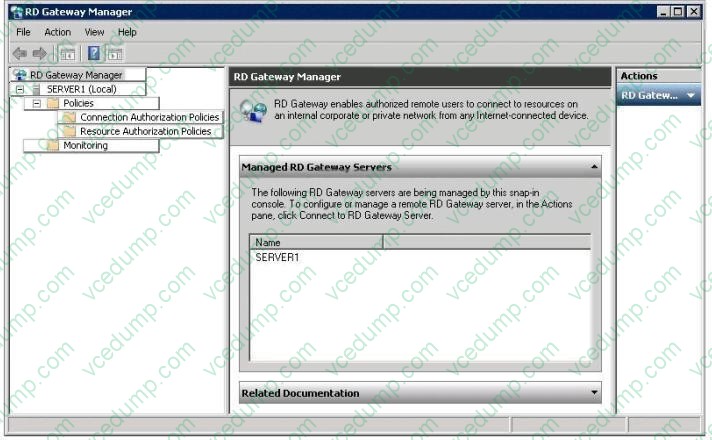

  You need to allow only certain users to establish Remote Desktop connections through the RD Gateway server. Which node from RD Gateway Manager should you use to achieve this task? To answer, select the appropriate node in the answer area.

  Hot Area:





• Question 263:

  You install the Web Server (IIS) on a server that runs Windows Server 2008 R2. You install a Microsoft .NET Framework application on a Web site that is hosted on the server in a folder named \wwwroot.

  The .NET Framework application must write to a log file that resides in the \Program Files\WebApp folder.

  You need to configure the .NET Framework trust level setting for the Web site so that the application can write to the log file.

  What should you do?

  A. Set the .NET Framework trust level to Full for the Web site.
  B. Set the .NET Framework trust level to High for the Web site.
  C. Set the .NET Framework trust level to Minimal for the Web site.
  D. Set the .NET Framework trust level to Medium for the Web site.
  D. Set the .NET Framework trust level to Medium for the Web site.

  ---

  Use the .NET Trust Levels feature page to set the trust element in the web.config file. The trust element enables you to configure the level of code access security (CAS) that is applied to an application. Full (internal) - Specifies unrestricted

  permissions. Grants the ASP.NET application permissions to access any resource that is subject to operating system security. All privileged operations are supported.

  High (web_hightrust.config) - Specifies a high level of code access security, which means that the pplication cannot do any one of the following things by default:

  Call unmanaged code.

  Call serviced components.

  Write to the event log.

  Access Message Queuing service queues.

  Access ODBC, OleDb, or Oracle data sources.

  Medium (web_mediumtrust.config) - Specifies a medium level of code access security, which means that, in addition to High Trust Level restrictions, the ASP.NET application cannot do any of the following things by default:

  Access files outside the application directory.

  Access the registry.

  Make network or Web service calls.

  Low (web_lowtrust.config) - Specifies a low level of code access security, which means that, in addition to Medium Trust Level restrictions, the application cannot do any of the following things by default:

  Write to the file system.

  Call the Assert method.

  Minimal (web_minimaltrust.config) - Specifies a minimal level of code access security, which means that the application has only execute permissions.

  Source: http://technet.microsoft.com/en-us/library/cc754779.aspx

• Question 264:

  A server runs Windows Server 2008 R2. The Remote Desktop Services server role is installed on the server.

  You deploy a new application on the server. The application creates files that have an extension of .xyz.

  You need to ensure that users can launch the remote application from their computers by double- clicking a file that has the .xyz extension.

  What should you do?

  A. Configure the Remote Desktop Connection Client on the users' computers to point to the server.
  B. Configure the application as a published application by using a Remote Desktop Program file.
  C. Configure the application as a published application by using a Microsoft Windows Installer package file.
  D. Configure the application as a published application by using a Remote Desktop Web Access Web site.
  C. Configure the application as a published application by using a Microsoft Windows Installer package file.

  ---

  Launching Apps from the Desktop

  For users who want to double-click documents to launch the application, terminal services now provides the ability to "install" the remote application's link to the desktop. This process effectively wraps the Remote-App's RDP file into a Windows Installer package--an MSI file--that is later installed to desktops in the environment.

  At the same time, the installed MSI can modify the file extension associations on the desktop to reroute a double-clicked file to its associated RemoteApp on the terminal server. Figure 3 shows how the file extension associations have been modified on a client system after a Word RemoteApp is installed. Now, double-clicking any of the common Word file extensions will launch Word via the Remote Desktop Connection.

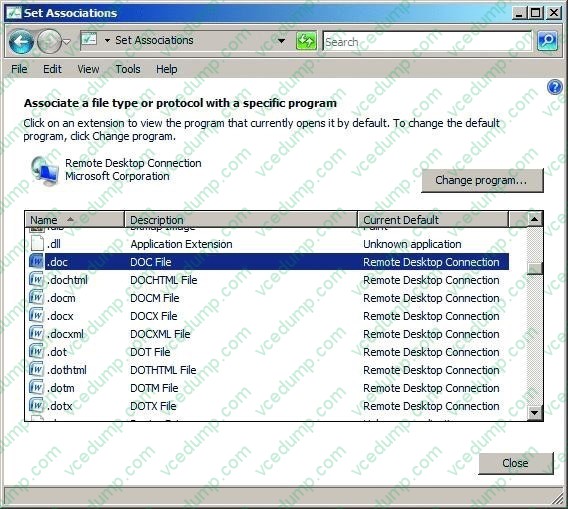

  Figure 3 File extension associations that have been altered to launch the Remote Desktop Connection To create a Windows Installer package out of an existing RemoteApp, first navigate to the TS RemoteApp Manager. Right-click the RemoteApp of interest and select Create Windows Installer Package. By default, all created Windows Installer packages are stored in the location C:\Program Files\Packaged Programs, but this location can be changed from within the RemoteApp Wizard. Also configurable within the wizard are the name and port for the server that will host the RemoteApp, as well as server authentication, certificate settings, and TS Gateway settings.

  Settings that relate to the application's location after installation to a candidate desktop are shown in Figure 4.

  As you can see, it is possible to create a shortcut on the desktop as well as to a location within the Start menu folder. The most important checkbox on this screen is at the very bottom. It's the checkbox for Take over client settings, and it re-associates any file extension associations for the RemoteApp from the local desktop to the terminal server. This checkbox must be selected if you want users to be able to double-click documents to launch their TS-hosted application. Click Next and Finish to complete the wizard.

  Please Note: -Since Windows2008R2 Terminal Services (TS) is now rebranded to Remote Desktop Services (RDS)

  Source: http://technet.microsoft.com/en-us/query/dd314392

• Question 265:

  A server that runs Windows Server 2008 R2 has the Hyper-V server role installed.

  You create a new virtual machine (VM) and perform an installation of Windows Server 2003 on the VM.

  You need to ensure that you can access files on the Hyper-V server from the VM. You must also prevent access to the external network from the VM.

  What should you do?

  A. On the VM, install the Microsoft Loopback adapter.
  B. On the Hyper-V server, enable the Multipath I/O feature.
  C. On the VM, install Microsoft Hyper-V Integration Components.
  D. On the Hyper-V server, install the Microsoft Loopback adapter.
  C. On the VM, install Microsoft Hyper-V Integration Components.

• Question 266:

  Your network contains two servers named Server1 and Server2 that run Windows Server 2008 R2.

  Server1 is an SMTP server. Server2 has Microsoft SharePoint Foundation 2010 installed. On Server2, you configure Server1 as an outbound email server. You discover that users never receive email alerts and invitations. You need to ensure that users receive email alerts and invitations.

  What should you do?

  A. On Server1, modify the relay restrictions.
  B. On Server1, modify the connection control settings.
  C. On Server2, create a Send To Connection.
  D. On Server2, modify the Mobile Account Settings.
  A. On Server1, modify the relay restrictions.

  ---

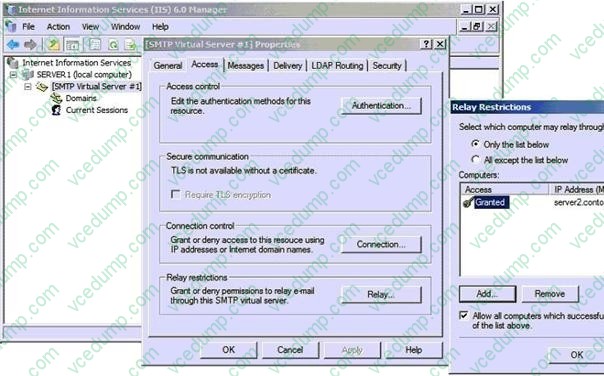

  To change the SMTP Virtual Server Relay Restrictions, one needs to use the Internet Information Servers (IIS) 6.0 Manager. This is an IIS Role Service that needs to be installed (IIS 6 Management Console)



• Question 267:

  Your network contains a server that runs Windows 2008 R2. The disks on the server are configured as shown in the following table.



  Volume D contains shared files and applications. You plan to install an application named App1 on the server. App1 must be installed in D:\App1. App1 requires 75 GB of disk space.

  You need to ensure that the server can support the planned installation of App1. The solution must minimize the impact on all users.

  What should you do?

  A. Configure a striped volume.
  B. Configure a mirrored volume.
  C. Create a mount point.
  D. Create a virtual hard disk (VHD).
  C. Create a mount point.

  ---

  Assign a mount point folder path to a drive

  You can use Disk Management to assign a mount-point folder path (rather than a drive letter) to the drive.

  Mount-point folder paths are available only on empty folders on basic or dynamic NTFS volumes. Backup Operator or Administrator is the minimum membership required.

  Assigning a mount-point folder path to a drive

  1.

  In Disk Manager, right-click the partition or volume where you want to assign the mount-point folder path, and then click Change Drive Letter and Paths.

  2.

  Do one of the following:

  To assign a mount-point folder path, click Add. Click Mount in the following empty NTFS folder , type the path to an empty folder on an NTFS volume, or click Browse to locate it. To remove the mount-point folder path, click it and then click Remove. Source: http://technet.microsoft.com/en-us/library/cc753321.aspx

• Question 268:

  Your network contains two servers named Server1 and Server2 that have the Streaming Media Services server role installed.

  On Server1, you create a new on-demand publishing point that uses a file as a content source.

  You configure Server2 as the cache/proxy server for Server1. The cache is configured as shown in the exhibit (Click the Exhibit button.)

  You need to ensure that client requests for the content on Server1 are served from the cache on Server2.

  What should you do?

  A. On Server1, modify the Cache Expiration Properties.
  B. On Server1, enable the WMS Cache Proxy plug-in.
  C. On Server2, configure Prestuff.
  D. On Server2, modify the query URL.
  C. On Server2, configure Prestuff.

• Question 269:

  Your network contains a Web server named Web1 that runs Windows Server 2008 R2.

  You import an SSL certificate to Web1.

  You need to enable SSL encryption for the Web site.

  What should you do?

  A. Add a new binding to the Web site.
  B. Modify the Server Certificates settings.
  C. Configure the handler mappings for the Web site.
  D. Configure the Machine Key feature for the Web site.
  A. Add a new binding to the Web site.

• Question 270:

  You install the Web Server (IIS) server role on two servers named Server1 and Server2. The servers run Windows Server 2008 R2.

  Your company has a Web site named www.contoso.com hosted on Server1. The Web site is due for maintenance. The Web content must be available during maintenance. You create a mirror Web site located on Server2.

  You need to configure the www.contoso.com site to redirect requests to Server2.

  What should you do first?

  A. Run the appcmd set config /section:httpRedirect /enabled:true command.
  B. Run the appcmd set config /section:httpRedirect /enabled:false command.
  C. Run the appcmd set site /site.name:contoso /-bindings.[protocol='http',www.contoso.com] command.
  D. Run the appcmd set site /site.name:contoso /+bindings.[protocol='http',www1.contoso.com] command.
  A. Run the appcmd set config /section:httpRedirect /enabled:true command.

  ---

  To enable redirection

  You can perform this procedure by running Appcmd.exe commands in a command-line window. Command Line To enable or disable redirection, use the following syntax:

  appcmd set config /section:httpRedirect /enabled:true |false /destination:location By default, the redirection feature is disabled, but you can enable it by specifying true for the enabled attribute and configuring the location to which to redirect

  users in the destination attribute. For example, if you want to enable redirection and redirect users to http://www.contoso.com, type the following at the command prompt, and then press ENTER:

  appcmd set config /section:httpRedirect /enabled:true /destination:http://www.contoso.com

  Source: http://technet.microsoft.com/en-us/library/cc732930(WS.10).aspx
