Microsoft 70-643 Online Practice Questions and Exam Preparation

Microsoft 70-643 Online Questions & Answers

• Question 101:

  Your network contains two servers named Server1 and Server2 that have the Streaming Media Services role installed. Both servers are joined to the same domain. From Server1, you open the Windows Media Services console. You attempt to connect to Server2 and receive the error shown in the following message box.



  You need to ensure that you can remotely administer the Streaming Media Services on Server2 from Server1. What should you do on Server2?

  A. Create an inbound firewall rule for ICMPv4.
  B. Create an inbound firewall rule for TCP port 80.
  C. Run winrm.exe and specify the configsddl parameter.
  D. Run winrm.exe and specify the quickconfig parameter.
  A. Create an inbound firewall rule for ICMPv4.

  ---



• Question 102:

  Your network contains a server named Server1 that runs Windows Server 2008 R2 Service Pack 1 (SP1).

  Server1 contains two dynamic disks named Disk1 and Disk2. Disk1 has a volume that contains critical data. Disk2 does not contain a volume.

  You need to create a mirror of the volume on Disk1.

  Which Diskpart command should you run?

  A. format
  B. retain
  C. merge vdisk
  D. attributes
  E. add
  F. break
  G. GPT
  H. compact vdisk
  I. recover
  J. active
  E. add

  ---

  Mirrors the simple volume with focus to the specified disk. Add disk= [align=] [wait] [noerr]

  To create a mirror of the volume with focus on disk 2, type: Add disk=2 http://technet.microsoft.com/en-us/library/cc754384(v=ws.10).aspx

• Question 103:

  Your network contains an Active Directory domain named adatum.com. the domain contains a server named Server5 that has the Remote Desktop Services (RDS) server role installed and all of the RDS role services installed.

  You have two support Administrators named Admin1 and Admin2, Admin1 and Admin2 connect to Server5 by using Remote Desktop Connections, to run network managementtools

  You need to identify which processes currently run in Admin1's remote Desktop session.

  Which tool should you use?

  A. Regedit
  B. Remote Desktop Gateway Manager
  C. Dism
  D. Rdpsign
  E. Netsh
  F. Remote Desktop Services Manager
  G. Windows System Resource Manager (WSRM)
  H. Rdpinit
  I. Mstsc
  J. Remote Desktop Connection Manager
  J. Remote Desktop Connection Manager

  ---

  Remote Desktop Services Manager

  You can use Remote Desktop Services Manager to view information about and monitor users, sessions, and processes on RD Session Host servers. You can also perform certain administrative tasks; for example, you can disconnect or log off users from their Remote Desktop Services sessions. http://technet.microsoft.com/en-us/library/cc770412.aspx

• Question 104:

  Your network contains an Active directory domain named fabrikam.com. The domain contains a Web server named Web1 that runs Windows Server 2008 R2.

  Web1 contains three Web sites named Corp, Sales, and Marketing.

  You discover that the CPU utilization of web1 is abnormally high.

  You need to identify the amount of memory that each Web site is using.

  Which tool should you use?

  A. Performance Monitor
  B. Component Services
  C. Internet Information Services (IIS) Manager
  D. System Configuration
  C. Internet Information Services (IIS) Manager

  ---

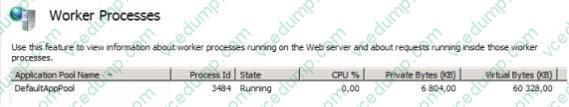

  Performance Monitor - it is not better tool than IIS Manager, because it provides same functionality as "Worker processes" tab in IIS Manager, but in Performance Monitor you need to configure list of counters before you see their values unlike as in IIS Manager, which displays all application pools and they cpu usage in one click. PS. "Web site" is not equal to "application pool", therefore you need to assign separate application pools for each web site.



• Question 105:

  Your network contains two servers named Server1 and Server2. The network contains a Storage Area Network (SAN). Server1 and Server2 each connect to two logical unit numbers (LUNs) on the SAN.

  You create a failover cluster named Cluster1. Server1 and Server2 are nodes in Cluster1. One of the LUNs is used as a witness disk.

  You plan to create 10 virtual machine (VM) instances in Cluster1. You need to ensure that each VM instance can be moved between nodes independently of the other VMs.

  How should you configure Cluster1?

  A. Enable cluster shared volumes.
  B. Modify the quorum configuration.
  C. Create a clustered Generic Service instance.
  D. Create a clustered Microsoft Distributed Transaction Coordinator (MSDTC) resource.
  A. Enable cluster shared volumes.

  ---

  Storage: You must use shared storage that is compatible with Windows Server 2008 R2. A feature of failover clusters called Cluster Shared Volumes is specifically designed to enhance the availability and manageability of virtual machines. Cluster Shared Volumes are volumes in a failover cluster that multiple nodes can read from and write to at the same time. This feature enables multiple nodes to concurrently access a single shared volume. The Cluster Shared Volumes feature is only supported for use with Hyper-V and other technologies specified by Microsoft. On a failover cluster that uses Cluster Shared Volumes, multiple clustered virtual machines that are distributed across multiple cluster nodes can all access their Virtual Hard Disk (VHD) files at the same time, even if the VHD files are on a single disk (LUN) in the storage. This means that the clustered virtual machines can fail over independently of one another, even if they use only a single LUN. When Cluster Shared Volumes is not enabled, a single disk (LUN) can only be accessed by a single node at a time. This means that clustered virtual machines can only fail over independently if each virtual machine has its own LUN, which makes the management of LUNs and clustered virtual machines more difficult.

  For a two-node failover cluster, the storage should contain at least two separate volumes (LUNs), configured at the hardware level. Do not expose the clustered volumes to servers that are not in the cluster. One volume will function as the witness disk (described later in this section). One volume will contain the files that are being shared between the cluster nodes. This volume serves as the shared storage on which you will create the virtual machine and the virtual hard disk. To complete the steps as described in this document, you only need to expose one volume. For Cluster Shared Volumes, there are no special requirements other than the requirement for NTFS.

  For the partition style of the disk, you can use either master boot record (MBR) or GUID partition table (GPT).

  Source: http://technet.microsoft.com/en-us/library/cc732181.aspx

• Question 106:

  Your network contains a Web server that runs Windows Server 2008 R2.

  You need to log all of the configuration changes made from Internet Information Services (IIS) Manager.

  Which tool should you use?

  A. Performance Monitor
  B. Appcmd
  C. Event viewer
  D. Netsh
  B. Appcmd

• Question 107:

  Your company has an Active Directory domain. A server named Server2 runs Windows Server 2008 R2. All client computers run Windows 7.

  You install the Remote Desktop Services server role, RD Web Access role service, and RD Gateway role service on Server2.

  You need to ensure that all client computers have compliant firewall, antivirus software, and antispyware.

  Which two actions should you perform? (Each correct answer presents part of the solution. Choose two.)

  A. Configure Network Access Protection (NAP) on a server in the domain.
  B. Add the Remote Desktop Services servers to the Windows Authorization Access domain local security group.
  C. Add the Remote Desktop Services client computers to the Windows Authorization Access domain local security group.
  D. Enable the Request clients to send a statement of health option in the Remote Desktop client access policy.
  A. Configure Network Access Protection (NAP) on a server in the domain.
  D. Enable the Request clients to send a statement of health option in the Remote Desktop client access policy.

  ---

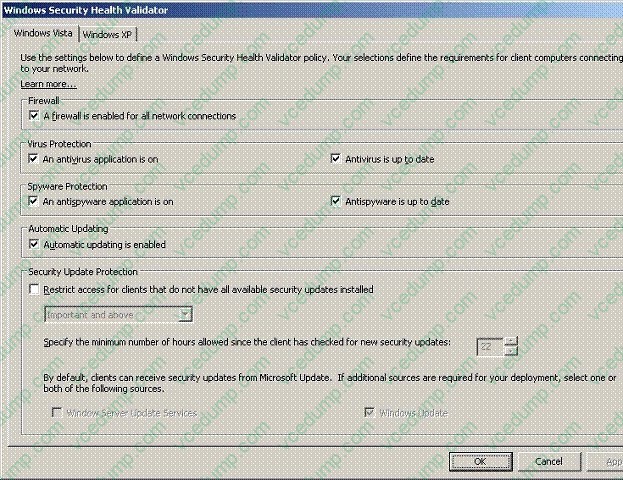

  To ensure that all client machines have firewall, antivirus software and anti-spyware software installed, you should set the Request clients to sent a health option statement in the Remote Desktop Services client access policy and install and configure Network Access Protection (NAP) on the server in the domain.



  Source: http://www.microsoft.com/downloads/en/details.aspx?FamilyID=8e47649e-962c-42f8- 9e6f-21c5ccdcf490anddisplaylang=en

• Question 108:

  You have a Remote Desktop Session Host (RD Session Host) server farm that contains three servers named Server1, Server2, and Server3.

  You need to assign a personal virtual desktop to a user named RDUser1.

  Which tool should you use? (Each correct answer presents a complete solution. Choose two.)

  A. Active Directory Users and Computers
  B. Remote Desktop Connection Manager
  C. Remote Desktop Session Host Configuration
  D. Group Policy Editor
  E. Authorization Manager
  F. Failover Manager
  A. Active Directory Users and Computers
  B. Remote Desktop Connection Manager

  ---

  A: Assign a Personal Virtual Desktop by Using Active Directory Users and Computers

  1.

  Open Active Directory Users and Computers. To open Active Directory Users and Computers, log on to a computer where Active Directory Users and Computers has been installed (for example, on an Active Directory domain controller), click Start, click Run, type dsa.msc and then click OK.

  2.

  Locate the user account to which you want to assign a personal virtual desktop.

  3.

  Right-click the user account, and then click Properties.

  4.

  On the Personal Virtual Desktop tab, select the Assign a personal virtual desktop to this user check box.

  5.

  In the Computer Name box, type the fully qualified domain name (FQDN) of the computer to which you want to assign the user. To search for the name of the computer, click Browse, and then click Advanced to use the Select Computer dialog box to find the computer.

  6.

  Click OK to save your selections and close the Properties dialog box.

  B: To assign a personal virtual desktop by using the Assign Personal Virtual Desktop Wizard

  1.

  On the RD Connection Broker server, click Start, point to Administrative Tools, point to Remote Desktop Services, and then click Remote Desktop Connection Manager.

  2.

  In the Content pane, under the Status heading, under Virtual Desktop Resource: Personal Virtual Desktop for Assign Personal Virtual Desktops, click Assign.

  3.

  On the Assign Personal Virtual Desktop page, click Select User.

  4.

  In the Enter the object name to select box, type the name of the user account, and then click OK.

  5.

  In the Virtual machine list, click the name of the personal virtual desktop that is being configured, and then click Next.

  6.

  Confirm that the User name and Virtual machine boxes are correct, and then click Assign.

  7.

  If you do not want to assign another personal virtual desktop, clear the Assign another virtual machine to another user check box, and then click Finish.

  Note: Assigning a Personal Virtual Desktop

  To specify a virtual desktop to be used by remote desktop users, configure the personal virtual desktop on the RD Connection Broker server and assign it to a remote desktop user.

• Question 109:

  Your network contains a server named Server2 that has the Hyper-V server role installed.

  Server2 has a single-core x64 processor, 4 GB of RAM, and a 500-GB hard disk drive.

  You create a virtual machine (VM) on Server2 and you assign the VM 1 GB of memory.

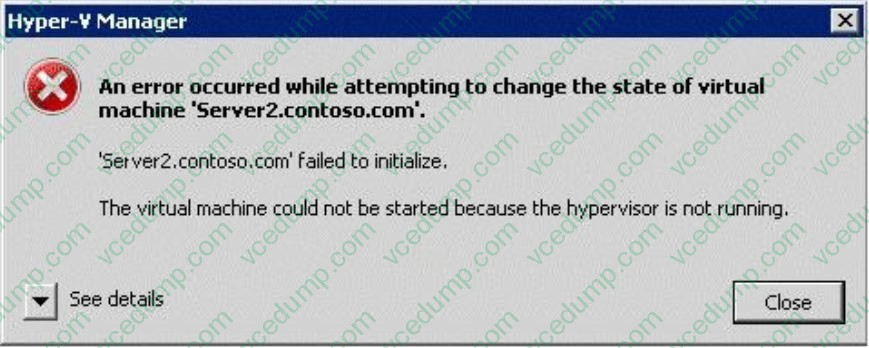

  When you attempt to start the VM, you receive the error message shown in the exhibit. (Click theExhibit button.)



  You need to ensure that you can start the VM on Server2.

  What should you do on Server2? (Each correct answer presents part of the solution. Choose two.)

  A. Add more physical memory.
  B. Enable hardware-assisted visualization in the system BIOS.
  C. Add an additional hard disk drive.
  D. Enable Data Execution Prevention (DEP) in the system BIOS.
  E. Modify the Data Execution Prevention (DEP) settings from the system properties.
  F. Create one virtual network.
  C. Add an additional hard disk drive.
  D. Enable Data Execution Prevention (DEP) in the system BIOS.

• Question 110:

  Your network contains three servers named Server2, Server3, and Server4 that run Windows Server 2008 R2 Service Pack 1 (SP1).

  Each server has the Streaming Media Services server role installed. Server2 is configured as an origin server. Server3 and Server4 are cache/proxy servers.

  You need to configure the limits on Server2 to meet the following requirements:

  -Prevent Server3 from streaming more than 500 Kbps from Server2. -Prevent Server4 from streaming more than 500 Kbps from Server2. -Prevent individual users from streaming more than 250 Kbps from Server2.

  Which two limits should you configure on Server2? (Each correct answer presents part of the solution. Choose two.)

  A. Limit player connections
  B. Limit outgoing distribution connections
  C. Limit bandwidth per outgoing distribution connection (Kbps)
  D. Limit bandwidth per player connection (Kbps)
  E. Limit aggregate outgoing distribution bandwidth (Kbps)
  F. Limit aggregate player bandwidth (Kbps)
  C. Limit bandwidth per outgoing distribution connection (Kbps)
  D. Limit bandwidth per player connection (Kbps)

  ---

  Ref: http://technet.microsoft.com/en-us/library/cc754690 http://technet.microsoft.com/en-us/library/cc731216
