Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 551:

  An engineer builds a new Cisco ACI fabric.

  Which VLAN must be configured as the infrastructure VLAN during the Cisco APIC setup script?

  A. a unique in-band management VLAN
  B. a unique native VLAN
  C. a unique OOB management VLAN
  D. a unique VLAN within the network
  D. a unique VLAN within the network

• Question 552:

  A network engineer is configuring a Cisco MDS 9000 Series Switch in a data center that is prone to sudden surges in network traffic.

  Specific performance metrics must be monitored, and instant notifications must be received when predefined thresholds are exceeded.

  Which SNMP feature must be configured?

  A. inform with a threshold-based alert system
  B. traps to send alerts when thresholds are exceeded
  C. notifications to receive performance metrics
  D. polling at regular intervals to monitor metrics
  B. traps to send alerts when thresholds are exceeded

• Question 553:

  An engineer must configure the order in which the server attempts to boot from available boot device types using Cisco Integrated Management Controller (Cisco IMC). The engineer must change the boot order configuration during the setup and apply the new requirements multiple times. The requirement is to change the Cisco IMC actual boot order so it is different from the configured boot order.

  Which setting accomplishes this goal?

  A. Enable the system to boot with the configured boot order.
  B. Set the boot configuration directly through BIOS.
  C. Apply UEFI Secure Boot for a nonsupported operating system.
  D. Configure the legacy and precision boot order to be mutually exclusive.
  B. Set the boot configuration directly through BIOS.

  ---

  Explanation

  The actual boot order will differ from the configured boot order if either of the following conditions occur:

  The BIOS encounters issues while trying to boot using the configured boot order.

  A user changes the boot order directly through the BIOS

  https://www.cisco.com/en/US/docs/unified_computing/ucs/c/sw/gui/config/guide/1.5/b_Cisco_UCS_C-series_GUI_Configuration_Guide.151_chapter_011.html#concept_25B0E9CD280540E2ADF8A32D92B60612

• Question 554:

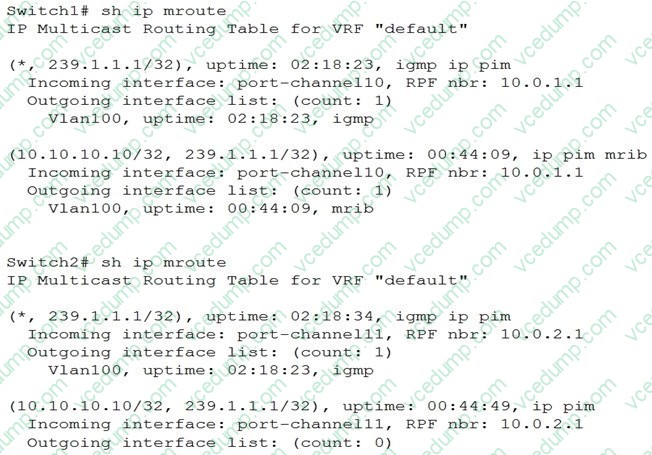

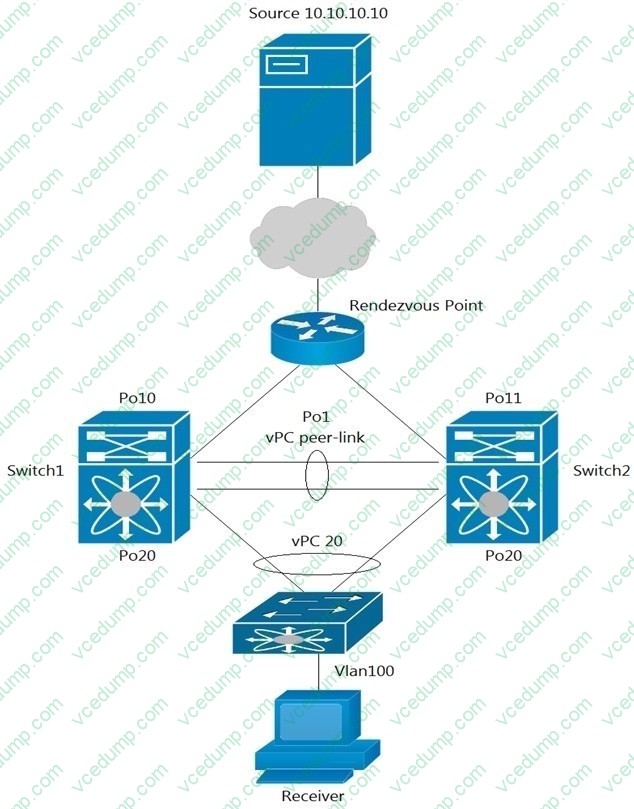

  Refer to the exhibit.





  A host with a source address 10.10.10.10 sends traffic to multicast group 239.1.1.1.

  How do the vPC switches forward the multicast traffic?

  A. If multicast traffic is received on Switch1 over the vPC peer-link, the traffic is dropped
  B. If multicast traffic is received on Po10 Switch1, the traffic is forwarded out on Po1 and Po20
  C. If multicast traffic is received on Po11 Switch2, the traffic is forwarded out only on Po20
  D. If multicast traffic is received on Po11 Switch2, the traffic is dropped.
  D. If multicast traffic is received on Po11 Switch2, the traffic is dropped.

• Question 555:

  DRAG DROP

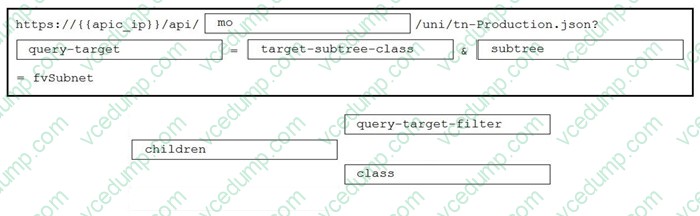

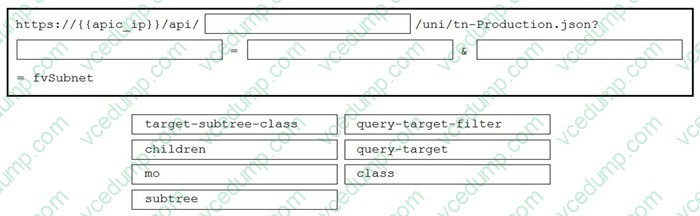

  Drag and drop the keywords onto the URL request to collect all the subnets configured under tenant Production using a REST API. Not all options are used.

  Select and Place:





• Question 556:

  An engineer must perform a configuration backup of an existing Cisco UCS Manager environment. The backup file must contain all vNIC, vHBA, and service profile template settings. Also, the engineer must validate the backup before import and requires an XML output format.

  Which backup type must be used to meet these requirements?

  A. full state
  B. all configuration
  C. logical configuration
  D. system configuration
  C. logical configuration

• Question 557:

  An engineer configured an environment that contains the vPC and non-vPC switches. However, it was noticed that the downstream non-vPC switches do not receive the same STP bridge ID from the upstream vPC switch peers.

  Which vPC feature must be implemented to ensure that vPC and non-vPC switches receive the same STP bridge ID from the upstream vPC switch peers?

  A. peer-switch
  B. peer-gateway
  C. systam-mac 0123.4567.89ab
  D. vpc local role-priority 4000
  A. peer-switch

• Question 558:

  A network architect wants to propose a scalable network monitoring solution in which data is repeatedly acquired from network devices. The solution must use a push model and provide close to realtime access to operational data.

  Which technology must be used to meet these requirements?

  A. streaming telemetry
  B. logging
  C. SNMPv3
  D. CLI-based scripting
  A. streaming telemetry

  ---

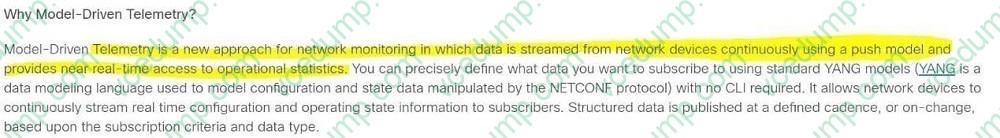

  Explanation

  https://blogs.cisco.com/developer/its-time-to-move-away-from-snmp-and-cli-and-use-model-driven-

  telemetry



• Question 559:

  A network engineer evaluates cloud services for a customer.

  The customer requires the cloud service to provide tools that enable provisioning, customization, scaling, and management of a specific application.

  Which cloud service model meets these requirements?

  A. platform as a service
  B. infrastructure as a service
  C. network as a service
  D. software as a service
  A. platform as a service

• Question 560:

  What is the impact of upgrading the firmware of the Cisco UCS Manager?

  A. The UDP packets destined for the primary fabric interconnect are dropped.
  B. The connected user is logged out and the session is ended.
  C. The connectivity to the fabric interconnects using RDP is unavailable.
  D. Fault suppression is triggered when the upgrade process starts.
  B. The connected user is logged out and the session is ended.
