Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 431:

  An engineer must configure a Cisco UCS blade system that is managed by Cisco UCS Manager. All four connected interfaces between the blade system and the fabric interconnects must be used. Additionally, the connectivity must tolerate any link failure between the l/O module and the fabric interconnects.

  Which action accomplishes these requirements?

  A. Configure port aggregation with LACP policy set to default
  B. Configure Firmware Auto Sync Server policy to Auto Acknowledge
  C. Configure Link Group Preference to Port Channel.
  D. Configure chassis/FEX discovery pokey action to four links
  C. Configure Link Group Preference to Port Channel.

• Question 432:

  DRAG DROP

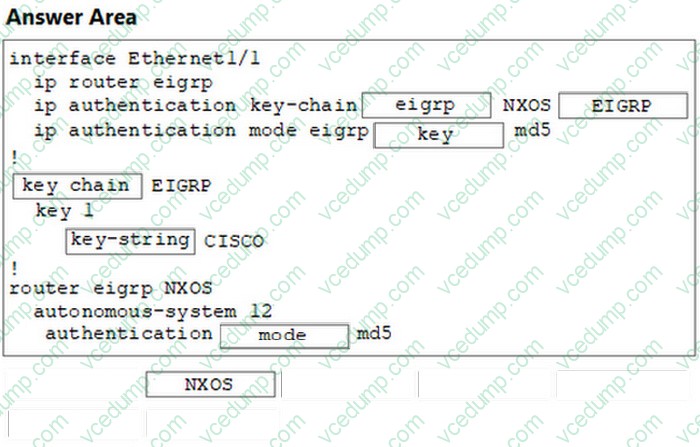

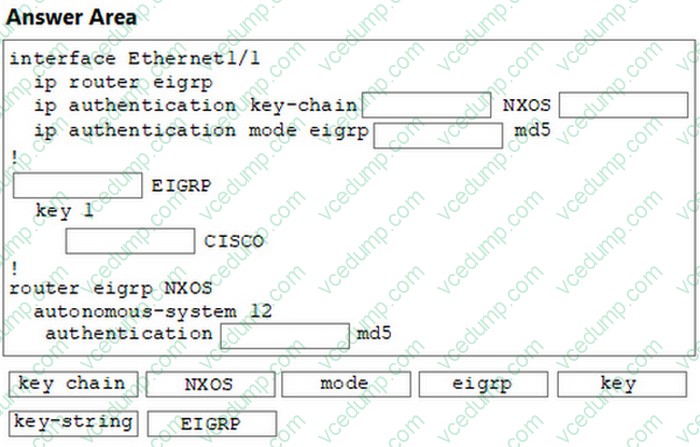

  An engineer must authenticate EIGRP configuration on interface Eth1/1 of the Cisco Nexus 9000 Series Switch. Drag and drop the CU commands from the right to complete the EIGRP key authentication configuration on the left. Not all CLI commands are used.

  Select and Place:





• Question 433:

  Which command must be run before downgrading a Cisco Nexus 9300 Series Switch?

  A. show incompatibility nxos bootflash:filename
  B. show install all impact nxos bootflash:filename
  C. show incompatibility kickstart bootflash:filename
  D. show install all impact kickstart bootflash:filename
  A. show incompatibility nxos bootflash:filename

• Question 434:

  An engineer must configure a new Cisco UCS B-Series infrastructure with a Cisco 5108 chassis. The configuration must meet these requirements:

  1. The setup must use aggregation between Cisco UCS Fabric Interconnects and I/O modules.

  2. The implementation requires four 10 GbE connections per I/O module.

  3. The Cisco UCS Fabric Interconnects must support uplinks of different speeds for future expansion.

  Which two steps must be taken to meet these requirements? (Choose two.)

  A. Reacknowledge the chassis after the initial discovery.
  B. Set IOM link pinning in Global Policies.
  C. Configure unified ports for the chassis.
  D. Set Link Group Preference to Port Channel.
  E. Disable Auto Configure Server Port.
  A. Reacknowledge the chassis after the initial discovery.
  D. Set Link Group Preference to Port Channel.

• Question 435:

  Which two authentication types does Cisco UCS Manager support when configuration authentication? (Choose two.)

  A. local
  B. LDAP
  C. 802.1X
  D. Kerberos
  E. PAM
  A. local
  B. LDAP

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Admin-Management/3-2/b_Cisco_UCS_Admin_Mgmt_Guide_3_2/b_Cisco_UCS_Admin_Mgmt_Guide_3_2_chapter_0101.html

• Question 436:

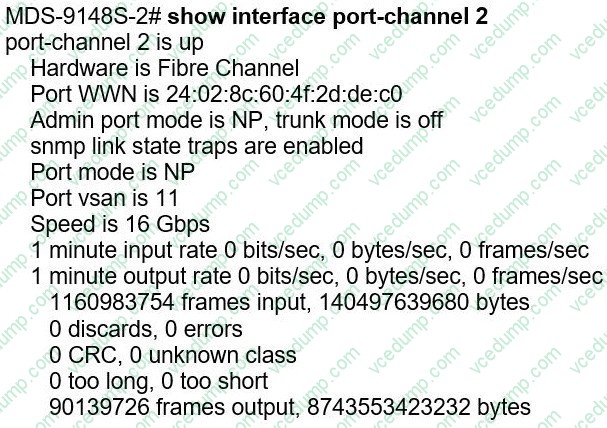

  Which FC mode is the device MDS-9148S-2 operating in?



  A. FDISC
  B. NPV
  C. NPIV
  D. FPMA
  B. NPV

  ---

  Explanation

  Device is a npv edge device: NP port connects to a F port on the core

• Question 437:

  Refer to the exhibit.

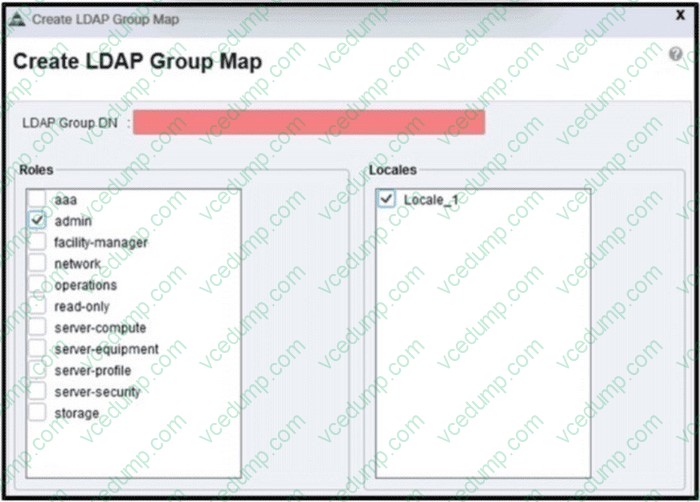

  Which value must be added to the LDAP provider to complete the LDAP group map configuration in Cisco UCS Manager?

  A. CN=ucsbind.OU=UCS,DC=Sigtranlab.DC=com
  B. LDAP_Sigtran
  C. sAMAccountName=$userid
  D. DC=Sigtranlab.DC=com
  B. LDAP_Sigtran

• Question 438:

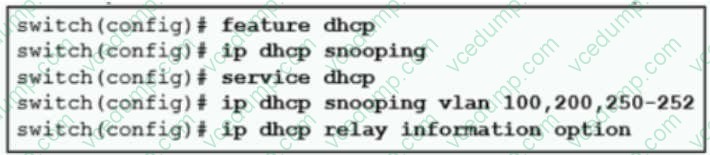

  Refer to the exhibit.

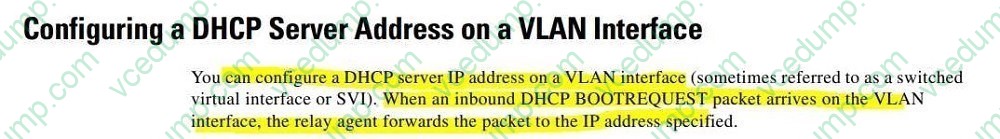

  Which action is taken to ensure that the relay agent forwards the DHCP BOOTREQUEST packet to a DHCP server?

  A. Configure the interface of the DHCP server as untrusted.
  B. Configure the IP address of the DHCP server.
  C. Enable the DHCP relay agent.
  D. Verify the DHCP snooping bindings.
  B. Configure the IP address of the DHCP server.

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/4_0/dcnm/security/configuration/guide/sec_dcnm_config/sec_dhcpsnoop.pdf



• Question 439:

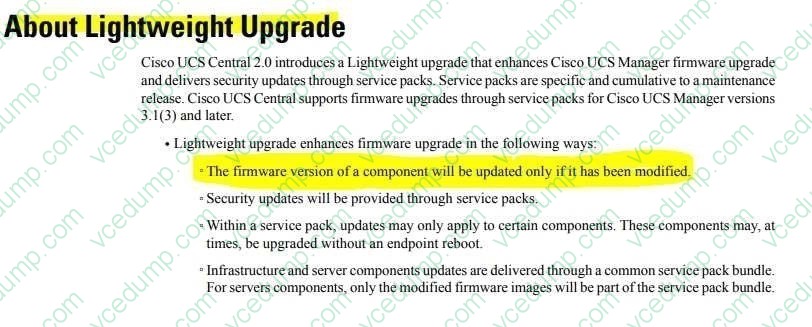

  What is a benefit of using the Cisco UCS Lightweight upgrade feature?

  A. Security updates are scheduled with the next reboot of the fabric interconnects.
  B. The firmware version of a component is updated only when it has been modified
  C. All servers are rebooted to push the latest updates.
  D. A soft reboot is available for the fabric interconnects.
  B. The firmware version of a component is updated only when it has been modified

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-central/GUI-User-Guides/Administration/2-0/b_CiscoUCSCentral_AdministrationGuide-2-0/b_CiscoUCSCentral_AdministrationGuide-2-0_chapter_01000.pdf



• Question 440:

  The Cisco Nexus 5600 Series Switch experiences occasional packet drops on interface ethernet 1/16. An engineer wants to implement a SPAN session to investigate the issue further. The network analyzer to which the packets must be directed is located on interface 1/3. The analyzer is limited on disk space available for traffic capture, so the Nexus switch should send only the relevant data.

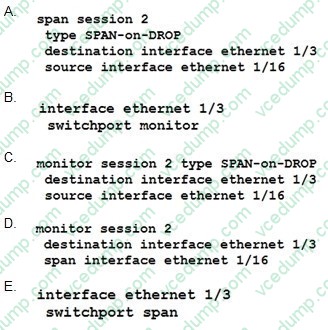

  Which two command sets configure the SPAN session that meets these requirements? (Choose two.)



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  E. Option E
  B. Option B
  C. Option C

  ---

  Explanation

  https://www.cisco.com/c/en/us/products/collateral/switches/nexus-5000-series-switches/white-paper-c11-733022.html

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus6000/sw/system_management/6x/b_6k_System_Mgmt_Config_6x/b_6k_System_Mgmt_Config_602N11_chapter_01111.pdf

  The information to be sent is regarding dropped packets only.
