Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 301:

  Which feature must be enabled to support the use of JSON and XML encoding when a Cisco Nexus 7000 series switch is deployed?

  A. NX-API
  B. LLDP
  C. Open Agent Container
  D. Bash shell
  A. NX-API

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus7000/sw/programmability/guide/cisco_nexus7000_programmability_guide_8x/b-cisco-nexus7000-programmability-guide-8x_chapter_011.html

• Question 302:

  Which file service protocol allows the files to appear locally mapped to the client and provides view, store, and update capabilities on a remote Linux-based storage repository that also serves as a distributed file system standard for NAS?

  A. NFS
  B. FTP
  C. iSCSI
  D. IFS
  A. NFS

• Question 303:

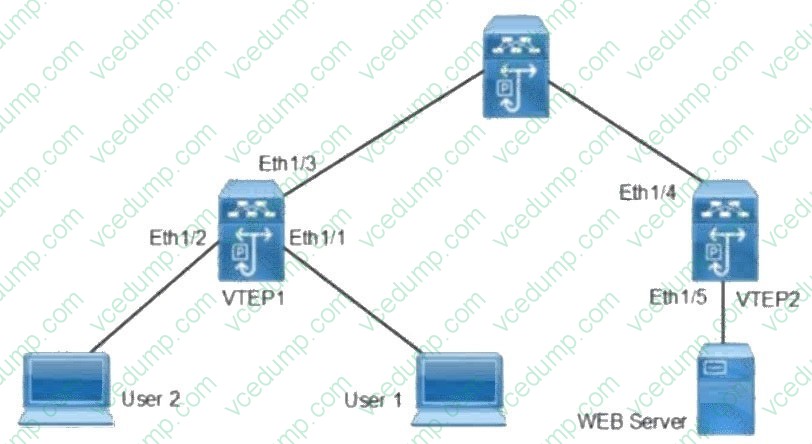

  Refer to the exhibit.



  User 1 and user 2 are connected to the VTEP1 switch.

  The users can reach the WEB server.

  A monitoring tool shows degrading network performance that consumes the interface bandwidth between VTEP1 and the spine switch.

  An engineer noticed that user 1 sends many ARP requests.

  Which command set on VTEP1 mitigates the issue without preventing user 1 from sending ARP requests?

  A. interface eth1/3 storm-control multicast level 40
  B. interface eth1/1 storm-control multicast level 40
  C. interface eth1/3 storm-control broadcast level 0
  D. interface eth 1/1 storm-control broadcast level 40
  B. interface eth1/1 storm-control multicast level 40

• Question 304:

  A customer requires a solution to orchestrate the configuration of storage arrays, firewalls, and Cisco ACI networking. Additionally, the orchestration product must support open automation and a service catalog.

  Which solution meets these requirements?

  A. Cisco UCS Director
  B. Cisco Intersight
  C. Cisco Data Center Network Manager
  D. Cisco Workload Optimization Manager
  A. Cisco UCS Director

• Question 305:

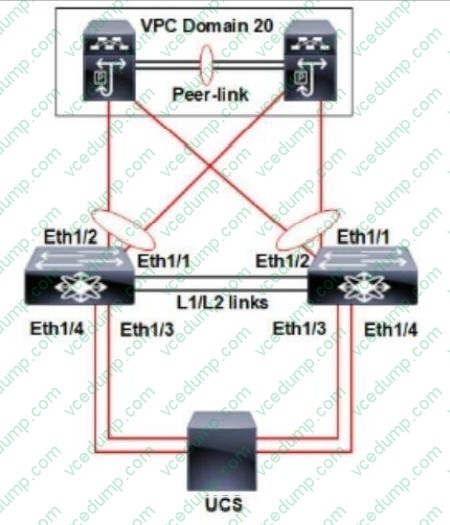

  Refer to the exhibit.



  A pair of Cisco Nexus switches form a vPC. A new chassis s added to the pre-existing Cisco UCS domain. A new chassis must be discovered, and all links from the chassis to the LAN network must be established.

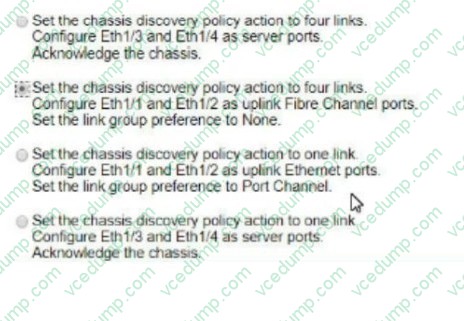

  Which set of actions accomplishes these requirements?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  C. Option C

• Question 306:

  An engineer installed a new Nexus switch with the mgm0 interface in vrf management. Connectivity to the rest of the network needs to be tested from the guest shell of the NX-OS.

  Which command tests connectivity from the guest shell of the NX-OS?

  A. [guestshell@guestshell ~]$ dohost ''ping vrf management 173.37.145.84''
  B. [guestshell@guestshell ~]$ chvrf management ping 173.37.145.84
  C. [guestshell@guestshell ~$ ping 173.37.145.84 vrf management
  D. [guestshell@guestshell ~]$ iping vrf management ip 173.37.145.84
  B. [guestshell@guestshell ~]$ chvrf management ping 173.37.145.84

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/programmability/guide/b_Cisco_Nexus_9000_Series_NX-OS_Programmability_Guide_7x/Guest_Shell.html

• Question 307:

  A bridge domain is being extended out of a Cisco ACI fabric.

  Between which of these components are policies used to identify the connectivity between Endpoint Groups and the external connection?

  A. an external bridge domain and an external routed domain
  B. internal contracts and external contracts
  C. internal EPGs and external EPGs
  D. L2Out and L3Out
  C. internal EPGs and external EPGs

• Question 308:

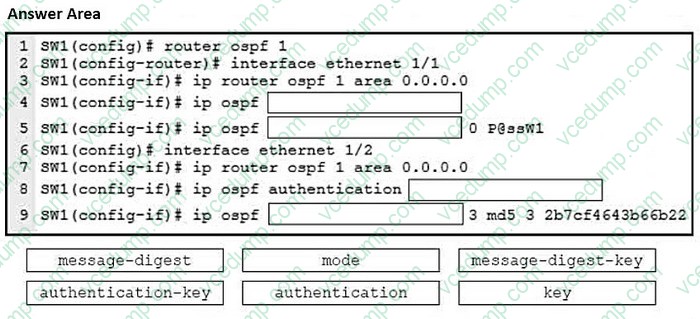

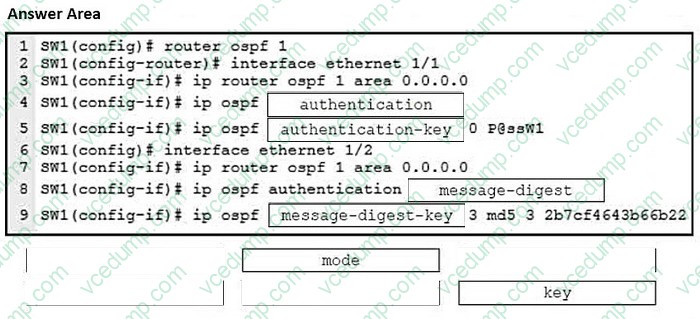

  DRAG DROP

  An engineer must authenticate OSPF on interfaces of the Cisco Nexus 9000 Series Switch so that:

  1. eth1/1 uses clear text password.

  2. eth1/2 uses encrypted md5 password.

  Drag and drop the commands from the bottom onto the boxes in the code to complete the configuration. Not all commands are used.

  Select and Place:





• Question 309:

  Which two statements about the process of performing an EPLD upgrade on a Cisco MDS 9000 series Switch are true? (Choose two.)

  A. If an upgrade is interrupted, the upgrade continues after a connection is restored.
  B. The upgrade can be performed from the standby supervisor module.
  C. The active supervisor can be upgraded.
  D. Modules must be online to be upgraded.
  E. The Upgrade process disrupts only the module that is being upgraded.
  B. The upgrade can be performed from the standby supervisor module.
  E. The Upgrade process disrupts only the module that is being upgraded.

  ---

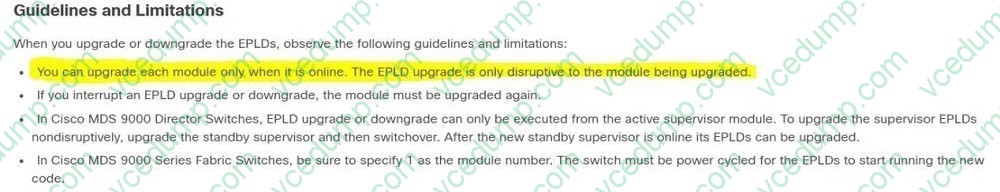

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/release_notes/epld/epld_rn_8x.html



• Question 310:

  A content delivery network sends video traffic to a multicast distribution device where the receiver requests the traffic from the multicast distribution device through an IGMP join message. When the traffic reaches the multicast distribution device from a CDN, the switching network populates the multicast routing table in the group (S,G), and the multicast distribution device sends the required traffic back to the receiver.

  Which feature is used to send back the traffic from the streamer to the receiver in the group (S,G)?

  A. RP
  B. Source Specific Multicast
  C. Reverse Path Forwarding
  D. IGMP
  B. Source Specific Multicast
