Cisco 350-601 Online Practice Questions and Exam Preparation

Cisco 350-601 Online Questions & Answers

• Question 111:

  What is the benefit of using the Cisco Nexus Dashboard single sign-on feature?

  A. It provides notifications about end of sale for the deployed switches.
  B. It adds a security layer based on multifactor authentication.
  C. It manages operations of the infrastructure using a single pane of glass.
  D. It allows the user to switch seamlessly between the hosted services.
  D. It allows the user to switch seamlessly between the hosted services.

• Question 112:

  An engineer configures user authentication on Cisco UCS Manager to ensure that the user and roles can be saved on the external server and secured using authentication.

  Which set of actions meets these requirements?

  A. Implement a logical configuration backup and configure the HTTPS protocol.
  B. Configure a full state backup and implement an FTP protocol.
  C. Perform a system configuration backup and use the SCP protocol.
  D. Deploy an all configuration backup and implement a TFTP protocol.
  C. Perform a system configuration backup and use the SCP protocol.

• Question 113:

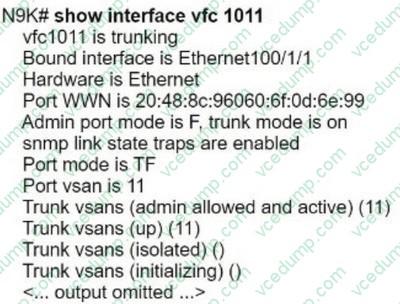

  Based on this output, which storage protocol is used?



  A. NFSv4
  B. iSCSI
  C. FCoE
  D. SMB
  C. FCoE

• Question 114:

  A network architect must design an automation solution to initially support networking and also support the server infrastructure in the future. To keep configuration consistency, the network team requires a solution that enforces the desired state of the network and reverts any manual configuration.

  Which solution meets these goals?

  A. NX-API
  B. Ansible
  C. Terraform
  D. Puppet
  D. Puppet

• Question 115:

  Several production and development database servers exist in the same EPG and IP subnet. The IT security policy is to prevent connections between production and development.

  Which attribute must be used to assign the servers to different microsegments?

  A. Data center
  B. VMM domain
  C. VM name
  D. IP address
  C. VM name

  ---

  Explanation

  https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/3-x/virtualization/b_ACI_Virtualization_Guide_3_0_1/b_ACI_Virtualization_Guide_3_0_1_chapter_0100.html

• Question 116:

  What occurs during a scheduled electronic programmable logic device (EPLD) update of a Cisco fabric switch supervisor module?

  A. All traffic through the system is stopped for the duration of the update, and the switch is power cycled after the upgrade is complete.
  B. All control plane traffic is stopped for the duration of the update, and the switch remains operational for the duration of the upgrade.
  C. The redundant supervisor module takes over for the duration of the update, there is no service disruption.
  D. The redundant supervisor module takes over for the duration of the update, and the switch is rebooted after the upgrade is complete.
  C. The redundant supervisor module takes over for the duration of the update, there is no service disruption.

• Question 117:

  DRAG DROP

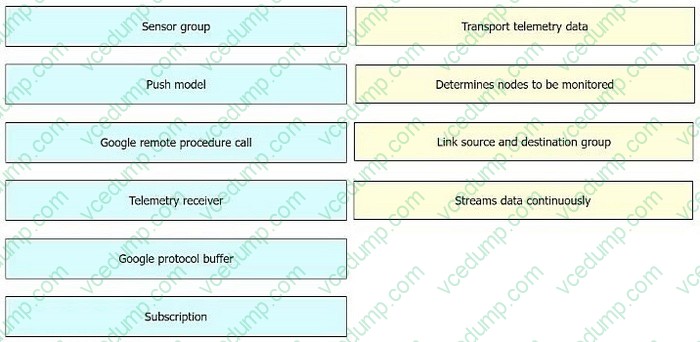

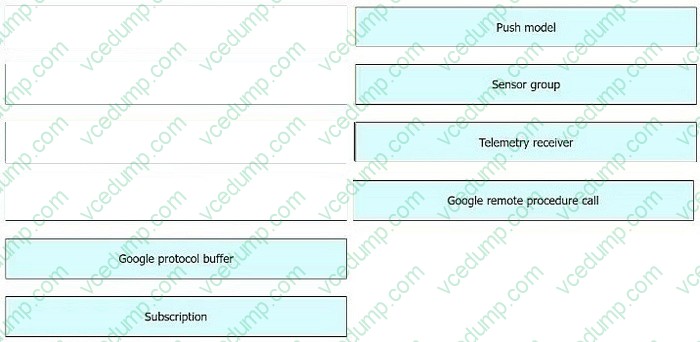

  Drag and drop the streaming telemetry component on the left to its function on the right. Not all components are used.

  Select and Place:





• Question 118:

  A customer asks an engineer to develop a framework that will be used to replace the process of the manual device configuration of Cisco NX-OS devices. The engineer plans to use the programmatic interface that meets these requirements:

  1. The development team is familiar with Windows-based scripting environment using PowerShell.

  2. The customer's security requirements mandate the use of HTTPS transport.

  Which solution must be used to meet these requirements?

  A. NETCONF-YANG
  B. NX-API
  C. VISORE
  D. Open Agent Container
  B. NX-API

• Question 119:

  An engineer must connect a Cisco UCS appliance port directly to NFS and iSCSI storage devices.

  Which action should be taken to achieve this goal?

  A. Configure NFS and iSCSI to use the same VLAN tag on the appliance port
  B. Configure the appliance ports in access mode and apply VLAN tagging on the storage
  C. Configure the appliance ports in trunk mode and apply VLAN tagging on the storage
  D. Configure VLAN tagging on the storage and the Cisco UCS simultaneously
  C. Configure the appliance ports in trunk mode and apply VLAN tagging on the storage

• Question 120:

  What is the advantage of using the NFS protocol versus the ISCSI or FCoE SAN protocols?

  A. NFS requires an AAA server.
  B. NFS is more sensitive to latency.
  C. NFS natively provides encryption as the default
  D. NFS provides easy file sharing
  D. NFS provides easy file sharing
