Cisco 350-080 Online Practice Questions and Exam Preparation

Cisco 350-080 Online Questions & Answers

• Question 331:

  Refer to the exhibit.



  An administrator is setting up the VSM and VEM in Layer 3 mode. The administrator adds a host to the distributed switch in VMware, but does not see the module join the VSM. Given the configuration in the exhibit, which configuration needs to be included?

  A. ip route 0.0.0.0 0.0.0.0 10.10.10.1
  B. vrf context control ip route 0.0.0.0 0.0.0.0 10.10.10.1
  C. vrf context management ip route 0.0.0.0 0.0.0.0 10.10.10.1
  D. ip route vrf management 0.0.0.0 0.0.0.0 10.10.10.1
  A. ip route 0.0.0.0 0.0.0.0 10.10.10.1

• Question 332:

  Which of the following is an advanced networking function performed by VEM?

  A. QOS.
  B. Snooping.
  C. VSAN creation.
  D. VLAN pruning.
  A. QOS.

• Question 333:

  Overlay Transport Virtualization (OTV) overlay interface is a logical multi access and multicast-capable interface that must be explicitly defined by the user and where the entire OTV configuration is applied.

  Which statements are true about OTV overlay interface? (Choose two.)

  A. When an OTV edge device receives a Layer 2 frame destined for a remote data center site, the frame is logically forwarded to the overlay interface.
  B. The OTV edge device performs the dynamic OTV encapsulation on the Layer 2 packet and sends it to the join interface toward the routed domain.
  C. When the OTV edge device receives a Layer 2 frame destined for a remote data center site, the frame is logically forwarded to the join interface.
  D. The OTV edge device performs the dynamic OTV encapsulation on the Layer 2 packet and sends it to the overlay interface toward the routed domain.
  A. When an OTV edge device receives a Layer 2 frame destined for a remote data center site, the frame is logically forwarded to the overlay interface.
  B. The OTV edge device performs the dynamic OTV encapsulation on the Layer 2 packet and sends it to the join interface toward the routed domain.

• Question 334:

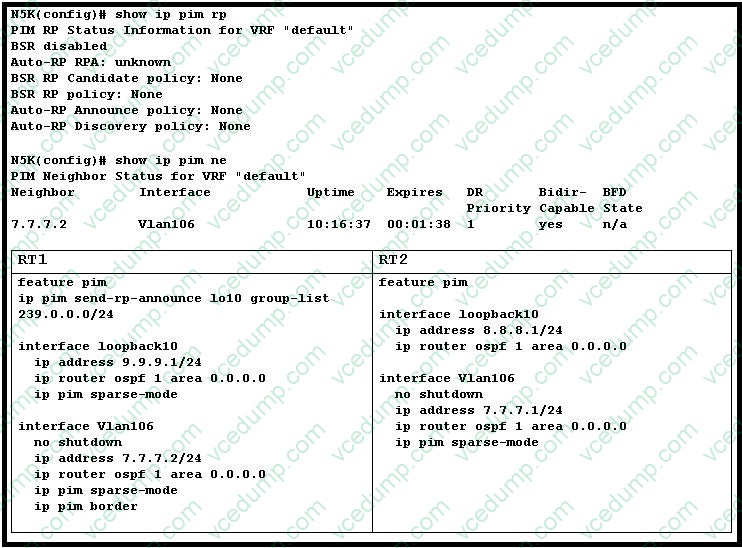

  Refer to the exhibit.



  The customer is trying to configure a rendezvous point, but for some reason it is failing. Which configuration should be applied on both Nexus devices to configure the rendezvous point?

  A. RT-2(config)#ip pim send-rp-discovery loopback10 RT-2(config)#interface lo0
  B. RT-2(config-if)#ip pim-sparse RT-2(config)#ip pim send-rp-announce lo10 group-list 239.0.0.0/24 RT-2(config)#interface lo0 RT-2(config-if)#ip pim-sparse
  C. RT-2(config)#ip pim send-rp-discovery loopback10 RT-2(config)#interface lo0 RT-2(config-if)#ip pim-sparse
  D. RT-1(config)#interface Vlan106 RT-1(config-if)#no ip pim border RT-2(config)# ip pim send-rp-announce lo10 group-list 239.0.0.0/24 RT-2(config)#interface lo0 RT-2(config-if)#ip pim-sparse
  E. RT-1(config)#interface Vlan106
  F. RT-1(config-if)#no ip pim border RT-2(config)# ip pim send-rp-discovery loopback10
  G. RT-1(config)#interface Vlan106 RT-1(config-if)#no ip pim border
  C. RT-2(config)#ip pim send-rp-discovery loopback10 RT-2(config)#interface lo0 RT-2(config-if)#ip pim-sparse

• Question 335:

  Cisco NX-OS Software supports SNMPv1, SNMPv2c, and SNMPv3. Both SNMPv1 and SNMPv2c use a community-based form of security. SNMPv3 provides secure access to devices by a combination of authenticating and encrypting frames over the network. Which security features are provided in Cisco NX-OS SNMPv3? (Choose three.)

  A. encryption--scrambles the packet contents to prevent them from being seen by unauthorized sources
  B. password--a password (community string) sent in clear text between a manager and agent for added protection
  C. authentication--determines that the message is from a valid source
  D. message integrity--ensures that a packet has not been tampered with while it was in transit
  E. user--to determine if user authentication is used instead of community strings
  A. encryption--scrambles the packet contents to prevent them from being seen by unauthorized sources
  C. authentication--determines that the message is from a valid source
  D. message integrity--ensures that a packet has not been tampered with while it was in transit

• Question 336:

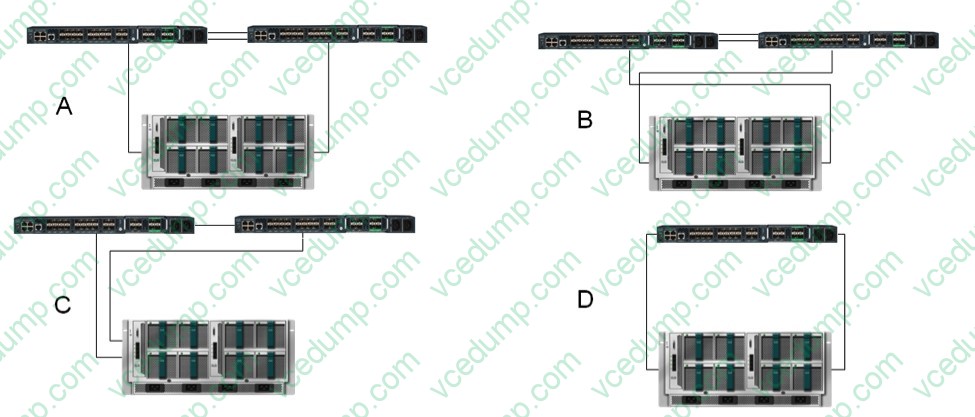

  Refer to the exhibit.



  Which option is valid for connecting the fabric interconnects to the I/O module?

  A. A, B, C, and D are valid.
  B. A and B are valid.
  C. A, B, and D are valid.
  D. Only A is valid.
  B. A and B are valid.

• Question 337:

  Which two statements about NPIV are true? (Choose two.)

  A. After enabling NPIV, switch interfaces can only be placed into NP, F, or SD modes of operation.
  B. NPV devices log in to NPIV devices.
  C. NPIV requires the Enterprise License Package.
  D. NPIV is supported on the Cisco MDS, N7K, and N5K families of switches.
  E. A director class switch should not be placed into NPIV mode.
  B. NPV devices log in to NPIV devices.
  D. NPIV is supported on the Cisco MDS, N7K, and N5K families of switches.

• Question 338:

  You find that a vFC interface is down. Although the switch sent a VLAN response, the response was not received by the CNA, which caused the vFC interface to go down. Which statement describes the most probable cause of this problem?

  A. DCBX is misconfigured.
  B. CNA does not support FCoE.
  C. CoS settings are mismatched between the switch and the host.
  D. The VLAN ID of the bound interface to the vFC is a non-FCoE VLAN ID.
  E. There is a firmware issue on the FCoE driver.
  D. The VLAN ID of the bound interface to the vFC is a non-FCoE VLAN ID.

• Question 339:

  DHCP snooping on Cisco Nexus 1000V Series Switches acts like a firewall between untrusted hosts and trusted DHCP servers by doing which of these? (Choose three.)

  A. validates DHCP messages received from untrusted sources and filters out invalid response messages from DHCP servers
  B. intercepts all ARP requests and responses on untrusted ports
  C. builds and maintains the DHCP snooping binding database, which contains information about untrusted hosts with leased IP addresses
  D. uses the DHCP snooping binding database to validate subsequent requests from untrusted hosts
  E. limits IP traffic on an interface to only those sources that have an IP-MAC address binding table entry or static IP source entry
  A. validates DHCP messages received from untrusted sources and filters out invalid response messages from DHCP servers
  C. builds and maintains the DHCP snooping binding database, which contains information about untrusted hosts with leased IP addresses
  D. uses the DHCP snooping binding database to validate subsequent requests from untrusted hosts

• Question 340:

  2012 Feb 23 23:00:08.676710 pim: [16132] (default-base) Received unauthenticated hello- message from 10.1.1.2 on Ethernet1/18, message discarded

  2012 Feb 23 23:00:12.528763 pim: [16132] (default-base) Send Hello with AH on Ethernet1/18 from 10.1.1.1, holdtimE. 105 secs, dr-priority: 1

  You are troubleshooting a PIM neighbor adjacency that is not coming up. You issued the command show ip pim neighbor e1/18 and confirmed there is no PIM neighbor on the interface.

  What is the problem based on the debug output?

  A. The peer router 10.1.1.2 has PIM disabled on its interface connecting to Ethernet1/18.
  B. The peer router 10.1.1.2 has the wrong PIM password configured on its interface connecting to Ethernet1/18.
  C. The local router 10.1.1.1 has the wrong PIM password configured on Ethernet1/18.
  D. The peer router 10.1.1.2 does not have PIM hello authentication enabled on its interface connecting to Ethernet1/18.
  E. The local router 10.1.1.1 does not have PIM hello authentication enabled for Ethernet1/18.
  D. The peer router 10.1.1.2 does not have PIM hello authentication enabled on its interface connecting to Ethernet1/18.
