Cisco 350-080 Online Questions & Answers

• Question 321:

  An admin is updating an existing Cisco UCS environment to accommodate a new storage array that will be directly attached to the Cisco UCS.

  Unmanaged servers external to the Cisco UCS fabric interconnects will also access the new array existing Cisco UCS service profiles will be used to access the new storage array.

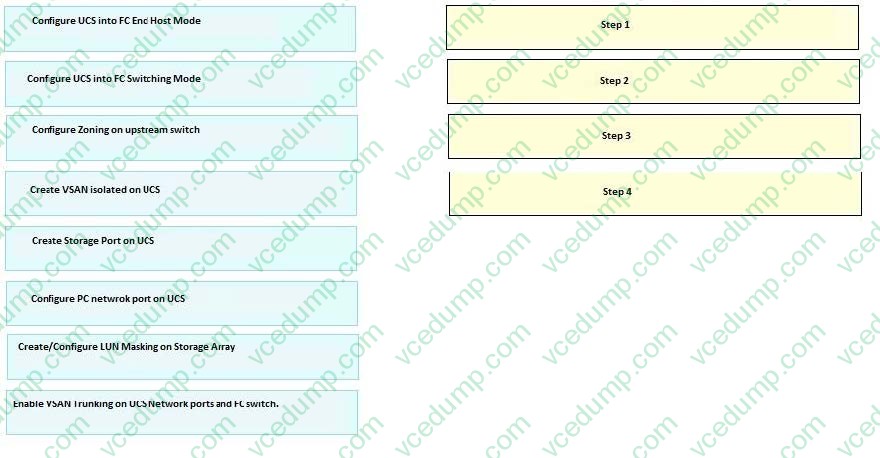

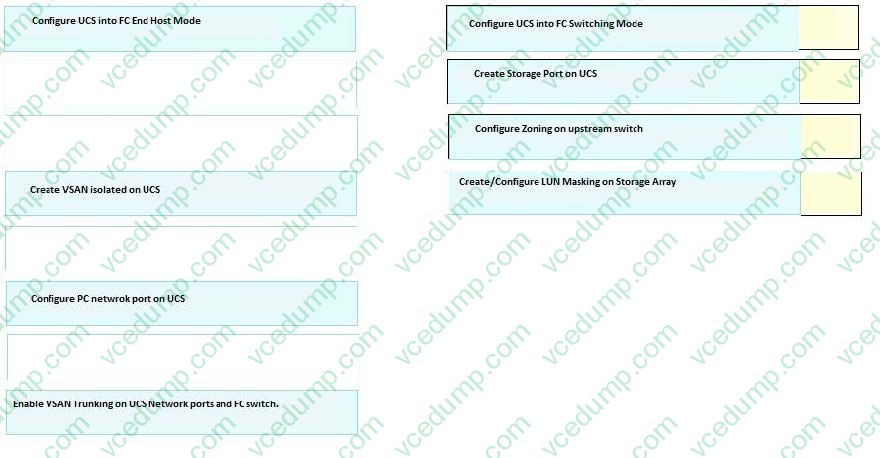

  Drag and drop the appropriate steps from left into the correct order on the right to migrate the Cisco UCS to support the new storage array.

  Select and Place:





• Question 322:

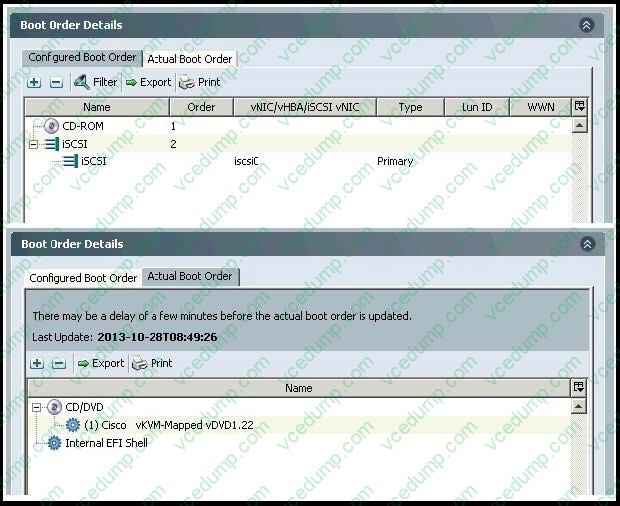

  Refer to the exhibit.



  You have associated a newly created service profile to a blade. When you examine the configured boot order and actual boot order, they do not match. Which two statements describe reasons for this mismatch? (Choose two.)

  A. Having a single iSCSI boot target would prevent the profile from associating, and would generate a configuration error.
  B. The server must complete a POST cycle before Cisco UCS Manager will update this information.
  C. The blade needs to be reacknowledged.
  D. The server is in the process of a firmware upgrade.
  E. There may be a configuration error in the service profile.
  B. The server must complete a POST cycle before Cisco UCS Manager will update this information.
  E. There may be a configuration error in the service profile.

• Question 323:

  The network administrator is adding a new N1Kv to the vCenter, however, the administrator does not see the new switch under the networking tab of vCenter. The administrator issues the following command on the VSM to troubleshoot: VSM# show svs connections connection VC: ip address: 10.10.10.30 remote port: 80 protocol: vmware-vim https certificatE. default datacenter namE. DC1 DVS uuiD. 67 32 30 50 a6 d2 49 64-9e 1c 5f 49 e3 af 55 99 config status: Disabled operational status: Disconnected sync status: version: When attempting to fix the issue, the following error is seen: VSM-PRI-188# conf VSM-PRI-188(config)# svs connection VC

  VSM-PRI-188(config-svs-conn)# connect ERROR: [VMWARE-VIM] Extension key was not registered before its use What is the cause of the error?

  A. Missing control VLAN in VSM configuration
  B. Missing packet VLAN in VSM configuration
  C. VSM has no network connection to vCenter
  D. VSM extension key is not installed on vCenter
  E. vCenter extension key is not installed on VSM
  D. VSM extension key is not installed on vCenter

• Question 324:

  Which two port profiles are used in VSM? (Choose two.)

  A. VEM
  B. VMkernels
  C. Ethernet
  D. vEthernet
  E. vNIC
  C. Ethernet
  D. vEthernet

• Question 325:

  Refer to the exhibit.



  The interface remains in a down state after entering the command that is shown in the exhibit. What is the cause of the problem?

  A. The feature interface-vlan command must be configured.
  B. The VDC contains only F1 interfaces.
  C. There are IP address conflicts.
  D. The VDC is "type OTV."
  E. The command copy run start was not entered.
  B. The VDC contains only F1 interfaces.

• Question 326:

  When a host Cisco Network Assistant is attached to two different Cisco Nexus 5000 Series Switches is a requirement of the host NIC interfaces when attempting to use FCoE from the host?

  A. LACP is the only method to enable the host-side NIC teaming for FCoE.
  B. The host/NICs must be capable of supporting link aggregation.
  C. LACP mode "vPC" is the correct Cisco Network Assistant parameter configuration.
  D. The host-side NIC team name must match what is configured in the vPC peers.
  E. The NIC drivers must be configured for the "Cisco vPC option" = on
  B. The host/NICs must be capable of supporting link aggregation.

• Question 327:

  What is the correct order for FIP virtual establishment?

  A. VLAN discovery, FCF discovery, FLOGI and FDISC, FC command
  B. FCF discovery, VLAN discovery, FLOGI and FDISC, FC command
  C. VLAN discovery, FCF discovery, FLOGI and FDISC
  D. FCF discovery, solicitation and advertisement, FLOGI and FDISC, FC command
  A. VLAN discovery, FCF discovery, FLOGI and FDISC, FC command

• Question 328:

  Which statement about NPIV is true?

  A. NPIV provides a means to assign multiple Fibre Channel IDs to a single N-port.
  B. NPIV can be enabled on a per-VSAN basis.
  C. NPIV requires a "write erase" and then reload the switch in order to come up into NPIV mode.
  D. NPIV is a Cisco proprietary feature and as such works only between two Cisco switches.
  E. NPIV must not be enabled on a switch that is also running N-port virtualization.
  A. NPIV provides a means to assign multiple Fibre Channel IDs to a single N-port.

• Question 329:

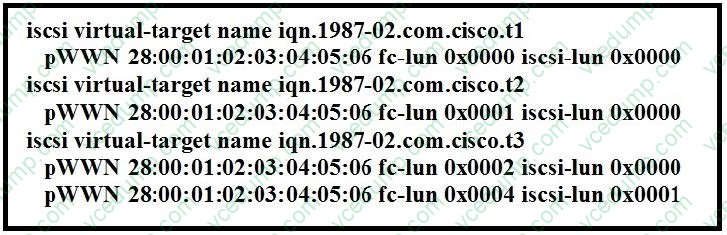

  Refer to the exhibit.



  Based on above MDS iSCSI configuration, which two statements are true? (Choose two.)

  A. The iSCSI initiator at name iqn 1987-02.com.cisco.t2 has access to only one LUN
  B. The iSCSI initiator and iSCSI target iqn.1987-02.com.cisco.t3 must be in the same zone before LUNS areavailable to host.
  C. The iSCSI initiator that connects to target name iqn.1987-02.com.cisco_t3 will see two LUNS numbered as2 and 4.
  D. The iSCSI initiator that connects to target name iqn.1987-02.com.cisco.t3 will see two LUNS as numbers 0and 4.
  E. The FC lun 0x0000 mapping to iscsi-lun 0x0000 is not permitted.
  B. The iSCSI initiator and iSCSI target iqn.1987-02.com.cisco.t3 must be in the same zone before LUNS areavailable to host.
  C. The iSCSI initiator that connects to target name iqn.1987-02.com.cisco_t3 will see two LUNS numbered as2 and 4.

• Question 330:

  Which three options describe information that can be captured with the show iscsi stats iscsi x/y detail command? (Choose three.)

  A. PDU or frame drop occurrences
  B. speed of the iSCSI interface
  C. data CRC error
  D. buffer credits
  E. TMF-REQ and TMF-RESP
  F. duplex of the iSCSI interface
  A. PDU or frame drop occurrences
  C. data CRC error
  E. TMF-REQ and TMF-RESP
